Vertical Autoclave Supplier from Ghaziabad

Laboz Inc. is the leading manufacturer, supplier and exporter of Laboratory Products, Medical Products, Dental Equipments, Autoclave and Dental Chair such as 3 Ply Face Mask, Digital Glucometer, Cotton Medical Apron and much more. Our company is based in Ghaziabad, Uttar Pradesh and was established in the year 2010. Our utmost priority is to provide quality products to our customers and also first-class customer services. Healthcare equipment and supplies are prohibitively expensive for several caregiving facilities and there is an extreme lack of responsiveness and transparency.<br><br>

Laboz
Download Presentation

Vertical Autoclave Supplier from Ghaziabad

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

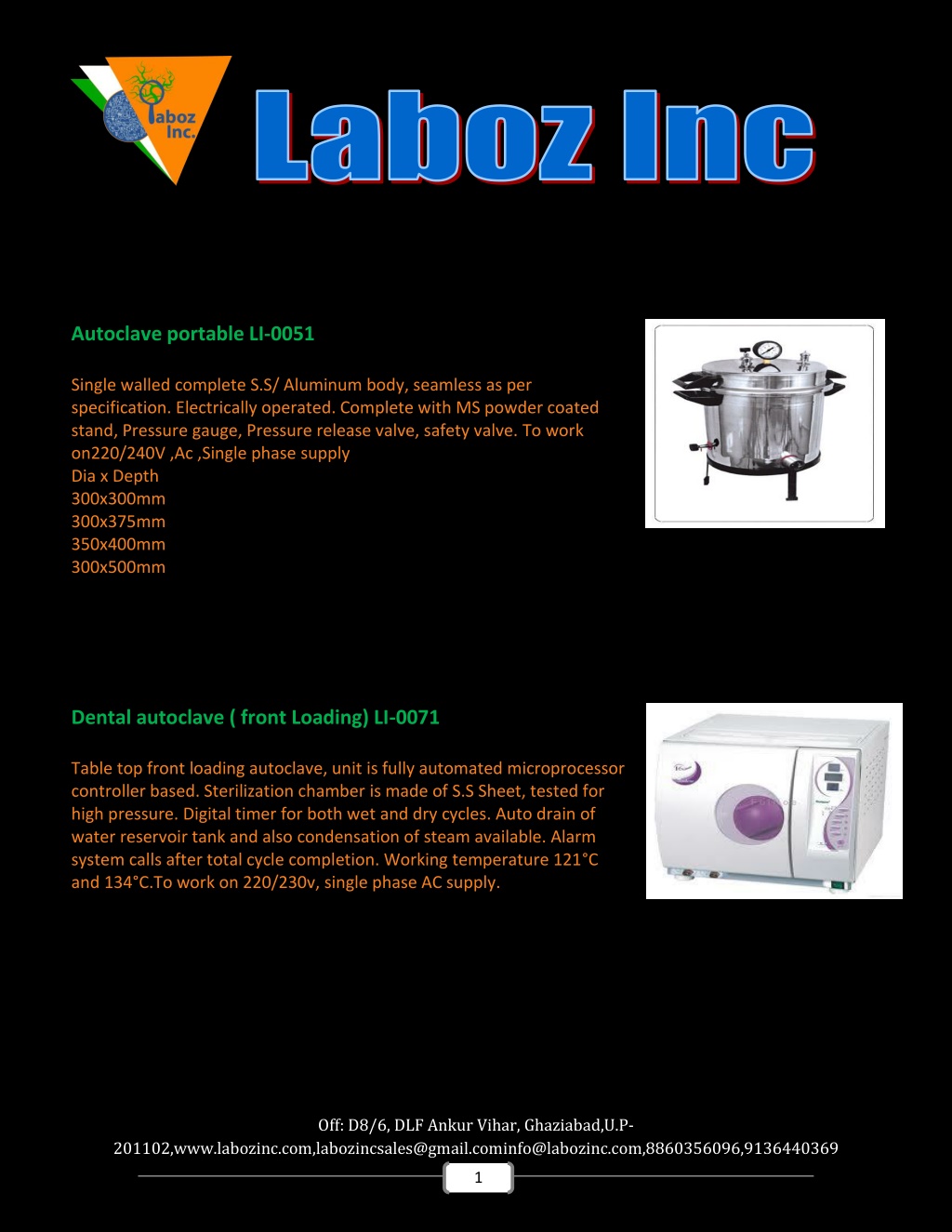

  1. Autoclave portable LI-0051 Single walled complete S.S/ Aluminum body, seamless as per specification. Electrically operated. Complete with MS powder coated stand, Pressure gauge, Pressure release valve, safety valve. To work on220/240V ,Ac ,Single phase supply Dia x Depth 300x300mm 300x375mm 350x400mm 300x500mm Dental autoclave ( front Loading) LI-0071 Table top front loading autoclave, unit is fully automated microprocessor controller based. Sterilization chamber is made of S.S Sheet, tested for high pressure. Digital timer for both wet and dry cycles. Auto drain of water reservoir tank and also condensation of steam available. Alarm system calls after total cycle completion. Working temperature 121°C and 134°C.To work on 220/230v, single phase AC supply. Off: D8/6, DLF Ankur Vihar, Ghaziabad,U.P- 201102,www.labozinc.com,labozincsales@gmail.cominfo@labozinc.com,8860356096,9136440369 1

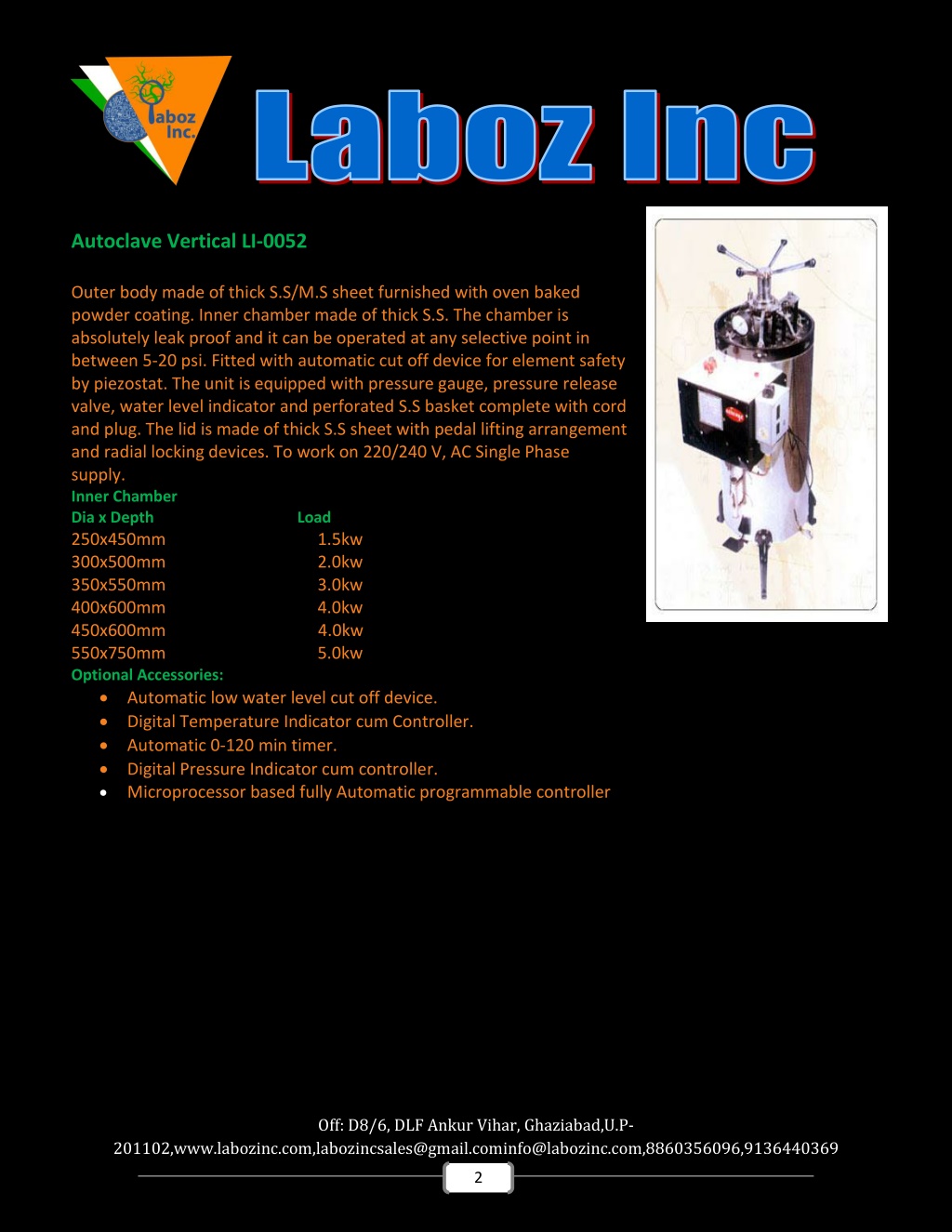

  2. Autoclave Vertical LI-0052 Outer body made of thick S.S/M.S sheet furnished with oven baked powder coating. Inner chamber made of thick S.S. The chamber is absolutely leak proof and it can be operated at any selective point in between 5-20 psi. Fitted with automatic cut off device for element safety by piezostat. The unit is equipped with pressure gauge, pressure release valve, water level indicator and perforated S.S basket complete with cord and plug. The lid is made of thick S.S sheet with pedal lifting arrangement and radial locking devices. To work on 220/240 V, AC Single Phase supply. Inner Chamber Dia x Depth Load 250x450mm 1.5kw 300x500mm 2.0kw 350x550mm 3.0kw 400x600mm 4.0kw 450x600mm 4.0kw 550x750mm 5.0kw Optional Accessories: •Automatic low water level cut off device. •Digital Temperature Indicator cum Controller. •Automatic 0-120 min timer. •Digital Pressure Indicator cum controller. •Microprocessor based fully Automatic programmable controller Off: D8/6, DLF Ankur Vihar, Ghaziabad,U.P- 201102,www.labozinc.com,labozincsales@gmail.cominfo@labozinc.com,8860356096,9136440369 2

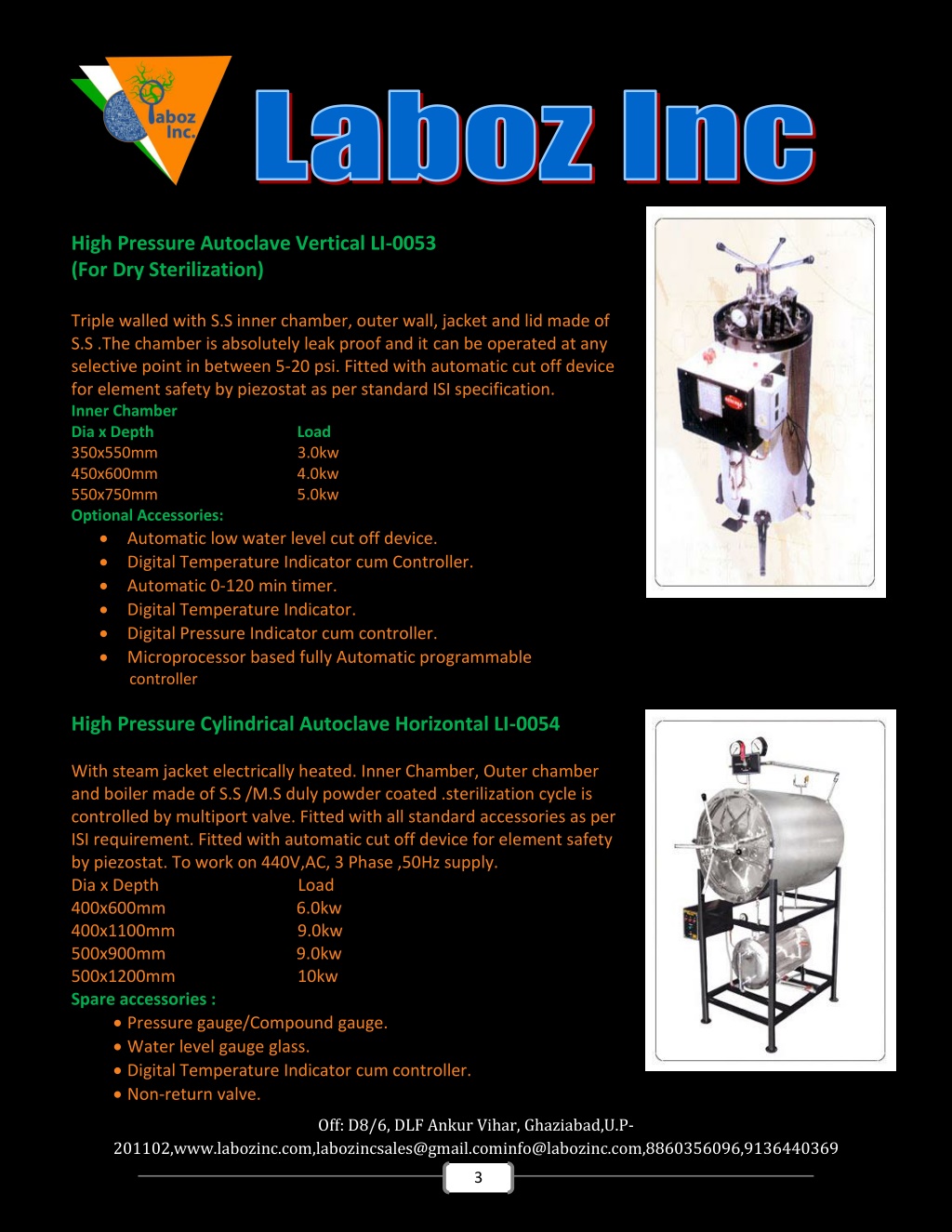

  3. High Pressure Autoclave Vertical LI-0053 (For Dry Sterilization) Triple walled with S.S inner chamber, outer wall, jacket and lid made of S.S .The chamber is absolutely leak proof and it can be operated at any selective point in between 5-20 psi. Fitted with automatic cut off device for element safety by piezostat as per standard ISI specification. Inner Chamber Dia x Depth Load 350x550mm 3.0kw 450x600mm 4.0kw 550x750mm 5.0kw Optional Accessories: •Automatic low water level cut off device. •Digital Temperature Indicator cum Controller. •Automatic 0-120 min timer. •Digital Temperature Indicator. •Digital Pressure Indicator cum controller. •Microprocessor based fully Automatic programmable controller High Pressure Cylindrical Autoclave Horizontal LI-0054 With steam jacket electrically heated. Inner Chamber, Outer chamber and boiler made of S.S /M.S duly powder coated .sterilization cycle is controlled by multiport valve. Fitted with all standard accessories as per ISI requirement. Fitted with automatic cut off device for element safety by piezostat. To work on 440V,AC, 3 Phase ,50Hz supply. Dia x Depth Load 400x600mm 6.0kw 400x1100mm 9.0kw 500x900mm 9.0kw 500x1200mm 10kw Spare accessories : •Pressure gauge/Compound gauge. •Water level gauge glass. •Digital Temperature Indicator cum controller. •Non-return valve. Off: D8/6, DLF Ankur Vihar, Ghaziabad,U.P- 201102,www.labozinc.com,labozincsales@gmail.cominfo@labozinc.com,8860356096,9136440369 3

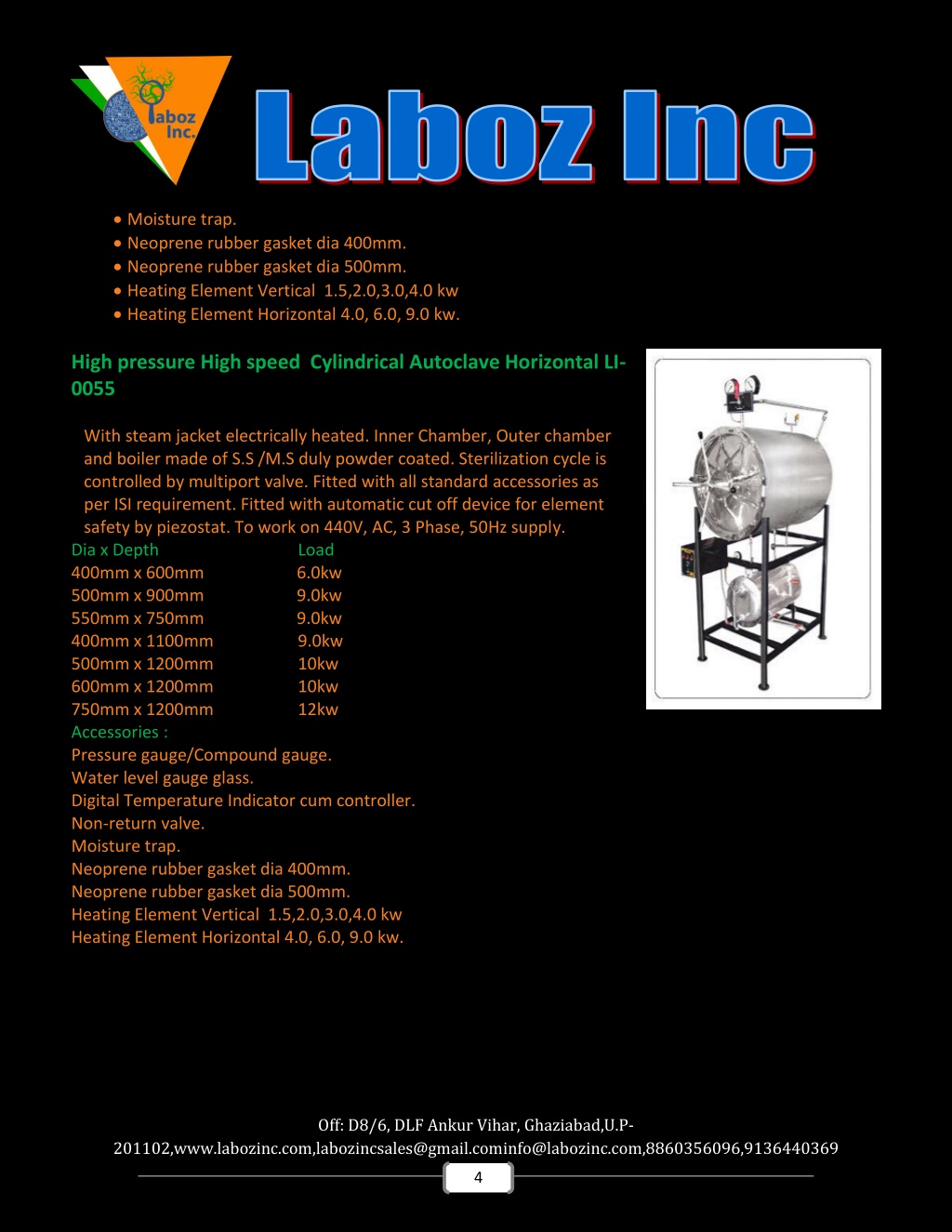

  4. •Moisture trap. •Neoprene rubber gasket dia 400mm. •Neoprene rubber gasket dia 500mm. •Heating Element Vertical 1.5,2.0,3.0,4.0 kw •Heating Element Horizontal 4.0, 6.0, 9.0 kw. High pressure High speed Cylindrical Autoclave Horizontal LI- 0055 With steam jacket electrically heated. Inner Chamber, Outer chamber and boiler made of S.S /M.S duly powder coated. Sterilization cycle is controlled by multiport valve. Fitted with all standard accessories as per ISI requirement. Fitted with automatic cut off device for element safety by piezostat. To work on 440V, AC, 3 Phase, 50Hz supply. Dia x Depth Load 400mm x 600mm 6.0kw 500mm x 900mm 9.0kw 550mm x 750mm 9.0kw 400mm x 1100mm 9.0kw 500mm x 1200mm 10kw 600mm x 1200mm 10kw 750mm x 1200mm 12kw Accessories : Pressure gauge/Compound gauge. Water level gauge glass. Digital Temperature Indicator cum controller. Non-return valve. Moisture trap. Neoprene rubber gasket dia 400mm. Neoprene rubber gasket dia 500mm. Heating Element Vertical 1.5,2.0,3.0,4.0 kw Heating Element Horizontal 4.0, 6.0, 9.0 kw. Off: D8/6, DLF Ankur Vihar, Ghaziabad,U.P- 201102,www.labozinc.com,labozincsales@gmail.cominfo@labozinc.com,8860356096,9136440369 4

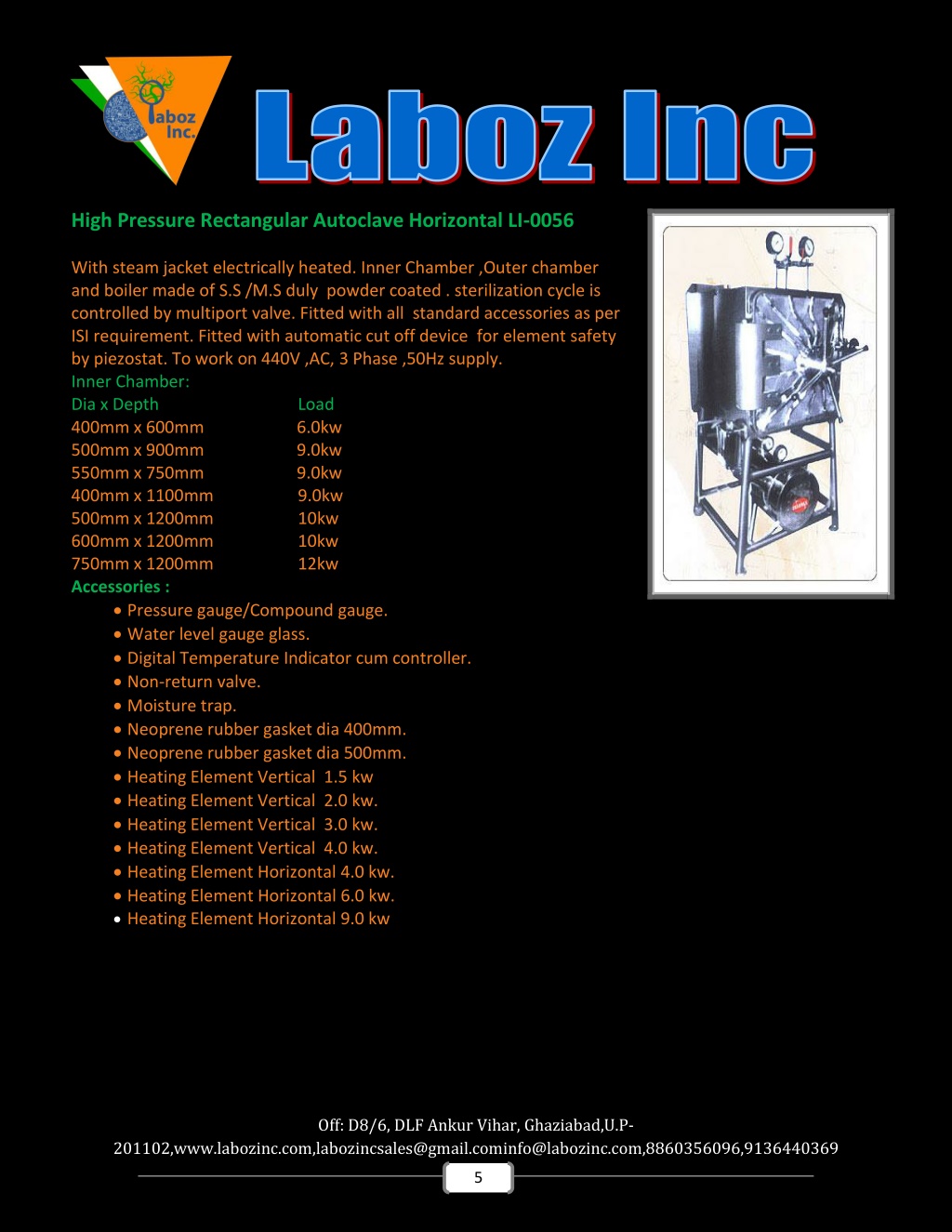

  5. High Pressure Rectangular Autoclave Horizontal LI-0056 With steam jacket electrically heated. Inner Chamber ,Outer chamber and boiler made of S.S /M.S duly powder coated . sterilization cycle is controlled by multiport valve. Fitted with all standard accessories as per ISI requirement. Fitted with automatic cut off device for element safety by piezostat. To work on 440V ,AC, 3 Phase ,50Hz supply. Inner Chamber: Dia x Depth Load 400mm x 600mm 6.0kw 500mm x 900mm 9.0kw 550mm x 750mm 9.0kw 400mm x 1100mm 9.0kw 500mm x 1200mm 10kw 600mm x 1200mm 10kw 750mm x 1200mm 12kw Accessories : •Pressure gauge/Compound gauge. •Water level gauge glass. •Digital Temperature Indicator cum controller. •Non-return valve. •Moisture trap. •Neoprene rubber gasket dia 400mm. •Neoprene rubber gasket dia 500mm. •Heating Element Vertical 1.5 kw •Heating Element Vertical 2.0 kw. •Heating Element Vertical 3.0 kw. •Heating Element Vertical 4.0 kw. •Heating Element Horizontal 4.0 kw. •Heating Element Horizontal 6.0 kw. •Heating Element Horizontal 9.0 kw Off: D8/6, DLF Ankur Vihar, Ghaziabad,U.P- 201102,www.labozinc.com,labozincsales@gmail.cominfo@labozinc.com,8860356096,9136440369 5
