LABNICS-Air-Circulating-Chiller-NACC-100

Air-circulating chillers are frequently utilized in laboratory settings, such as research and pharmaceutical industries, to maintain ambient temperatures. These devices utilize air as the cooling medium to extract heat from processes or applications. Air-circulating chillers are particularly useful in situations where a water-cooled system may not be feasible or available. These devices function by directing cool air over a heat exchanger to extract heat from equipment or processes. Air-circulating chillers find various applications, including the cooling of medical equipment.

Labnics786
Download Presentation

LABNICS-Air-Circulating-Chiller-NACC-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

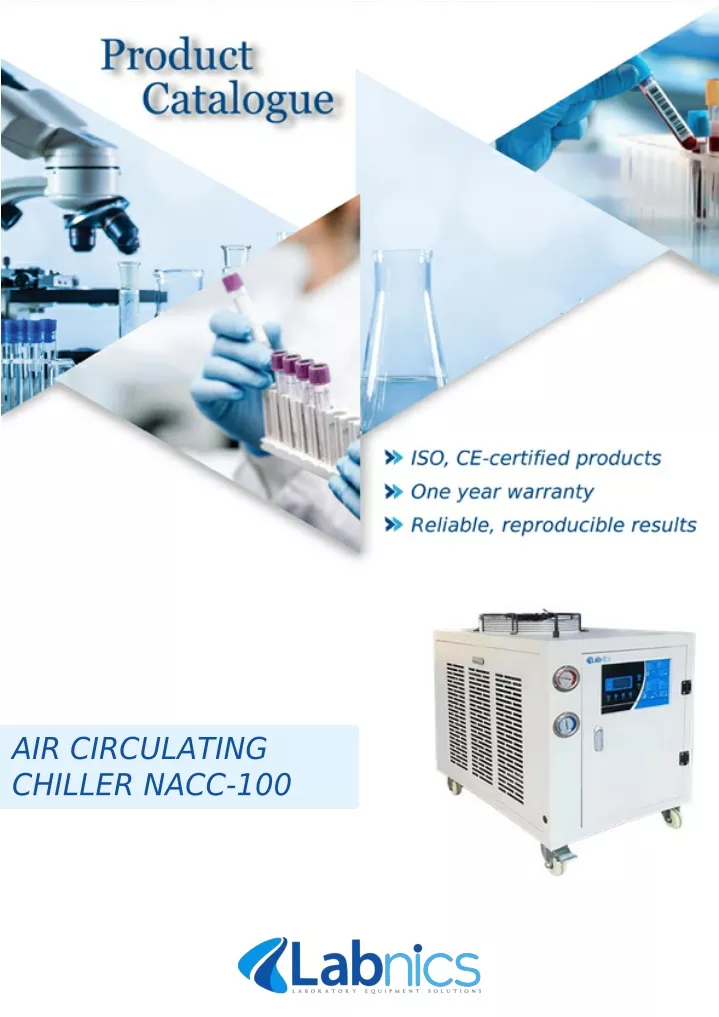

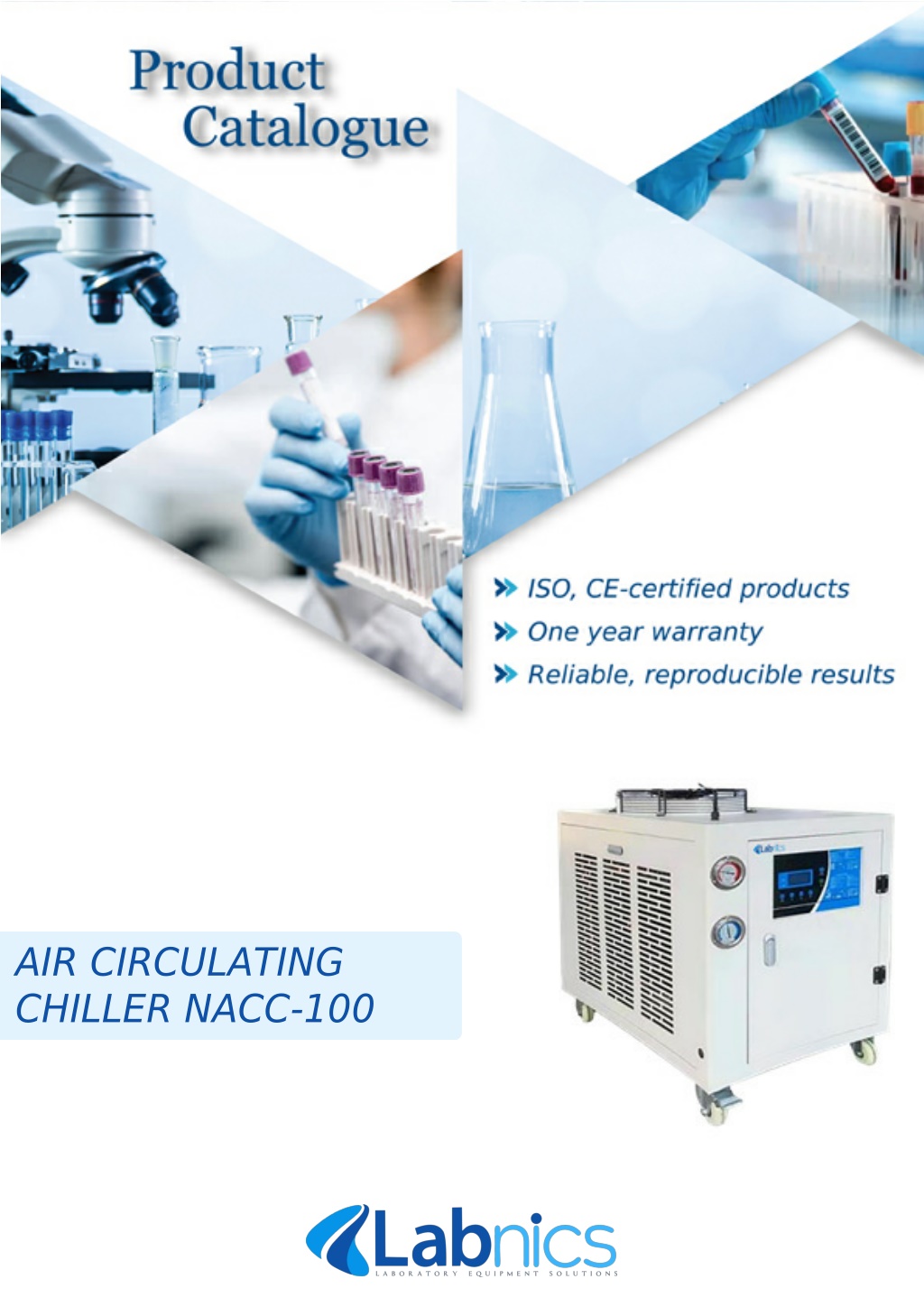

  1. AIR CIRCULATING CHILLER NACC-100

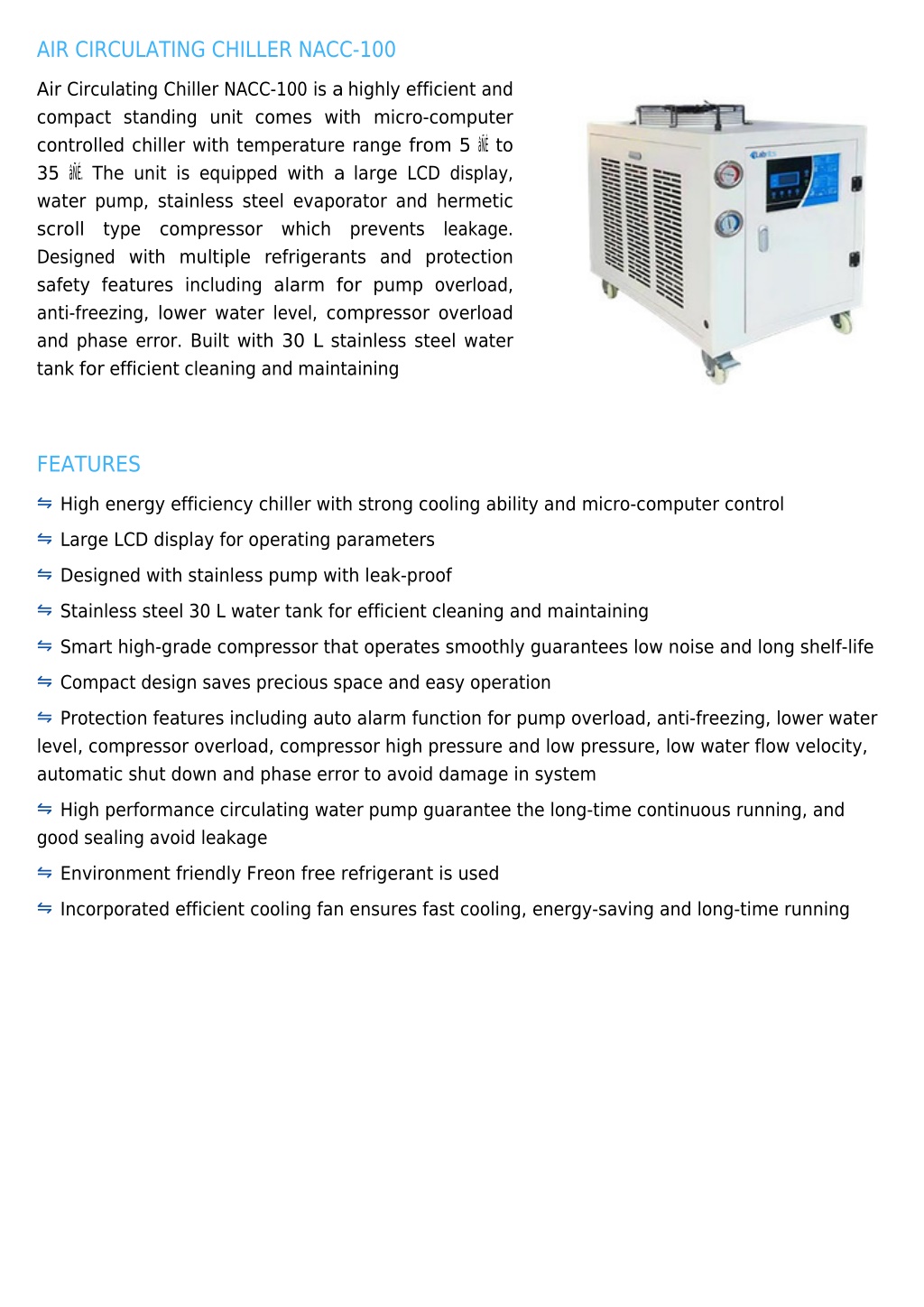

  2. AIR CIRCULATING CHILLER NACC-100 Air Circulating Chiller NACC-100 is a highly efficient and compact standing unit comes with micro-computer controlled chiller with temperature range from 5 ℃ to 35 water pump, stainless steel evaporator and hermetic scroll type compressor Designed with multiple refrigerants and protection safety features including alarm for pump overload, anti-freezing, lower water level, compressor overload and phase error. Built with 30 L stainless steel water tank for efficient cleaning and maintaining ℃. The unit is equipped with a large LCD display, which prevents leakage. FEATURES ⇋ High energy efficiency chiller with strong cooling ability and micro-computer control ⇋ Large LCD display for operating parameters ⇋ Designed with stainless pump with leak-proof ⇋ Stainless steel 30 L water tank for efficient cleaning and maintaining ⇋ Smart high-grade compressor that operates smoothly guarantees low noise and long shelf-life ⇋ Compact design saves precious space and easy operation ⇋ Protection features including auto alarm function for pump overload, anti-freezing, lower water level, compressor overload, compressor high pressure and low pressure, low water flow velocity, automatic shut down and phase error to avoid damage in system ⇋ High performance circulating water pump guarantee the long-time continuous running, and good sealing avoid leakage ⇋ Environment friendly Freon free refrigerant is used ⇋ Incorporated efficient cooling fan ensures fast cooling, energy-saving and long-time running

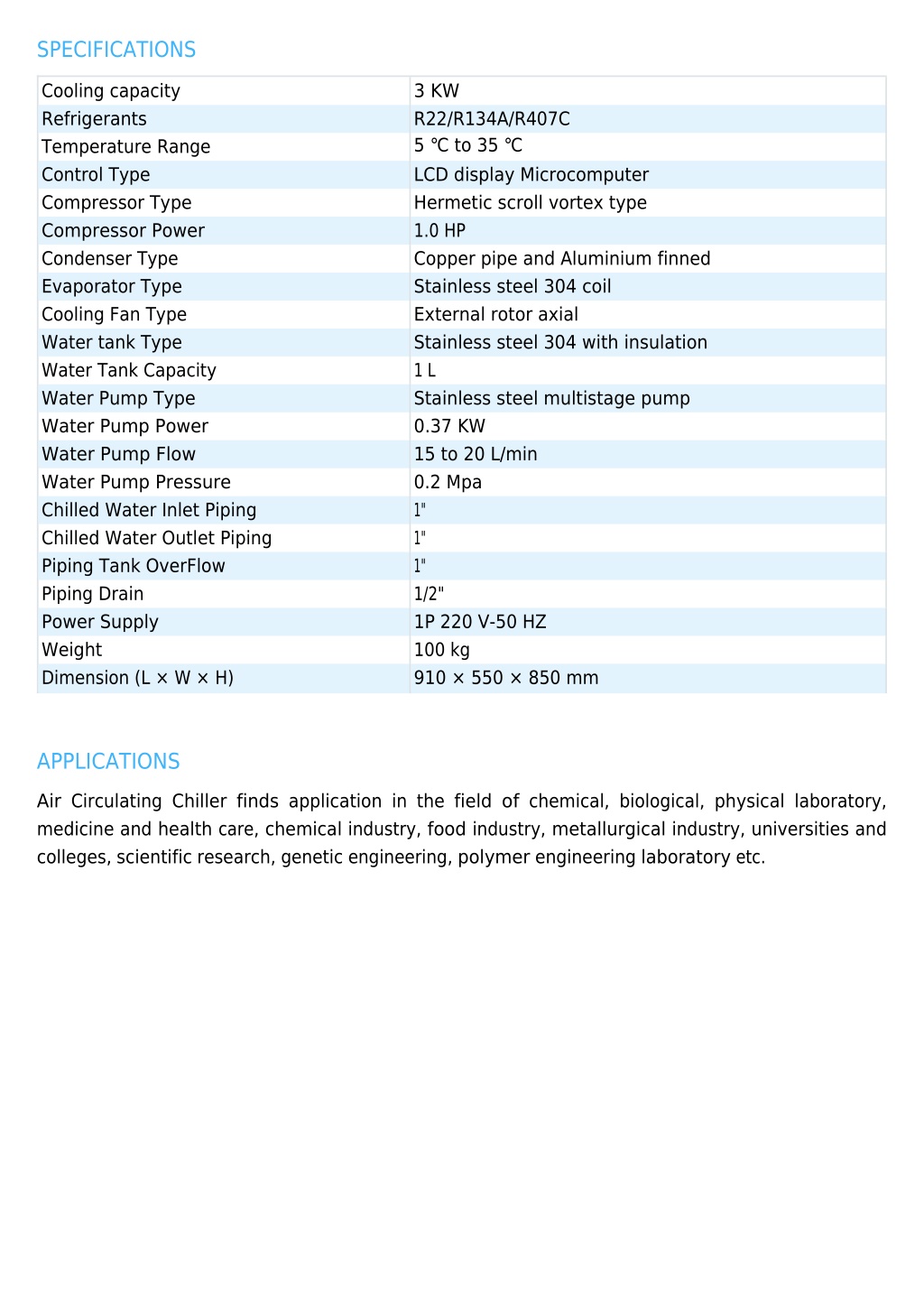

  3. SPECIFICATIONS Cooling capacity Refrigerants Temperature Range Control Type Compressor Type Compressor Power Condenser Type Evaporator Type Cooling Fan Type Water tank Type Water Tank Capacity Water Pump Type Water Pump Power Water Pump Flow Water Pump Pressure Chilled Water Inlet Piping Chilled Water Outlet Piping Piping Tank OverFlow Piping Drain Power Supply Weight Dimension (L × W × H) 3 KW R22/R134A/R407C 5 ℃ to 35 ℃ LCD display Microcomputer Hermetic scroll vortex type 1.0 HP Copper pipe and Aluminium finned Stainless steel 304 coil External rotor axial Stainless steel 304 with insulation 1 L Stainless steel multistage pump 0.37 KW 15 to 20 L/min 0.2 Mpa 1" 1" 1" 1/2" 1P 220 V-50 HZ 100 kg 910 × 550 × 850 mm APPLICATIONS Air Circulating Chiller finds application in the field of chemical, biological, physical laboratory, medicine and health care, chemical industry, food industry, metallurgical industry, universities and colleges, scientific research, genetic engineering, polymer engineering laboratory etc.

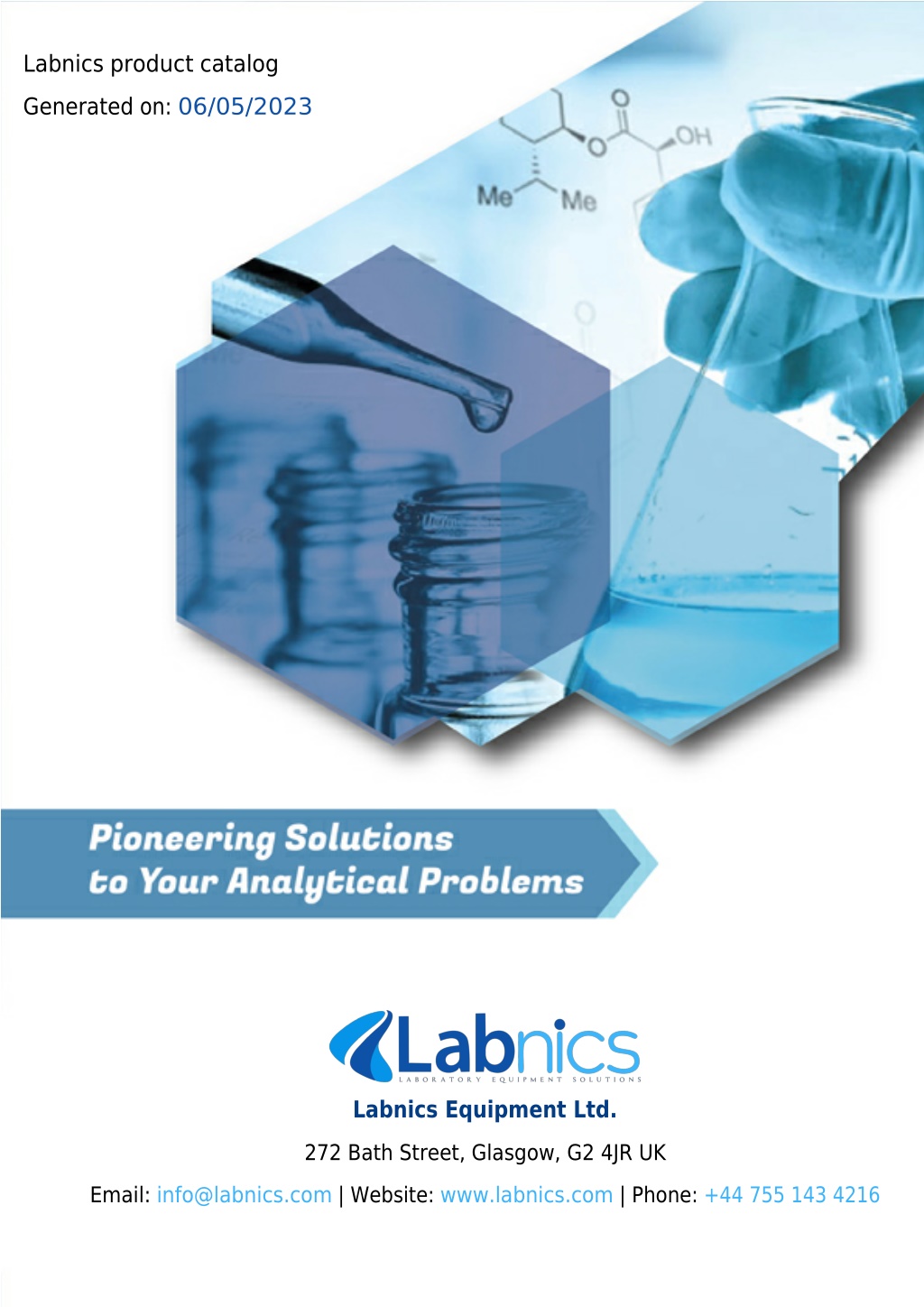

  4. Labnics product catalog Generated on: 06/05/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
