Automatic Decapping Centrifuge BZAD-502

Labzee Automatic Decapping Centrifuge is a microcomputer-controlled device with a high-torque brushless motor offering 20 user-defined programs and a capacity of 124/148 blood tubes. It has a 304 stainless steel chamber, operates at 4000 rpm with 3420u00d7g RCF, and runs from 1 to 99 hours 59 minutes.

Krystal7
Download Presentation

Automatic Decapping Centrifuge BZAD-502

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

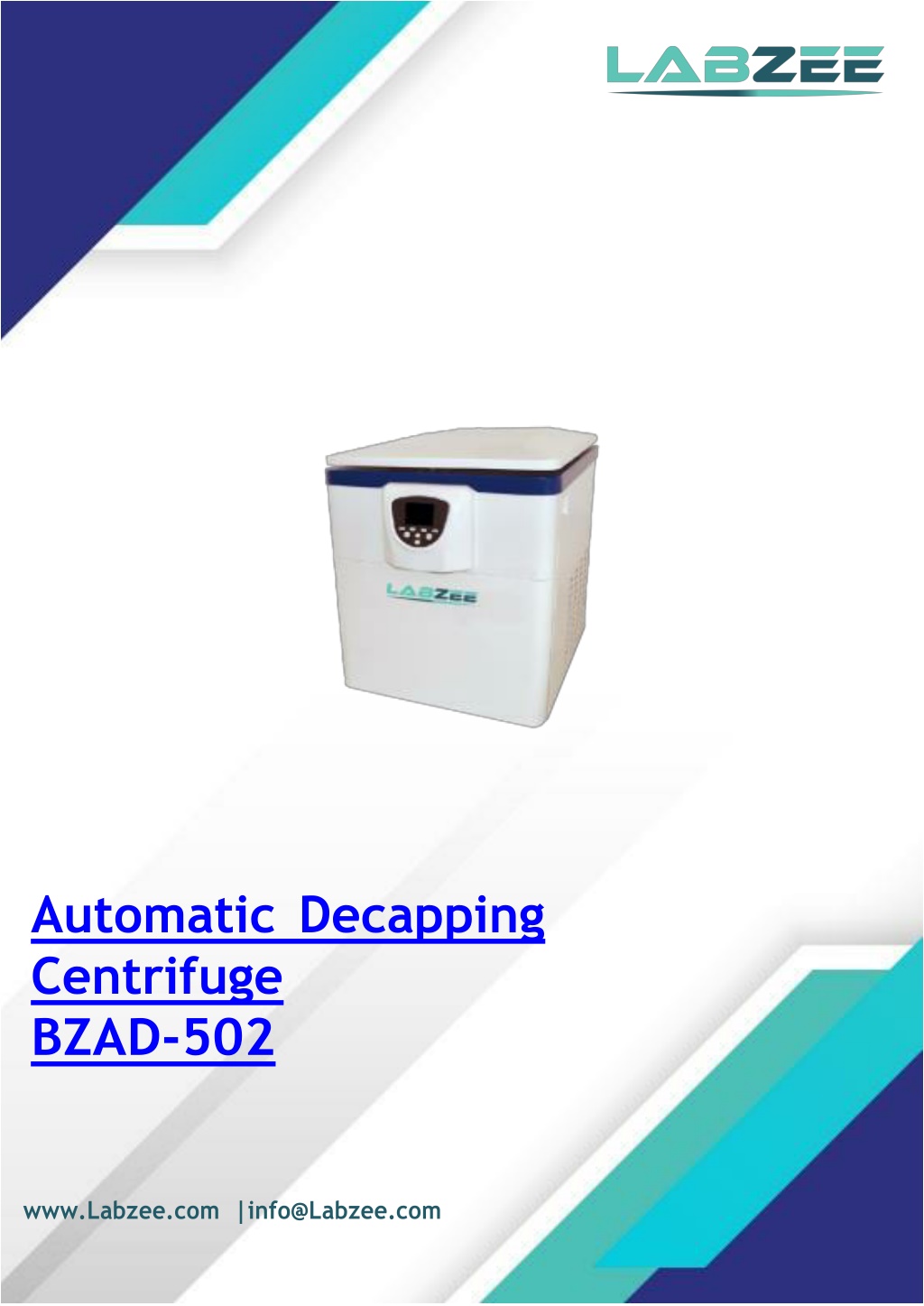

  1. Automatic Decapping Centrifuge BZAD-502 www.Labzee.com |info@Labzee.com

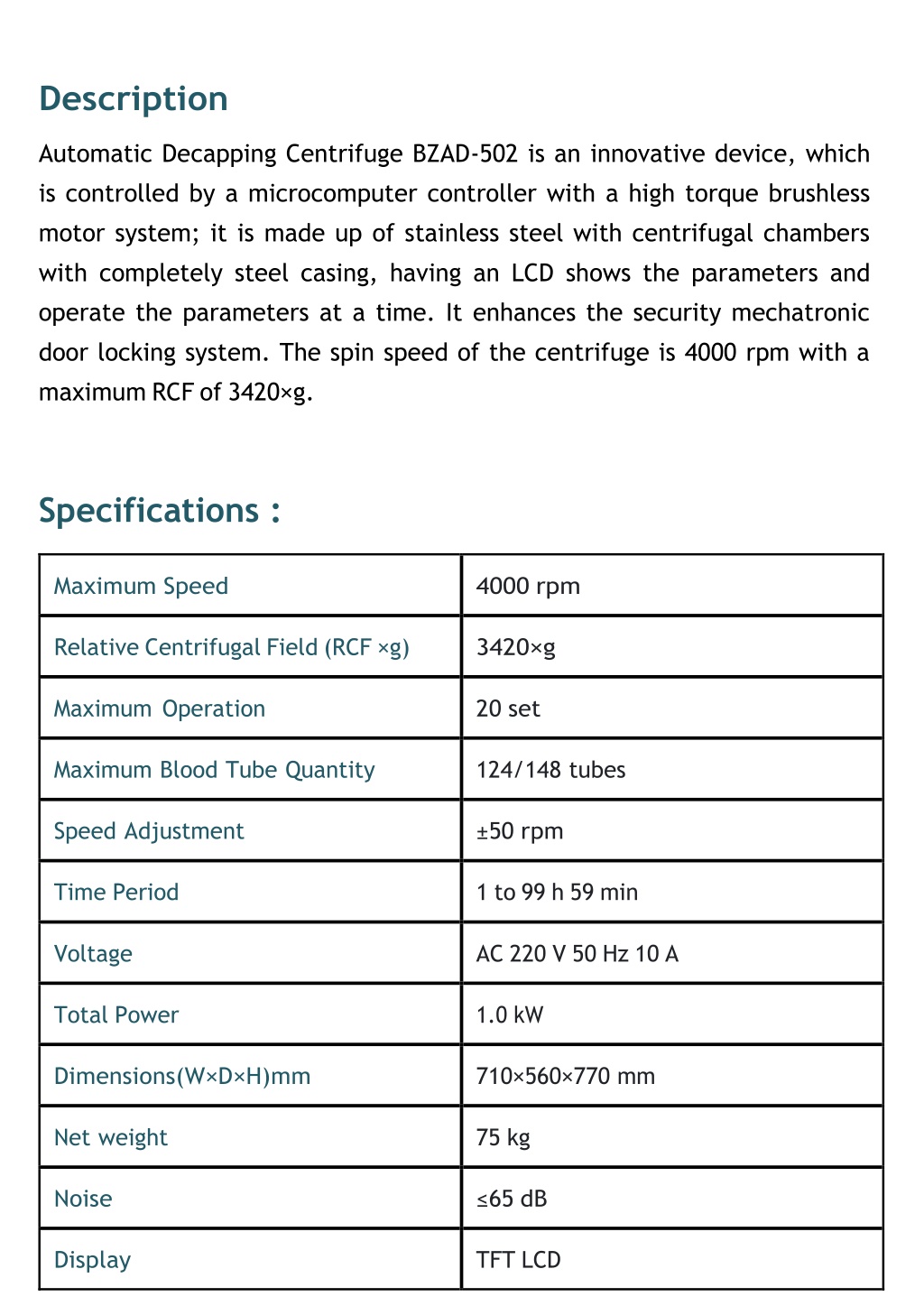

  2. Description Automatic Decapping Centrifuge BZAD-502 is an innovative device, which is controlled by a microcomputer controller with a high torque brushless motor system; it is made up of stainless steel with centrifugal chambers with completely steel casing, having an LCD shows the parameters and operate the parameters at a time. It enhances the security mechatronic door locking system. The spin speed of the centrifuge is 4000 rpm with a maximum RCF of 3420×g. Specifications : Maximum Speed 4000 rpm Relative Centrifugal Field (RCF ×g) 3420×g Maximum Operation 20 set Maximum Blood Tube Quantity 124/148 tubes Speed Adjustment ±50 rpm Time Period 1 to 99 h 59 min Voltage AC 220 V 50 Hz 10 A Total Power 1.0 kW Dimensions(W×D×H)mm 710×560×770 mm Net weight 75 kg Noise ≤65 dB Display TFT LCD

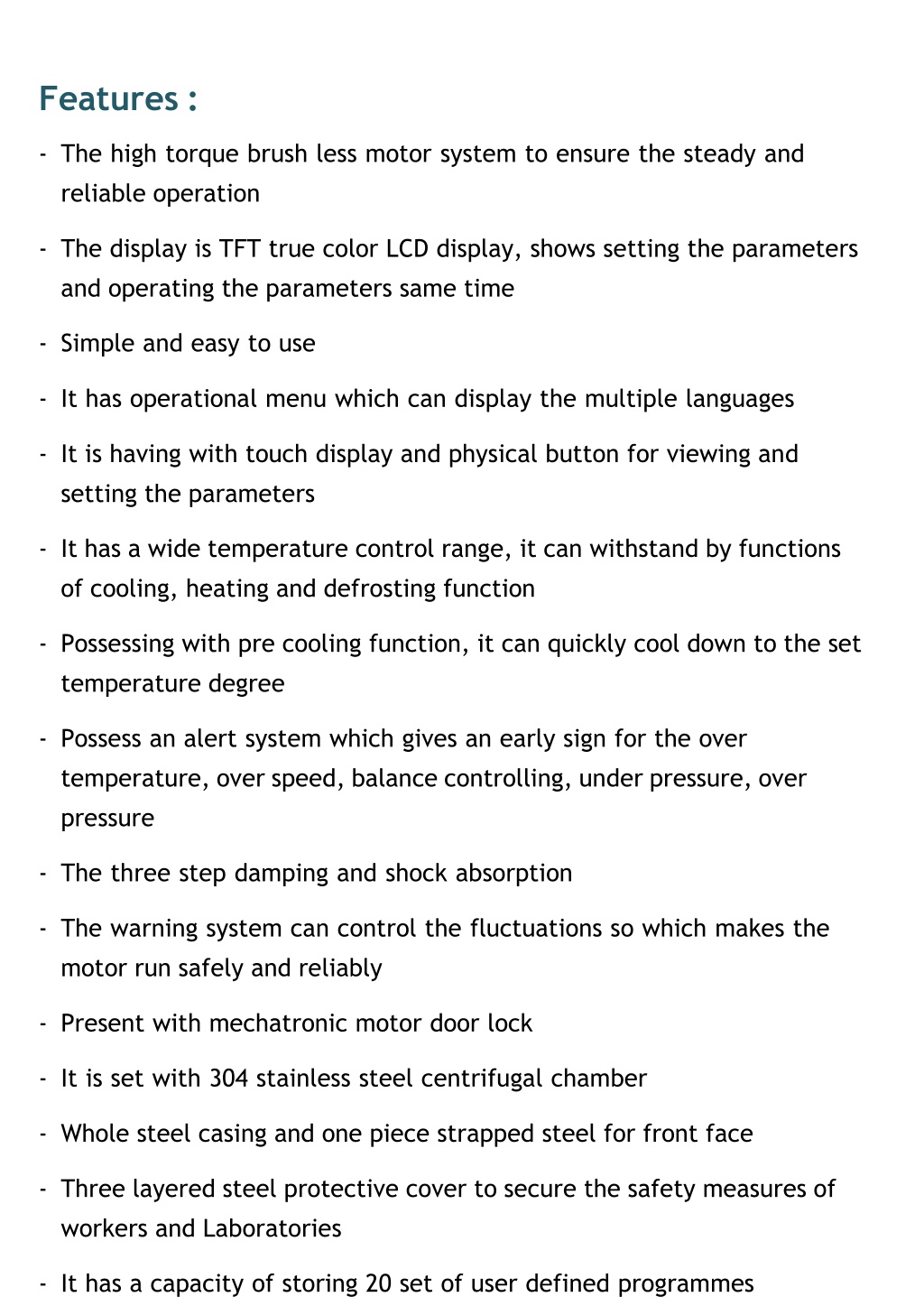

  3. Features : -The high torque brush less motor system to ensure the steady and reliable operation -The display is TFT true color LCD display, shows setting the parameters and operating the parameters same time -Simple and easy to use -It has operational menu which can display the multiple languages -It is having with touch display and physical button for viewing and setting the parameters -It has a wide temperature control range, it can withstand by functions of cooling, heating and defrosting function -Possessing with pre cooling function, it can quickly cool down to the set temperature degree -Possess an alert system which gives an early sign for the over temperature, over speed, balance controlling, under pressure, over pressure -The three step damping and shock absorption -The warning system can control the fluctuations so which makes the motor run safely and reliably -Present with mechatronic motor door lock -It is set with 304 stainless steel centrifugal chamber -Whole steel casing and one piece strapped steel for front face -Three layered steel protective cover to secure the safety measures of workers and Laboratories -It has a capacity of storing 20 set of user defined programmes

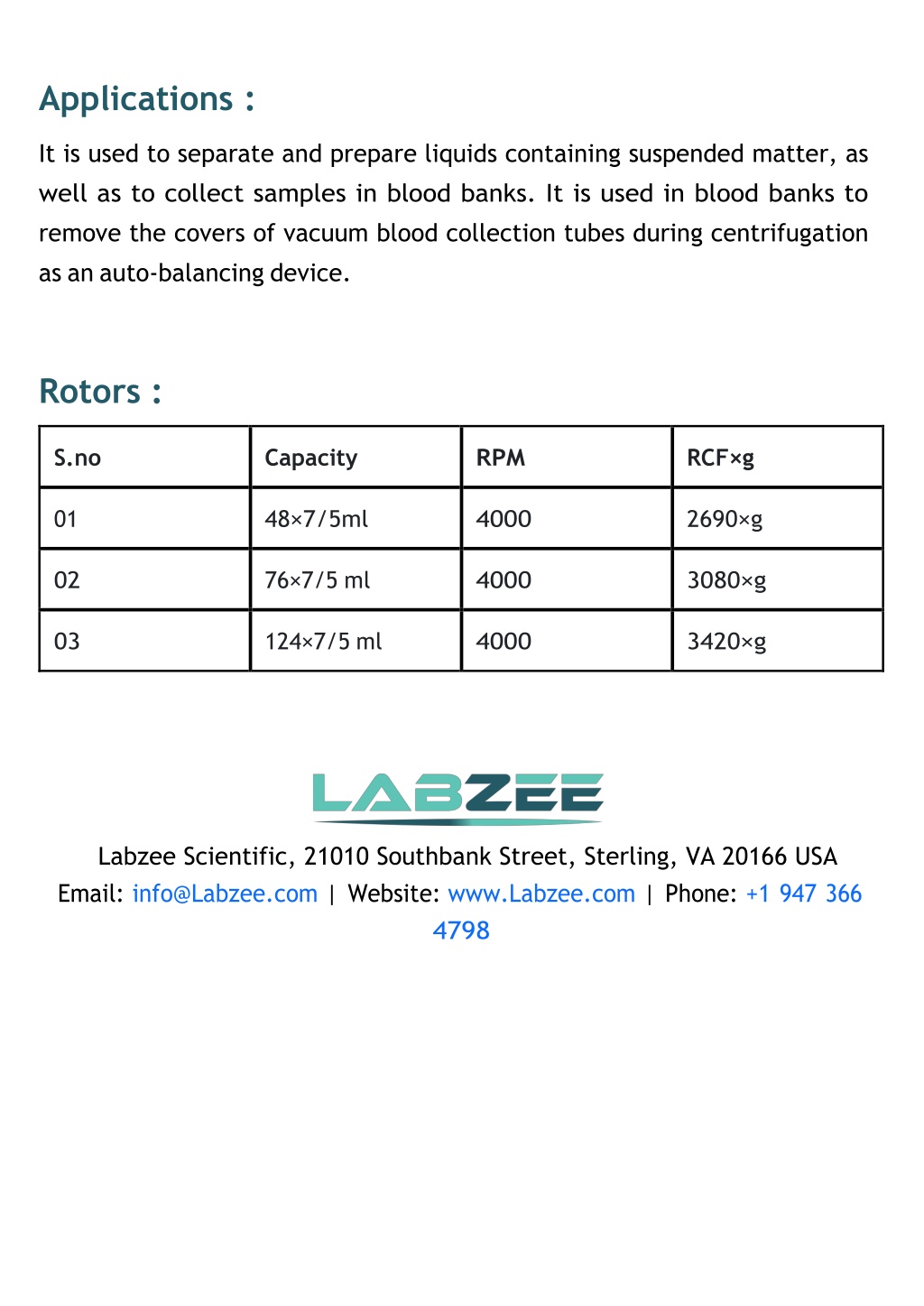

  4. Applications : It is used to separate and prepare liquids containing suspended matter, as well as to collect samples in blood banks. It is used in blood banks to remove the covers of vacuum blood collection tubes during centrifugation as an auto-balancing device. Rotors : S.no Capacity RPM RCF×g 01 48×7/5ml 4000 2690×g 02 76×7/5 ml 4000 3080×g 03 124×7/5 ml 4000 3420×g Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166 USA Email: info@Labzee.com | Website: www.Labzee.com | Phone: +1 947 366 4798
