Automatic Decapping Centrifuge BZAD-501

Labzee Automatic Decapping Centrifuge is a microcomputer-controlled device with a high-torque brushless motor that includes 20 user-defined programs and accommodates 48/76 blood tubes. It has a 304 stainless steel chamber, operates at 4000 rpm with 3780u00d7g RCF, and runs from 1 min to 99 hrs, 59 min.

Krystal7
Download Presentation

Automatic Decapping Centrifuge BZAD-501

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Automatic Decapping Centrifuge BZAD-501 www.Labzee.com |info@Labzee.com

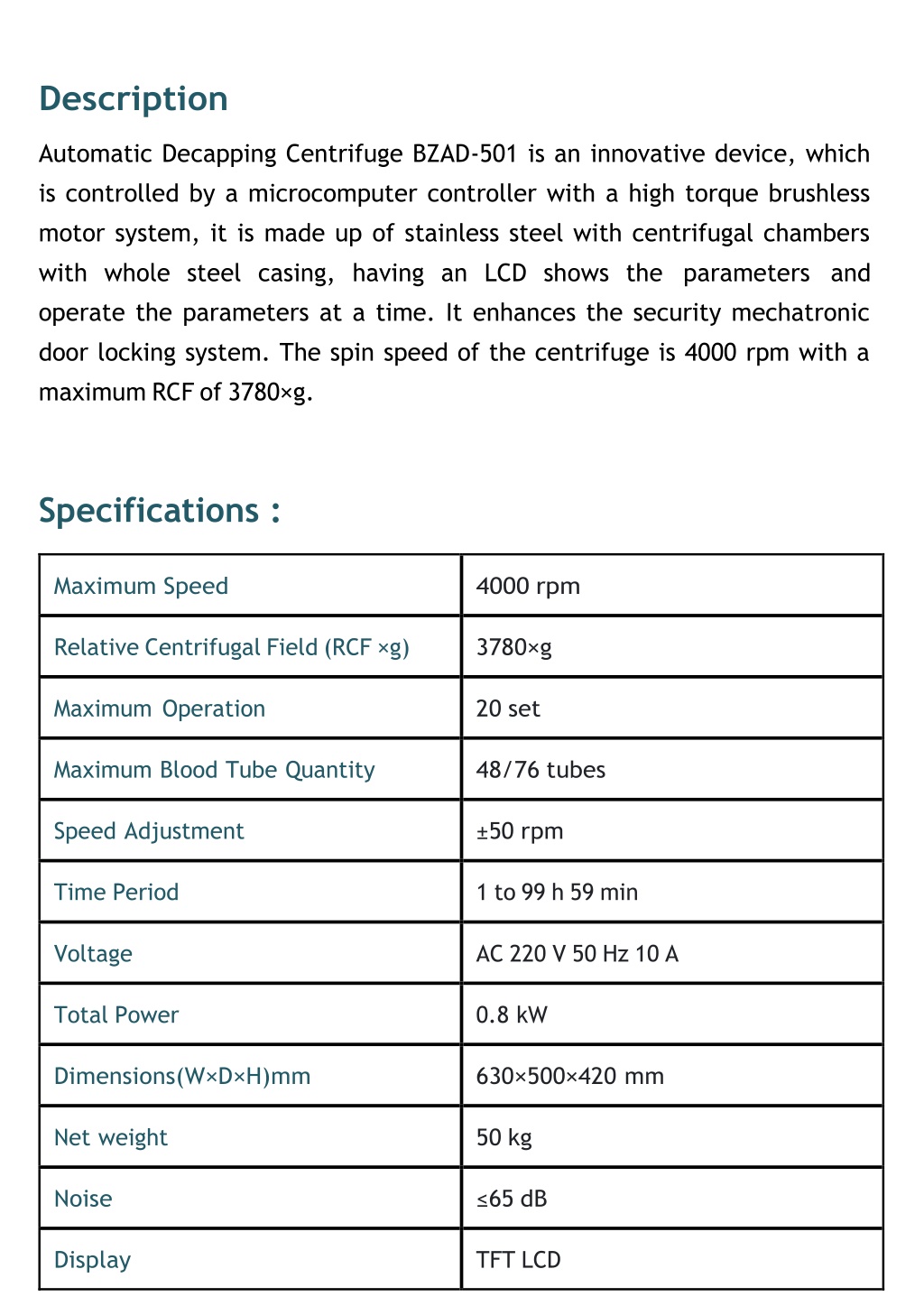

  2. Description Automatic Decapping Centrifuge BZAD-501 is an innovative device, which is controlled by a microcomputer controller with a high torque brushless motor system, it is made up of stainless steel with centrifugal chambers with whole steel casing, having an LCD shows the parameters and operate the parameters at a time. It enhances the security mechatronic door locking system. The spin speed of the centrifuge is 4000 rpm with a maximum RCF of 3780×g. Specifications : Maximum Speed 4000 rpm Relative Centrifugal Field (RCF ×g) 3780×g Maximum Operation 20 set Maximum Blood Tube Quantity 48/76 tubes Speed Adjustment ±50 rpm Time Period 1 to 99 h 59 min Voltage AC 220 V 50 Hz 10 A Total Power 0.8 kW Dimensions(W×D×H)mm 630×500×420 mm Net weight 50 kg Noise ≤65 dB Display TFT LCD

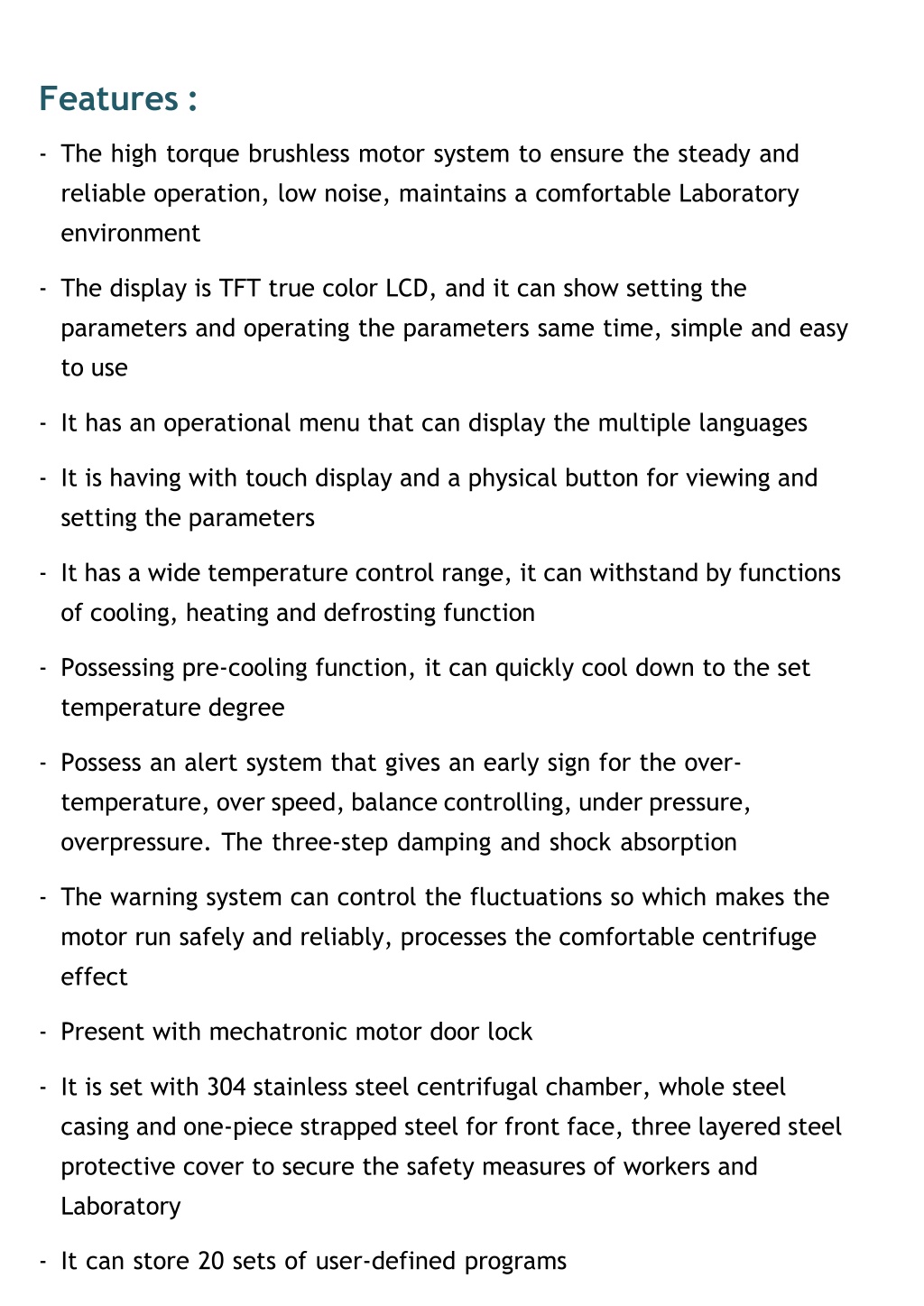

  3. Features : -The high torque brushless motor system to ensure the steady and reliable operation, low noise, maintains a comfortable Laboratory environment -The display is TFT true color LCD, and it can show setting the parameters and operating the parameters same time, simple and easy to use -It has an operational menu that can display the multiple languages -It is having with touch display and a physical button for viewing and setting the parameters -It has a wide temperature control range, it can withstand by functions of cooling, heating and defrosting function -Possessing pre-cooling function, it can quickly cool down to the set temperature degree -Possess an alert system that gives an early sign for the over- temperature, over speed, balance controlling, under pressure, overpressure. The three-step damping and shock absorption -The warning system can control the fluctuations so which makes the motor run safely and reliably, processes the comfortable centrifuge effect -Present with mechatronic motor door lock -It is set with 304 stainless steel centrifugal chamber, whole steel casing and one-piece strapped steel for front face, three layered steel protective cover to secure the safety measures of workers and Laboratory -It can store 20 sets of user-defined programs

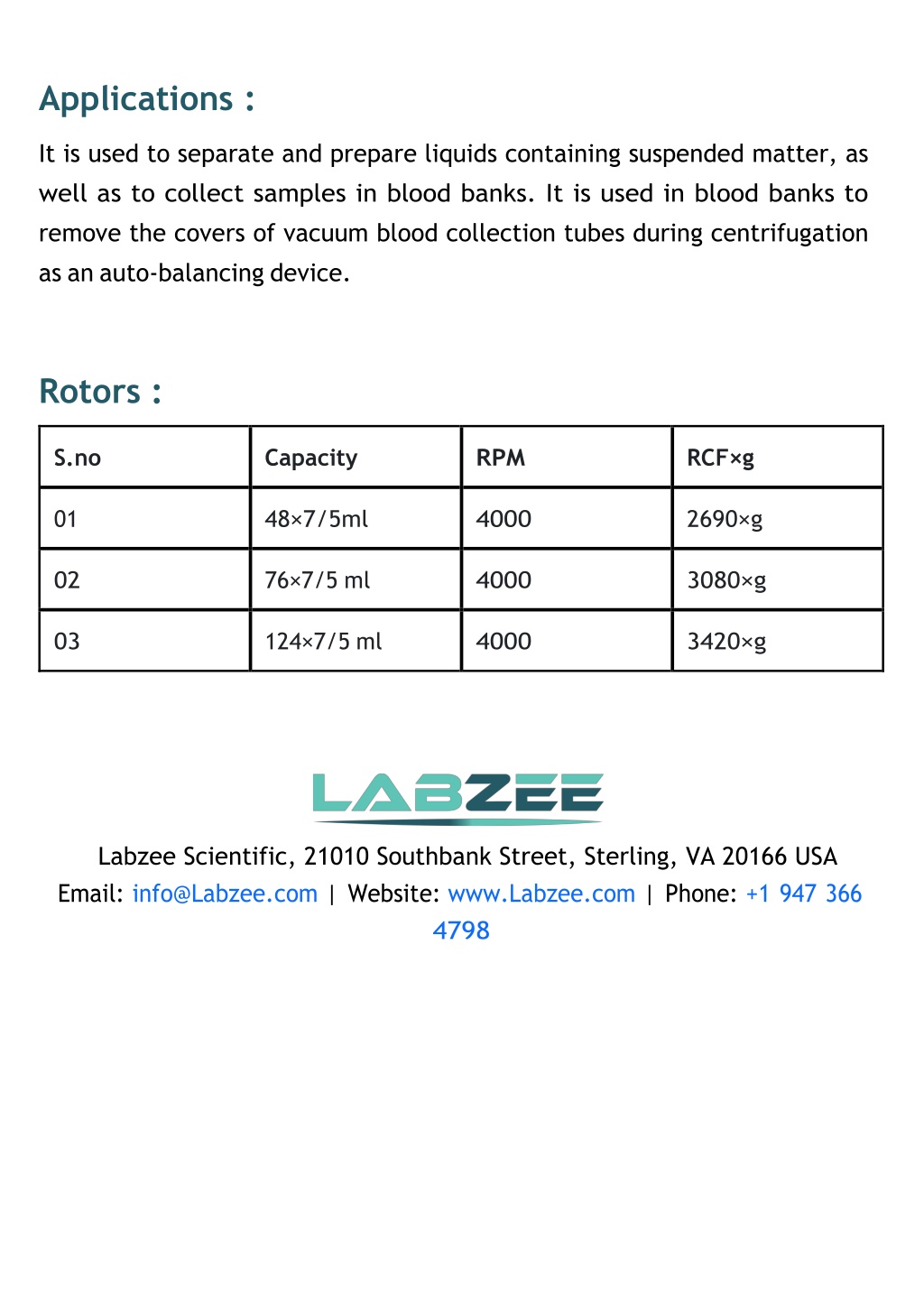

  4. Applications : It is used to separate and prepare liquids containing suspended matter, as well as to collect samples in blood banks. It is used in blood banks to remove the covers of vacuum blood collection tubes during centrifugation as an auto-balancing device. Rotors : S.no Capacity RPM RCF×g 01 48×7/5ml 4000 2690×g 02 76×7/5 ml 4000 3080×g 03 124×7/5 ml 4000 3420×g Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166 USA Email: info@Labzee.com | Website: www.Labzee.com | Phone: +1 947 366 4798
