Portable X-Ray Machine

A Portable X-ray machine is a compact and versatile medical imaging device that brings the power of X-ray technology to various healthcare settings. Designed for <br>mobility and convenience, it allows healthcare professionals to obtain high-quality radiographic images at the patient's bedside or in remote locations. <br>This portable system is precious in emergency rooms, intensive care units, and field medical missions.

Kimber4
Download Presentation

Portable X-Ray Machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

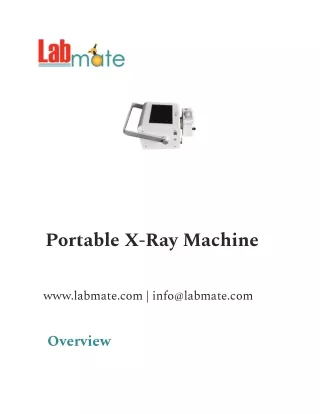

  1. Portable X-Ray Machine www.labmate.com | info@labmate.com Overview

  2. Portable X-Ray Machine is a highly efficient 5 kW portable high-frequency X-ray system, ideal for diagnosing and evaluating adjustable range of 40 kV to 110 kV guarantees precise and consistent X-ray imaging. Integrated with an X-ray tube with a focus of 0.6/1.8 mm, contributing to high-quality imaging for convenient operation. All parameter displayed on a large operation. human limbs. Its KV LED display allows intuitive Specifications :

  3. Anode 40 KJ Heating capacity Frequency ≥ 40 kHz Exposure 0.01 S to 4 S Time Range Maximum 5 kW Output Power

  4. Nominal 50 kV,100 mA,0.1 S,5 Power kW Focal 0.6/1.8 mm Length KV 40kV to 110kV, step adjusting adjustment is 1 KV range mA 20 mA to 100 mA Adjusting Range

  5. mAs 0.2 mAs to 200 mAs Adjusting Range Inner ≤ 0.5 Ω Resistance Power ≥ 5 kVA capacity Power 220 V 50/60 Hz Supply

  6. Dimension 290 × 260 × 230 mm Weight 18.8 kg Features : - Features a 6-segment LED display - Press the power button in the upper le? corner to start the host - De? and concise - It chooses 48 kinds of presupposed anatomy memory patterns - Simulation-based accuracy control with dual digital loops

  7. - Ineffective self-defense and self-diagnosis - Precise control of tube voltage and current - Easy to use with a hand switch and remote control - Portable in a suitcase and durable. Applications : It conditions settings, recreational clinics. is used diagnose austere including areas, to medical remote battlefields, veterinary in and and

  8. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
