Multi-Channel Data Logger

Unleash precision with the Multi-Channel Data Logger , a beacon of innovation. Featuring a universal input system supporting TCs, RTDs, mA, VDC, mV, and <br>frequency inputs. It effortlessly handles the diverse needs of industries with its 48-channel capacity. Elevate your measurements with enhanced flow <br>totalization, backed by temperature and pressure compensation. In terms of industrial data logging, the gadget establishes a new standard for ease and accuracy

Kimber4
Download Presentation

Multi-Channel Data Logger

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

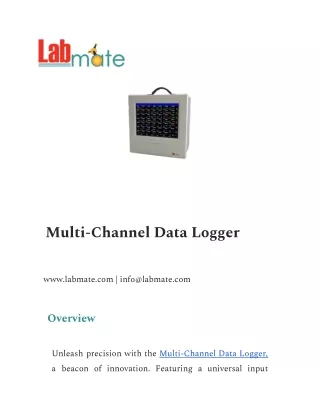

  1. Multi-Channel Data Logger www.labmate.com | info@labmate.com Overview Unleash precision with the Multi-Channel Data Logger, a beacon of innovation. Featuring a universal input

  2. system supporting TCs, RTDs, mA, VDC, mV, and frequency inputs. It effortlessly handles the diverse needs of industries with its 48-channel capacity. Elevate your measurements with enhanced flow totalization, backed by temperature and pressure compensation. In terms of industrial data logging, the gadget establishes a new standard for ease and accuracy Specifications : Input 1 to 48 Channels Thermocou K, J, T, E, R, S, B, N, Wre526, Wre325 ple (TC) input RTD Input Pt100, CU50, CU100

  3. Analog 4-20 mA, 0-10 mA, 0-5 V, 1-5 V, 0-10 Input VDC mV Input 0-20 mV, 0-60 mV, 0-100 mV, 0-500 mV Working Temperature: 0-50 ℃, Humidity: 10%-85 ambient % (No dew) Frequency 0-5 KHz, 3 Channel input Isolation photoelectric isolation Accuracy ± (0.2%FS +1) digital Resolution 0.1 ℃ when temperature input Sample time 1 second per 8 channels

  4. Data 180 days × Record Interval Time/CH Storage number Capacity RTD Inp Measure Input ut d Range Independe Ty nce pe Pt1 -200 to >20 MΩ 00 600℃ CU -50 >20 MΩ 50 to150℃

  5. TC Inp Measure Input ut d Range Independe Ty nce pe CU -50 to150 >20 MΩ 100 ℃ K -50 to >20 MΩ 1300 ℃ J 0 to 1000 >20 MΩ ℃ T -200 to >20 MΩ 350 ℃

  6. E 0 to 800 >20 MΩ ℃ R -50 to > 20 MΩ 1700 ℃ S -50 to > 20 MΩ 1700 ℃ B 300 to >20 MΩ 1800 ℃ N 0 to 1300 >20 MΩ ℃

  7. Wr 0-2300 >20 MΩ e ℃ 526 Wr 0-2300 >20 MΩ e ℃ 325 Analog In Measure Input pu d Range Independe t nce Ty pe

  8. 4-2 -20000 250 Ω 0 to 20000 m A 0-1 -20000 500 Ω 0 to 20000 m A 0-5 -20000 500 KΩ V to 20000 D C 1-5 -20000 500 KΩ V to 20000

  9. D C mV In Measur Input pu ed Independ t Range ence Ty pe 0- -20000 >20 MΩ 60 to m 20000 V

  10. 0- -20000 >20 MΩ 10 to 0 20000 m V Display 10.4-inch color TFT LCD LCD 640 × 480 Resolution Interval 1-3600 seconds, set flexibly time Insulation Power to ground (Housing > 1500 VAC)

  11. Case Metal for case and bezel material Mounting Panel flush mounting Power 100-240 VAC, 47-63 Hz Supply Power 20 W Dimension 288 × 288 × 180 mm Net Weight 8.0 Kg Features : - Achieves high accuracy for reliable measurement - TFT LCD display for clear and precise readings

  12. - Integrated thermocouple automatic cold junction correction for better accuracy - Provides mathematical function - Memory Flash Drive Data Saving feature enables flexible data management - Durability is ensured by the sturdy metal casing and bezel construction Applications : Multi-Channel applications manufacturing, energy, and pharmaceuticals, enabling precise and comprehensive monitoring. Data across Logger diverse LMMCD-A100 industries, finds including Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
