_Flow Cytometer

<br>Flow Cytometer is a tabletop device equipped with a 488 nm solid-state laser. It consists of a fluorescence channel and a detector with a dual threshold and minimum<br>cell fraction. The instrument can separate red blood cells, platelets, and white blood cells into three groups. This instrument supports all automatic online, <br>offline, and visualized fluorescence compensations.

Kimber4
Download Presentation

_Flow Cytometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

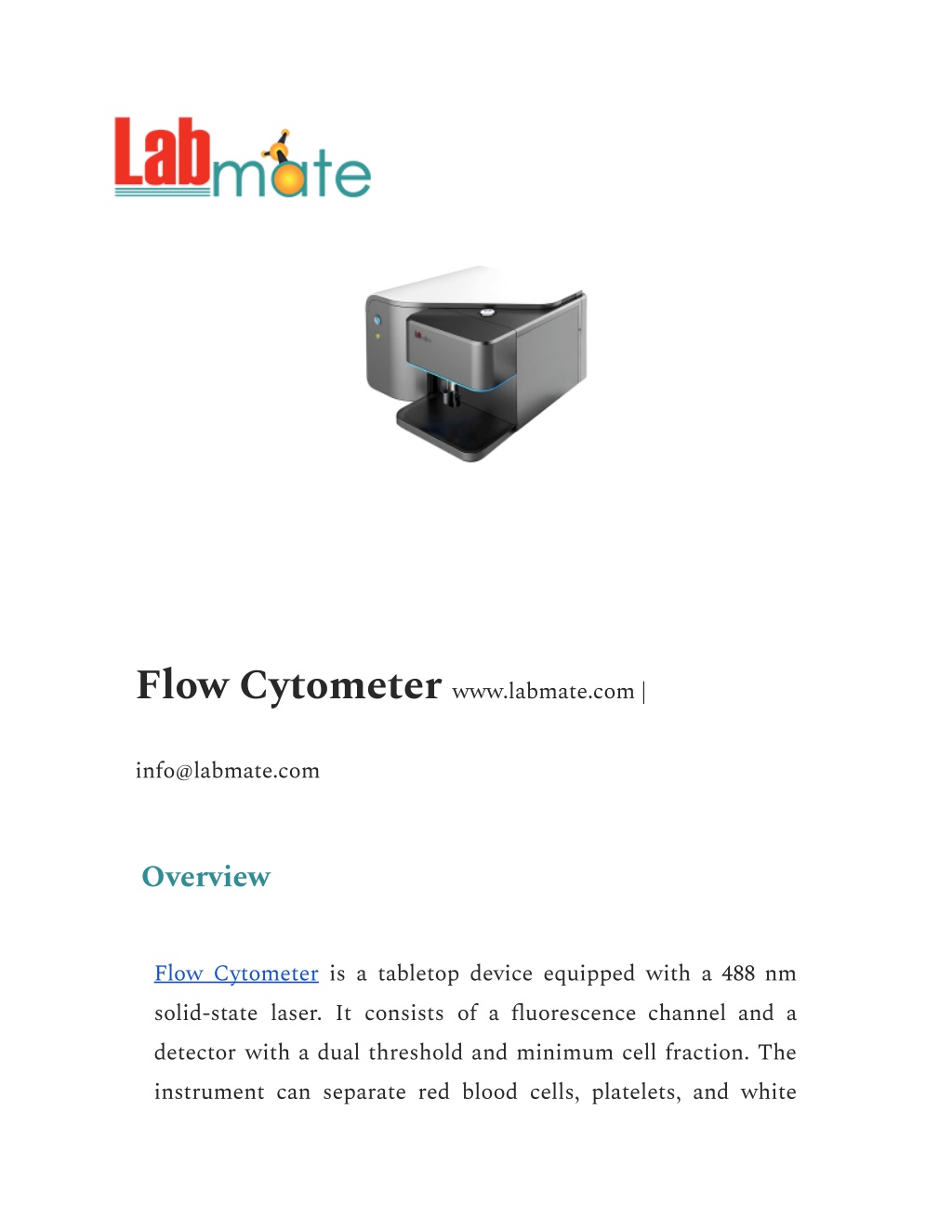

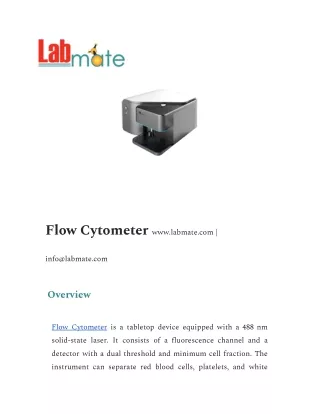

  1. Flow Cytometer www.labmate.com | info@labmate.com Overview Flow Cytometer is a tabletop device equipped with a 488 nm solid-state laser. It consists of a fluorescence channel and a detector with a dual threshold and minimum cell fraction. The instrument can separate red blood cells, platelets, and white

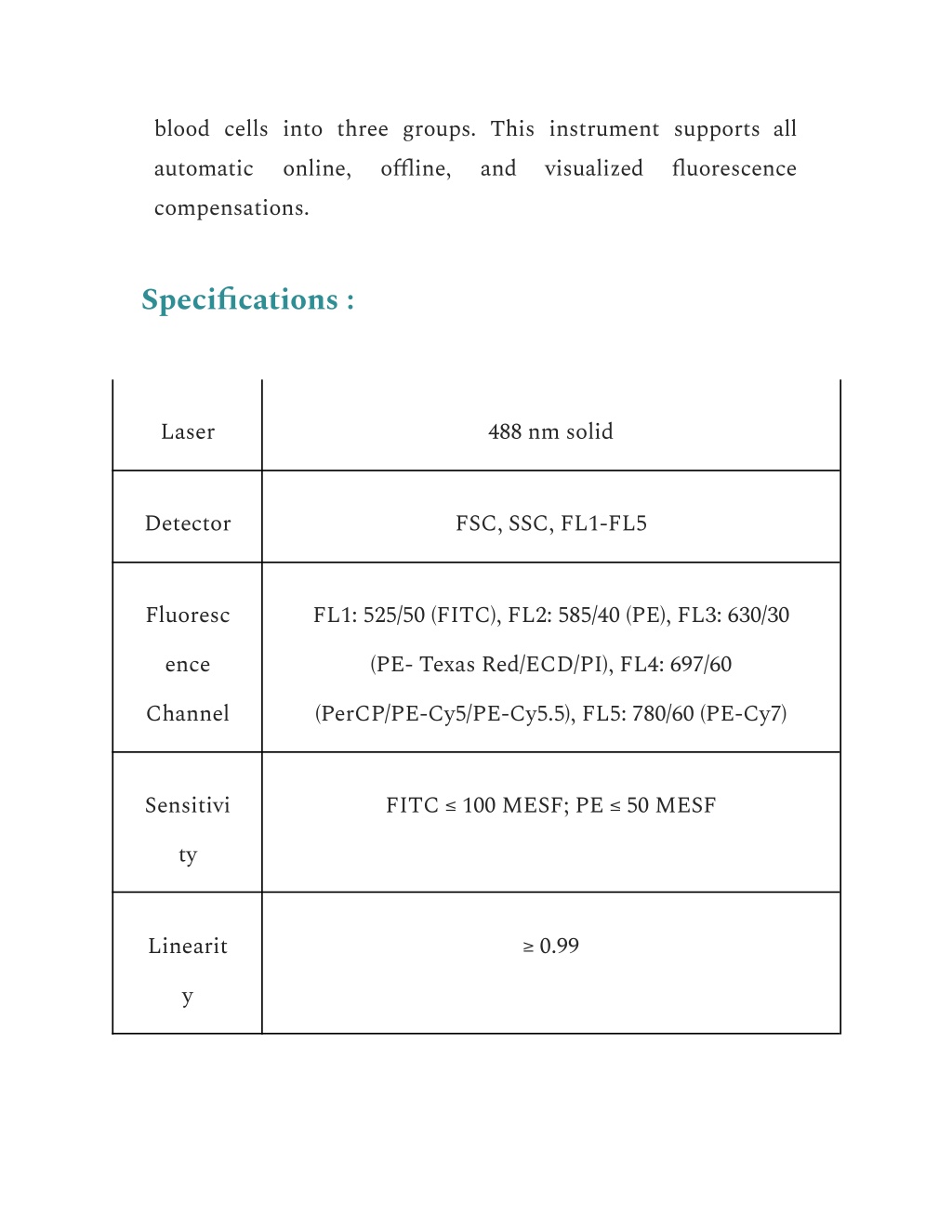

  2. blood cells into three groups. This instrument supports all automatic compensations. online, offline, and visualized fluorescence Specifications : Laser 488 nm solid Detector FSC, SSC, FL1-FL5 Fluoresc FL1: 525/50 (FITC), FL2: 585/40 (PE), FL3: 630/30 ence (PE- Texas Red/ECD/PI), FL4: 697/60 Channel (PerCP/PE-Cy5/PE-Cy5.5), FL5: 780/60 (PE-Cy7) Sensitivi FITC ≤ 100 MESF; PE ≤ 50 MESF ty Linearit ≥ 0.99 y

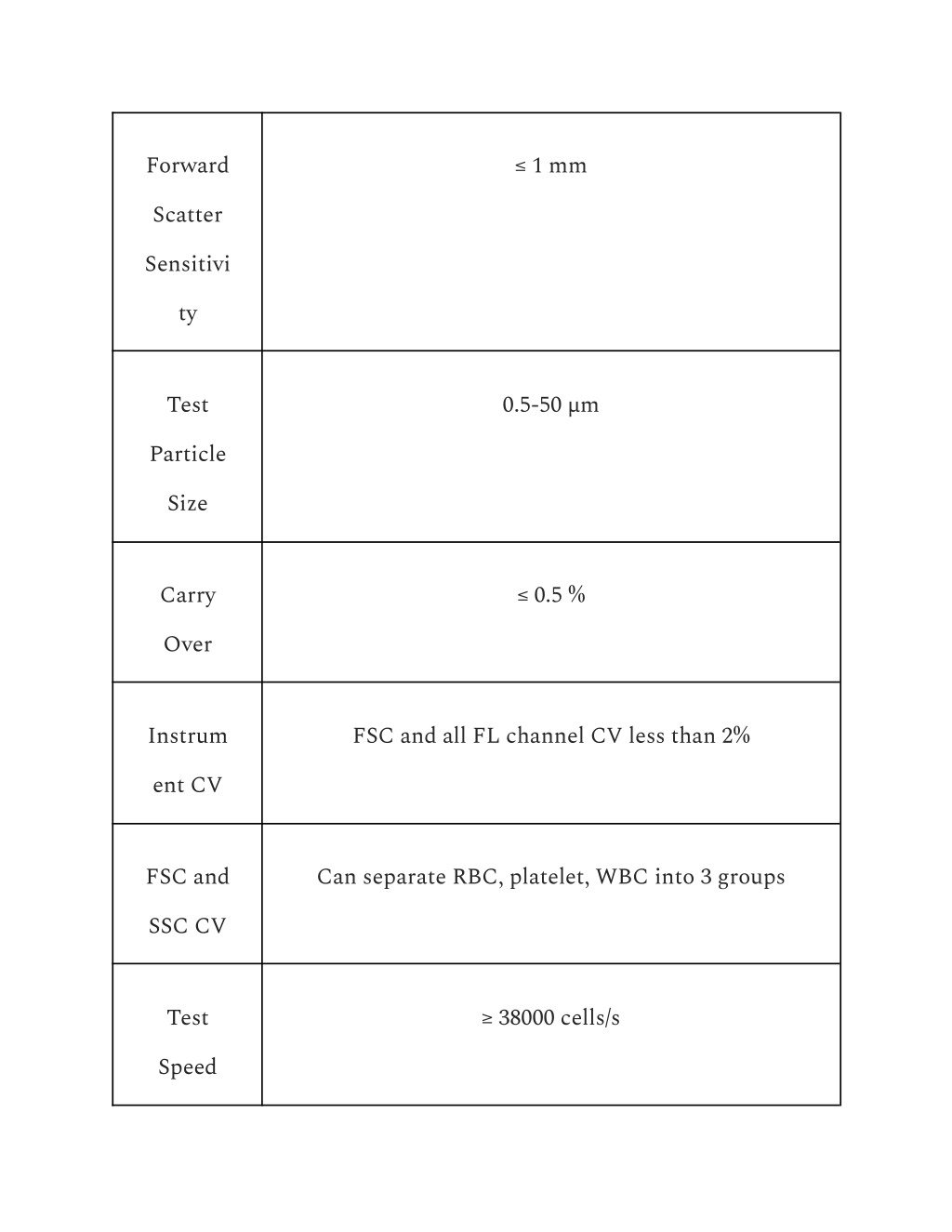

  3. Forward ≤ 1 mm Scatter Sensitivi ty Test 0.5-50 µm Particle Size Carry ≤ 0.5 % Over Instrum FSC and all FL channel CV less than 2% ent CV FSC and Can separate RBC, platelet, WBC into 3 groups SSC CV Test ≥ 38000 cells/s Speed

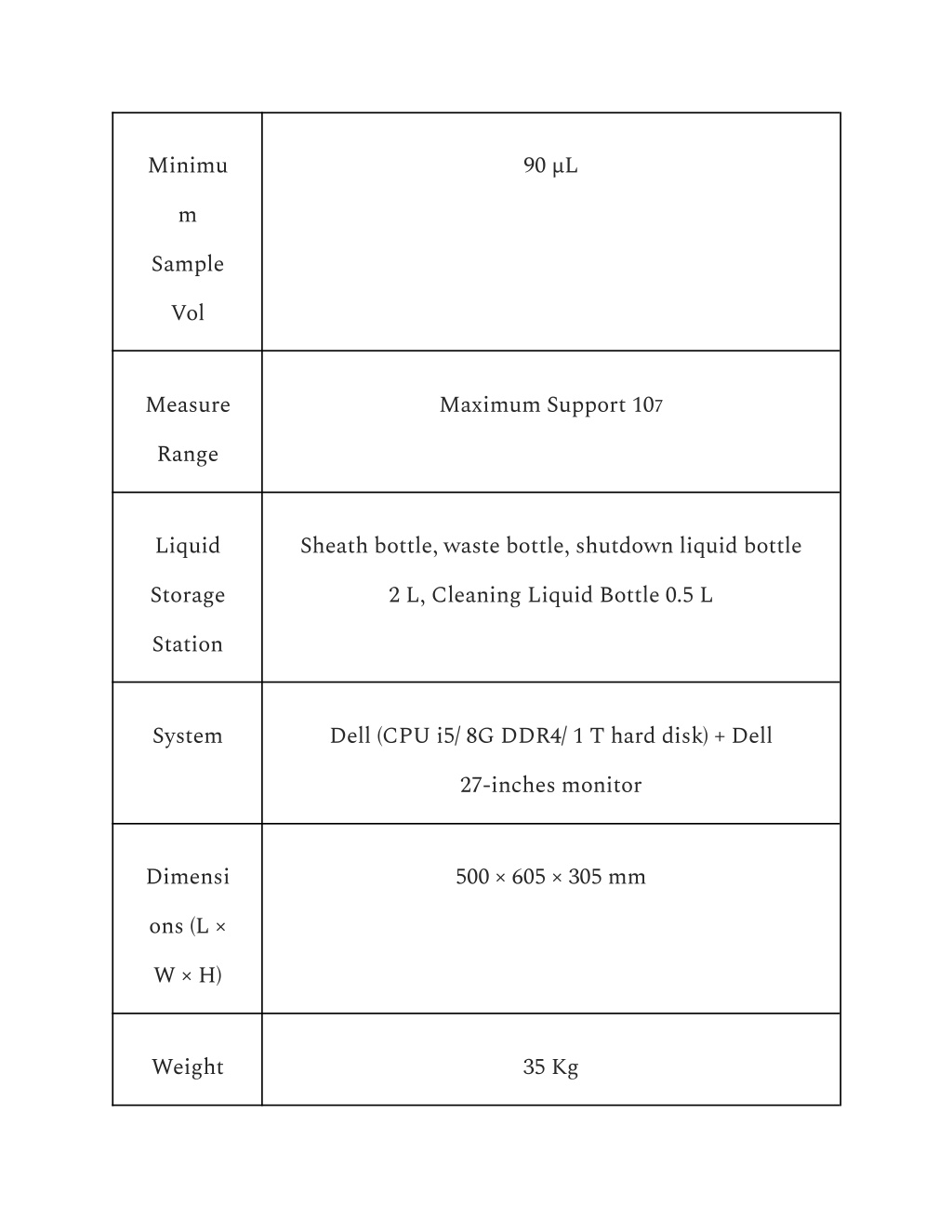

  4. Minimu 90 µL m Sample Vol Measure Maximum Support 107 Range Liquid Sheath bottle, waste bottle, shutdown liquid bottle Storage 2 L, Cleaning Liquid Bottle 0.5 L Station System Dell (CPU i5/ 8G DDR4/ 1 T hard disk) + Dell 27-inches monitor Dimensi 500 × 605 × 305 mm ons (L × W × H) Weight 35 Kg

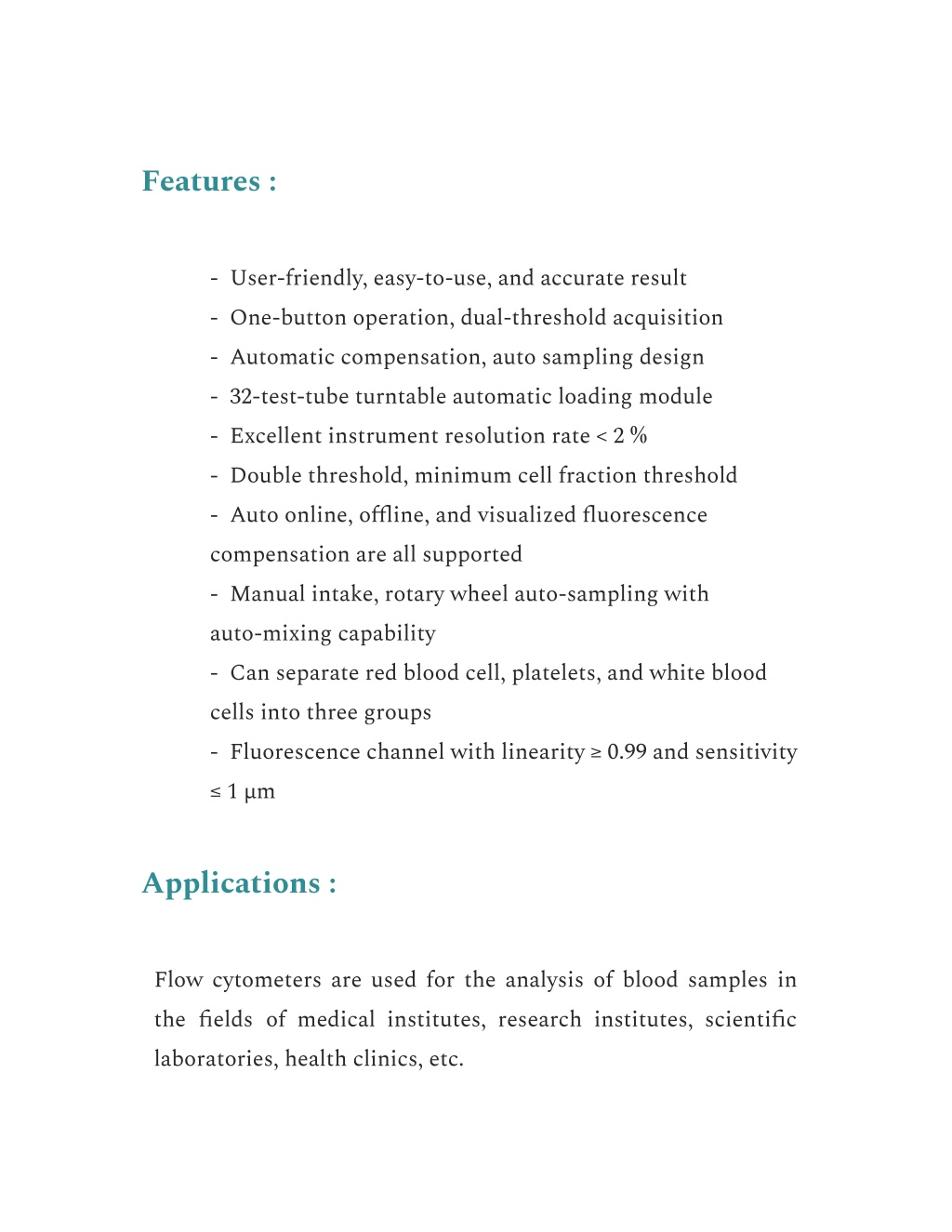

  5. Features : - User-friendly, easy-to-use, and accurate result - One-button operation, dual-threshold acquisition - Automatic compensation, auto sampling design - 32-test-tube turntable automatic loading module - Excellent instrument resolution rate < 2 % - Double threshold, minimum cell fraction threshold - Auto online, offline, and visualized fluorescence compensation are all supported - Manual intake, rotary wheel auto-sampling with auto-mixing capability - Can separate red blood cell, platelets, and white blood cells into three groups - Fluorescence channel with linearity ≥ 0.99 and sensitivity ≤ 1 µm Applications : Flow cytometers are used for the analysis of blood samples in the fields of medical institutes, research institutes, scientific laboratories, health clinics, etc.

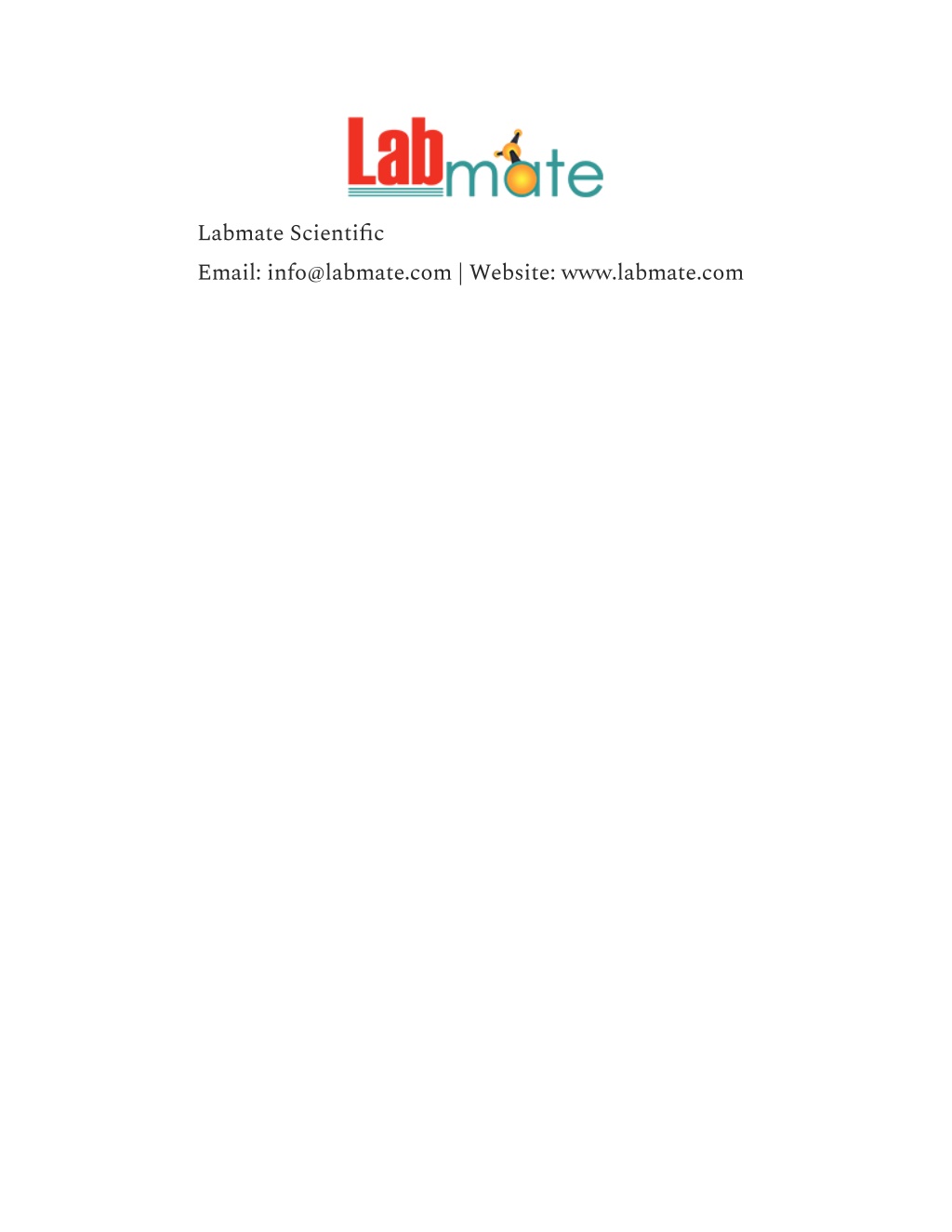

  6. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
