chapter 4 lecture outline

Chapter 4Lecture Outline

Chemical Building Blocks

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

atoms and molecules
Atoms and Molecules

Big fleas have little fleas

Upon their backs to bite ‘em

Little fleas have littler fleas

And so ad infinitum

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

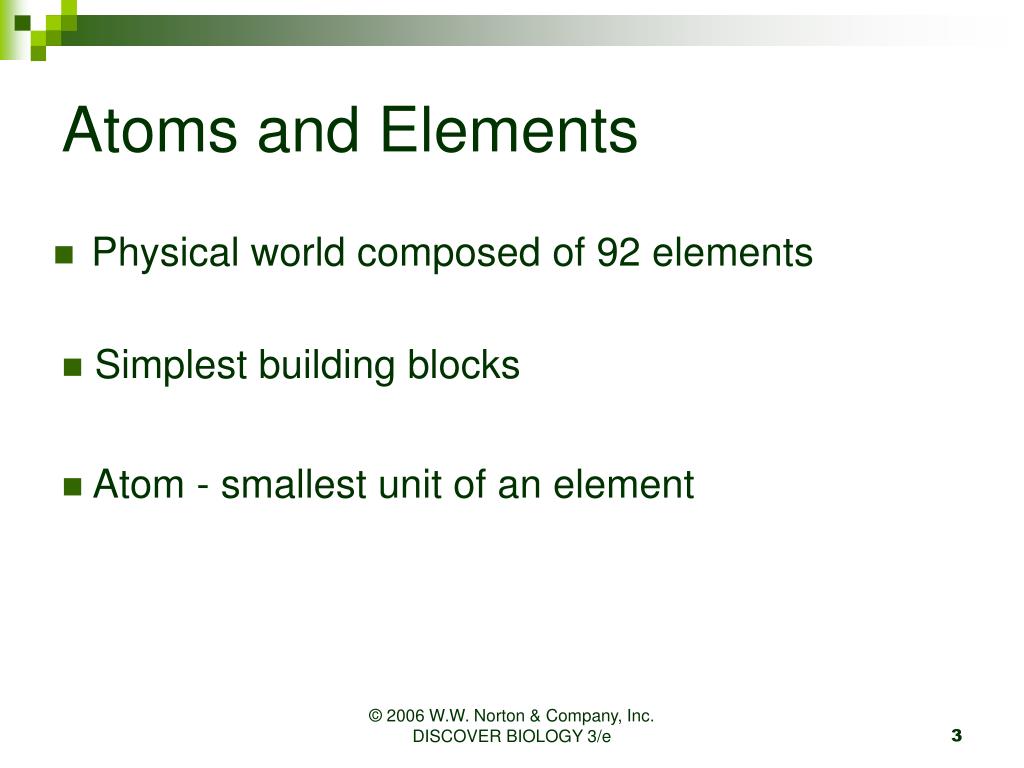

atoms and elements
Atoms and Elements
  • Physical world composed of 92 elements
  • Simplest building blocks
  • Atom - smallest unit of an element

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

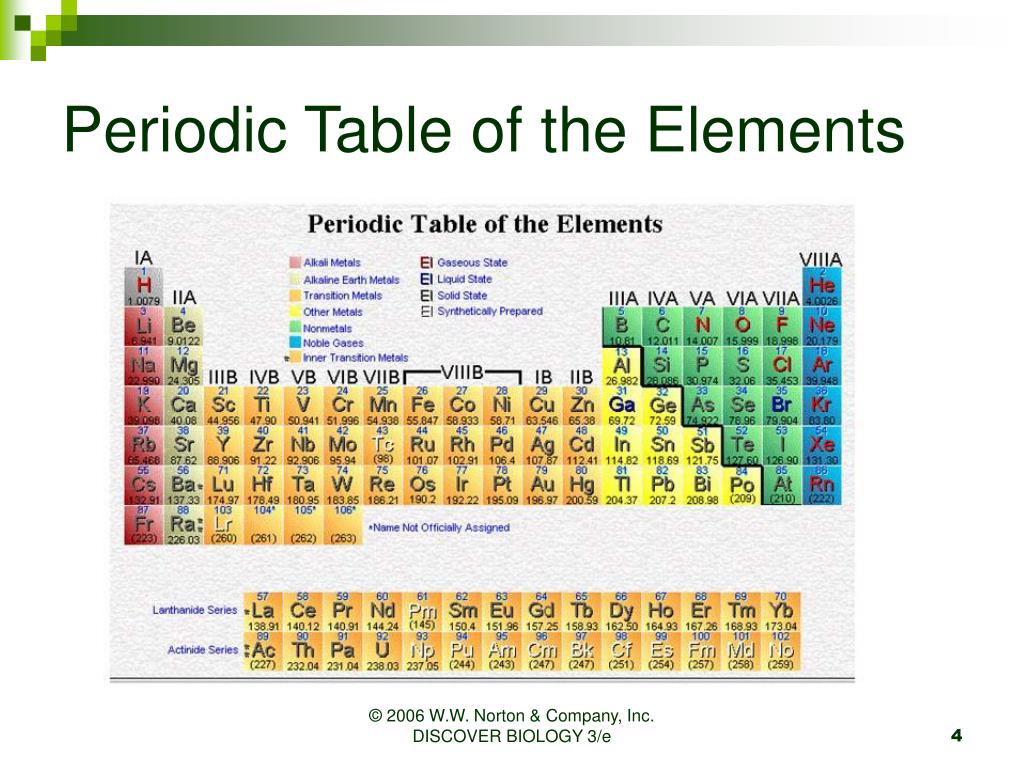

periodic table of the elements
Periodic Table of the Elements

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

atomic components
Atomic Components
  • Atoms are composed of 3 subatomic particles
  • Electrons – negatively charged
  • Protons – positively charged
  • Neutrons – no charge (neutral)
  • Protons & neutrons are contained in the nucleus
  • Electrons orbit the nucleus
  • Gain or loss of an electron: ion

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

atomic and mass numbers
Atomic and Mass Numbers
  • Atomic Number: Number of Protons
  • Determines the element’s properties
  • Mass Number: Number of Protons +

Number of Neutrons

  • Isotopes: different numbers of neutrons
  • Unstable isotopes: Radioisotopes

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

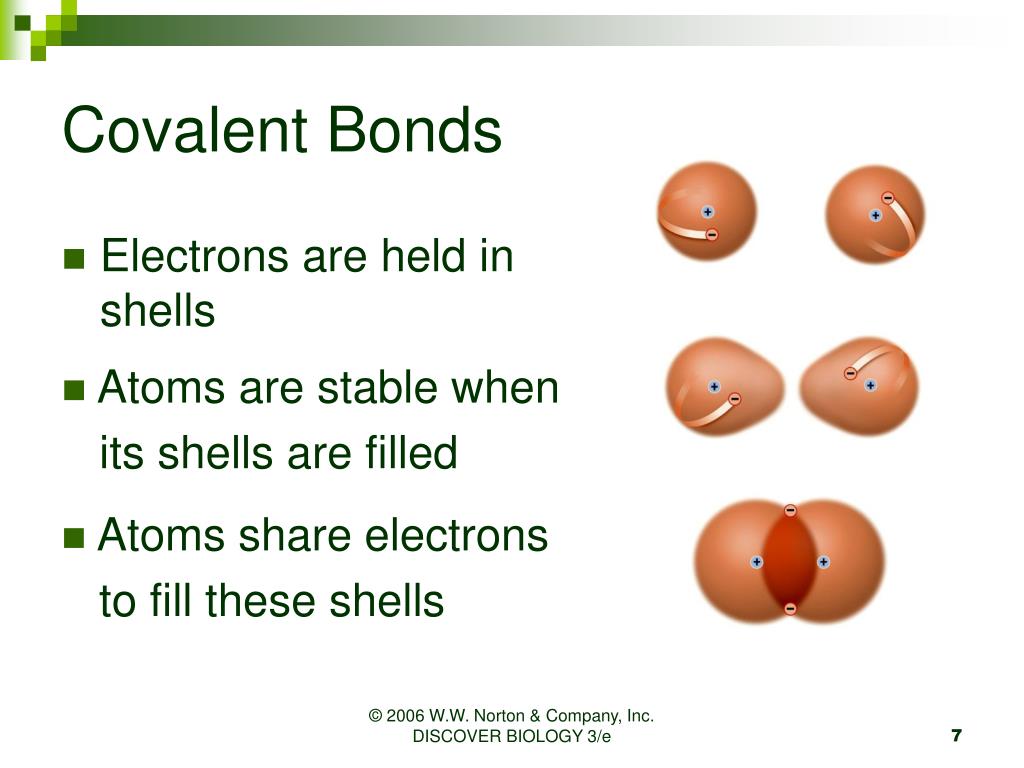

covalent bonds
Covalent Bonds
  • Electrons are held in shells
  • Atoms are stable when

its shells are filled

  • Atoms share electrons

to fill these shells

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

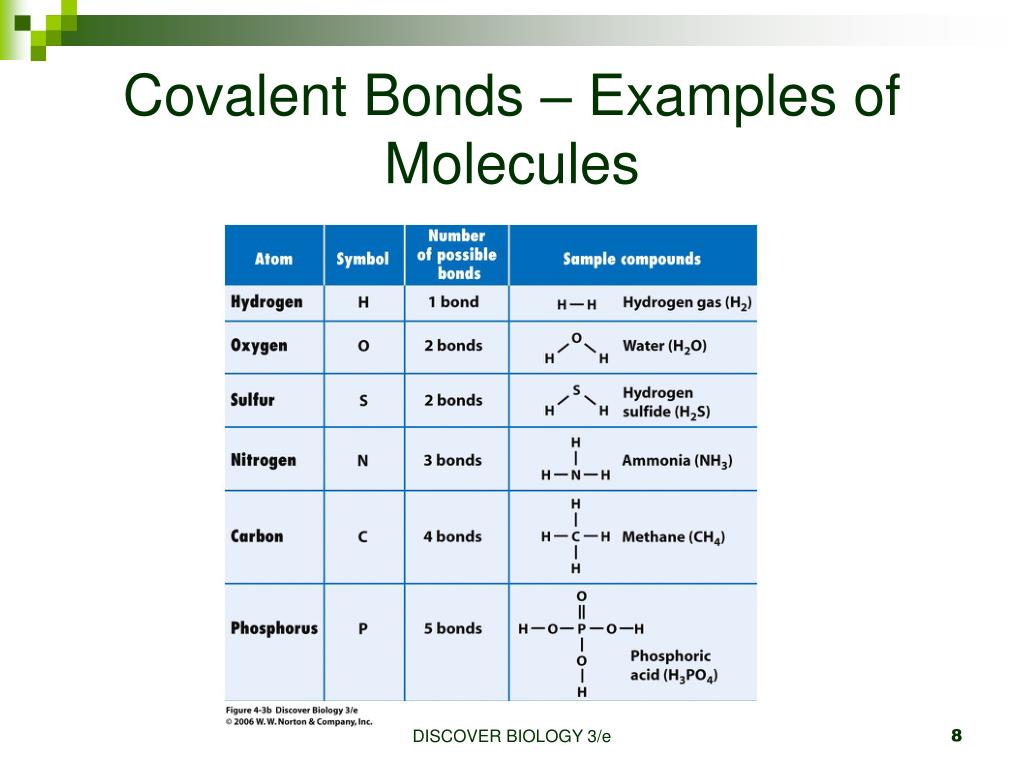

covalent bonds examples of molecules
Covalent Bonds – Examples of Molecules

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

noncovalent bonds
Noncovalent Bonds
  • Link molecules together (intermolecular)
    • Much weaker than covalent
    • Much more prevalent
  • Hydrogen bonds: very common in biology
    • Attraction between partial charges
    • Hold biological molecules together
  • Ionic bonds: form between charged particles (Ions)

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

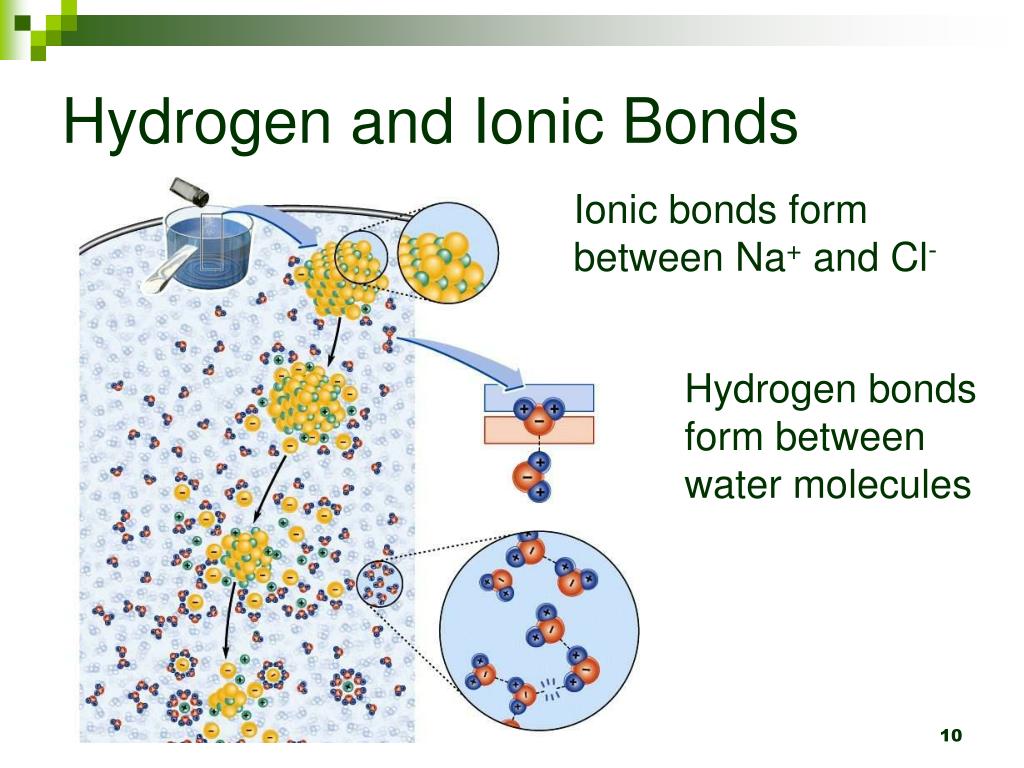

hydrogen and ionic bonds
Hydrogen and Ionic Bonds

Ionic bonds form

between Na+ and Cl-

Hydrogen bonds

form between

water molecules

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

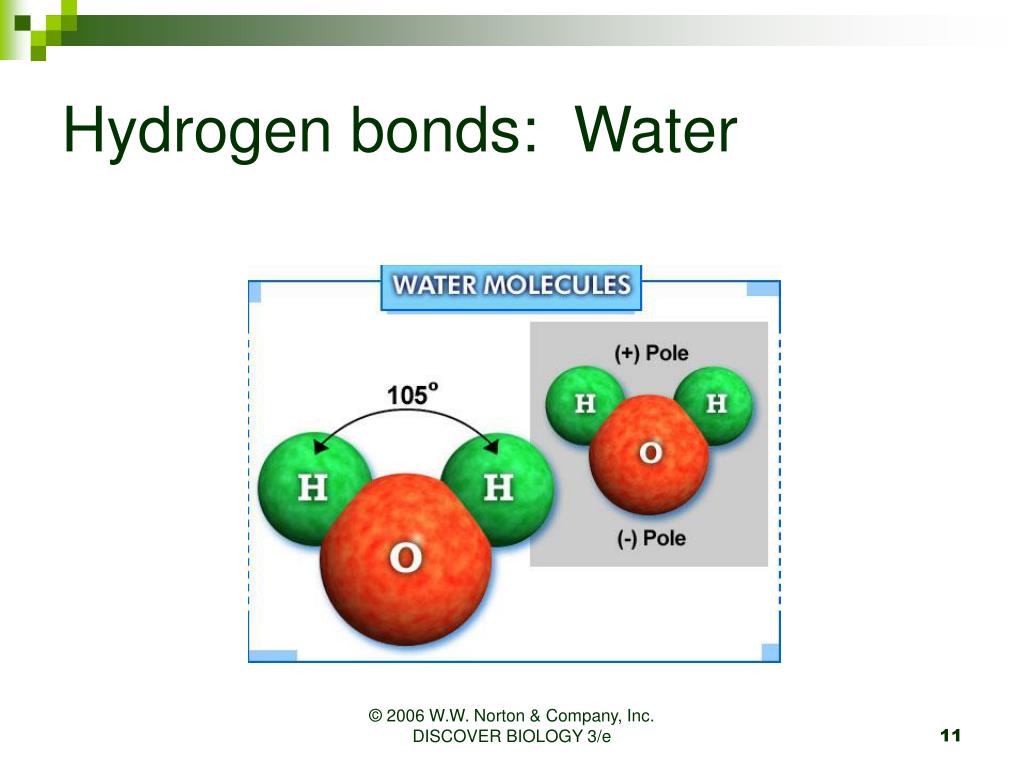

hydrogen bonds water
Hydrogen bonds: Water

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

hydrogen bonds are like velcro
Hydrogen bonds are like Velcro

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

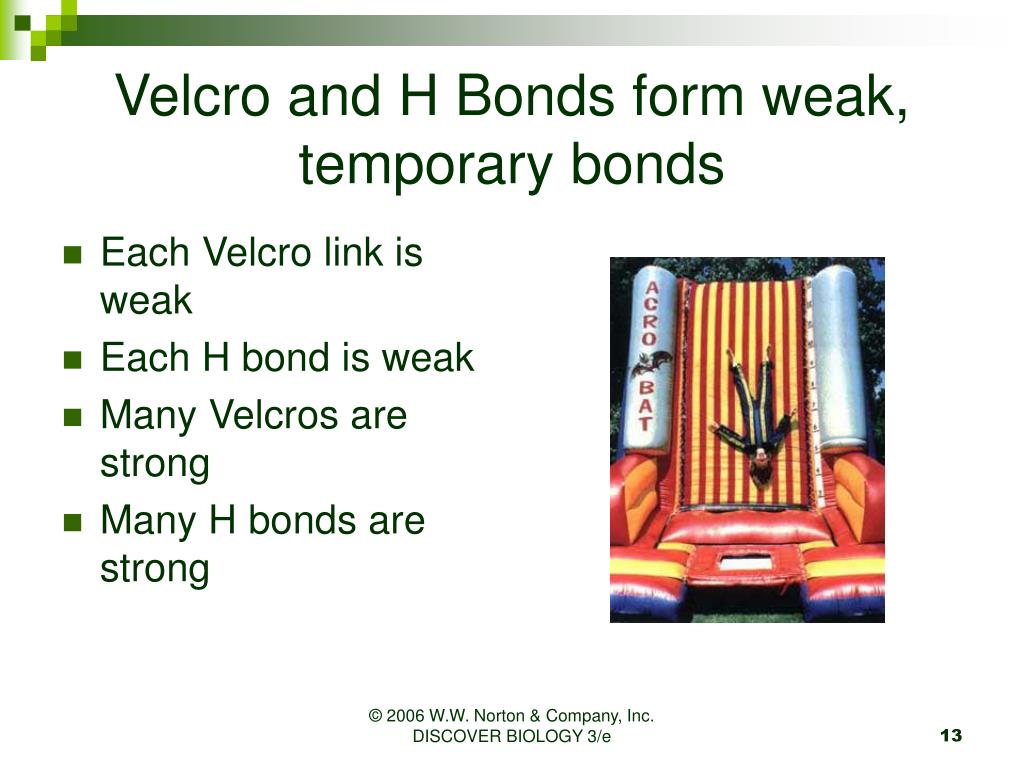

velcro and h bonds form weak temporary bonds
Velcro and H Bonds form weak, temporary bonds
  • Each Velcro link is weak
  • Each H bond is weak
  • Many Velcros are strong
  • Many H bonds are strong

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

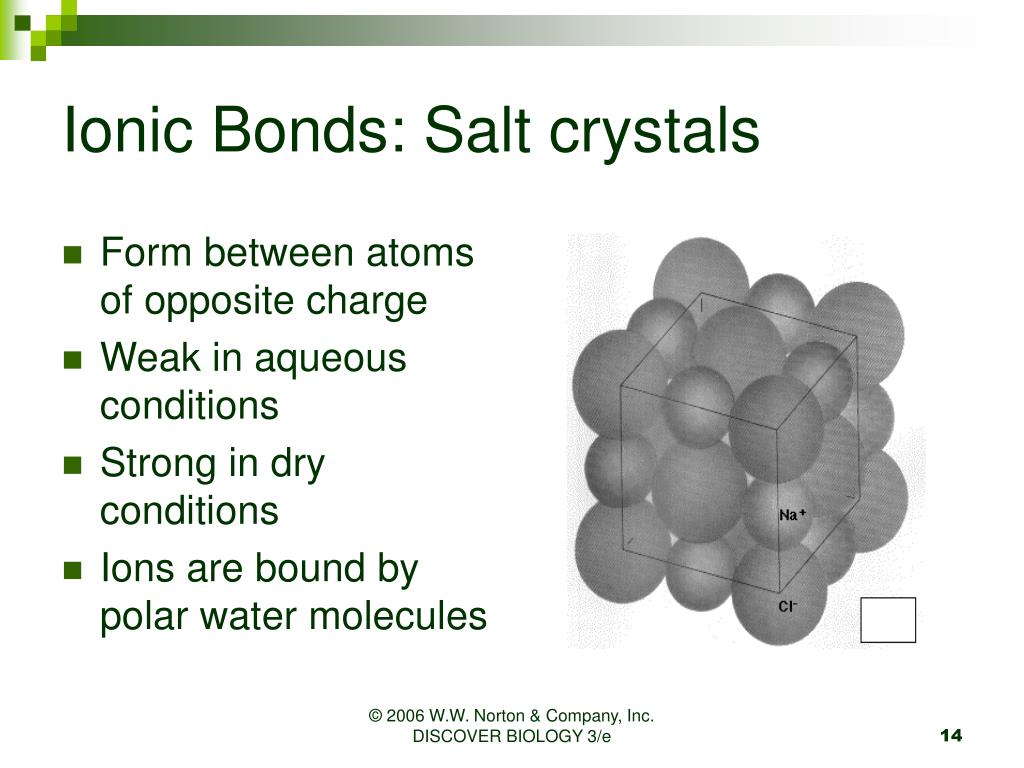

ionic bonds salt crystals
Ionic Bonds: Salt crystals
  • Form between atoms of opposite charge
  • Weak in aqueous conditions
  • Strong in dry conditions
  • Ions are bound by polar water molecules

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

water molecules break up salt
Water molecules break up salt

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

rearranging atoms in molecules
Rearranging Atoms in Molecules
  • Chemical reactions:
    • Breaking covalent bonds
    • Forming new bonds
  • Require energy

3 H2 + N2 2 NH3

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

acids and bases
Acids and Bases
  • Acid: releases H+ in water

HCl + H2O  Cl- + H30+

  • Base: accepts H+ from water

NH3 + H20 NH4+ + OH-

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

slide18
pH
  • A measure of H+ concentration
  • The scale pH is from 0 to 14
  • Scale is 10X
    • More than 7 is basic
    • Less than 7 is acidic

Coke

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

buffers control ph
Buffers Control pH
  • Buffer - weak acid or base
  • Maintains pH within very narrow limits
    • Accepts H+ when pH is low
    • Releases H+ when pH is high

AH + H2O  A- + H3O

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

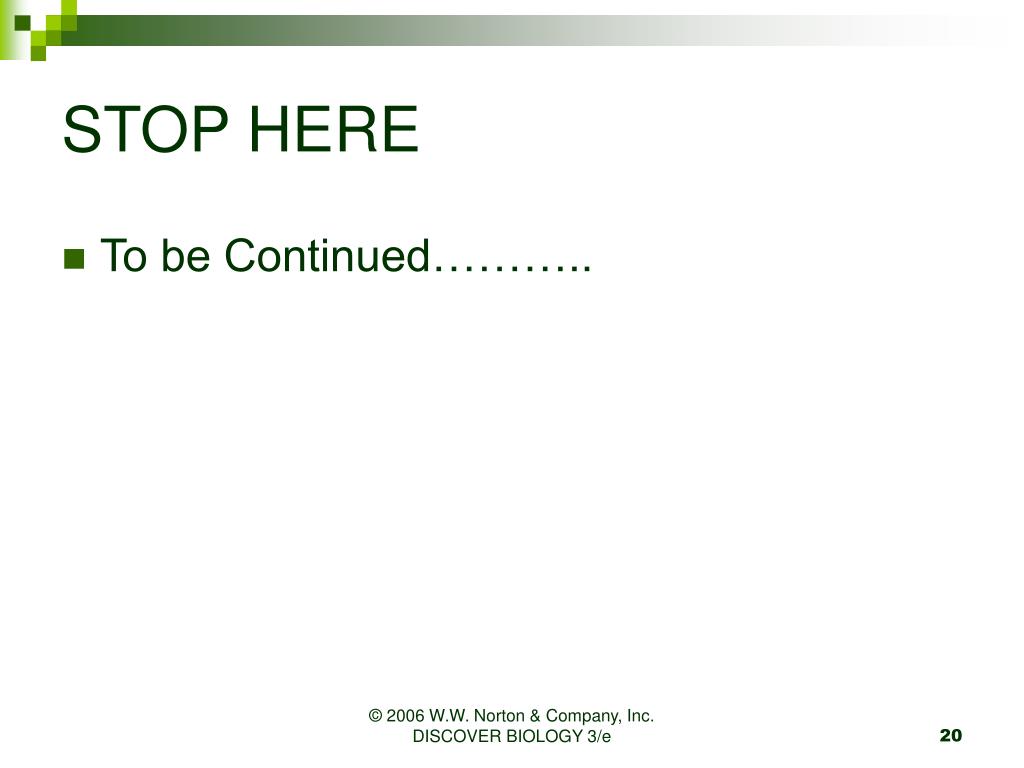

stop here
STOP HERE
  • To be Continued………..

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

carbon based molecules
Carbon-based Molecules
  • Biomolecules are mainly C and H
    • Carbon chains can be very long
  • O, S, P, and N are also present
    • These comprise functional groups
    • Functional groups allow molecules to interact
  • Biomolecules are combined to form polymers

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

what are biological molecules
Carbohydrates

Sugar

Starch

Cellulose

Fats

Lipids

Fatty acids

Cell membranes

Proteins

Amino acids

Collagen

Fibrin

Nucleic Acids

DNA

RNA

What are Biological Molecules?

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

carbohydrates simple sugars
Carbohydrates: Simple Sugars
  • Sugars are carbohydrate monomers
  • Used to store and release energy
    • Glucose plays a key role
  • Dehydration synthesis: combining sugars
  • What other kinds of sugars to you know?

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

other kinds of sugars
Other kinds of sugars:

Glucose

Fructose

Lactose

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

carbohydrates complex sugars
Carbohydrates – Complex Sugars
  • Monosaccharides – one sugar molecule
  • Disaccharides – two sugar molecules
  • Oligosaccharides – a few sugar molecules
  • Polysaccharides – many sugar molecules

Don’t ask me to define “few” or “many”

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

branched chain polysaccharide
Branched Chain Polysaccharide

Very complex

Indeed!

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

carbohydrates polymers
Carbohydrates: Polymers

Cellulose: Structure

Starch: Energy storage

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

nucleic acids nucleotides
Nucleic Acids: Nucleotides
  • Made of three parts
    • Sugar (ribose), phosphate, and nitrogen base
  • Monomers can be used as “energy currency”

ATP

Energy

Energy

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

slide29

Nucleic Acids: DNA and RNA

  • Information storage molecules

Phosphate Group

Bases

Nucleotide

Adenine (A)

Thymine (T)

Sugars

Ribose

Guanine (G)

Cytosine (C)

Uracil (C)

Deoxyribose

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

proteins amino acids
Proteins: Amino Acids
  • There are 20 amino acids
  • They all have:
    • Central C
    • Amino group (nitrogen)
    • Carboxyl Group
    • R group
  • Each amino acid differs in its R group
  • Amino acids link together to form proteins

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

kinds of r groups
Kinds of R Groups

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

proteins polypeptides
Proteins: Polypeptides
  • Amino acids are covalently linked
    • Peptide bonds C to N
  • Primary structure: sequence of amino acids
  • This determines folding of

the protein

NOT!!

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

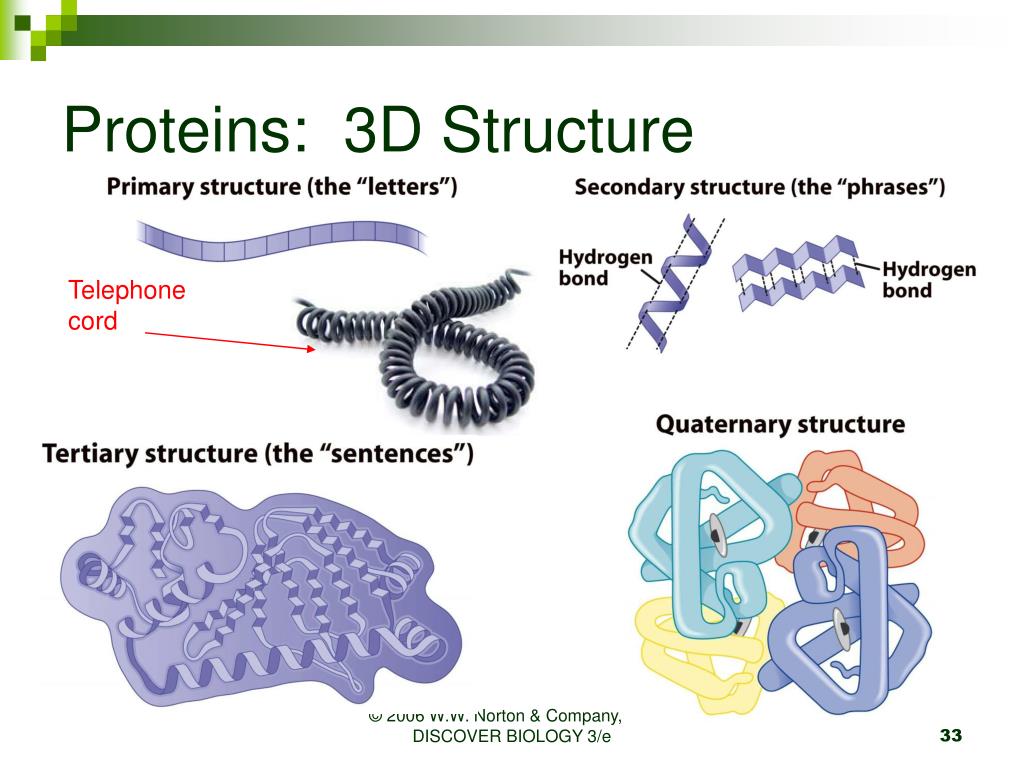

proteins 3d structure
Proteins: 3D Structure

Telephone

cord

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

lipids fatty acids
Lipids: Fatty Acids

Charged polar end

  • Long hydrocarbon chains
    • Very hydrophobic
    • Oil and water don’t mix
  • Used for energy storage
    • Very high energy
    • Long-term storage

Lipid tail end

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

lipids structure
Lipids: Structure
  • Fats are bonded to glycerol with phosphate
  • Produces hydrophobic and hydrophilic parts
    • Forms a bilayer in water
    • Structure of cell membrane

Lipid bilayer:

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

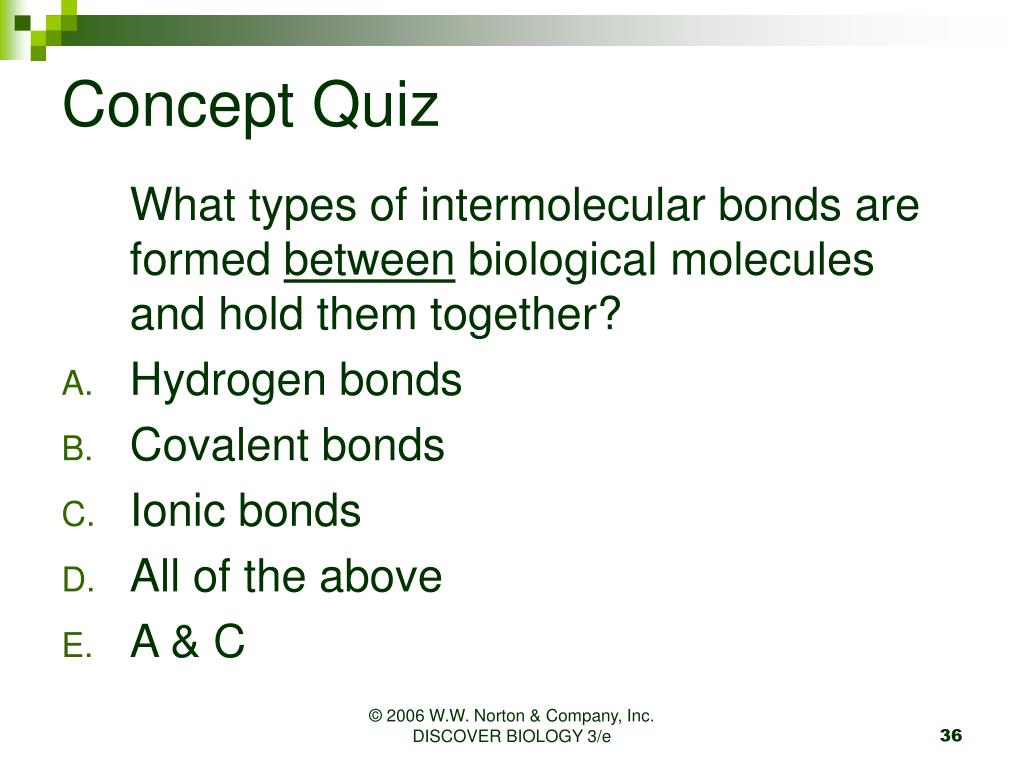

concept quiz
Concept Quiz

What types of intermolecular bonds are formed between biological molecules and hold them together?

  • Hydrogen bonds
  • Covalent bonds
  • Ionic bonds
  • All of the above
  • A & C

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

concept quiz37
Concept Quiz

What determines the folding pattern of a peptide into a completed protein?

  • The amino acid sequence (primary structure)
  • The source of the amino acids
  • The absorption of light
  • The size of the ribosomes used

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

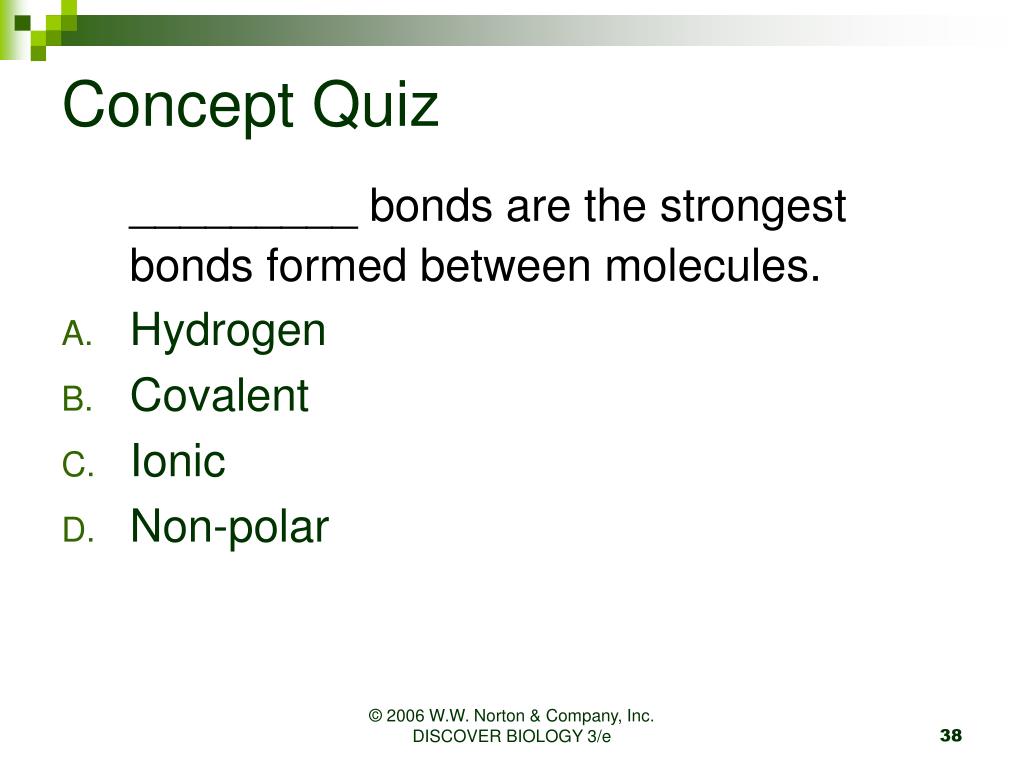

concept quiz38
Concept Quiz

_________ bonds are the strongest bonds formed between molecules.

  • Hydrogen
  • Covalent
  • Ionic
  • Non-polar

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

concept quiz39
Concept Quiz

The main difference between the 20 amino acids is the

  • central carbon.
  • amine group.
  • acid group.
  • side chain.

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e

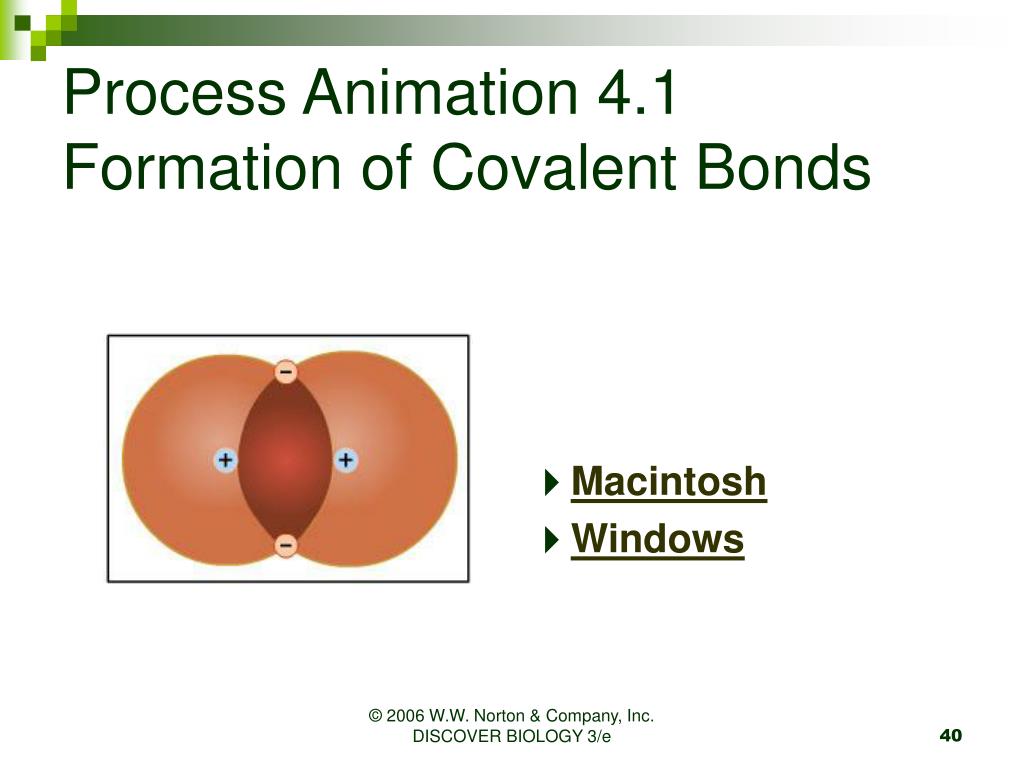

slide40

Process Animation 4.1Formation of Covalent Bonds

Macintosh

Windows

© 2006 W.W. Norton & Company, Inc. DISCOVER BIOLOGY 3/e
