Thermo-Mechanically Treated (TMT) Bars in Construction

1. THERMO-MECHANICALLY TREATED (TMT) BARS IN CONSTRUCTION Strength. Flexibility. Durability.

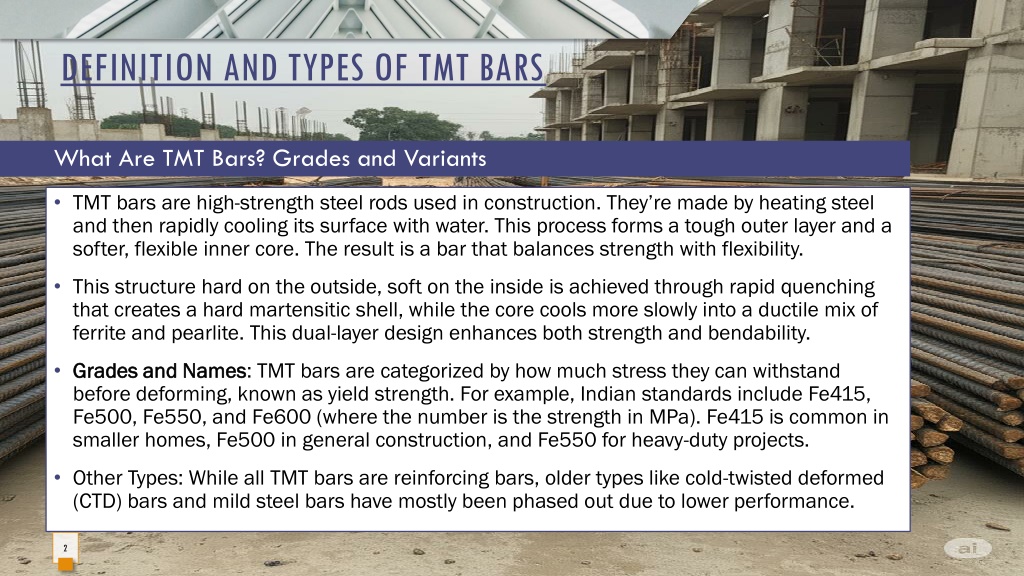

2. DEFINITION AND TYPES OF TMT BARS What Are TMT Bars? Grades and Variants • TMT bars are high-strength steel rods used in construction. They’re made by heating steel and then rapidly cooling its surface with water. This process forms a tough outer layer and a softer, flexible inner core. The result is a bar that balances strength with flexibility. • This structure hard on the outside, soft on the inside is achieved through rapid quenching that creates a hard martensitic shell, while the core cools more slowly into a ductile mix of ferrite and pearlite. This dual-layer design enhances both strength and bendability. • Grades and Names Grades and Names: TMT bars are categorized by how much stress they can withstand before deforming, known as yield strength. For example, Indian standards include Fe415, Fe500, Fe550, and Fe600 (where the number is the strength in MPa). Fe415 is common in smaller homes, Fe500 in general construction, and Fe550 for heavy-duty projects. • Other Types: While all TMT bars are reinforcing bars, older types like cold-twisted deformed (CTD) bars and mild steel bars have mostly been phased out due to lower performance. 2

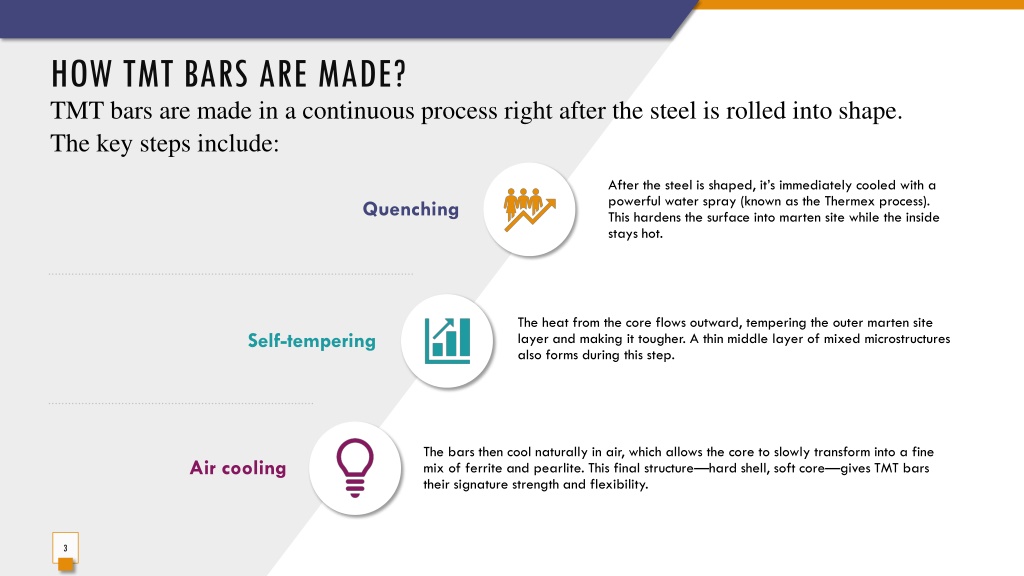

3. HOW TMT BARS ARE MADE? TMT bars are made in a continuous process right after the steel is rolled into shape. The key steps include: After the steel is shaped, it’s immediately cooled with a powerful water spray (known as the Thermex process). This hardens the surface into marten site while the inside stays hot. Quenching The heat from the core flows outward, tempering the outer marten site layer and making it tougher. A thin middle layer of mixed microstructures also forms during this step. Self-tempering The bars then cool naturally in air, which allows the core to slowly transform into a fine mix of ferrite and pearlite. This final structure—hard shell, soft core—gives TMT bars their signature strength and flexibility. Air cooling 3

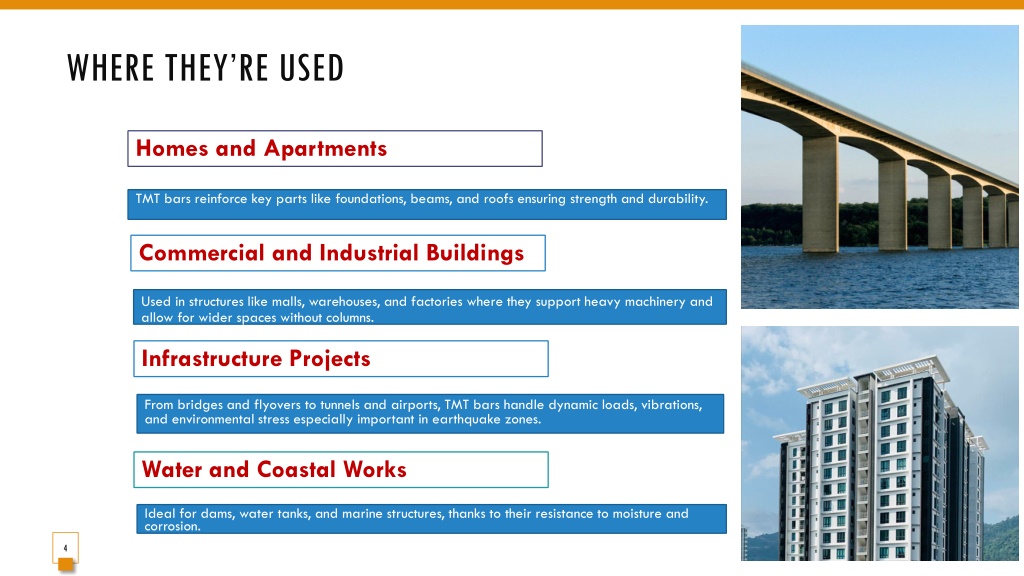

4. WHERE THEY’RE USED Homes and Apartments TMT bars reinforce key parts like foundations, beams, and roofs ensuring strength and durability. Commercial and Industrial Buildings Used in structures like malls, warehouses, and factories where they support heavy machinery and allow for wider spaces without columns. Infrastructure Projects From bridges and flyovers to tunnels and airports, TMT bars handle dynamic loads, vibrations, and environmental stress especially important in earthquake zones. Water and Coastal Works Ideal for dams, water tanks, and marine structures, thanks to their resistance to moisture and corrosion. 4

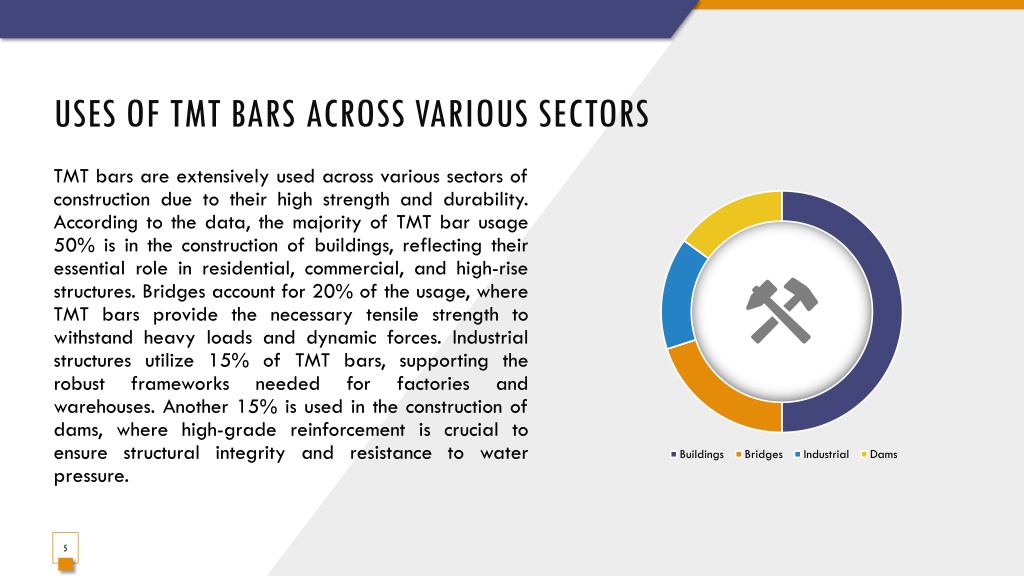

5. USES OF TMT BARS ACROSS VARIOUS SECTORS TMT bars are extensively used across various sectors of construction due to their high strength and durability. According to the data, the majority of TMT bar usage 50% is in the construction of buildings, reflecting their essential role in residential, commercial, and high-rise structures. Bridges account for 20% of the usage, where TMT bars provide the necessary tensile strength to withstand heavy loads and dynamic forces. Industrial structures utilize 15% of TMT bars, supporting the robust frameworks needed warehouses. Another 15% is used in the construction of dams, where high-grade reinforcement is crucial to ensure structural integrity and resistance to water pressure. for factories and Buildings Bridges Industrial Dams 5

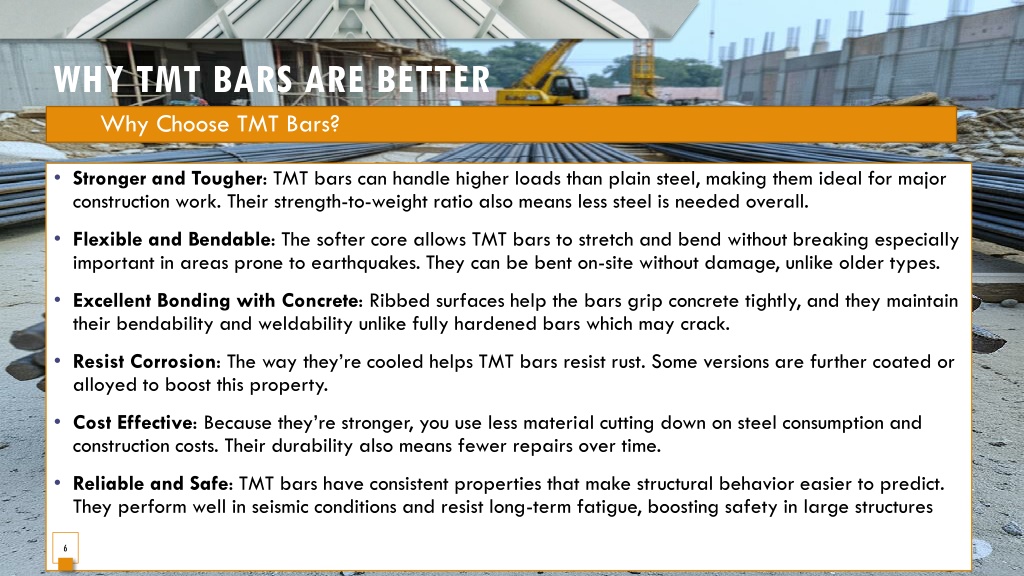

6. WHY TMT BARS ARE BETTER Why Choose TMT Bars? • Stronger and Tougher: TMT bars can handle higher loads than plain steel, making them ideal for major construction work. Their strength-to-weight ratio also means less steel is needed overall. • Flexible and Bendable: The softer core allows TMT bars to stretch and bend without breaking especially important in areas prone to earthquakes. They can be bent on-site without damage, unlike older types. • Excellent Bonding with Concrete: Ribbed surfaces help the bars grip concrete tightly, and they maintain their bendability and weldability unlike fully hardened bars which may crack. • Resist Corrosion: The way they’re cooled helps TMT bars resist rust. Some versions are further coated or alloyed to boost this property. • Cost Effective: Because they’re stronger, you use less material cutting down on steel consumption and construction costs. Their durability also means fewer repairs over time. • Reliable and Safe: TMT bars have consistent properties that make structural behavior easier to predict. They perform well in seismic conditions and resist long-term fatigue, boosting safety in large structures 6

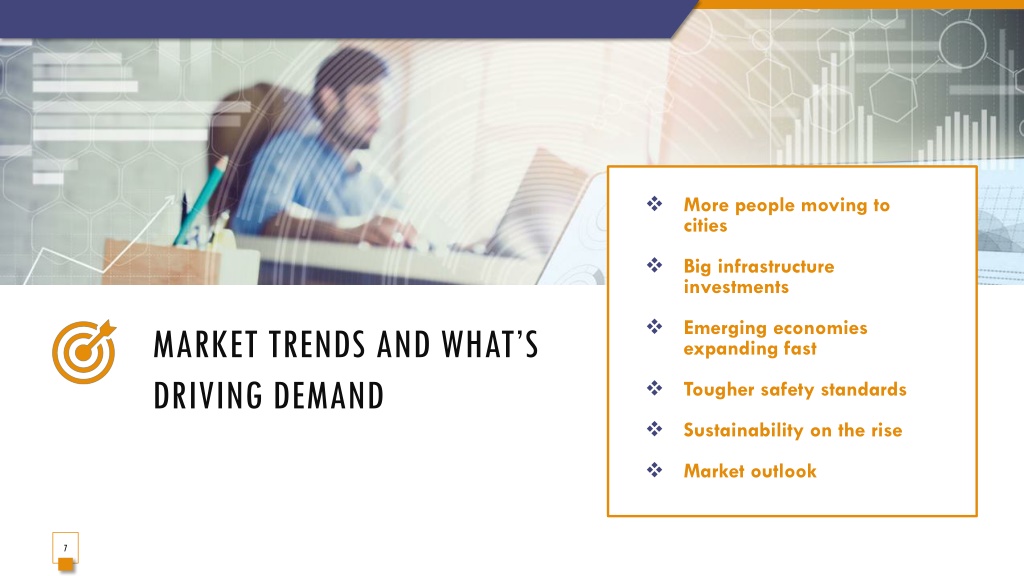

7.  More people moving to cities  Big infrastructure investments  Emerging economies expanding fast MARKET TRENDS AND WHAT’S DRIVING DEMAND  Tougher safety standards  Sustainability on the rise  Market outlook 7

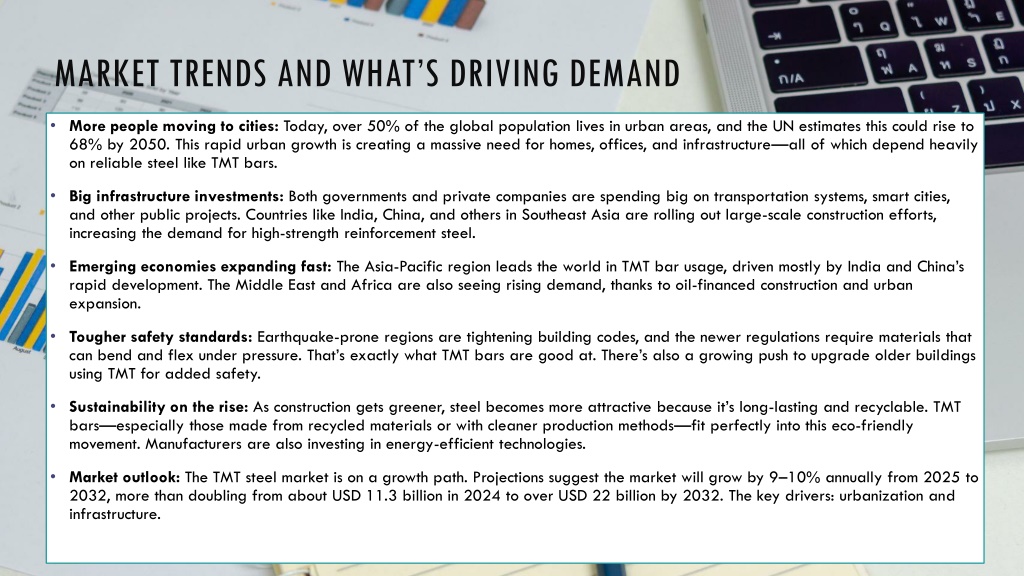

8. MARKET TRENDS AND WHAT’S DRIVING DEMAND • More people moving to cities: Today, over 50% of the global population lives in urban areas, and the UN estimates this could rise to 68% by 2050. This rapid urban growth is creating a massive need for homes, offices, and infrastructure—all of which depend heavily on reliable steel like TMT bars. • Big infrastructure investments: Both governments and private companies are spending big on transportation systems, smart cities, and other public projects. Countries like India, China, and others in Southeast Asia are rolling out large-scale construction efforts, increasing the demand for high-strength reinforcement steel. • Emerging economies expanding fast: The Asia-Pacific region leads the world in TMT bar usage, driven mostly by India and China’s rapid development. The Middle East and Africa are also seeing rising demand, thanks to oil-financed construction and urban expansion. • Tougher safety standards: Earthquake-prone regions are tightening building codes, and the newer regulations require materials that can bend and flex under pressure. That’s exactly what TMT bars are good at. There’s also a growing push to upgrade older buildings using TMT for added safety. • Sustainability on the rise: As construction gets greener, steel becomes more attractive because it’s long-lasting and recyclable. TMT bars—especially those made from recycled materials or with cleaner production methods—fit perfectly into this eco-friendly movement. Manufacturers are also investing in energy-efficient technologies. • Market outlook: The TMT steel market is on a growth path. Projections suggest the market will grow by 9–10% annually from 2025 to 2032, more than doubling from about USD 11.3 billion in 2024 to over USD 22 billion by 2032. The key drivers: urbanization and infrastructure. 8

9. CHALLENGES AND CONSIDERATIONS

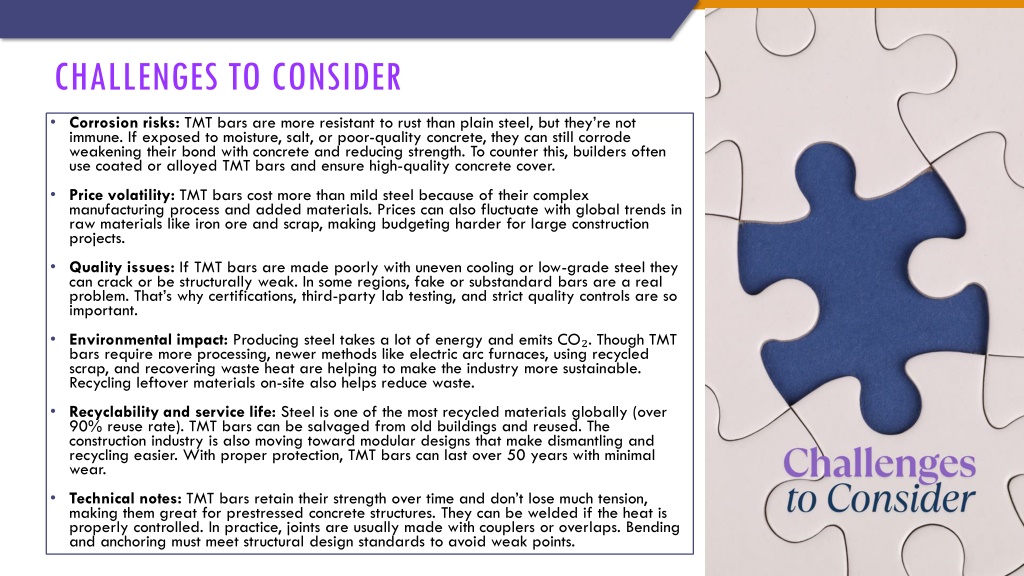

10. CHALLENGES TO CONSIDER • Corrosion risks: TMT bars are more resistant to rust than plain steel, but they’re not immune. If exposed to moisture, salt, or poor-quality concrete, they can still corrode weakening their bond with concrete and reducing strength. To counter this, builders often use coated or alloyed TMT bars and ensure high-quality concrete cover. • Price volatility: TMT bars cost more than mild steel because of their complex manufacturing process and added materials. Prices can also fluctuate with global trends in raw materials like iron ore and scrap, making budgeting harder for large construction projects. • Quality issues: If TMT bars are made poorly with uneven cooling or low-grade steel they can crack or be structurally weak. In some regions, fake or substandard bars are a real problem. That’s why certifications, third-party lab testing, and strict quality controls are so important. • Environmental impact: Producing steel takes a lot of energy and emits CO₂. Though TMT bars require more processing, newer methods like electric arc furnaces, using recycled scrap, and recovering waste heat are helping to make the industry more sustainable. Recycling leftover materials on-site also helps reduce waste. • Recyclability and service life: Steel is one of the most recycled materials globally (over 90% reuse rate). TMT bars can be salvaged from old buildings and reused. The construction industry is also moving toward modular designs that make dismantling and recycling easier. With proper protection, TMT bars can last over 50 years with minimal wear. • Technical notes: TMT bars retain their strength over time and don’t lose much tension, making them great for prestressed concrete structures. They can be welded if the heat is properly controlled. In practice, joints are usually made with couplers or overlaps. Bending and anchoring must meet structural design standards to avoid weak points.

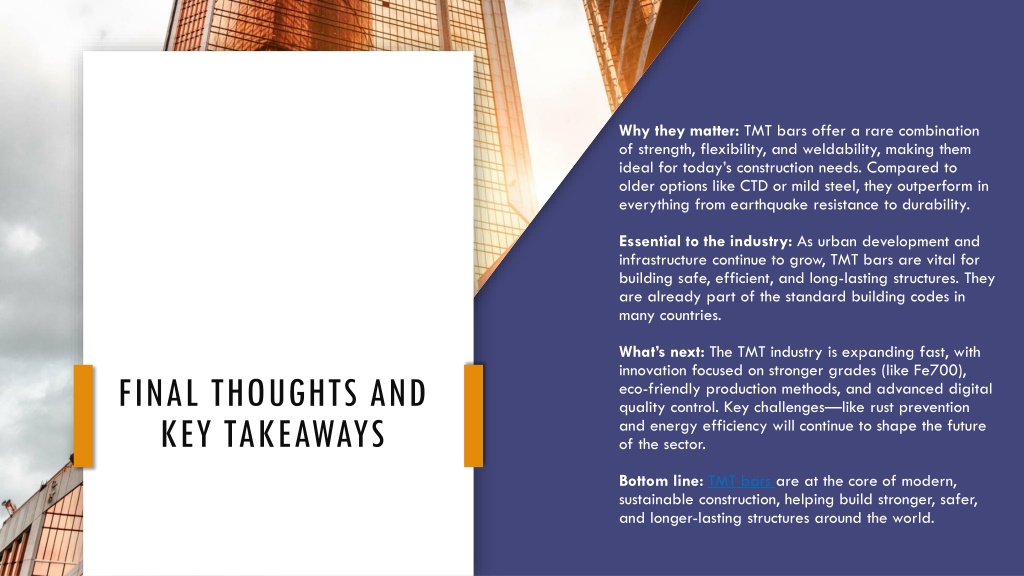

11. Why they matter: TMT bars offer a rare combination of strength, flexibility, and weldability, making them ideal for today’s construction needs. Compared to older options like CTD or mild steel, they outperform in everything from earthquake resistance to durability. Essential to the industry: As urban development and infrastructure continue to grow, TMT bars are vital for building safe, efficient, and long-lasting structures. They are already part of the standard building codes in many countries. What’s next: The TMT industry is expanding fast, with innovation focused on stronger grades (like Fe700), eco-friendly production methods, and advanced digital quality control. Key challenges—like rust prevention and energy efficiency will continue to shape the future of the sector. FINAL THOUGHTS AND KEY TAKEAWAYS Bottom line: TMT bars are at the core of modern, sustainable construction, helping build stronger, safer, and longer-lasting structures around the world.
