  1. COMPACT FLUORESCENT LAMP

  2. Click to Edit Title Click to Edit Sub Title

  3. Working Of CFL Reflection

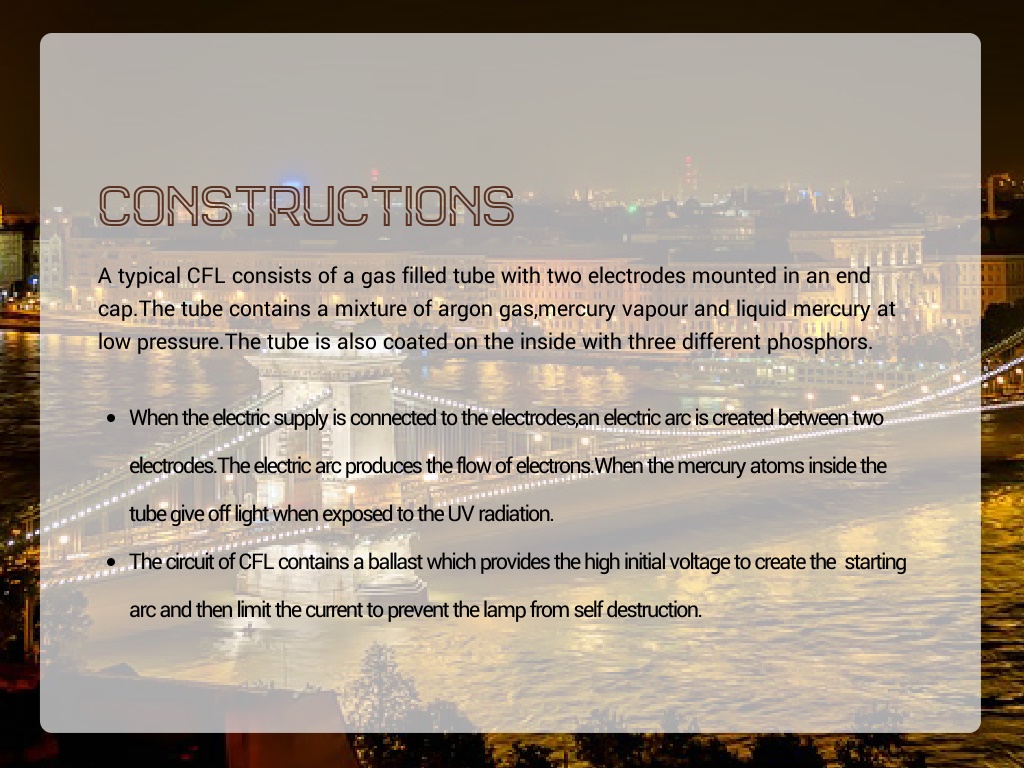

  4. CONSTRUCTIONS A typical CFL consists of a gas filled tube with two electrodes mounted in an end cap.The tube contains a mixture of argon gas,mercury vapour and liquid mercury at low pressure.The tube is also coated on the inside with three different phosphors. When the electric supply is connected to the electrodes,an electric arc is created between two electrodes.The electric arc produces the flow of electrons.When the mercury atoms inside the tube give off light when exposed to the UV radiation. The circuit of CFL contains a ballast which provides the high initial voltage to create the  starting arc and then limit the current to prevent the lamp from self destruction.

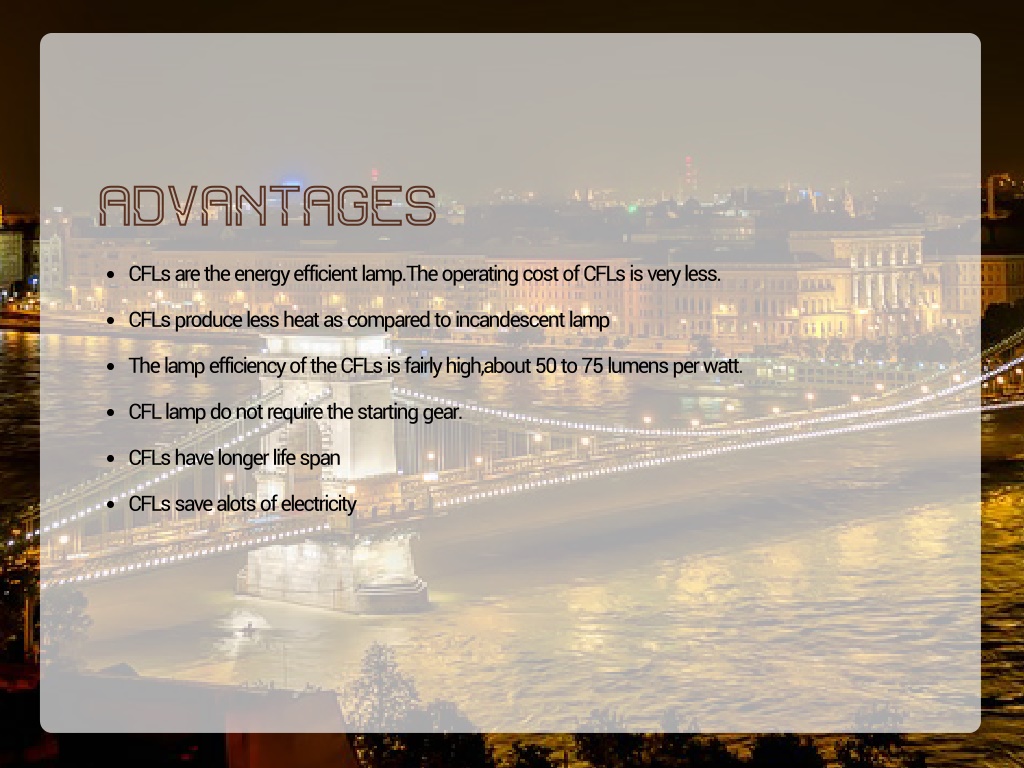

  5. ADVANTAGES CFLs are the energy efficient lamp.The operating cost of CFLs is very less. CFLs produce less heat as compared to incandescent lamp The lamp efficiency of the CFLs is fairly high,about 50 to 75 lumens per watt. CFL lamp do not require the starting gear. CFLs have longer life span CFLs save alots of electricity

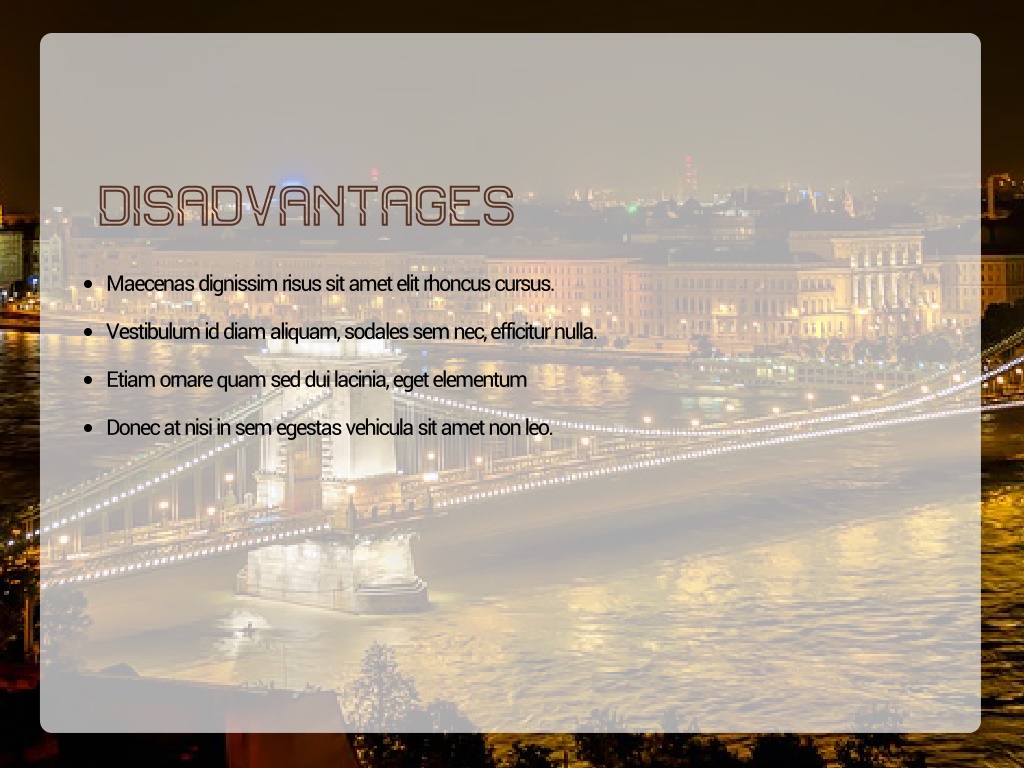

  6. DISADVANTAGES Maecenas dignissim risus sit amet elit rhoncus cursus. Vestibulum id diam aliquam, sodales sem nec, efficitur nulla. Etiam ornare quam sed dui lacinia, eget elementum Donec at nisi in sem egestas vehicula sit amet non leo.

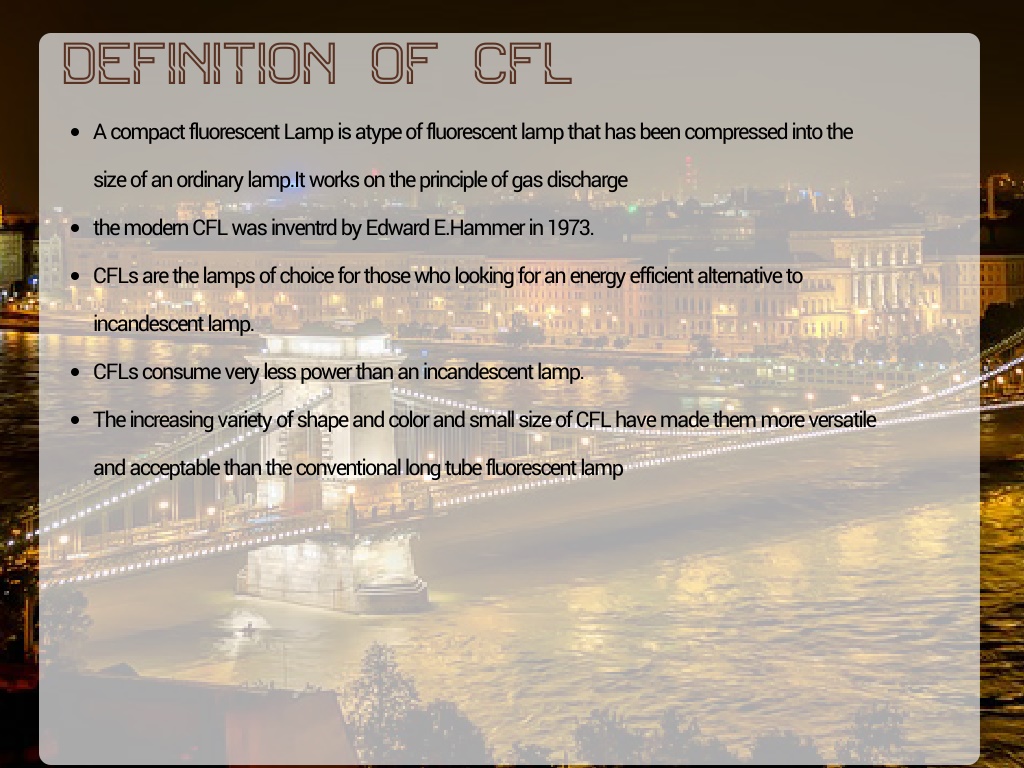

  7. DEFINITION OF CFL A compact fluorescent Lamp is atype of fluorescent lamp that has been compressed into the size of an ordinary lamp.It works on the principle of gas discharge the modern CFL was inventrd by Edward E.Hammer in 1973. CFLs are the lamps of choice for those who looking for an energy efficient alternative to incandescent lamp. CFLs consume very less power than an incandescent lamp. The increasing variety of shape and color and small size of CFL have made them more versatile and acceptable than the conventional long tube fluorescent lamp
