Busbars and Mesh Busbars

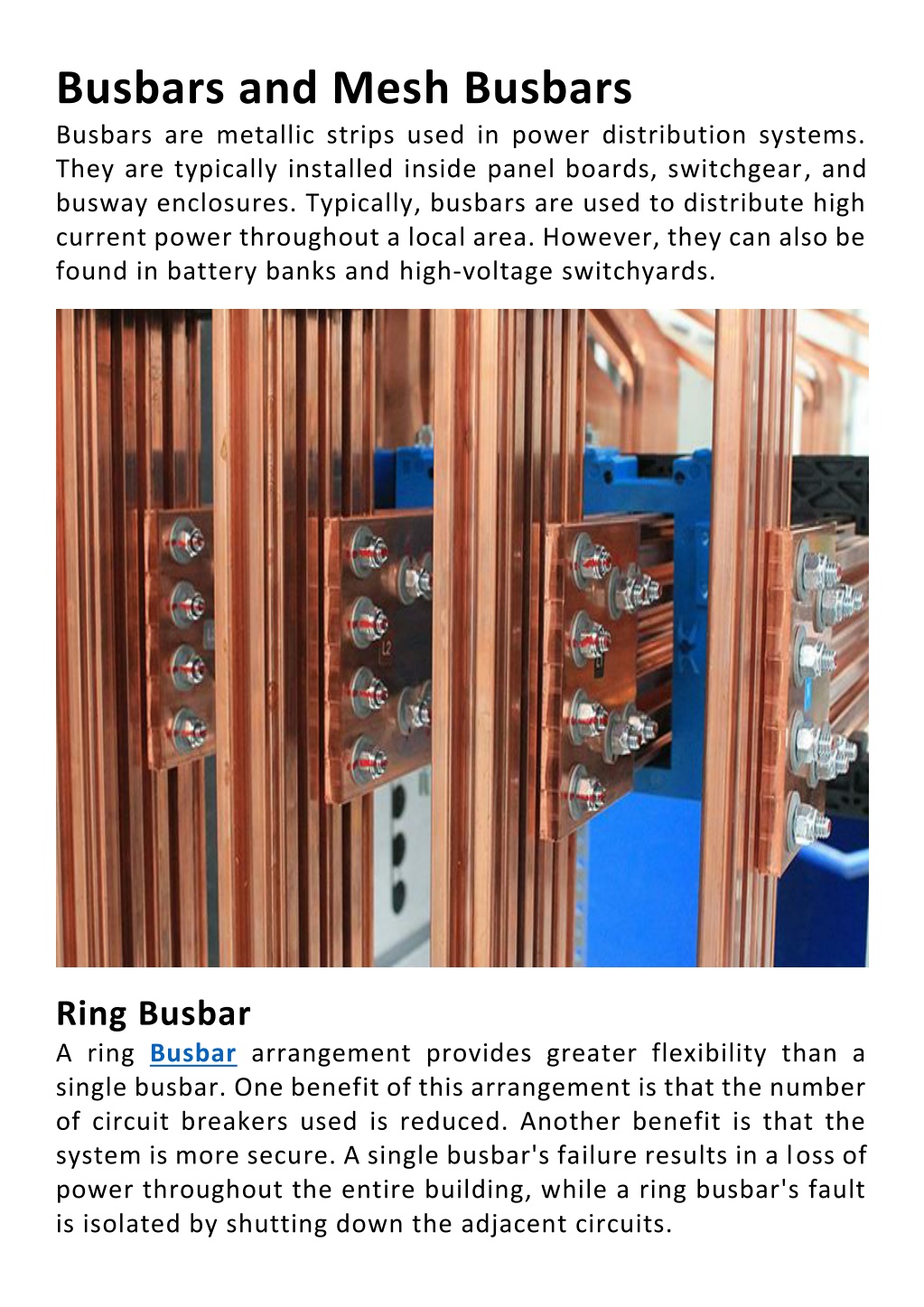

1. Busbars and Mesh Busbars Busbars are metallic strips used in power distribution systems. They are typically installed inside panel boards, switchgear, and busway enclosures. Typically, busbars are used to distribute high current power throughout a local area. However, they can also be found in battery banks and high-voltage switchyards. Ring Busbar A ring Busbar arrangement provides greater flexibility than a single busbar. One benefit of this arrangement is that the number of circuit breakers used is reduced. Another benefit is that the system is more secure. A single busbar's failure results in a loss of power throughout the entire building, while a ring busbar's fault is isolated by shutting down the adjacent circuits.

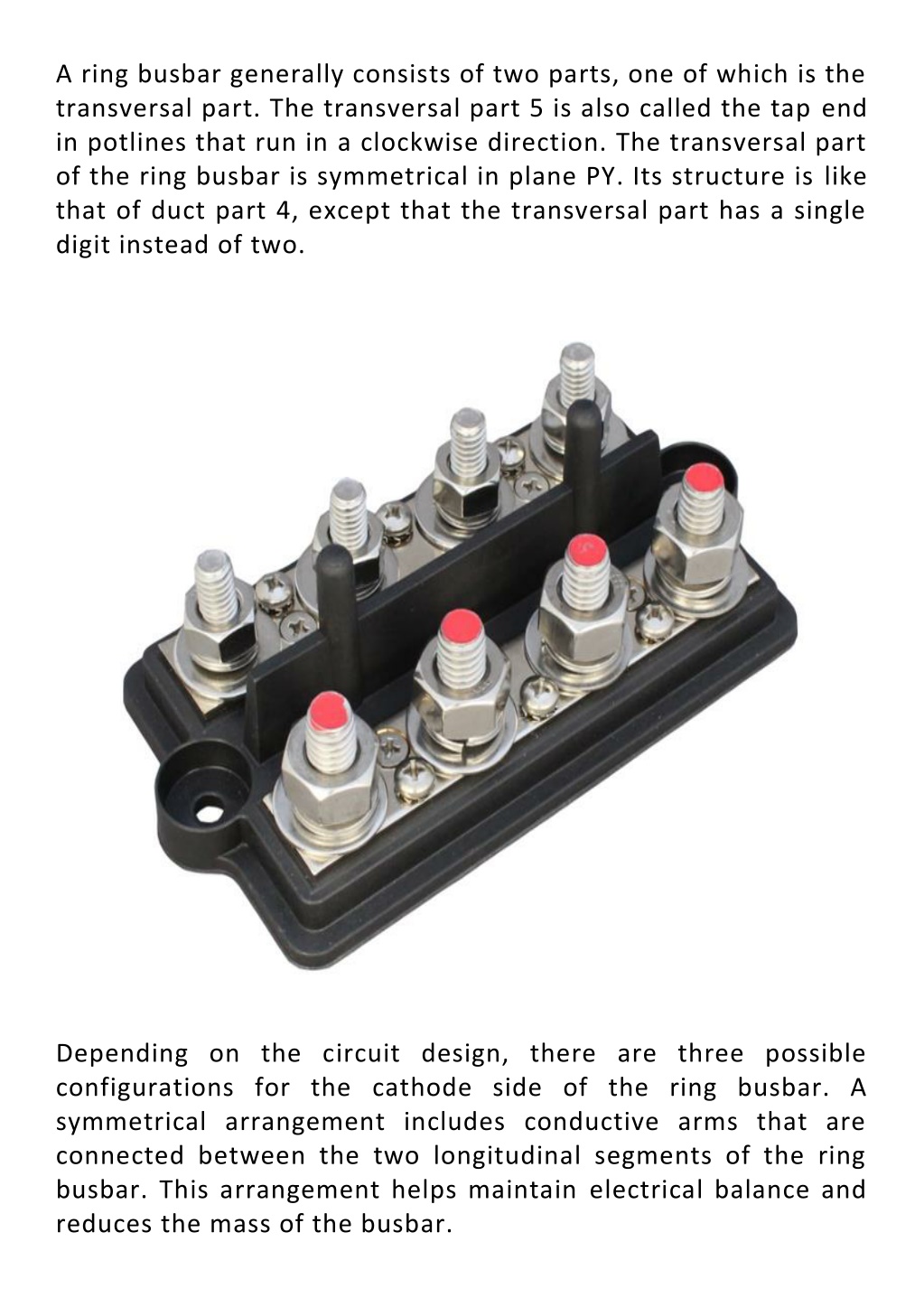

2. A ring busbar generally consists of two parts, one of which is the transversal part. The transversal part 5 is also called the tap end in potlines that run in a clockwise direction. The transversal part of the ring busbar is symmetrical in plane PY. Its structure is like that of duct part 4, except that the transversal part has a single digit instead of two. Depending on the circuit design, there are three possible configurations for the cathode side of the ring busbar. A symmetrical arrangement includes conductive arms that are connected between the two longitudinal segments of the ring busbar. This arrangement helps maintain electrical balance and reduces the mass of the busbar.

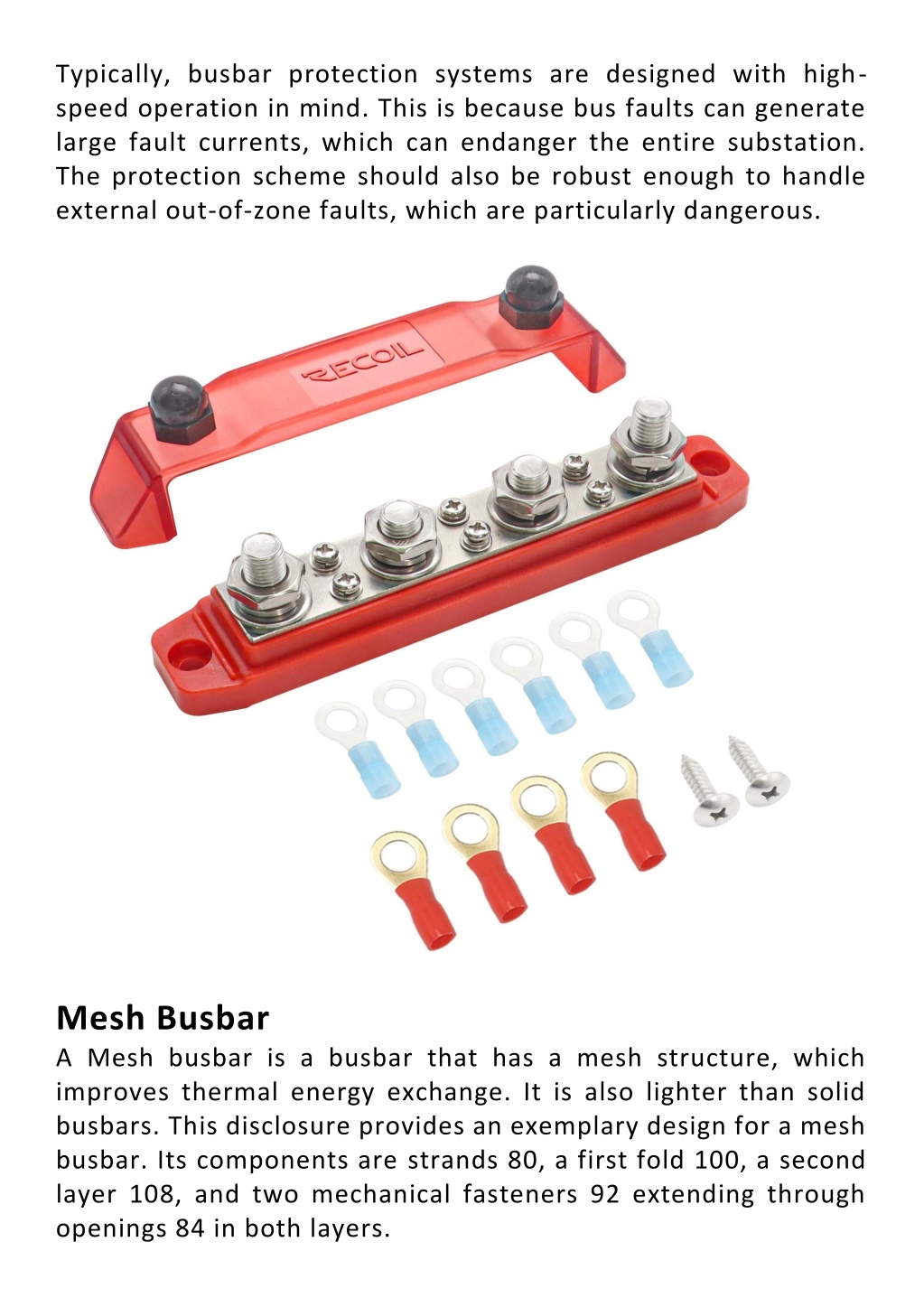

3. Typically, busbar protection systems are designed with high- speed operation in mind. This is because bus faults can generate large fault currents, which can endanger the entire substation. The protection scheme should also be robust enough to handle external out-of-zone faults, which are particularly dangerous. Mesh Busbar A Mesh busbar is a busbar that has a mesh structure, which improves thermal energy exchange. It is also lighter than solid busbars. This disclosure provides an exemplary design for a mesh busbar. Its components are strands 80, a first fold 100, a second layer 108, and two mechanical fasteners 92 extending through openings 84 in both layers.

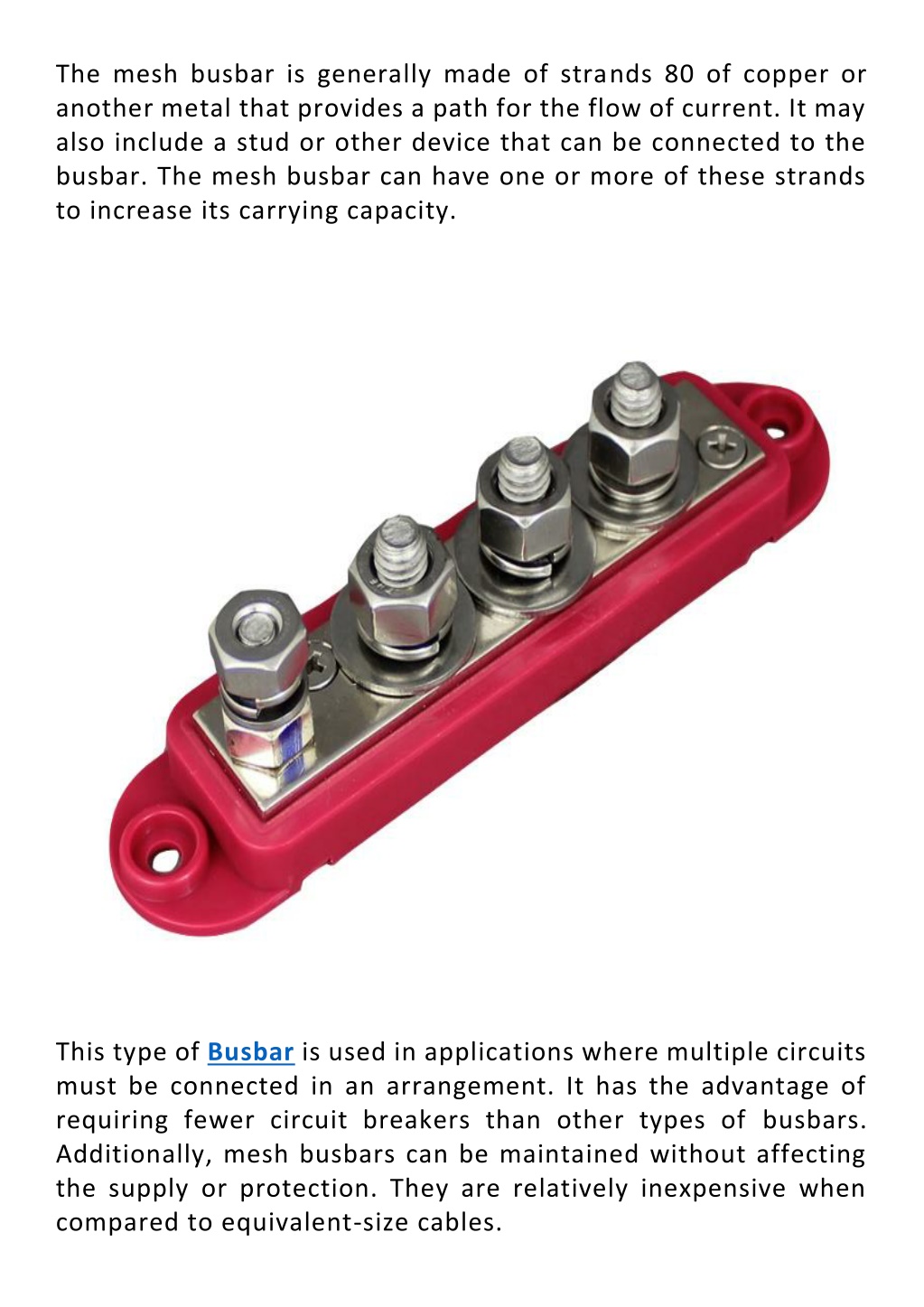

4. The mesh busbar is generally made of strands 80 of copper or another metal that provides a path for the flow of current. It may also include a stud or other device that can be connected to the busbar. The mesh busbar can have one or more of these strands to increase its carrying capacity. This type of Busbar is used in applications where multiple circuits must be connected in an arrangement. It has the advantage of requiring fewer circuit breakers than other types of busbars. Additionally, mesh busbars can be maintained without affecting the supply or protection. They are relatively inexpensive when compared to equivalent-size cables.

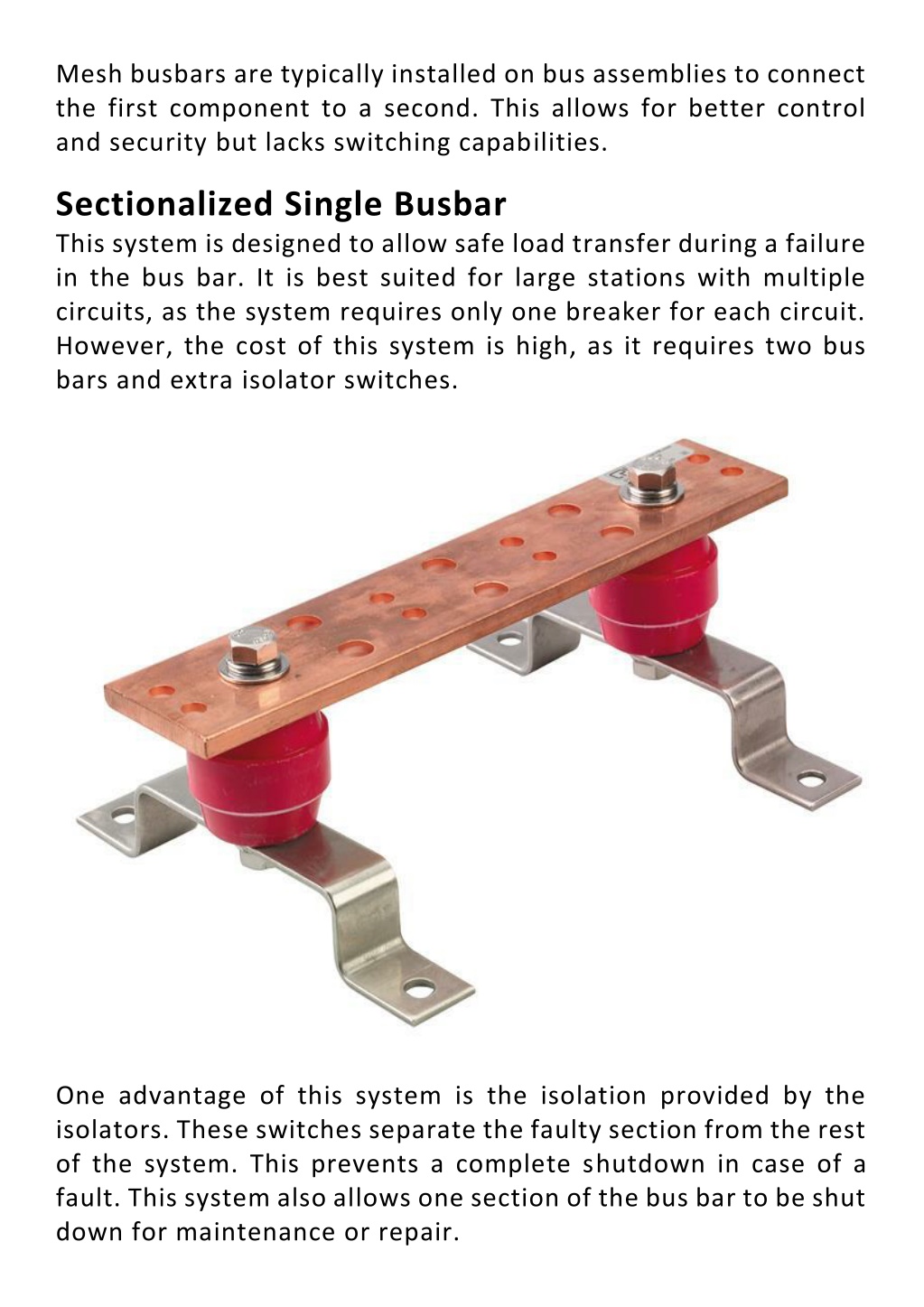

5. Mesh busbars are typically installed on bus assemblies to connect the first component to a second. This allows for better control and security but lacks switching capabilities. Sectionalized Single Busbar This system is designed to allow safe load transfer during a failure in the bus bar. It is best suited for large stations with multiple circuits, as the system requires only one breaker for each circuit. However, the cost of this system is high, as it requires two bus bars and extra isolator switches. One advantage of this system is the isolation provided by the isolators. These switches separate the faulty section from the rest of the system. This prevents a complete shutdown in case of a fault. This system also allows one section of the bus bar to be shut down for maintenance or repair.

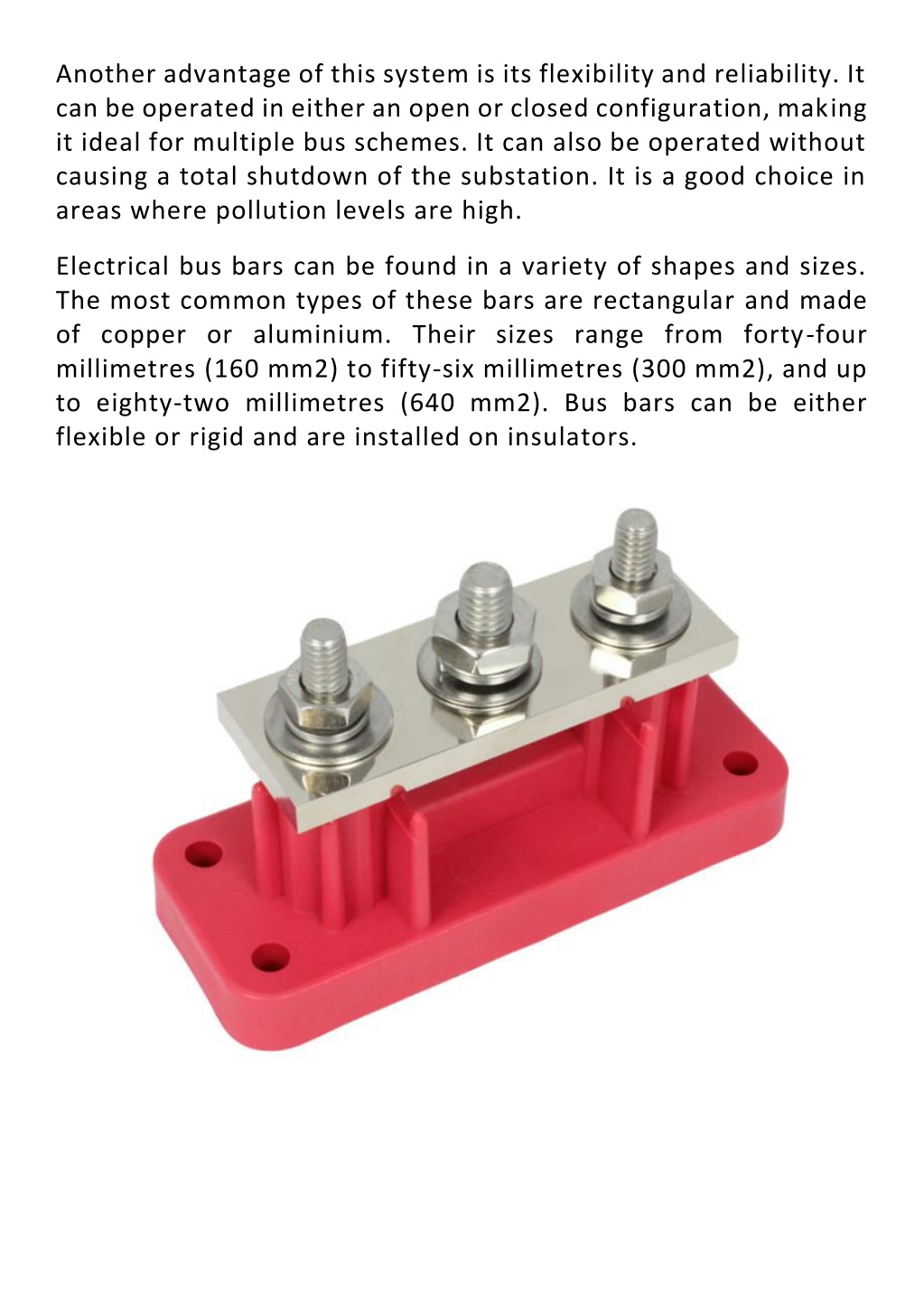

6. Another advantage of this system is its flexibility and reliability. It can be operated in either an open or closed configuration, making it ideal for multiple bus schemes. It can also be operated without causing a total shutdown of the substation. It is a good choice in areas where pollution levels are high. Electrical bus bars can be found in a variety of shapes and sizes. The most common types of these bars are rectangular and made of copper or aluminium. Their sizes range from forty-four millimetres (160 mm2) to fifty-six millimetres (300 mm2), and up to eighty-two millimetres (640 mm2). Bus bars can be either flexible or rigid and are installed on insulators.
