mesh coarsening

Mesh Coarsening

zhenyu shu

2007.5.12

mesh coarsening1
Mesh Coarsening
  • Large meshes are commonly used in numerous application area
  • Modern range scanning devices are used
  • High resolution mesh model need more time and more space to handle
  • Large meshes need simplification to improve speed and reduce memory storage
mesh coarsening2
Mesh Coarsening
  • Size, quality and speed
  • Mesh optimization
  • Many simplification methods now
slide4
QEM
  • Garland M, Heckbert P. Surface simplification using quadric error metrics. In: Proceedings of the Computer Graphics, Annual Conference Series. Los Angeles: ACM Press, 1997. 209~216
slide5
QEM
  • Quadric Error Metric method
  • Using Pair Contraction to simplify the mesh
  • Minimize Quadric function when contracting
  • Define Quadric
quadric

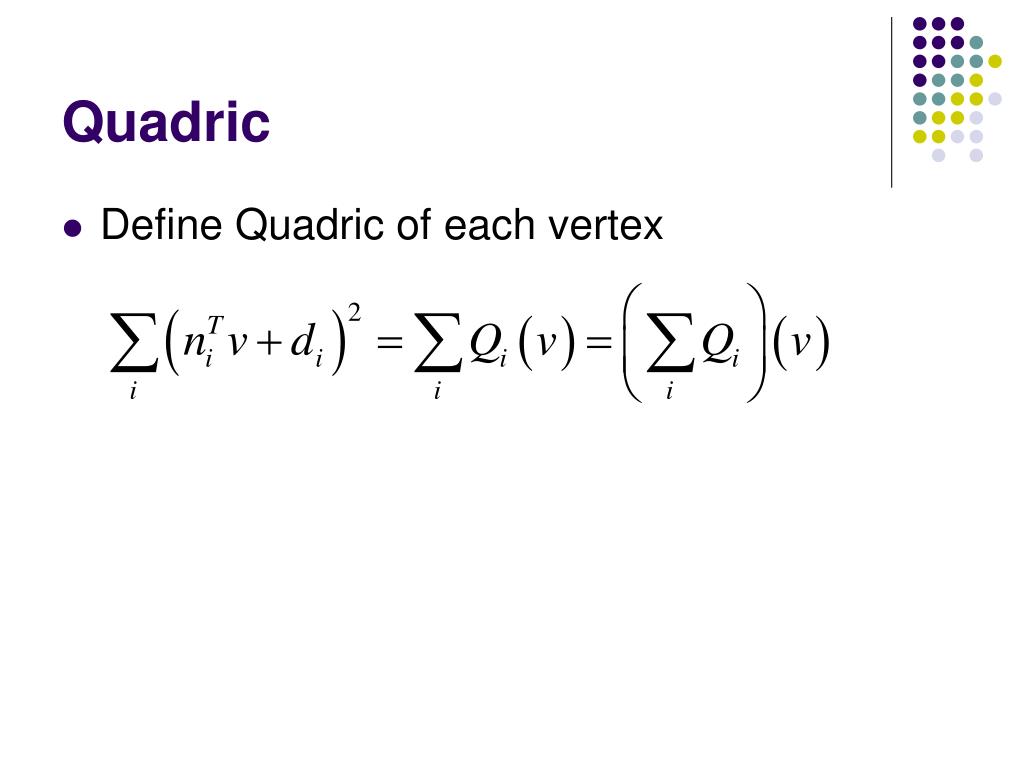

Quadric
  • Define Quadric of each vertex
pair selection
Pair Selection
  • Condition
    • is an edge or
    • , where t is a threshold
  • When performing ,
  • Choose position of minimizing
  • If A is not invertible, choose among two endpoints and midpoint of two endpoints
algorithm summary
Algorithm Summary
  • Compute the Q matrices for all the initial vertices.
  • Select all valid pairs.
  • Compute the optimal contraction target for each valid pair
  • Place all the pairs in a heap keyed on cost with the minimumcost pair at the top.
  • Iteratively remove the pair of least cost from the heap, contract this pair, and update the costs of all valid pairs involving v1.
advantage
Advantage
  • Efficiency, local, extremely fast
  • Quality, maintain high fidelity to the original mesh
  • Generality, can join unconnected regions of original mesh together
result
Result

Original model An approximation

with 69451 triangles with 1000 triangles

topology manipulation
Topology manipulation

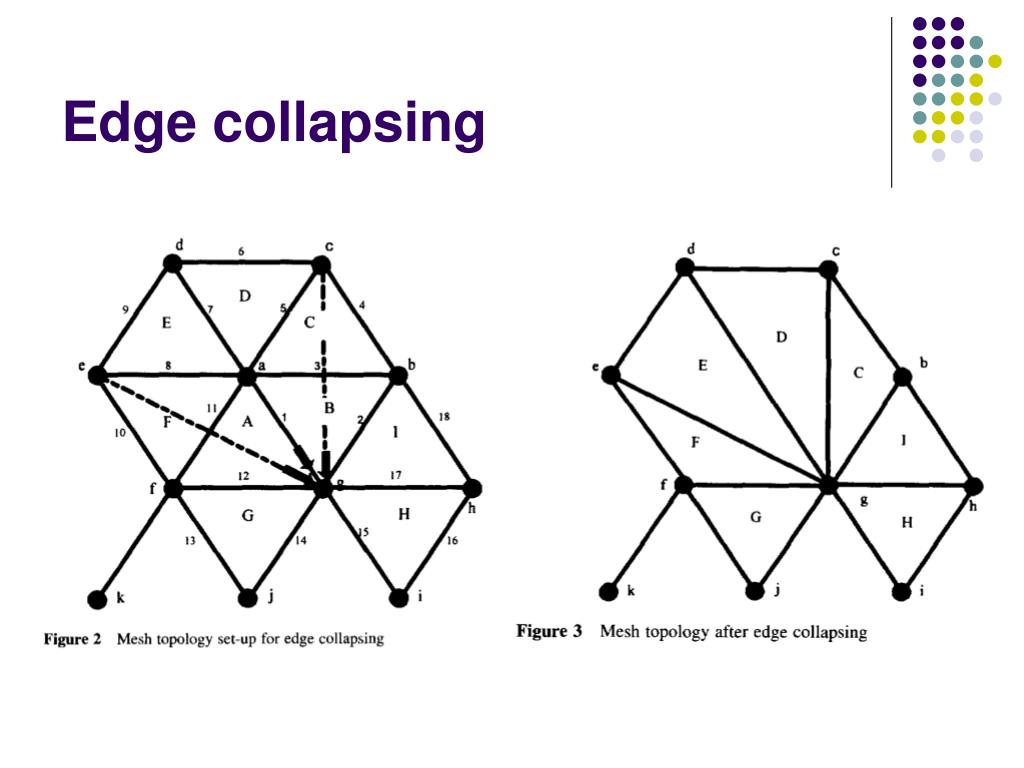

  • Hattangady N V. A fast, topology manipulation algorithm for compaction of mesh/faceted models[J]. Computer-Aided Design. 1998, 30(10): 835-843.
edge smoothing
Edge smoothing
  • let N be the average of all Ci
data structure of mesh model
Data Structure of mesh model
  • A type of

data structure to

present mesh

model for

reference

remeshing
Remeshing
  • Surazhsky V, Gotsman C. Explicit surface remeshing[C]. Aachen, Germany: Eurographics Association, 2003
  • Improve mesh quality by a series of local modification of the mesh geometry and connectivity
vertex relocation
Vertex Relocation
  • with neighbors
  • Find new location of to satisfy some constraints, e.g. improving the angles of the triangles incident on
vertex relocation1
Vertex Relocation
  • Map these vertices into a plane, is mapped to the origin, satisfy
  • The angles of all triangles at are proportional to the corresponding angles and sum to
vertex relocation2
Vertex Relocation
  • Let new position of be the average of

to improve the angles of the adjacent faces

  • Bring new position of back to the original surface by maintain same barycentric coordinate
detail
Detail
  • (c) is original mesh, (b) is new mesh, (d) is 2D mesh which defines a parameterization of (c)
  • Use the same barycentric coordinates in (a) and (d)
area based remeshing
Area-based Remeshing
  • Area equalization is done iteratively by relocating every vertex such that the areas of the triangles incident on the vertex are as equal as possible
  • Extending method above to relocating vertices such that the ratios between the areas are as close as possible to some specified values
area based remeshing1
Area-based Remeshing
  • Here is the area of triangle , is the area of polygon
curvature sensitive remeshing

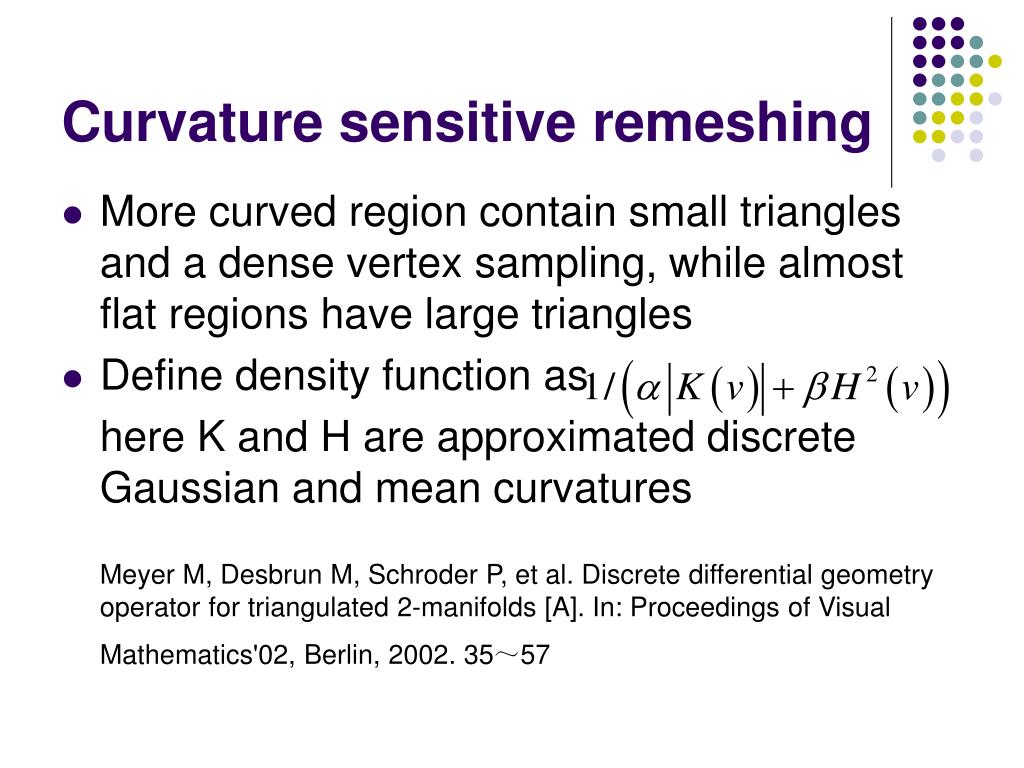

Curvature sensitive remeshing
  • More curved region contain small triangles and a dense vertex sampling, while almost flat regions have large triangles
  • Define density function as

here K and H are approximated discrete Gaussian and mean curvatures

Meyer M, Desbrun M, Schroder P, et al. Discrete differential geometry operator for triangulated 2-manifolds [A]. In: Proceedings of Visual Mathematics'02, Berlin, 2002. 35~57

slide28
CVD
  • Valette S, Chassery J M. Approximated Centroidal Voronoi Diagrams for Uniform Polygonal Mesh Coarsening[J]. Computer Graphics Forum. 2004, 23(3): 381-389
voronoi diagram
Voronoi Diagram
  • Given an open set of Rm, and n different points zi; i=0,...,n-1, the Voronoi Diagram can be defined as n different regions Visuch that:

where d is a function of distance.

centroidal voronoi diagram
Centroidal Voronoi Diagram
  • A Centroidal Voronoi Diagram is a Voronoi Diagram where each Voronoi site zi is also the mass centroid of its Voronoi Region:

here is a density function of

centroidal voronoi diagram1
Centroidal Voronoi Diagram
  • Centroidal Voronoi Diagrams minimize the Energy given as:
  • On mesh, Energy above becomes to
construct cvd
Construct CVD
  • Here
  • Construct CVD based on global minimization of the Energy term E2
algorithm summary1

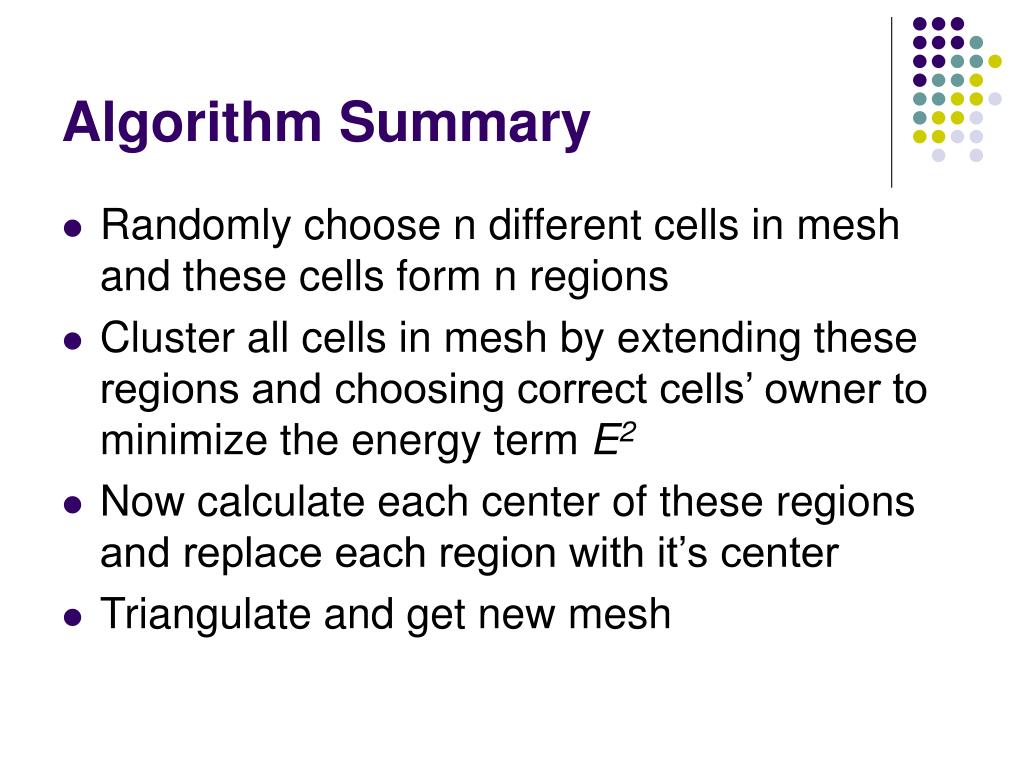

Algorithm Summary
  • Randomly choose n different cells in mesh and these cells form n regions

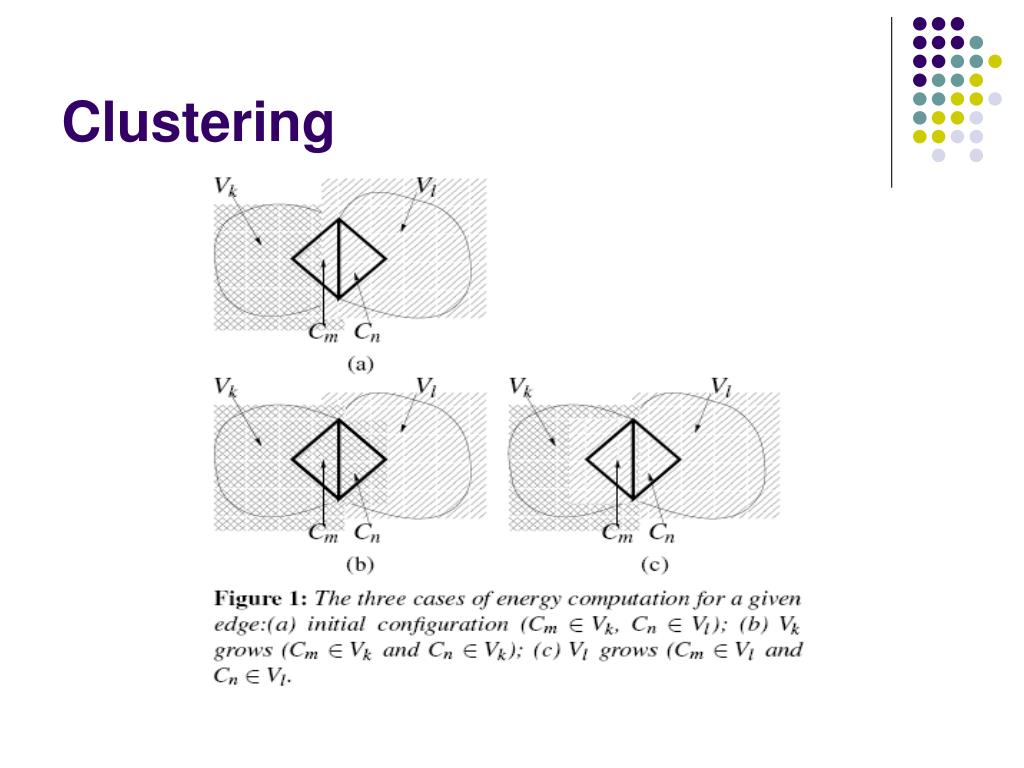

  • Cluster all cells in mesh by extending these regions and choosing correct cells’ owner to minimize the energy term E2
  • Now calculate each center of these regions and replace each region with it’s center
  • Triangulate and get new mesh
pros and cons
Pros and Cons
  • Pros
    • High quality of result
    • Optimization of original mesh
  • Cons
    • Slow
    • Global
