ISBT 128 Blood Product Labeling for TransfusionistsAmericas Technical Advisory GroupICCBBAwww.iccbba.org

objectives

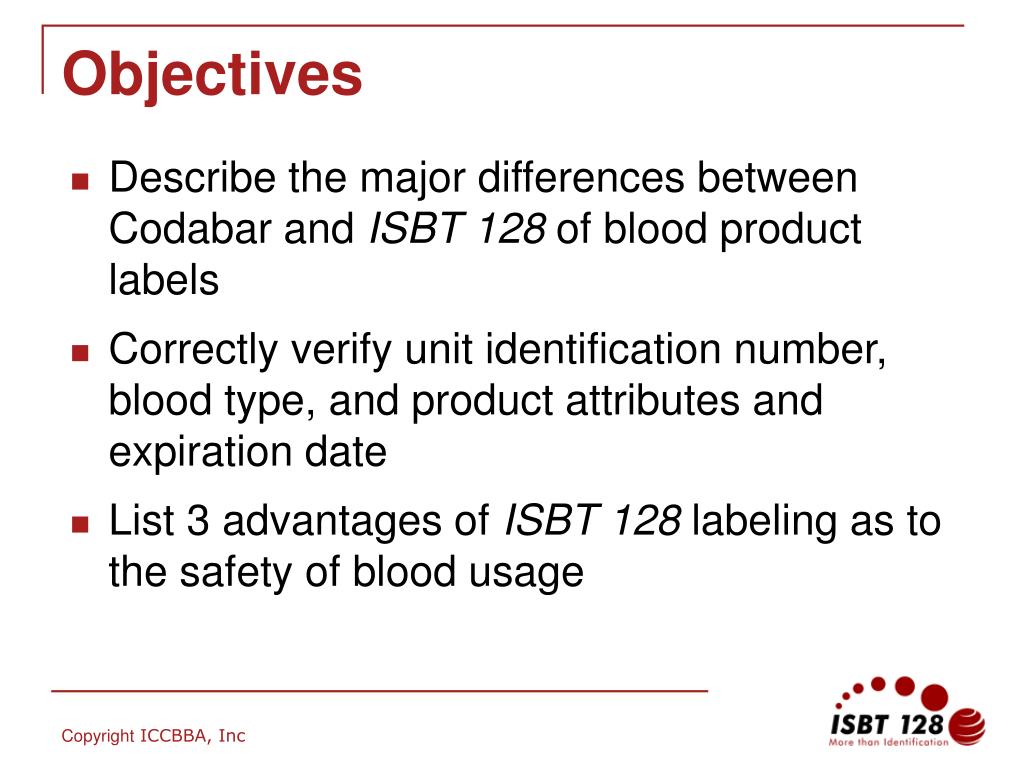

Objectives
  • Describe the major differences between Codabar and ISBT 128 of blood product labels
  • Correctly verify unit identification number, blood type, and product attributes and expiration date
  • List 3 advantages of ISBT 128 labeling as to the safety of blood usage
differences

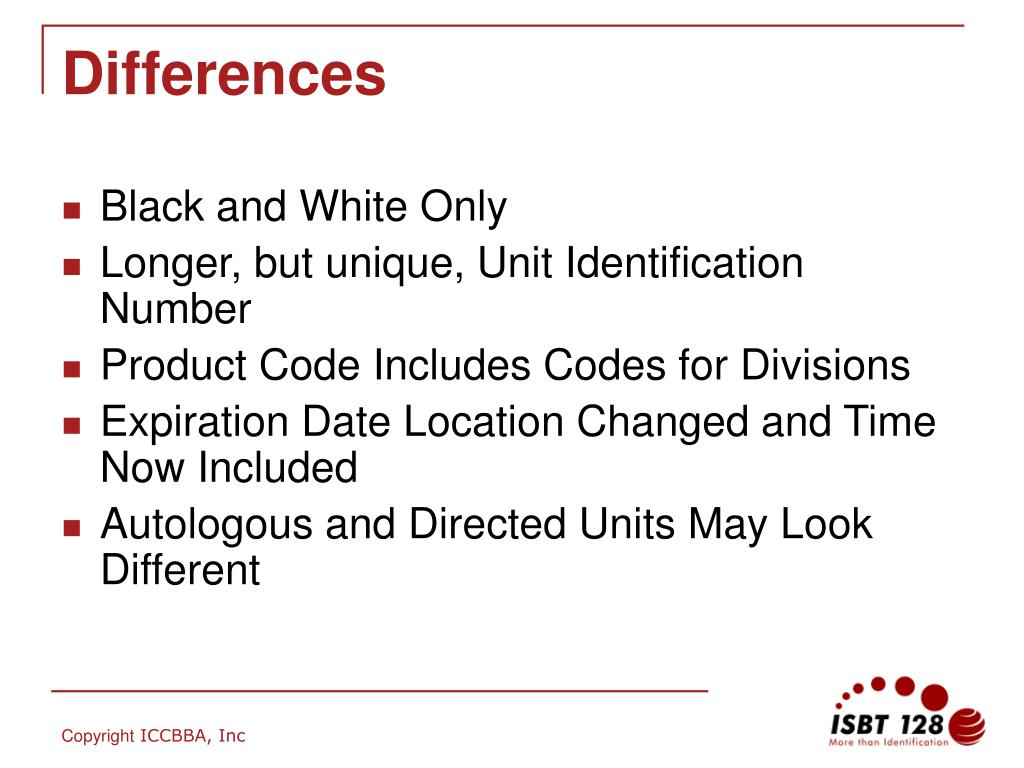

Differences
  • Black and White Only
  • Longer, but unique, Unit Identification Number
  • Product Code Includes Codes for Divisions
  • Expiration Date Location Changed and Time Now Included

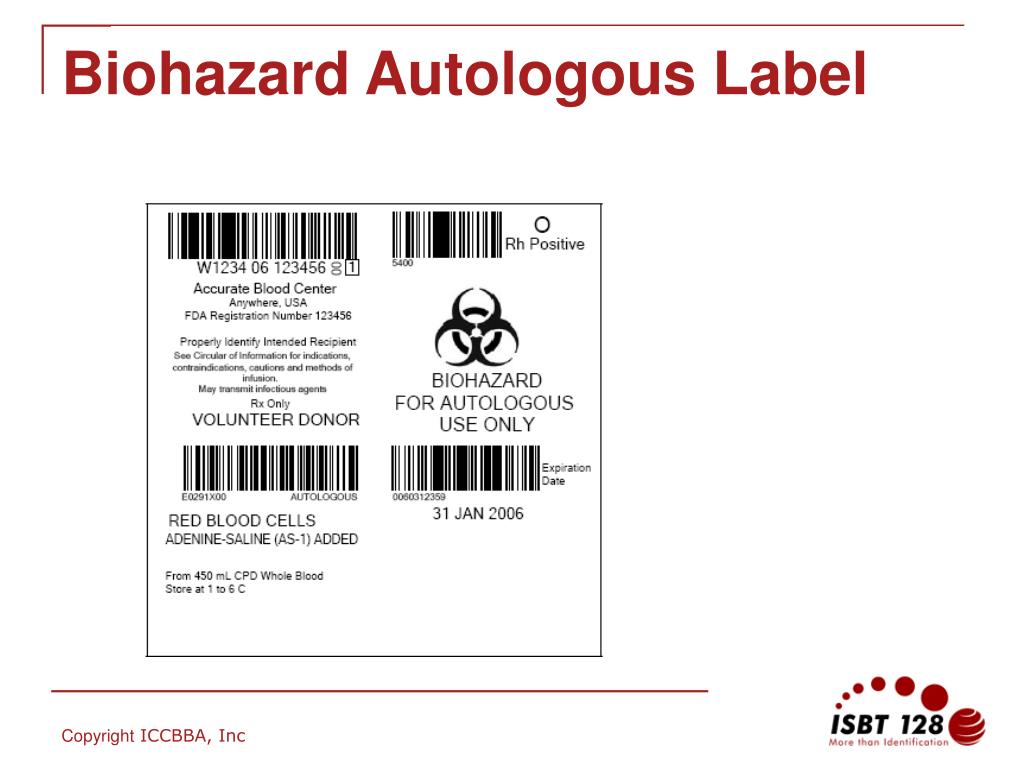

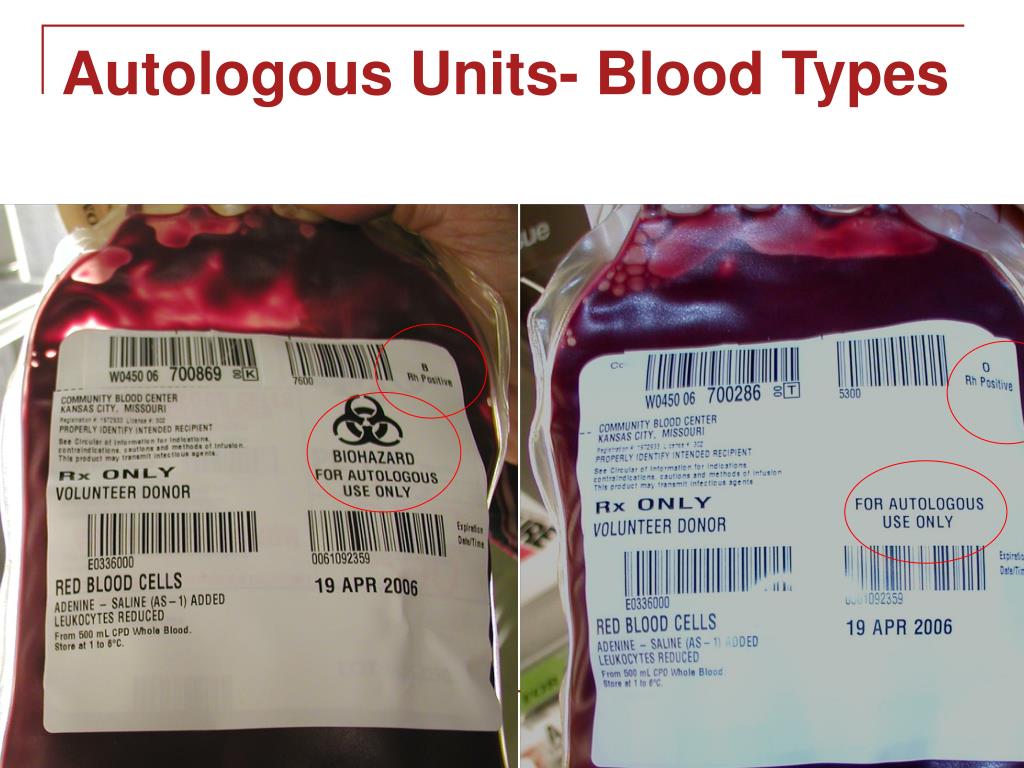

  • Autologous and Directed Units May Look Different
unit identification number
Unit Identification Number
  • Unit

Identification number

Must use entire number

  • W1234 06 123456
  • The 00 and 1 are codes for laboratory process control

E1234V00

E1234V00

slide8

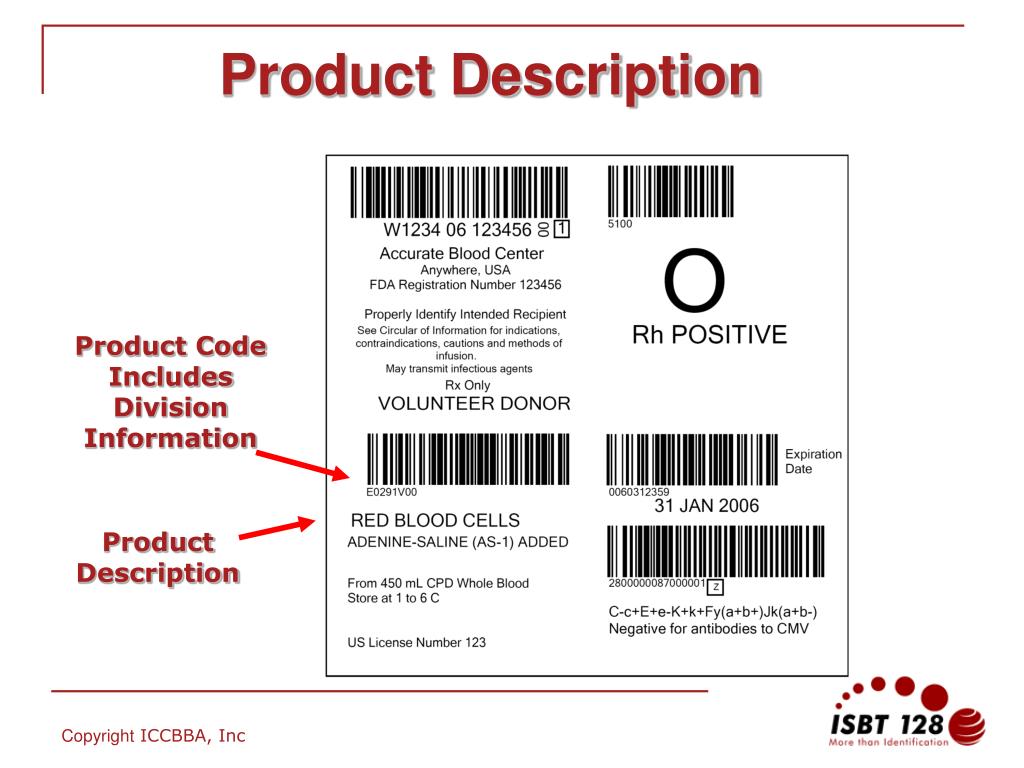

Product Description

Product Code Includes Division Information

Product Description

divided unit product description

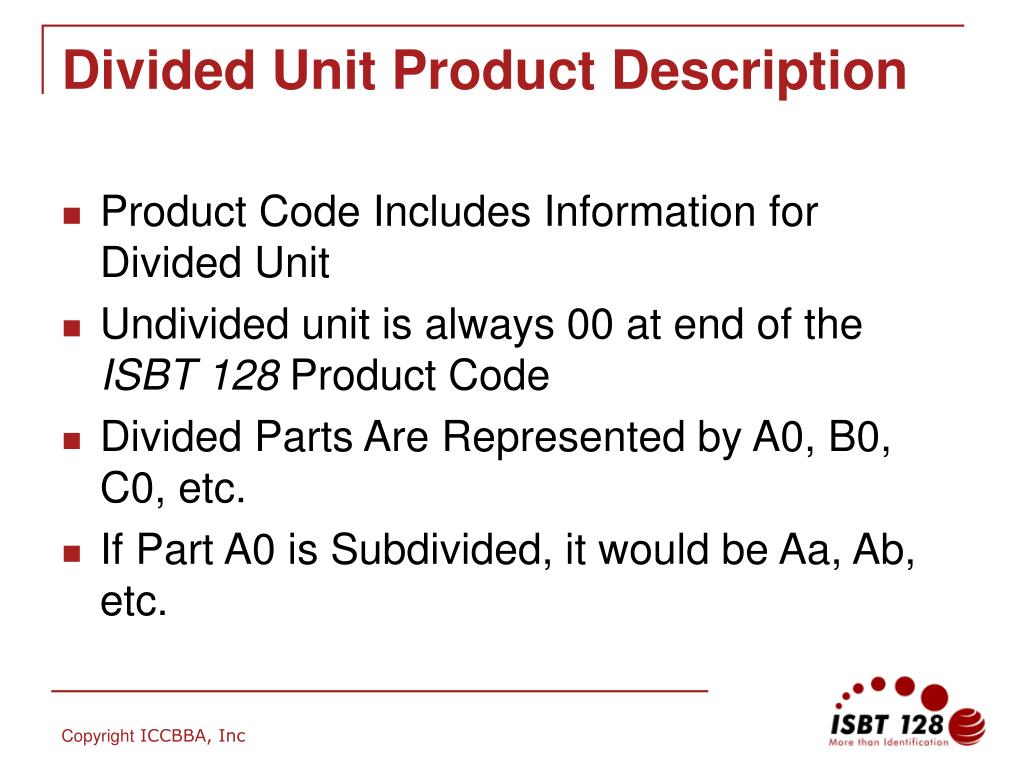

Divided Unit Product Description
  • Product Code Includes Information for Divided Unit
  • Undivided unit is always 00 at end of the ISBT 128 Product Code
  • Divided Parts Are Represented by A0, B0, C0, etc.
  • If Part A0 is Subdivided, it would be Aa, Ab, etc.
expiration date
Expiration Date
  • New Location
  • New Format
  • DDMMMYYYY
  • Time Displayed if other than Midnight
  • If midnight, no time is displayed
blood type label

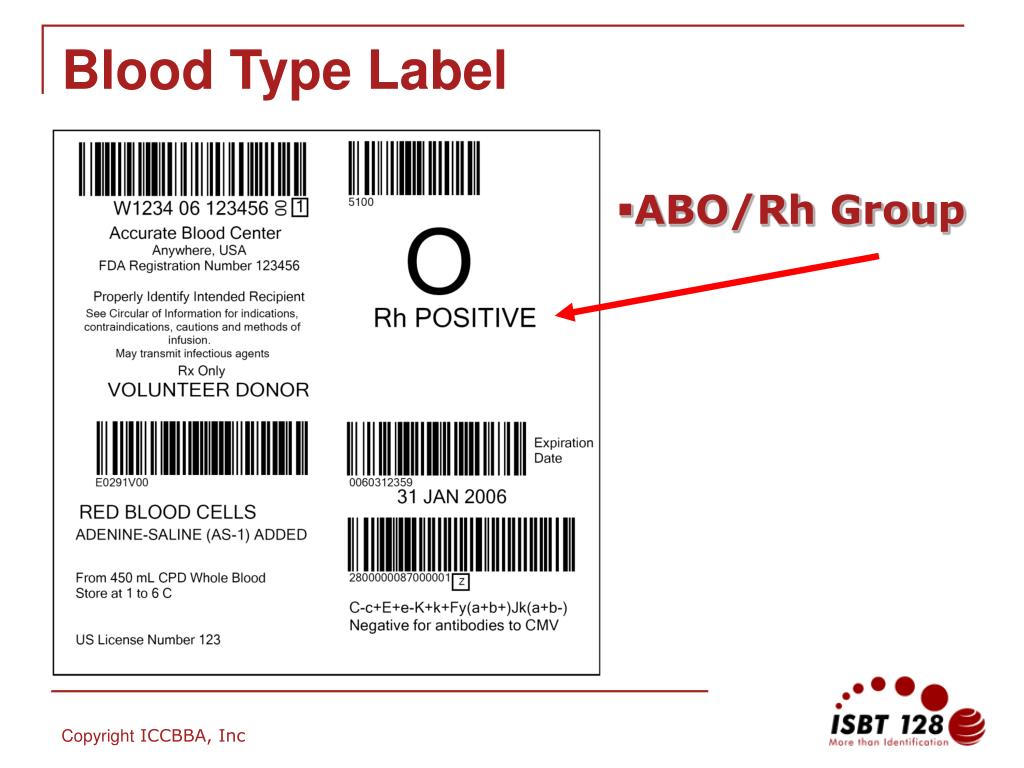

Blood Type Label
  • ABO/Rh Group
special testing cmv and sickle testing

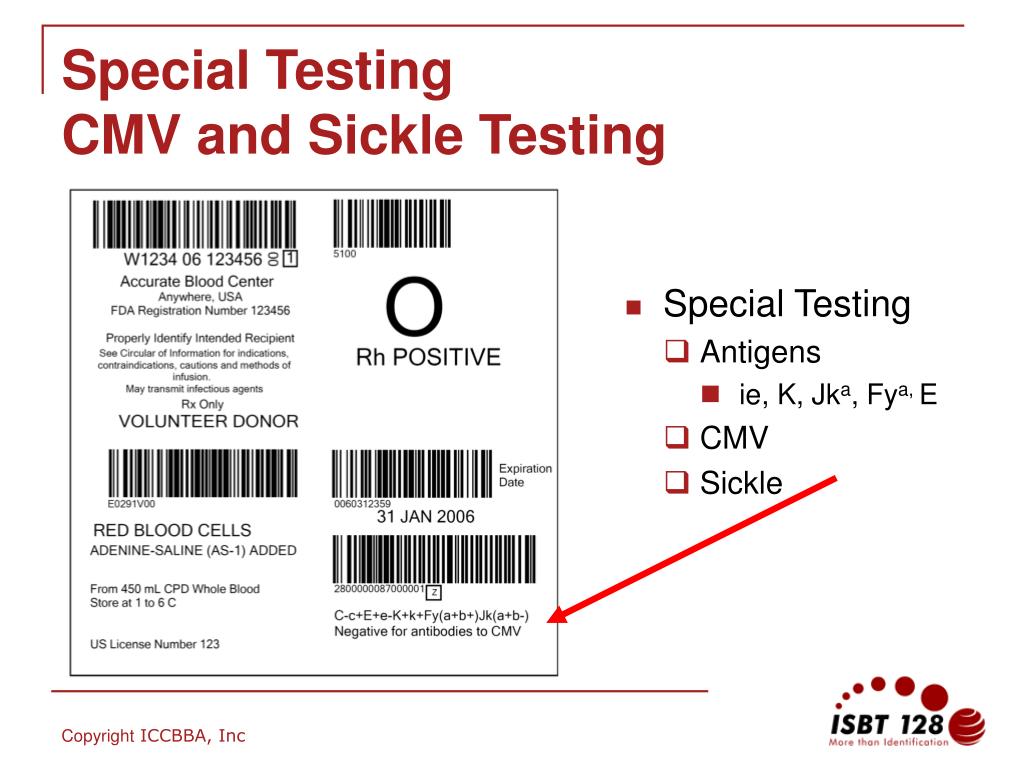

Special Testing CMV and Sickle Testing
  • Special Testing
    • Antigens
      • ie, K, Jka, Fya, E
    • CMV
    • Sickle
advantages of the new labeling

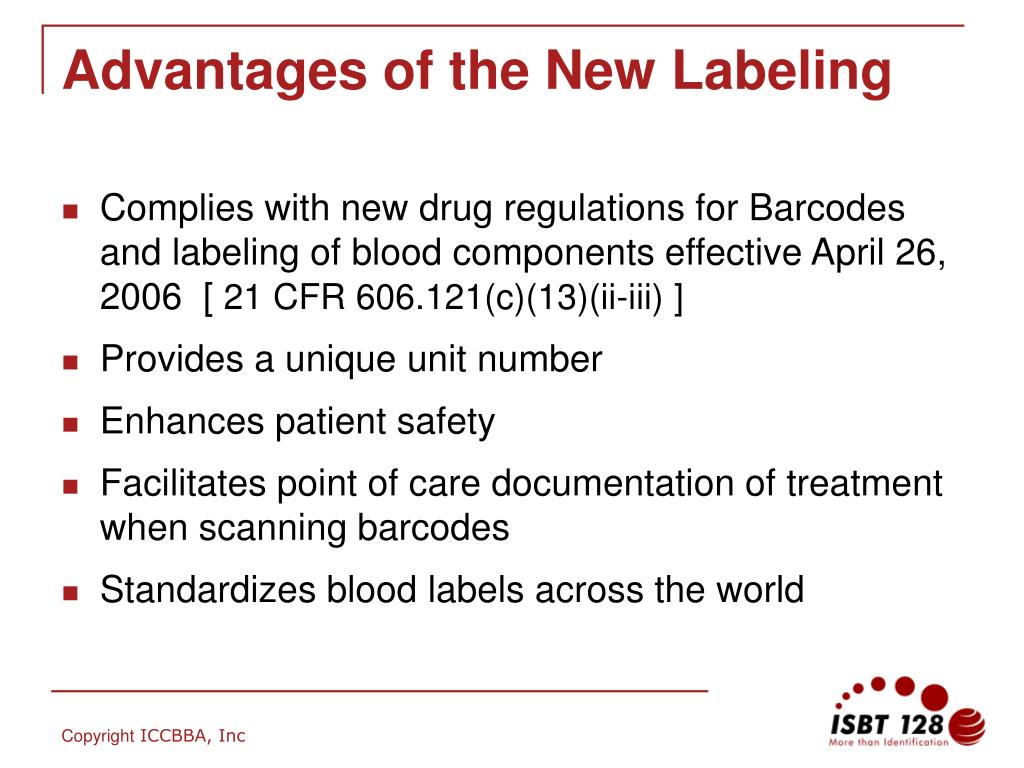

Advantages of the New Labeling
  • Complies with new drug regulations for Barcodes and labeling of blood components effective April 26, 2006 [ 21 CFR 606.121(c)(13)(ii-iii) ]
  • Provides a unique unit number
  • Enhances patient safety
  • Facilitates point of care documentation of treatment when scanning barcodes
  • Standardizes blood labels across the world
important note

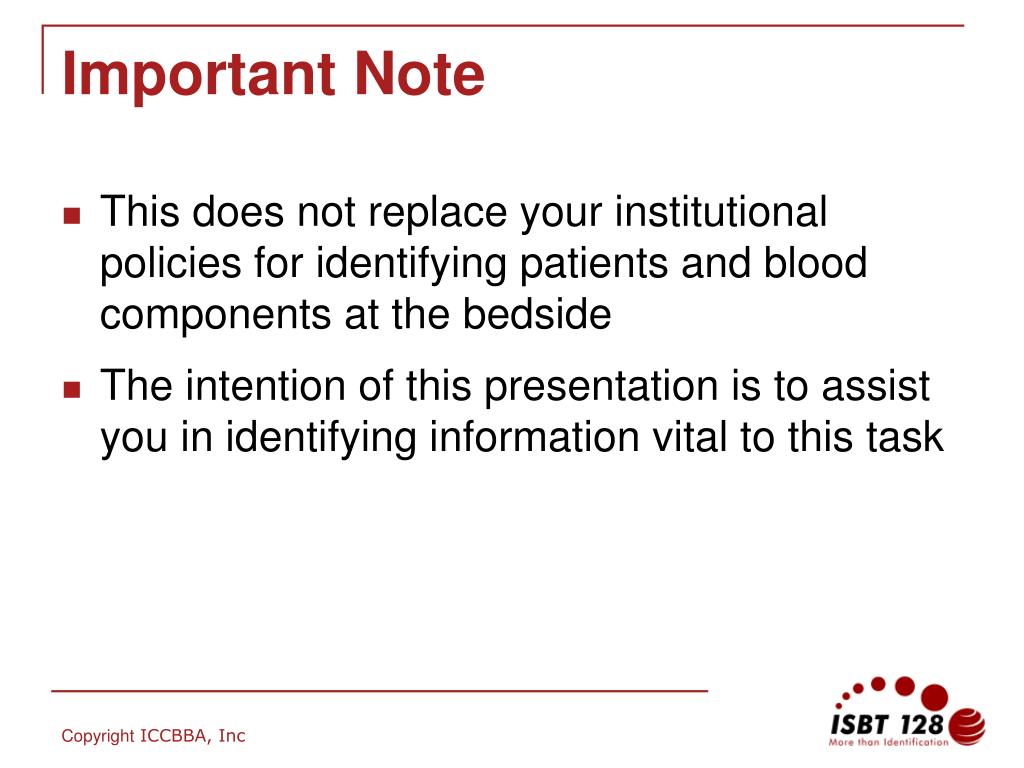

Important Note
  • This does not replace your institutional policies for identifying patients and blood components at the bedside
  • The intention of this presentation is to assist you in identifying information vital to this task
