detecting malicious beacon nodes for secure location discovery in wireless sensor networks

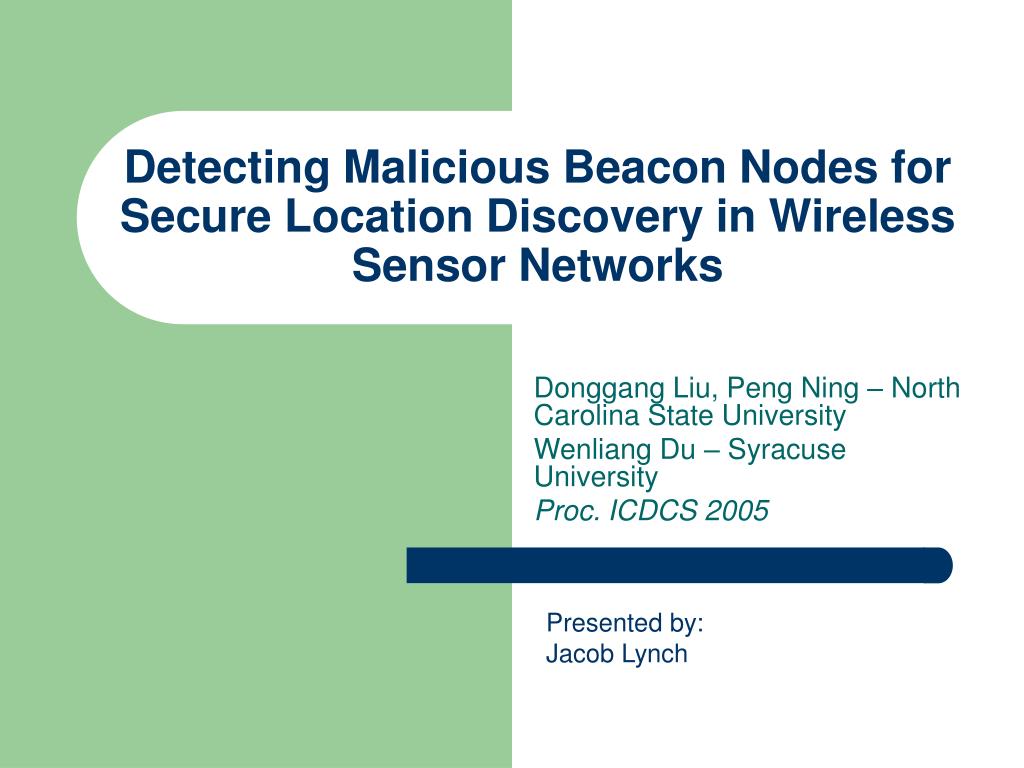

Detecting Malicious Beacon Nodes for Secure Location Discovery in Wireless Sensor Networks

Donggang Liu, Peng Ning – North Carolina State University

Wenliang Du – Syracuse University

Proc. ICDCS 2005

Presented by:

Jacob Lynch

overview

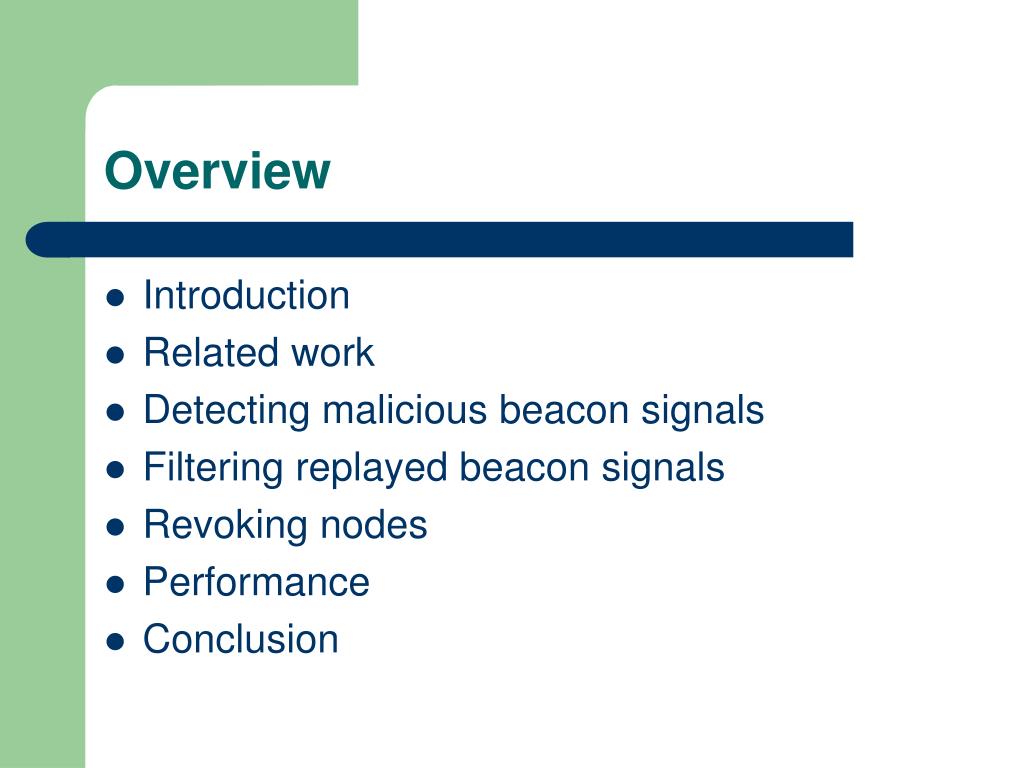

Overview
  • Introduction
  • Related work
  • Detecting malicious beacon signals
  • Filtering replayed beacon signals
  • Revoking nodes
  • Performance
  • Conclusion
introduction
Introduction
  • Technological advancements enable large scale sensor networks to be deployed
  • Many applications require sensors to know their locations
    • Environment monitoring, target tracking, etc.
  • Impractical to have GPS receiver on every node
  • Malicious nodes ignored so far
related work

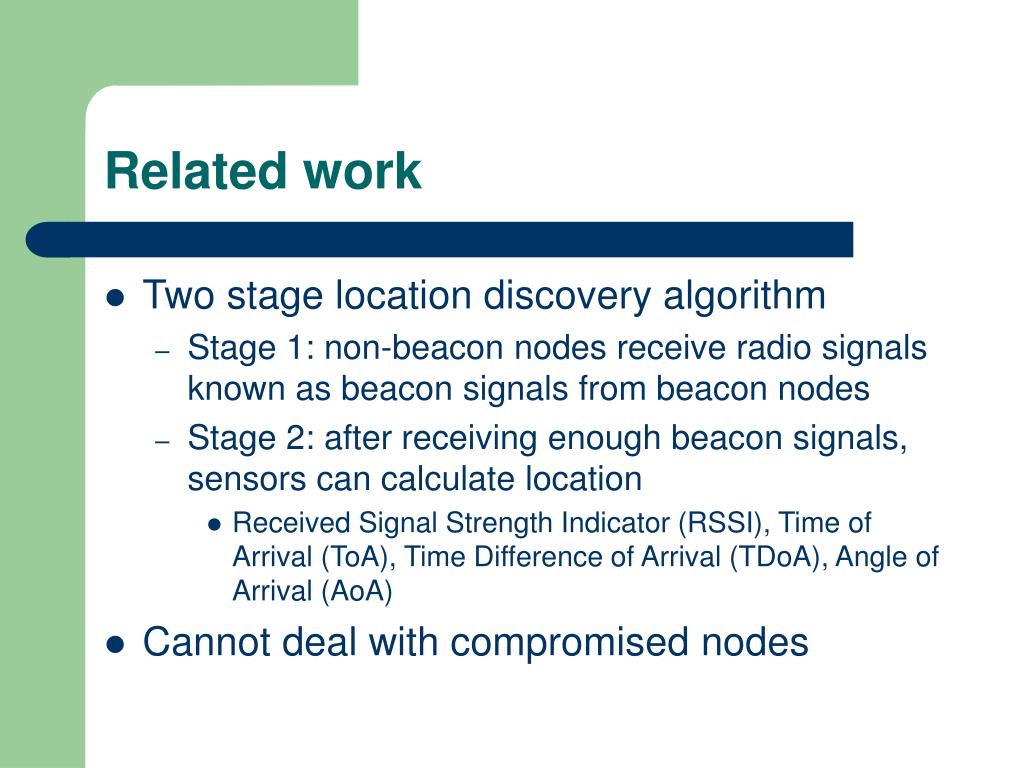

Related work
  • Two stage location discovery algorithm
    • Stage 1: non-beacon nodes receive radio signals known as beacon signals from beacon nodes
    • Stage 2: after receiving enough beacon signals, sensors can calculate location
      • Received Signal Strength Indicator (RSSI), Time of Arrival (ToA), Time Difference of Arrival (TDoA), Angle of Arrival (AoA)
  • Cannot deal with compromised nodes
detecting malicious beacon signals 1
Detecting malicious beacon signals (1)
  • Malicious nodes want to remain undetected
    • Give normal information to beacon nodes
  • Malicious nodes shouldn’t know which nodes are beacon nodes
  • Implement fake IDs
    • Each beacon node is given multiple IDs with the corresponding secure keys for communication to all other nodes
detecting malicious beacon signals 2
Detecting malicious beacon signals (2)
  • Beacon node can request beacon signals when it detects them
    • Beacon node uses a fake ID that keeps the broadcaster from knowing it’s a beacon node
    • Paper assumes the nodes have no way to tell if an ID belongs to a beacon node or not
    • Beacon node then gets the beacon signal and can analyze it with GPS receiver
detecting malicious beacon signals 3
Detecting malicious beacon signals (3)
  • Detecting node (using fake ID) requests beacon signal
  • Detecting node uses packet location information in beacon signal to compare estimated distance and calculated distance
    • If distance is larger than the possible error, then the node may be malicious
filtering replayed beacon signals 1
Filtering replayed beacon signals (1)
  • Malicious beacon signal may contain benign node ID, not sure if the signal has been replayed or not
  • Beacon signal may be relayed through a wormhole
    • Attacker sends packets from one part of a network to another part of the network using a low latency link
    • Techniques have been established to filter these
filtering replayed beacon signals 2

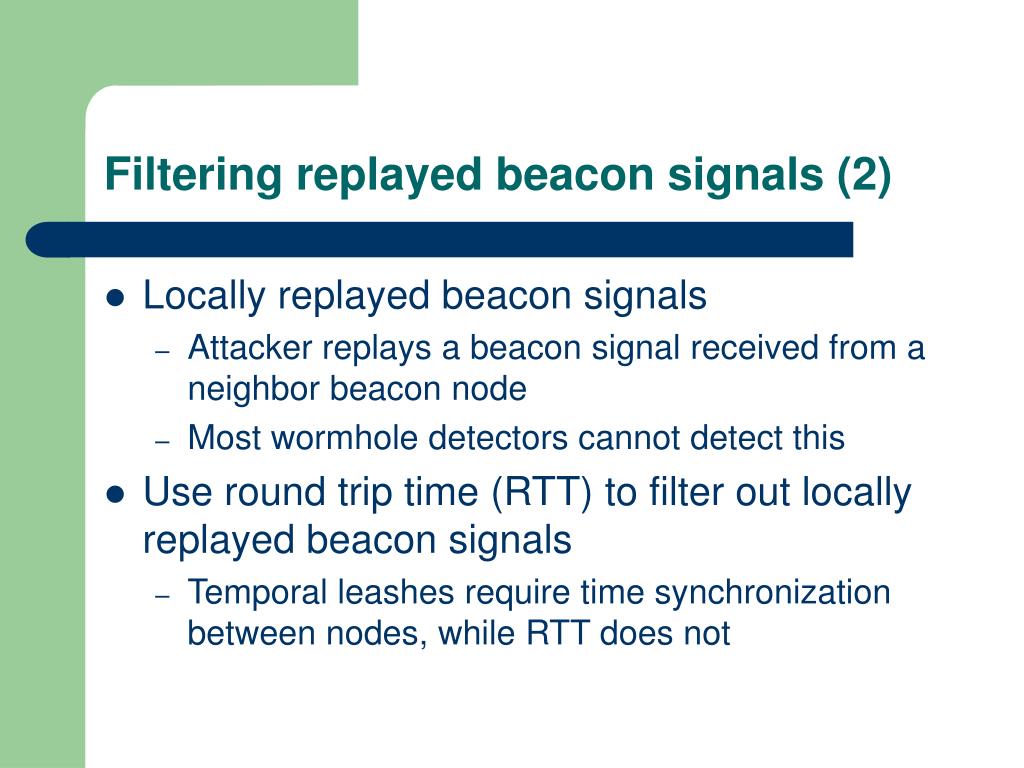

Filtering replayed beacon signals (2)
  • Locally replayed beacon signals
    • Attacker replays a beacon signal received from a neighbor beacon node
    • Most wormhole detectors cannot detect this
  • Use round trip time (RTT) to filter out locally replayed beacon signals
    • Temporal leashes require time synchronization between nodes, while RTT does not
filtering replayed beacon signals 3
Filtering replayed beacon signals (3)
  • Compare observed RTT to range of RTT derived from experiments on an actual sensor network
    • If RTT <= max RTT, not locally replayed
    • If RTT > max RTT, locally replayed beacon signal, ignore it
filtering replayed beacon signals 4

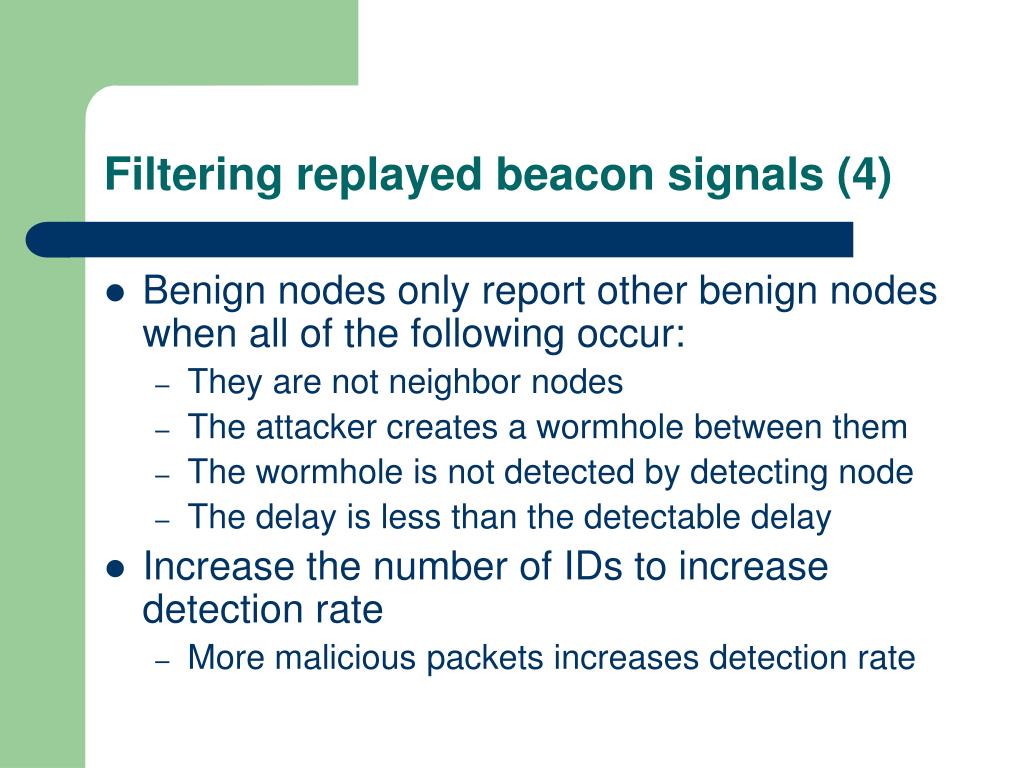

Filtering replayed beacon signals (4)
  • Benign nodes only report other benign nodes when all of the following occur:
    • They are not neighbor nodes
    • The attacker creates a wormhole between them
    • The wormhole is not detected by detecting node
    • The delay is less than the detectable delay
  • Increase the number of IDs to increase detection rate
    • More malicious packets increases detection rate
filtering replayed beacon signals 413

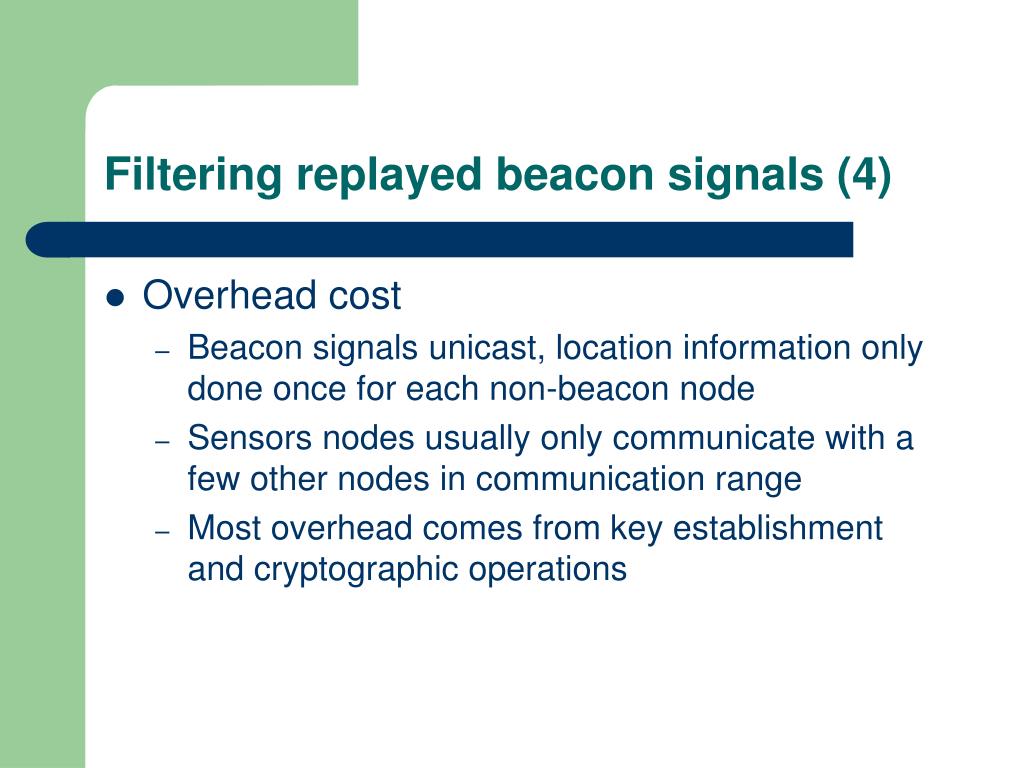

Filtering replayed beacon signals (4)
  • Overhead cost
    • Beacon signals unicast, location information only done once for each non-beacon node
    • Sensors nodes usually only communicate with a few other nodes in communication range
    • Most overhead comes from key establishment and cryptographic operations
revoking nodes 1
Revoking nodes (1)
  • Nodes generate alerts containing IDs of target and detecting node
  • All alerts sent to a base station
  • Base station accepts alert if
    • Number of alerts from that detecting node is under a certain threshold
    • Target node has not been revoked
  • Accepted reports increase report counter of detecting node and alert counter of target node
revoking nodes 2
Revoking nodes (2)
  • If alert counter exceeds a certain threshold, the target node is considered a malicious beacon node and is revoked from the network
  • Alerts may still be accepted from revoked nodes if the node’s report limit is under the threshold and the target node is not revoked
    • Prevent malicious beacon nodes from getting benign nodes revoked before they can send alerts
revoking nodes 3
Revoking nodes (3)
  • Overhead cost
    • Observations must be reported to base station
    • Limited monitoring done by a beacon node, few alerts will be sent
    • No computation or storage overhead for sensors
    • Base station has more resources
performance 1

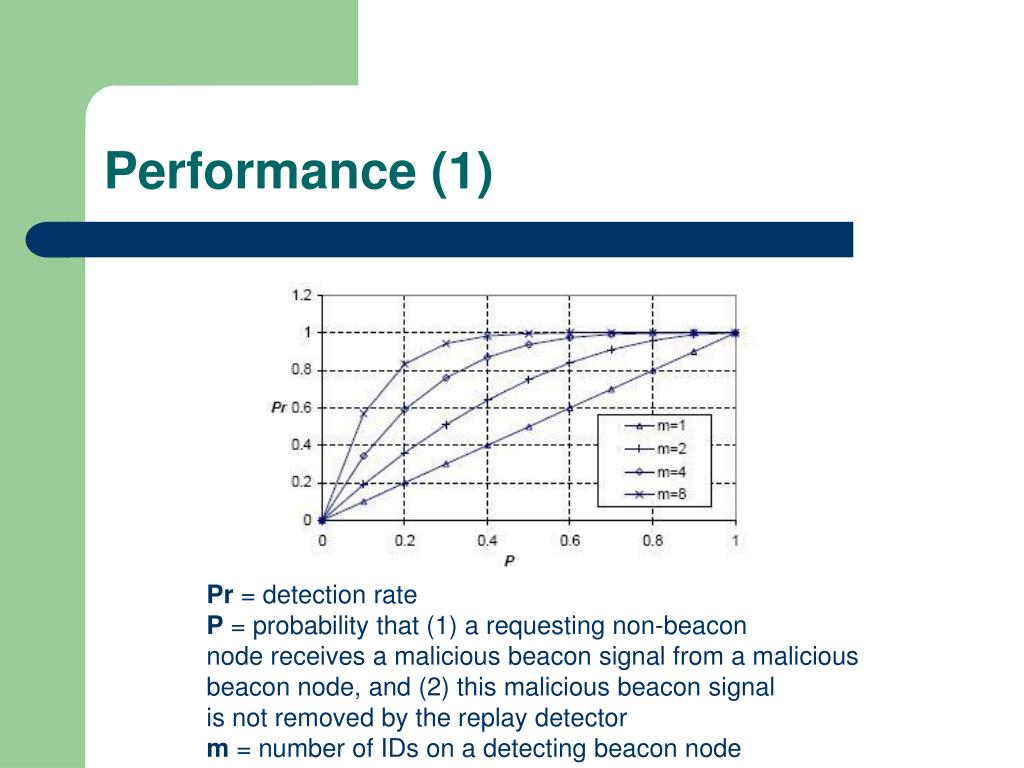

Performance (1)

Pr = detection rate

P = probability that (1) a requesting non-beacon

node receives a malicious beacon signal from a malicious

beacon node, and (2) this malicious beacon signal

is not removed by the replay detector

m = number of IDs on a detecting beacon node

performance 2

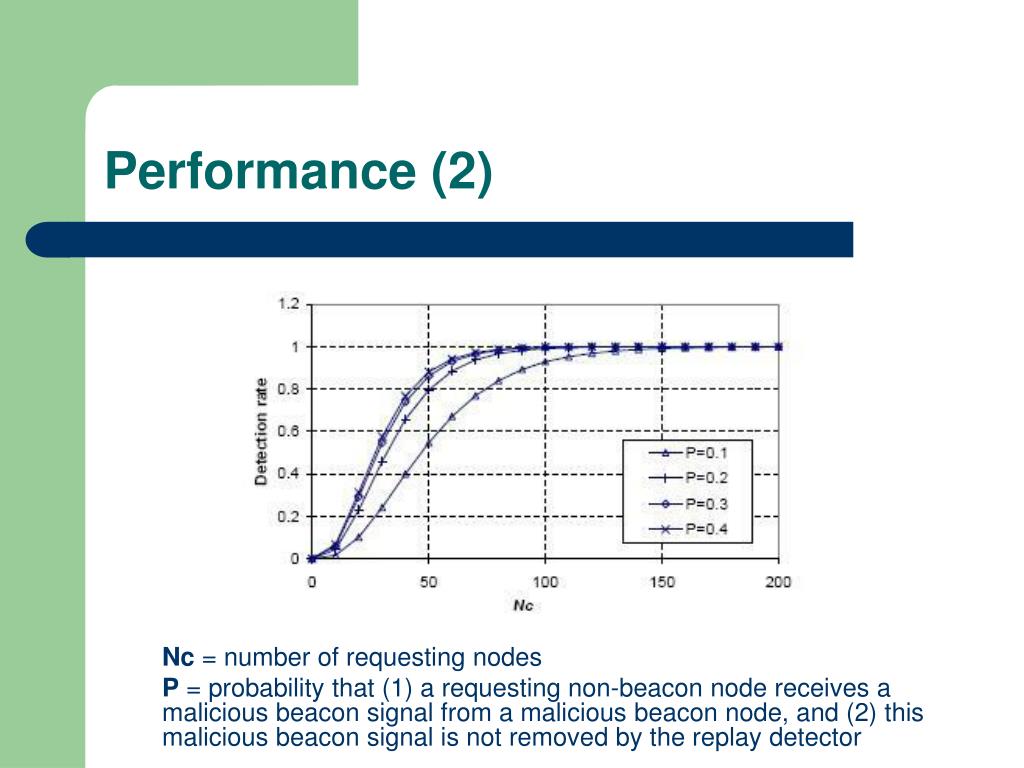

Performance (2)

Nc = number of requesting nodes

P = probability that (1) a requesting non-beacon node receives a malicious beacon signal from a malicious beacon node, and (2) this malicious beacon signal is not removed by the replay detector

performance 3
Performance (3)
  • Simulations were run on the TinyOS simulator Nido
  • 1,000 sensor nodes randomly deployed, 100 beacon nodes
  • P = probability that (1) a requesting non-beacon node receives a malicious beacon signal from a malicious beacon node, and (2) this malicious beacon signal is not removed by the replay detector
  • N’ = average number of requesting non-beacon nodes accepting the malicious beacon signals
performance 4
Performance (4)
  • Na = number of compromised nodes
  • τ’ = benign node report threshold
conclusion
Conclusion
  • Authors came up with a practical solution to detect malicious beacon signals as well as replayed beacon signals
  • Overhead added for these techniques is minimal
  • False positive rate pretty good when few nodes are malicious
