Presentation Transcript

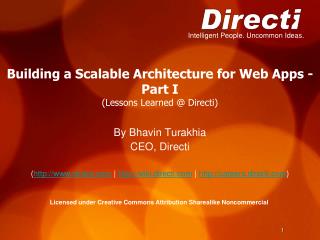

building a scalable architecture for web apps part i lessons learned @ directi
By Bhavin Turakhia

CEO, Directi

(http://www.directi.com | http://wiki.directi.com | http://careers.directi.com)

Building a Scalable Architecture for Web Apps - Part I(Lessons Learned @ Directi)

Licensed under Creative Commons Attribution Sharealike Noncommercial

agenda
Agenda
  • Why is Scalability important
  • Introduction to the Variables and Factors
  • Building our own Scalable Architecture (in incremental steps)
    • Vertical Scaling
    • Vertical Partitioning
    • Horizontal Scaling
    • Horizontal Partitioning
    • … etc
  • Platform Selection Considerations
  • Tips

Creative Commons Sharealike Attributions Noncommercial

why is scalability important in a web 2 0 world
Why is Scalability Important in a Web 2.0 world
  • Viral marketing can result in instant successes
  • RSS / Ajax / SOA
    • pull based / polling type
    • XML protocols - Meta-data > data
    • Number of Requests exponentially grows with user base
  • RoR / Grails – Dynamic language landscape gaining popularity
  • In the end you want to build a Web 2.0 app that can serve millions of users with ZERO downtime

Creative Commons Sharealike Attributions Noncommercial

the variables
The Variables
  • Scalability - Number of users / sessions / transactions / operations the entire system can perform
  • Performance – Optimal utilization of resources
  • Responsiveness – Time taken per operation
  • Availability - Probability of the application or a portion of the application being available at any given point in time
  • Downtime Impact - The impact of a downtime of a server/service/resource - number of users, type of impact etc
  • Cost
  • Maintenance Effort

High: scalability, availability, performance & responsivenessLow: downtime impact, cost & maintenance effort

Creative Commons Sharealike Attributions Noncommercial

the factors
The Factors
  • Platform selection
  • Hardware
  • Application Design
  • Database/Datastore Structure and Architecture
  • Deployment Architecture
  • Storage Architecture
  • Abuse prevention
  • Monitoring mechanisms
  • … and more

Creative Commons Sharealike Attributions Noncommercial

lets start
Lets Start …
  • We will now build an example architecture for an example app using the following iterative incremental steps –
    • Inspect current Architecture
    • Identify Scalability Bottlenecks
    • Identify SPOFs and Availability Issues
    • Identify Downtime Impact Risk Zones
    • Apply one of -
      • Vertical Scaling
      • Vertical Partitioning
      • Horizontal Scaling
      • Horizontal Partitioning
    • Repeat process

Creative Commons Sharealike Attributions Noncommercial

step 1 lets start
Step 1 – Lets Start …

Appserver & DBServer

Creative Commons Sharealike Attributions Noncommercial

step 2 vertical scaling
Step 2 – Vertical Scaling

CPU

Appserver, DBServer

CPU

RAM

RAM

Creative Commons Sharealike Attributions Noncommercial

step 2 vertical scaling9
Step 2 - Vertical Scaling
  • Introduction
    • Increasing the hardware resources without changing the number of nodes
    • Referred to as “Scaling up” the Server
  • Advantages
    • Simple to implement
  • Disadvantages
    • Finite limit
    • Hardware does not scale linearly (diminishing returns for each incremental unit)
    • Requires downtime
    • Increases Downtime Impact
    • Incremental costs increase exponentially

CPU

Appserver, DBServer

CPU

CPU

CPU

RAM

RAM

RAM

RAM

Creative Commons Sharealike Attributions Noncommercial

step 3 vertical partitioning services
Step 3 – Vertical Partitioning (Services)
  • Introduction
    • Deploying each service on a separate node
  • Positives
    • Increases per application Availability
    • Task-based specialization, optimization and tuning possible
    • Reduces context switching
    • Simple to implement for out of band processes
    • No changes to App required
    • Flexibility increases
  • Negatives
    • Sub-optimal resource utilization
    • May not increase overall availability
    • Finite Scalability

AppServer

DBServer

Creative Commons Sharealike Attributions Noncommercial

understanding vertical partitioning
Understanding Vertical Partitioning
  • The term Vertical Partitioning denotes –
    • Increase in the number of nodes by distributing the tasks/functions
    • Each node (or cluster) performs separate Tasks
    • Each node (or cluster) is different from the other
  • Vertical Partitioning can be performed at various layers (App / Server / Data / Hardware etc)

Creative Commons Sharealike Attributions Noncommercial

step 4 horizontal scaling app server
Step 4 – Horizontal Scaling (App Server)
  • Introduction
    • Increasing the number of nodes of the App Server through Load Balancing
    • Referred to as “Scaling out” the App Server

Load Balancer

AppServer

AppServer

AppServer

DBServer

Creative Commons Sharealike Attributions Noncommercial

understanding horizontal scaling
Understanding Horizontal Scaling
  • The term Horizontal Scaling denotes –
    • Increase in the number of nodes by replicating the nodes
    • Each node performs the same Tasks
    • Each node is identical
    • Typically the collection of nodes maybe known as a cluster (though the term cluster is often misused)
    • Also referred to as “Scaling Out”
  • Horizontal Scaling can be performed for any particular type of node (AppServer / DBServer etc)

Creative Commons Sharealike Attributions Noncommercial

load balancer hardware vs software
Load Balancer – Hardware vs Software
  • Hardware Load balancers are faster
  • Software Load balancers are more customizable
  • With HTTP Servers load balancing is typically combined with http accelerators

Creative Commons Sharealike Attributions Noncommercial

load balancer session management
Load Balancer – Session Management

Sticky Sessions

  • Sticky Sessions
    • Requests for a given user are sent to a fixed App Server
    • Observations
      • Asymmetrical load distribution (especially during downtimes)
      • Downtime Impact – Loss of session data

User 1

User 2

Load Balancer

AppServer

AppServer

AppServer

Creative Commons Sharealike Attributions Noncommercial

load balancer session management16
Load Balancer – Session Management

Central Session Storage

  • Central Session Store
    • Introduces SPOF
    • An additional variable
    • Session reads and writes generate Disk + Network I/O
    • Also known as a Shared Session Store Cluster

Load Balancer

AppServer

AppServer

AppServer

Session Store

Creative Commons Sharealike Attributions Noncommercial

load balancer session management17
Load Balancer – Session Management
  • Clustered Session Management
    • Easier to setup
    • No SPOF
    • Session reads are instantaneous
    • Session writes generate Network I/O
    • Network I/O increases exponentially with increase in number of nodes
    • In very rare circumstances a request may get stale session data
      • User request reaches subsequent node faster than intra-node message
      • Intra-node communication fails
    • AKA Shared-nothing Cluster

Clustered Session Management

Load Balancer

AppServer

AppServer

AppServer

Creative Commons Sharealike Attributions Noncommercial

load balancer session management18
Load Balancer – Session Management

Sticky Sessions

  • Sticky Sessions with Central Session Store
    • Downtime does not cause loss of data
    • Session reads need not generate network I/O
  • Sticky Sessions with Clustered Session Management
    • No specific advantages

User 1

User 2

Load Balancer

AppServer

AppServer

AppServer

Creative Commons Sharealike Attributions Noncommercial

load balancer session management19
Load Balancer – Session Management
  • Recommendation
    • Use Clustered Session Management if you have –
      • Smaller Number of App Servers
      • Fewer Session writes
    • Use a Central Session Store elsewhere
    • Use sticky sessions only if you have to

Creative Commons Sharealike Attributions Noncommercial

load balancer removing spof
Load Balancer – Removing SPOF

Active-Passive LB

  • In a Load Balanced App Server Cluster the LB is an SPOF
  • Setup LB in Active-Active or Active-Passive mode
    • Note: Active-Active nevertheless assumes that each LB is independently able to take up the load of the other
    • If one wants ZERO downtime, then Active-Active becomes truly cost beneficial only if multiple LBs (more than 3 to 4) are daisy chained as Active-Active forming an LB Cluster

Users

Load Balancer

Load Balancer

AppServer

AppServer

AppServer

Active-Active LB

Users

Load Balancer

Load Balancer

AppServer

AppServer

AppServer

Creative Commons Sharealike Attributions Noncommercial

step 4 horizontal scaling app server21
Step 4 – Horizontal Scaling (App Server)

Load Balanced App Servers

  • Our deployment at the end of Step 4
  • Positives
    • Increases Availability and Scalability
    • No changes to App required
    • Easy setup
  • Negatives
    • Finite Scalability

DBServer

Creative Commons Sharealike Attributions Noncommercial

step 5 vertical partitioning hardware
Step 5 – Vertical Partitioning (Hardware)

Load Balanced App Servers

  • Introduction
    • Partitioning out the Storage function using a SAN
  • SAN config options
    • Refer to “Demystifying Storage” at http://wiki.directi.com -> Dev University -> Presentations
  • Positives
    • Allows “Scaling Up” the DB Server
    • Boosts Performance of DB Server
  • Negatives
    • Increases Cost

DBServer

SAN

Creative Commons Sharealike Attributions Noncommercial

step 6 horizontal scaling db
Step 6 – Horizontal Scaling (DB)

Load Balanced App Servers

  • Introduction
    • Increasing the number of DB nodes
    • Referred to as “Scaling out” the DB Server
  • Options
    • Shared nothing Cluster
    • Real Application Cluster (or Shared Storage Cluster)

DBServer

DBServer

DBServer

SAN

Creative Commons Sharealike Attributions Noncommercial

shared nothing cluster
Shared Nothing Cluster
  • Each DB Server node has its own complete copy of the database
  • Nothing is shared between the DB Server Nodes
  • This is achieved through DB Replication at DB / Driver / App level or through a proxy
  • Supported by most RDBMs natively or through 3rd party software

DBServer

DBServer

DBServer

Database

Database

Database

Note: Actual DB files maybe stored on a central SAN

Creative Commons Sharealike Attributions Noncommercial

replication considerations
Replication Considerations
  • Master-Slave
    • Writes are sent to a single master which replicates the data to multiple slave nodes
    • Replication maybe cascaded
    • Simple setup
    • No conflict management required
  • Multi-Master
    • Writes can be sent to any of the multiple masters which replicate them to other masters and slaves
    • Conflict Management required
    • Deadlocks possible if same data is simultaneously modified at multiple places

Creative Commons Sharealike Attributions Noncommercial

replication considerations26
Replication Considerations
  • Asynchronous
    • Guaranteed, but out-of-band replication from Master to Slave
    • Master updates its own db and returns a response to client
    • Replication from Master to Slave takes place asynchronously
    • Faster response to a client
    • Slave data is marginally behind the Master
    • Requires modification to App to send critical reads and writes to master, and load balance all other reads
  • Synchronous
    • Guaranteed, in-band replication from Master to Slave
    • Master updates its own db, and confirms all slaves have updated their db before returning a response to client
    • Slower response to a client
    • Slaves have the same data as the Master at all times
    • Requires modification to App to send writes to master and load balance all reads

Creative Commons Sharealike Attributions Noncommercial

replication considerations27
Replication Considerations
  • Replication at RDBMS level
    • Support may exists in RDBMS or through 3rd party tool
    • Faster and more reliable
    • App must send writes to Master, reads to any db and critical reads to Master
  • Replication at Driver / DAO level
    • Driver / DAO layer ensures
      • writes are performed on all connected DBs
      • Reads are load balanced
      • Critical reads are sent to a Master
    • In most cases RDBMS agnostic
    • Slower and in some cases less reliable

Creative Commons Sharealike Attributions Noncommercial

real application cluster
Real Application Cluster
  • All DB Servers in the cluster share a common storage area on a SAN
  • All DB servers mount the same block device
  • The filesystem must be a clustered file system (eg GFS / OFS)
  • Currently only supported by Oracle Real Application Cluster
  • Can be very expensive (licensing fees)

DBServer

DBServer

DBServer

SAN

Database

Creative Commons Sharealike Attributions Noncommercial

recommendation
Recommendation

Load Balanced App Servers

  • Try and choose a DB which natively supports Master-Slave replication
  • Use Master-Slave Async replication
  • Write your DAO layer to ensure
    • writes are sent to a single DB
    • reads are load balanced
    • Critical reads are sent to a master

DBServer

DBServer

DBServer

Writes & Critical Reads

Other Reads

Creative Commons Sharealike Attributions Noncommercial

step 6 horizontal scaling db30
Step 6 – Horizontal Scaling (DB)

Load Balanced App Servers

DB Cluster

DB

DB

DB

SAN

  • Our architecture now looks like this
  • Positives
    • As Web servers grow, Database nodes can be added
    • DB Server is no longer SPOF
  • Negatives
    • Finite limit

Creative Commons Sharealike Attributions Noncommercial

step 6 horizontal scaling db31
Step 6 – Horizontal Scaling (DB)

Reads

  • Shared nothing clusters have a finite scaling limit
    • Reads to Writes – 2:1
    • So 8 Reads => 4 writes
    • 2 DBs
      • Per db – 4 reads and 4 writes
    • 4 DBs
      • Per db – 2 reads and 4 writes
    • 8 DBs
      • Per db – 1 read and 4 writes
  • At some point adding another node brings in negligible incremental benefit

Writes

DB1

DB2

Creative Commons Sharealike Attributions Noncommercial

step 7 vertical horizontal partitioning db
Step 7 – Vertical / Horizontal Partitioning (DB)

Load Balanced App Servers

DB Cluster

DB

DB

DB

SAN

  • Introduction
    • Increasing the number of DB Clusters by dividing the data
  • Options
    • Vertical Partitioning - Dividing tables / columns
    • Horizontal Partitioning - Dividing by rows (value)

Creative Commons Sharealike Attributions Noncommercial

vertical partitioning db
Vertical Partitioning (DB)
  • Take a set of tables and move them onto another DB
    • Eg in a social network - the users table and the friends table can be on separate DB clusters
  • Each DB Cluster has different tables
  • Application code or DAO / Driver code or a proxy knows where a given table is and directs queries to the appropriate DB
  • Can also be done at a column level by moving a set of columns into a separate table

App Cluster

DB Cluster 1

Table 1

Table 2

DB Cluster 2

Table 3

Table 4

Creative Commons Sharealike Attributions Noncommercial

vertical partitioning db34
Vertical Partitioning (DB)
  • Negatives
    • One cannot perform SQL joins or maintain referential integrity (referential integrity is as such over-rated)
    • Finite Limit

App Cluster

DB Cluster 1

Table 1

Table 2

DB Cluster 2

Table 3

Table 4

Creative Commons Sharealike Attributions Noncommercial

horizontal partitioning db
Horizontal Partitioning (DB)
  • Take a set of rows and move them onto another DB
    • Eg in a social network – each DB Cluster can contain all data for 1 million users
  • Each DB Cluster has identical tables
  • Application code or DAO / Driver code or a proxy knows where a given row is and directs queries to the appropriate DB
  • Negatives
    • SQL unions for search type queries must be performed within code

App Cluster

DB Cluster 1

Table 1

Table 2

Table 3

Table 4

DB Cluster 2

Table 1

Table 2

Table 3

Table 4

1 million users

1 million users

Creative Commons Sharealike Attributions Noncommercial

horizontal partitioning db36
Horizontal Partitioning (DB)
  • Techniques
    • FCFS
      • 1st million users are stored on cluster 1 and the next on cluster 2
    • Round Robin
    • Least Used (Balanced)
      • Each time a new user is added, a DB cluster with the least users is chosen
    • Hash based
      • A hashing function is used to determine the DB Cluster in which the user data should be inserted
    • Value Based
      • User ids 1 to 1 million stored in cluster 1 OR
      • all users with names starting from A-M on cluster 1
    • Except for Hash and Value based all other techniques also require an independent lookup map – mapping user to Database Cluster
    • This map itself will be stored on a separate DB (which may further need to be replicated)

Creative Commons Sharealike Attributions Noncommercial

step 7 vertical horizontal partitioning db37
Step 7 – Vertical / Horizontal Partitioning (DB)

Load Balanced App Servers

DB Cluster

DB Cluster

DB

DB

DB

DB

DB

DB

SAN

  • Our architecture now looks like this
  • Positives
    • As App servers grow, Database Clusters can be added
  • Note: This is not the same as table partitioning provided by the db (eg MSSQL)
  • We may actually want to further segregate these into Sets, each serving a collection of users (refer next slide

Lookup

Map

Creative Commons Sharealike Attributions Noncommercial

step 8 separating sets
Step 8 – Separating Sets

Load Balanced App Servers

Load Balanced App Servers

DB Cluster

DB Cluster

DB Cluster

DB Cluster

DB

DB

DB

DB

DB

DB

DB

DB

DB

DB

DB

DB

SAN

SAN

  • Now we consider each deployment as a single Set serving a collection of users

Global

Lookup

Map

Global Redirector

Lookup

Map

Lookup

Map

SET 1 – 10 million users

SET 2 – 10 million users

Creative Commons Sharealike Attributions Noncommercial

creating sets
Creating Sets
  • The goal behind creating sets is easier manageability
  • Each Set is independent and handles transactions for a set of users
  • Each Set is architecturally identical to the other
  • Each Set contains the entire application with all its data structures
  • Sets can even be deployed in separate datacenters
  • Users may even be added to a Set that is closer to them in terms of network latency

Creative Commons Sharealike Attributions Noncommercial

step 8 horizontal partitioning sets
Step 8 – Horizontal Partitioning (Sets)
  • Our architecture now looks like this
  • Positives
    • Infinite Scalability
  • Negatives
    • Aggregation of data across sets is complex
    • Users may need to be moved across Sets if sizing is improper
    • Global App settings and preferences need to be replicated across Sets

Global Redirector

App Servers

Cluster

App Servers

Cluster

DB Cluster

DB Cluster

DB Cluster

DB Cluster

SAN

SAN

SET 1

SET 2

Creative Commons Sharealike Attributions Noncommercial

step 9 caching
Step 9 – Caching
  • Add caches within App Server
    • Object Cache
    • Session Cache (especially if you are using a Central Session Store)
    • API cache
    • Page cache
  • Software
    • Memcached
    • Teracotta (Java only)
    • Coherence (commercial expensive data grid by Oracle)

Creative Commons Sharealike Attributions Noncommercial

step 10 http accelerator
Step 10 – HTTP Accelerator
  • If your app is a web app you should add an HTTP Accelerator or a Reverse Proxy
  • A good HTTP Accelerator / Reverse proxy performs the following –
    • Redirect static content requests to a lighter HTTP server (lighttpd)
    • Cache content based on rules (with granular invalidation support)
    • Use Async NIO on the user side
    • Maintain a limited pool of Keep-alive connections to the App Server
    • Intelligent load balancing
  • Solutions
    • Nginx (HTTP / IMAP)
    • Perlbal
    • Hardware accelerators plus Load Balancers

Creative Commons Sharealike Attributions Noncommercial

step 11 other cool stuff
Step 11 – Other cool stuff
  • CDNs
  • IP Anycasting
  • Async Nonblocking IO (for all Network Servers)
  • If possible - Async Nonblocking IO for disk
  • Incorporate multi-layer caching strategy where required
    • L1 cache – in-process with App Server
    • L2 cache – across network boundary
    • L3 cache – on disk
  • Grid computing
    • Java – GridGain
    • Erlang – natively built in

Creative Commons Sharealike Attributions Noncommercial

platform selection considerations
Platform Selection Considerations
  • Programming Languages and Frameworks
    • Dynamic languages are slower than static languages
    • Compiled code runs faster than interpreted code -> use accelerators or pre-compilers
    • Frameworks that provide Dependency Injections, Reflection, Annotations have a marginal performance impact
    • ORMs hide DB querying which can in some cases result in poor query performance due to non-optimized querying
  • RDBMS
    • MySQL, MSSQL and Oracle support native replication
    • Postgres supports replication through 3rd party software (Slony)
    • Oracle supports Real Application Clustering
    • MySQL uses locking and arbitration, while Postgres/Oracle use MVCC (MSSQL just recently introduced MVCC)
  • Cache
    • Teracotta vs memcached vs Coherence

Creative Commons Sharealike Attributions Noncommercial

slide45
Tips
  • All the techniques we learnt today can be applied in any order
  • Try and incorporate Horizontal DB partitioning by value from the beginning into your design
  • Loosely couple all modules
  • Implement a REST-ful framework for easier caching
  • Perform application sizing ongoingly to ensure optimal utilization of hardware

Creative Commons Sharealike Attributions Noncommercial

slide46
Questions??bhavin.t@directi.com http://directi.comhttp://careers.directi.comDownload slides: http://wiki.directi.com
