Complex Molds and Mold Parts Creation

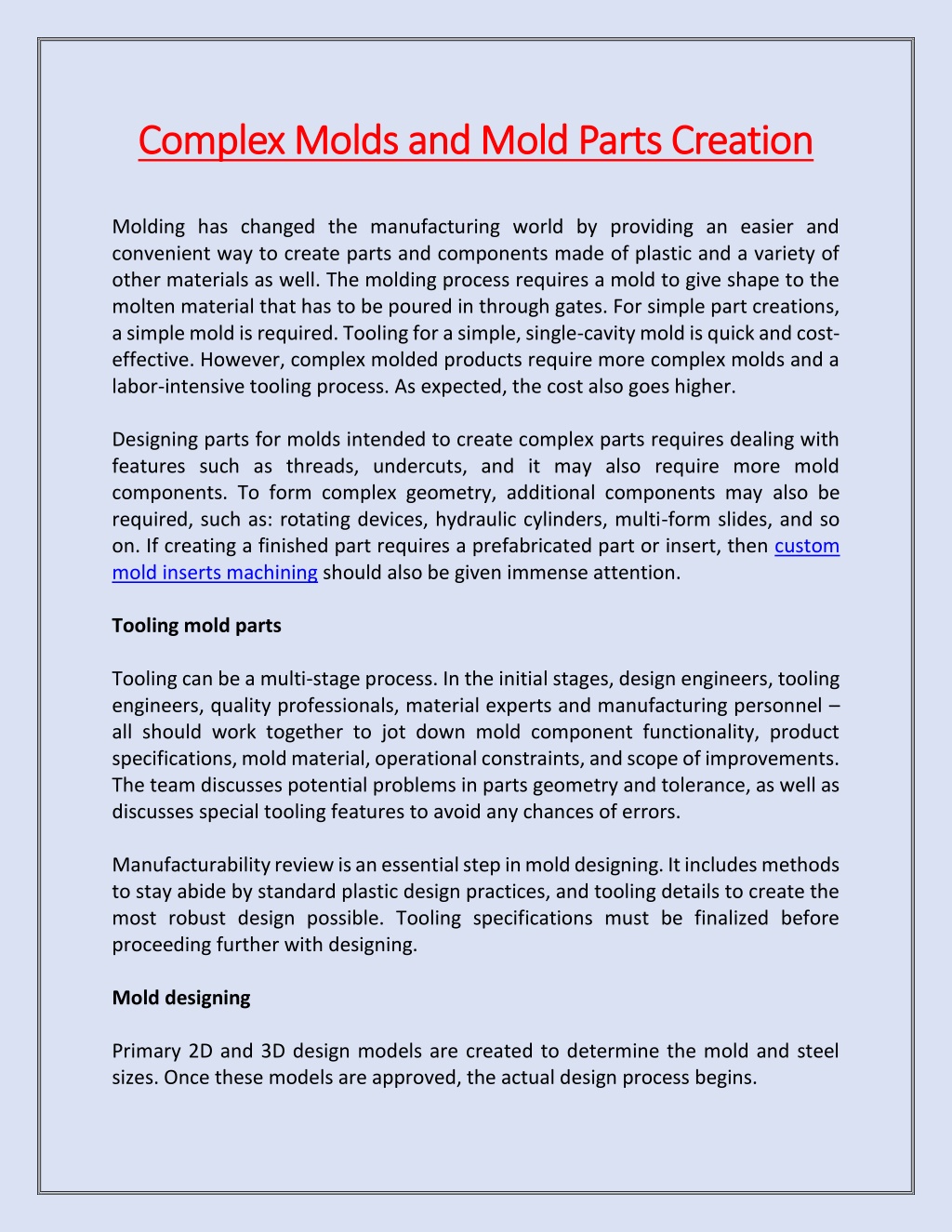

1. Complex Molds and Mold Parts Creation Complex Molds and Mold Parts Creation Molding has changed the manufacturing world by providing an easier and convenient way to create parts and components made of plastic and a variety of other materials as well. The molding process requires a mold to give shape to the molten material that has to be poured in through gates. For simple part creations, a simple mold is required. Tooling for a simple, single-cavity mold is quick and cost- effective. However, complex molded products require more complex molds and a labor-intensive tooling process. As expected, the cost also goes higher. Designing parts for molds intended to create complex parts requires dealing with features such as threads, undercuts, and it may also require more mold components. To form complex geometry, additional components may also be required, such as: rotating devices, hydraulic cylinders, multi-form slides, and so on. If creating a finished part requires a prefabricated part or insert, then custom mold inserts machining should also be given immense attention. Tooling mold parts Tooling can be a multi-stage process. In the initial stages, design engineers, tooling engineers, quality professionals, material experts and manufacturing personnel – all should work together to jot down mold component functionality, product specifications, mold material, operational constraints, and scope of improvements. The team discusses potential problems in parts geometry and tolerance, as well as discusses special tooling features to avoid any chances of errors. Manufacturability review is an essential step in mold designing. It includes methods to stay abide by standard plastic design practices, and tooling details to create the most robust design possible. Tooling specifications must be finalized before proceeding further with designing. Mold designing Primary 2D and 3D design models are created to determine the mold and steel sizes. Once these models are approved, the actual design process begins.

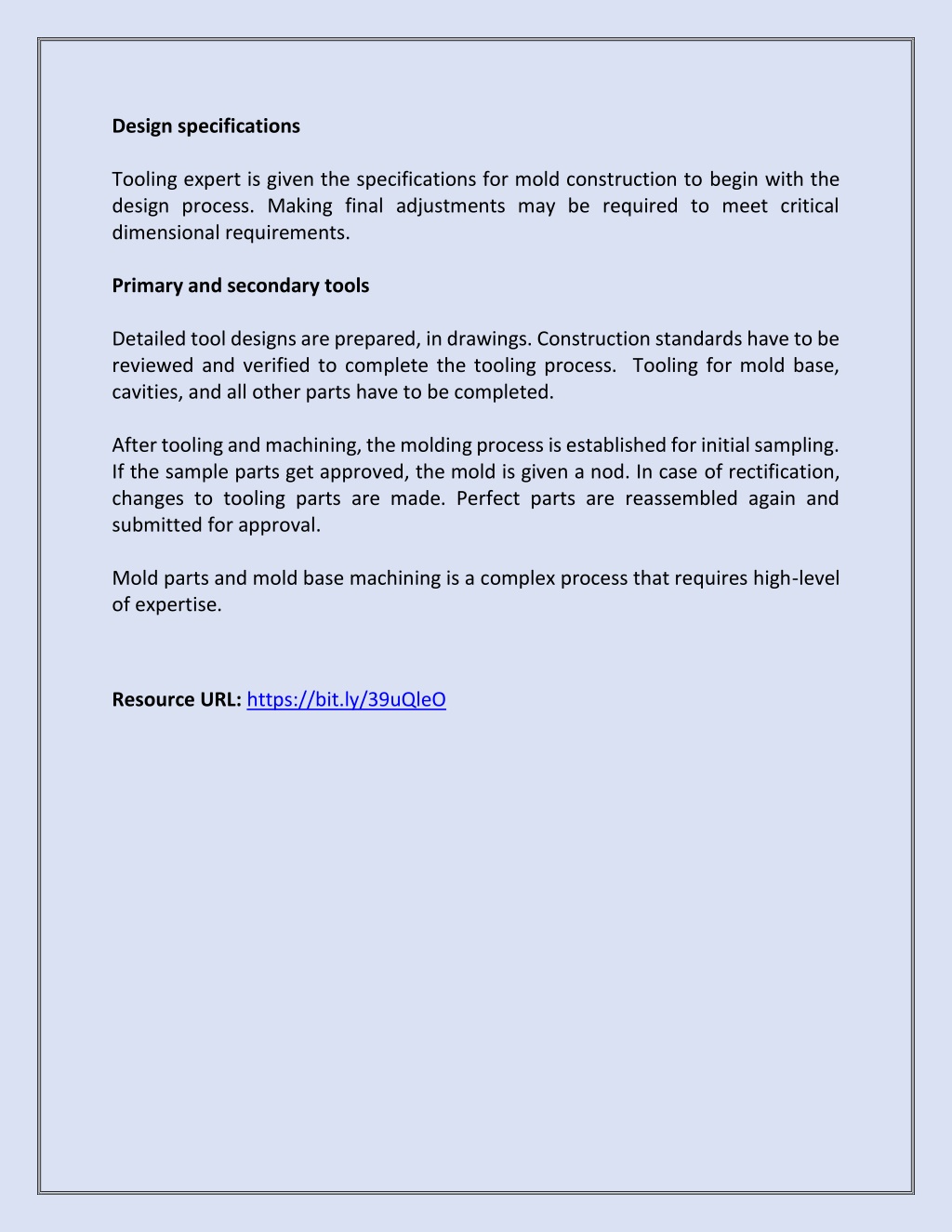

2. Design specifications Tooling expert is given the specifications for mold construction to begin with the design process. Making final adjustments may be required to meet critical dimensional requirements. Primary and secondary tools Detailed tool designs are prepared, in drawings. Construction standards have to be reviewed and verified to complete the tooling process. Tooling for mold base, cavities, and all other parts have to be completed. After tooling and machining, the molding process is established for initial sampling. If the sample parts get approved, the mold is given a nod. In case of rectification, changes to tooling parts are made. Perfect parts are reassembled again and submitted for approval. Mold parts and mold base machining is a complex process that requires high-level of expertise. Resource URL: https://bit.ly/39uQleO
