How LS7 Cylinder Heads Effect Horsepower Levels

In order to remove any potential flow blockages, beneficial porting work may only entail port matching the intake ports and the intake manifold ports. Only intake manifolds made for LS7 heads may be used due to port matching and manifold bolt layout because of the LS7's special intake manifold deck. Buy genuine GM LS7 cylinder heads from Total Performance.

Jenny35
Download Presentation

How LS7 Cylinder Heads Effect Horsepower Levels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

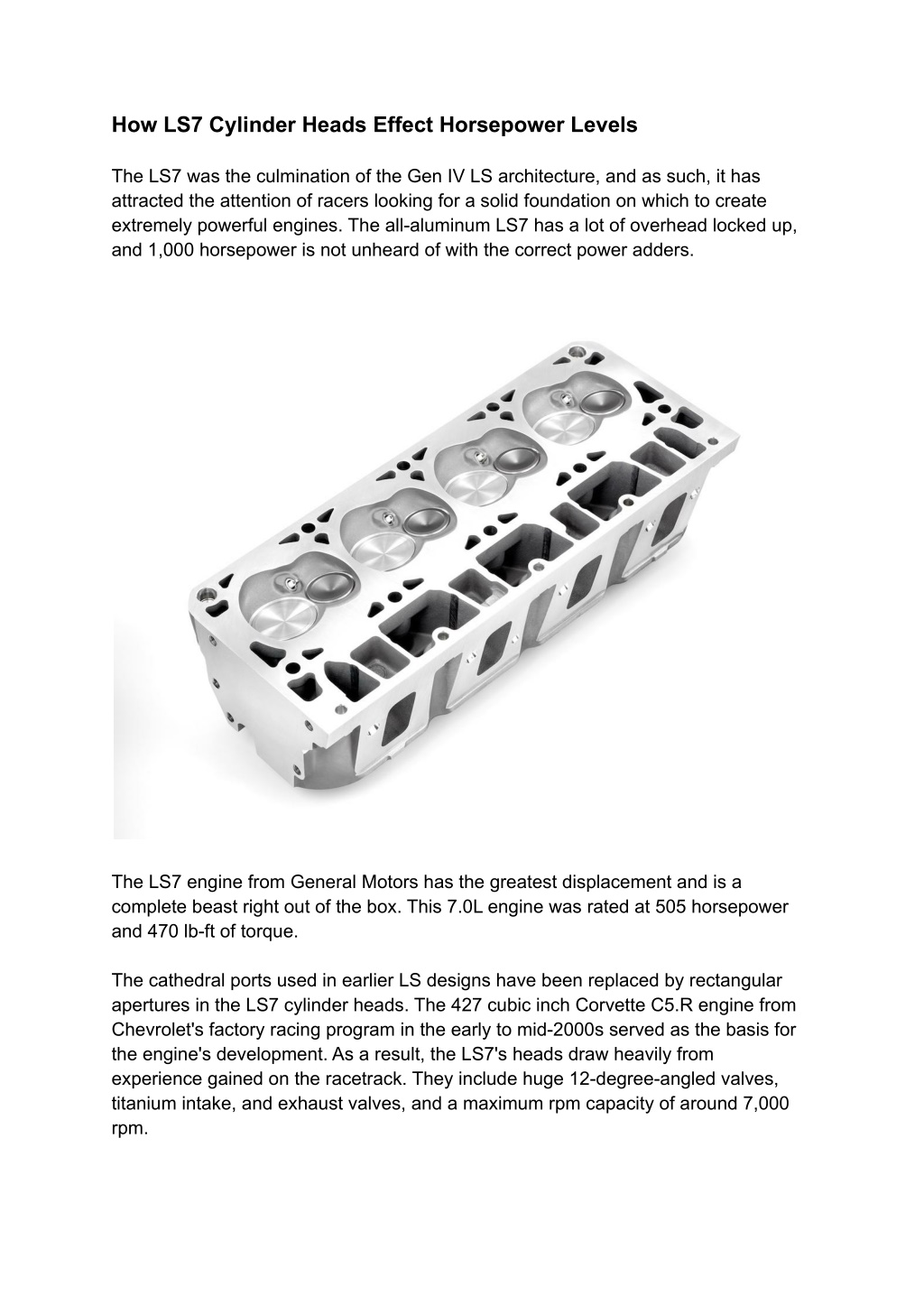

  1. How LS7 Cylinder Heads Effect Horsepower Levels The LS7 was the culmination of the Gen IV LS architecture, and as such, it has attracted the attention of racers looking for a solid foundation on which to create extremely powerful engines. The all-aluminum LS7 has a lot of overhead locked up, and 1,000 horsepower is not unheard of with the correct power adders. The LS7 engine from General Motors has the greatest displacement and is a complete beast right out of the box. This 7.0L engine was rated at 505 horsepower and 470 lb-ft of torque. The cathedral ports used in earlier LS designs have been replaced by rectangular apertures in the LS7 cylinder heads. The 427 cubic inch Corvette C5.R engine from Chevrolet's factory racing program in the early to mid-2000s served as the basis for the engine's development. As a result, the LS7's heads draw heavily from experience gained on the racetrack. They include huge 12-degree-angled valves, titanium intake, and exhaust valves, and a maximum rpm capacity of around 7,000 rpm.

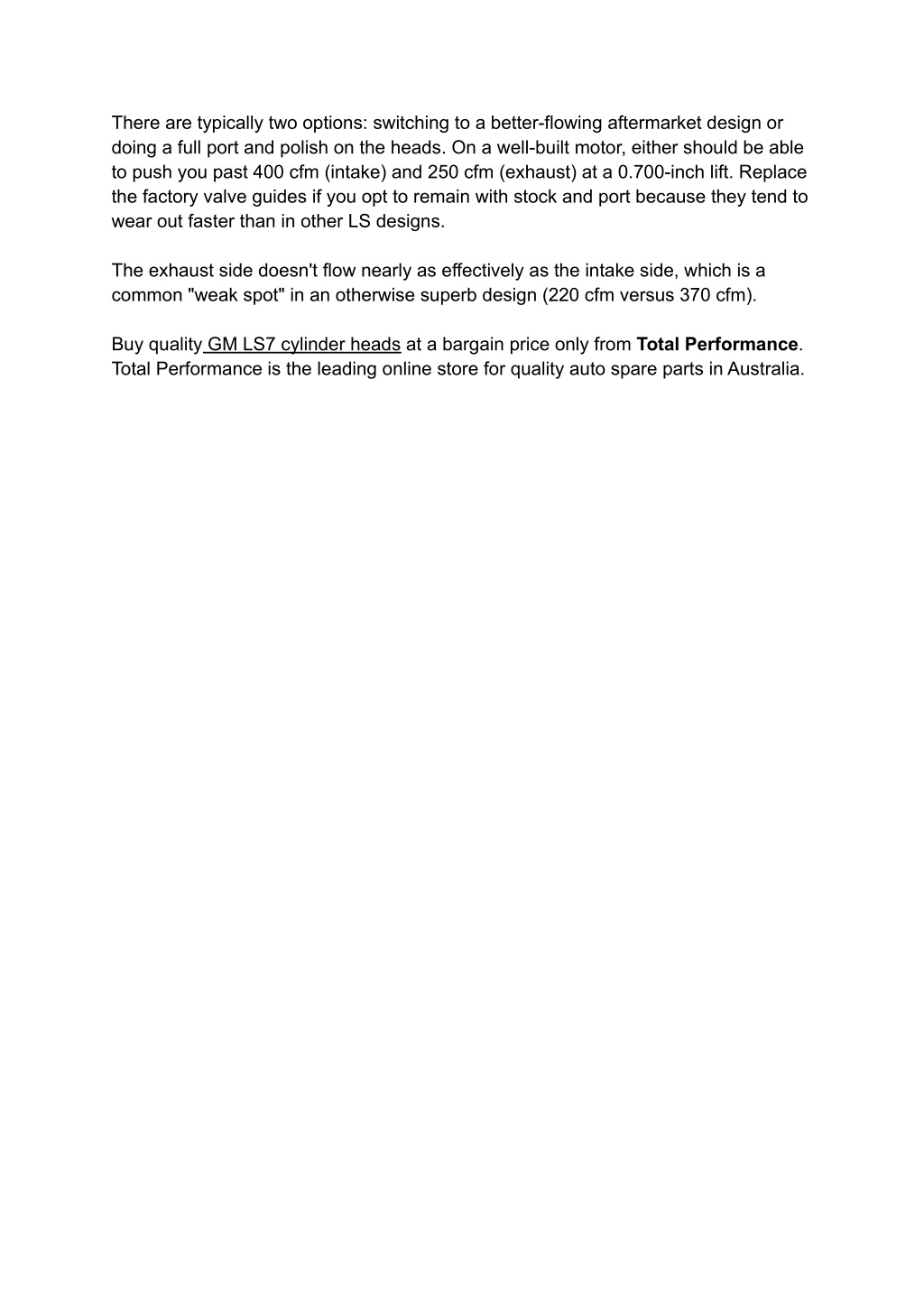

  2. There are typically two options: switching to a better-flowing aftermarket design or doing a full port and polish on the heads. On a well-built motor, either should be able to push you past 400 cfm (intake) and 250 cfm (exhaust) at a 0.700-inch lift. Replace the factory valve guides if you opt to remain with stock and port because they tend to wear out faster than in other LS designs. The exhaust side doesn't flow nearly as effectively as the intake side, which is a common "weak spot" in an otherwise superb design (220 cfm versus 370 cfm). Buy quality GM LS7 cylinder heads at a bargain price only from Total Performance. Total Performance is the leading online store for quality auto spare parts in Australia.
