4 Types of Slurry Pumps

There are various types of slurry pumps available in the market. But which among those types are best for your needs?

Jeffery3
Download Presentation

4 Types of Slurry Pumps

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

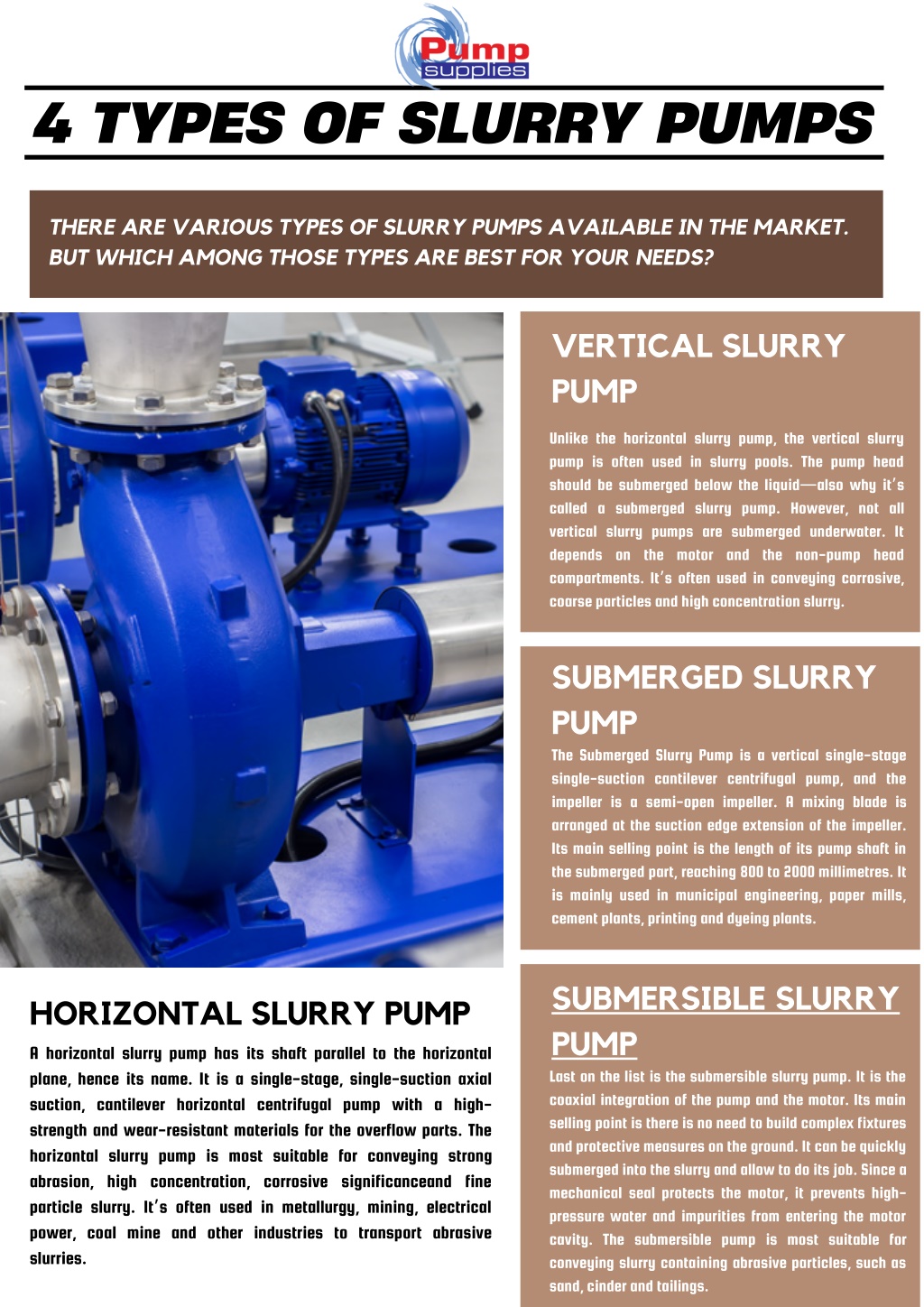

  1. 4 TYPES OF SLURRY PUMPS THERE ARE VARIOUS TYPES OF SLURRY PUMPS AVAILABLE IN THE MARKET. BUT WHICH AMONG THOSE TYPES ARE BEST FOR YOUR NEEDS? VERTICAL SLURRY PUMP Unlike the horizontal slurry pump, the vertical slurry pump is often used in slurry pools. The pump head should be submerged below the liquid—also why it’s called a submerged slurry pump. However, not all vertical slurry pumps are submerged underwater. It depends on the motor and the non-pump head compartments. It’s often used in conveying corrosive, coarse particles and high concentration slurry. SUBMERGED SLURRY PUMP The Submerged Slurry Pump is a vertical single-stage single-suction cantilever centrifugal pump, and the impeller is a semi-open impeller. A mixing blade is arranged at the suction edge extension of the impeller. Its main selling point is the length of its pump shaft in the submerged part, reaching 800 to 2000 millimetres. It is mainly used in municipal engineering, paper mills, cement plants, printing and dyeing plants. SUBMERSIBLE SLURRY PUMP Last on the list is the submersible slurry pump. It is the coaxial integration of the pump and the motor. Its main selling point is there is no need to build complex fixtures and protective measures on the ground. It can be quickly submerged into the slurry and allow to do its job. Since a mechanical seal protects the motor, it prevents high- pressure water and impurities from entering the motor cavity. The submersible pump is most suitable for conveying slurry containing abrasive particles, such as sand, cinder and tailings. HORIZONTAL SLURRY PUMP A horizontal slurry pump has its shaft parallel to the horizontal plane, hence its name. It is a single-stage, single-suction axial suction, cantilever horizontal centrifugal pump with a high- strength and wear-resistant materials for the overflow parts. The horizontal slurry pump is most suitable for conveying strong abrasion, high concentration, corrosive significanceand fine particle slurry. It’s often used in metallurgy, mining, electrical power, coal mine and other industries to transport abrasive slurries.
