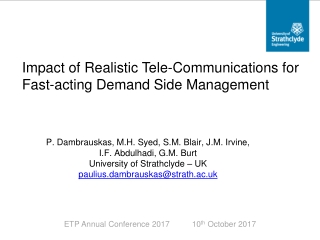

  1. Impact of Realistic Tele-Communications forFast-acting Demand Side Management P. Dambrauskas, M.H. Syed, S.M. Blair, J.M. Irvine, I.F. Abdulhadi, G.M. Burt University of Strathclyde – UK paulius.dambrauskas@strath.ac.uk ETP Annual Conference 2017 10th October 2017

  2. Transformational change in the power grid New measurement and control applications Integration of new energy resources R. Mattioli, K. Moulinos, “Communication network interdependencies in smart grids”, ENISA activities, critical infrastructures and services, Communication network interdependencies in smartgrids, 29-01-2016. [Online] Available: https://www.enisa.europa.eu/activities/Resilience-and-CIIP/critical-infrastructure-and-services/communication-network-interdependencies-in-smart-grids

  3. Frequency balancing and demand side resources • We need reliable and cheap frequency balancing resources due to the rise of renewable generation • Existence of 22 demand side aggregators present in Great Britain shows the interest system operators in smaller and distributed energy resources

  4. Tele-Communications networks: Core BT offers Service Level Agreement guarantees: “On all BTnet Leased Line products, our Service Level Agreement guarantees you a latency of less than 20ms (measured from core UK node to core UK node)” Kitz,“BT 21CN - Network Topology & Technology”, [Online] Available: http://www.kitz.co.uk/adsl/21cn_network.htm, accessed 2017

  5. According to AT&T, latencies for deployed 4G networks is 40-50ms Tele-Communications networks: WAN Ilya Grigorik, “Mobile Networks”, PERFORMANCE OF WIRELESS NETWORKS, CHAPTER 7, 2013. [Online] Available: https://hpbn.co/mobile-networks/, accessed September 2017

  6. ZigBee is the most well known mesh network technology • Low performance (250 kbits/s) • Uses shared spectrum • Uncertain reliability Tele-Communications networks: NAN

  7. ZigBee is also a technology that is widely used in the house network • Uses shared spectrum • Uncertain reliability Tele-Communications networks: HAN

  8. Performance of tele-communications • The overall latency for an activation signal is between 1 and 4.5 seconds

  9. Requirements of ancillary services in UK • We need a response to a frequency deviation within 10 seconds for primary frequency response • UK’s enhanced frequency response expects a sub second response

  10. Conclusions • Communications is the enabler of the smart grid which makes it possible for Domestic loads to be part of ancillary services • The role of DSM in ancillary services will depend on the communications technologies used

  11. Future work • Analysis of the impact communications can have on frequency balancing using a RTDS based power system -communications test-bed
