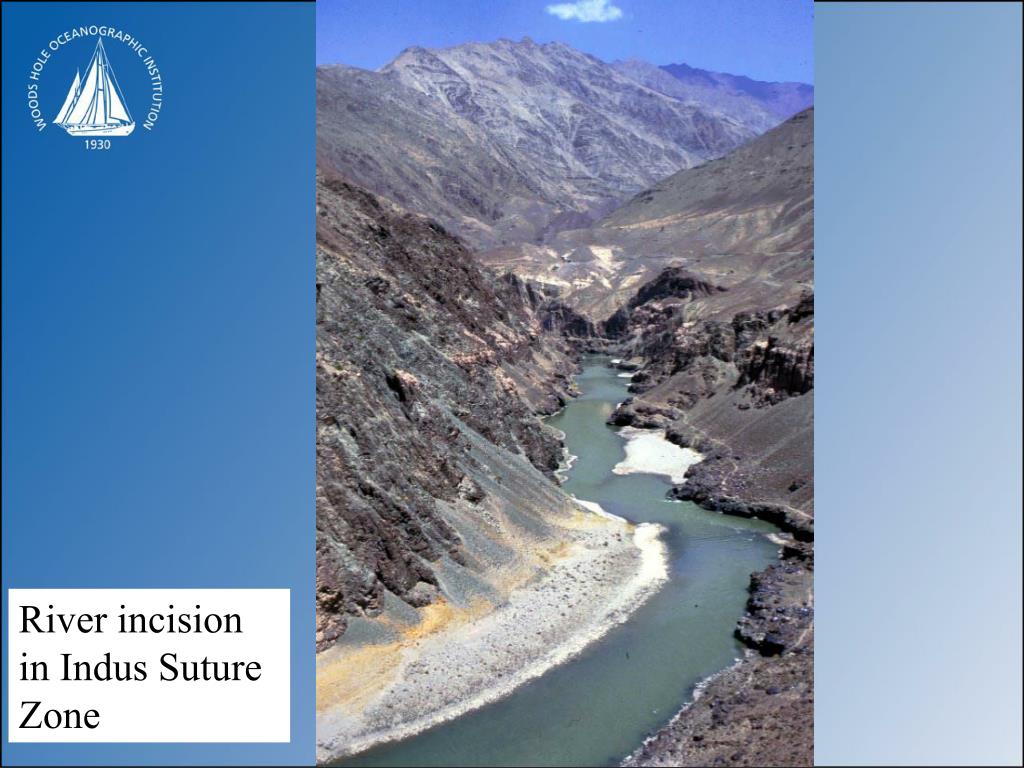

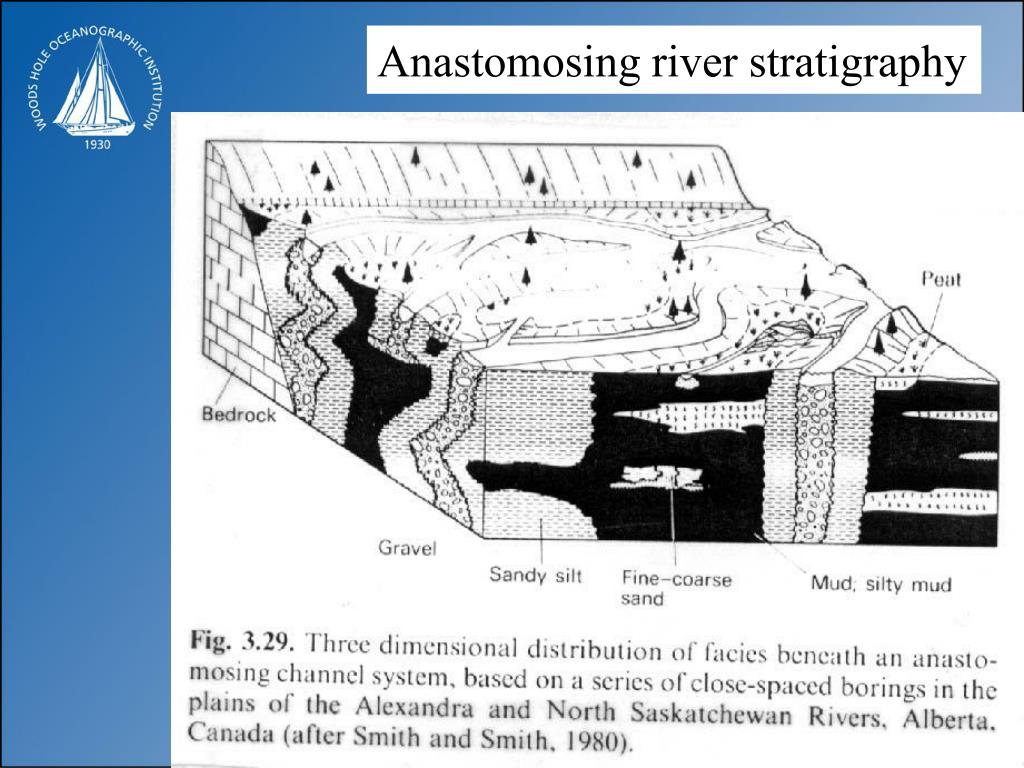

River Systems. Four types, braided, meandering, anastamosing and straight. Grand Canyon, erosion. River incision in Indus Suture Zone. River types. Links between sinuosity and slope. Anastomosing river stratigraphy. Braided rivers.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'River Systems' - JasminFlorian


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
river systems

River Systems

Four types, braided, meandering, anastamosing and straight

braided rivers

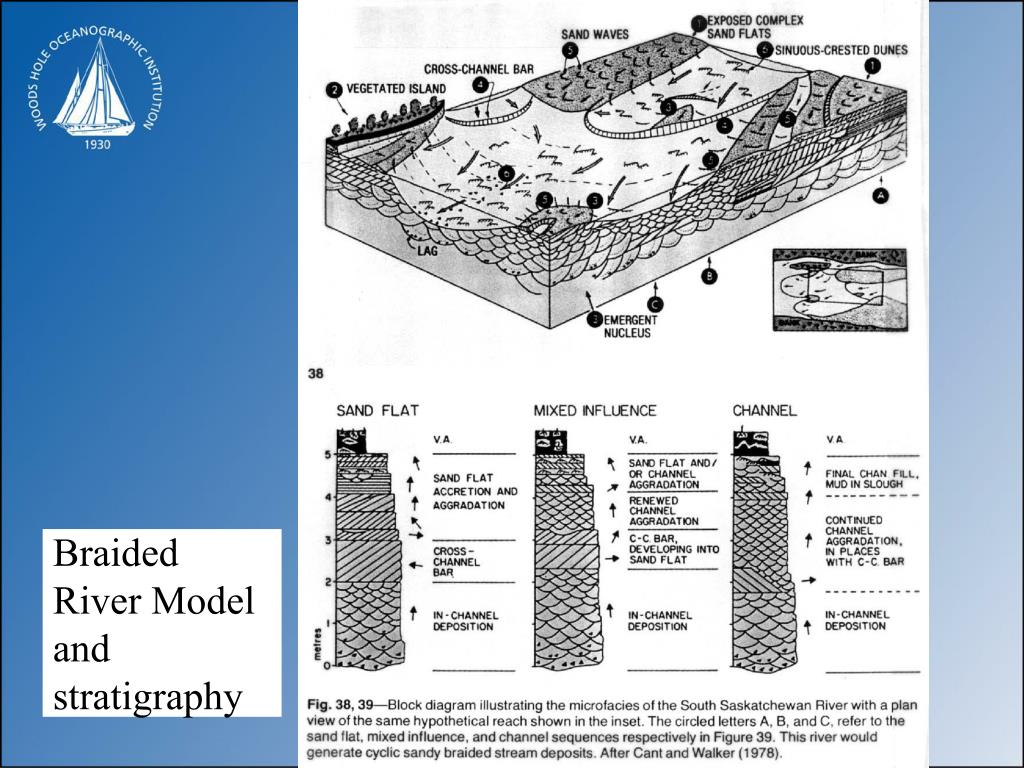

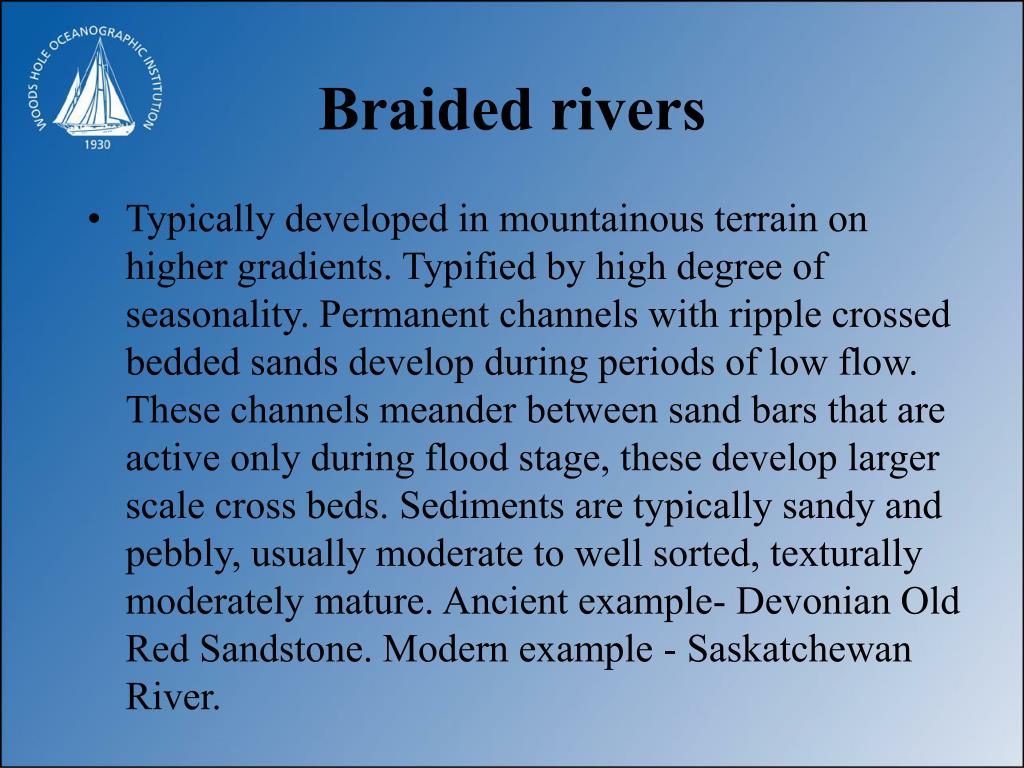

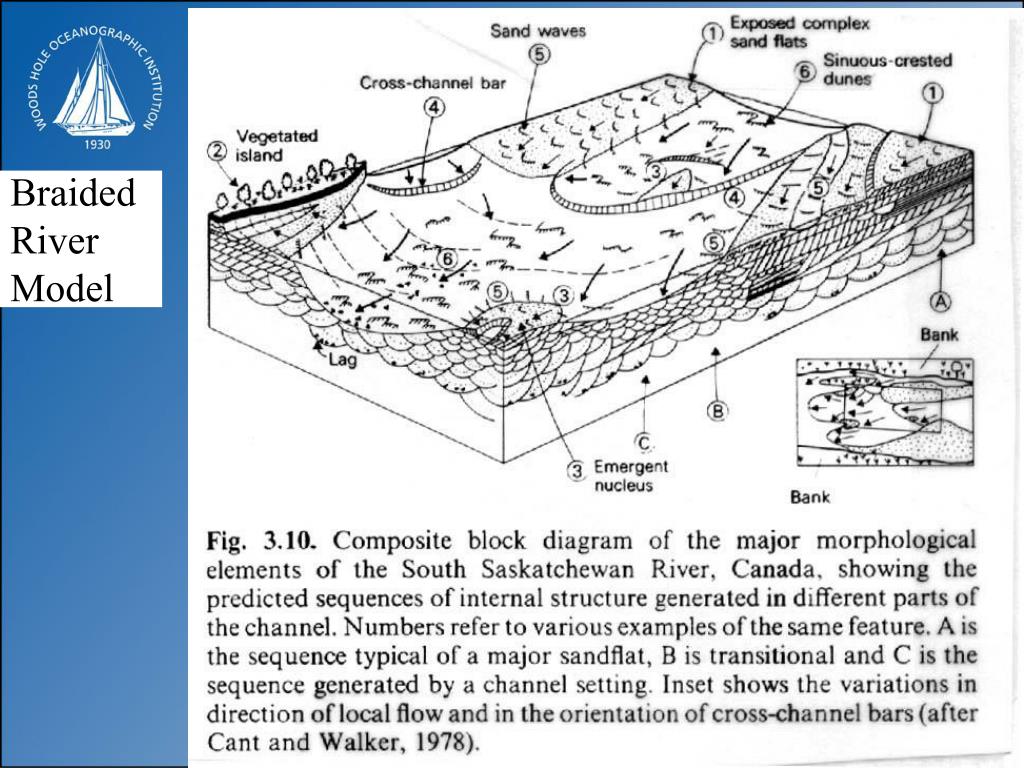

Braided rivers
  • Typically developed in mountainous terrain on higher gradients. Typified by high degree of seasonality. Permanent channels with ripple crossed bedded sands develop during periods of low flow. These channels meander between sand bars that are active only during flood stage, these develop larger scale cross beds. Sediments are typically sandy and pebbly, usually moderate to well sorted, texturally moderately mature. Ancient example- Devonian Old Red Sandstone. Modern example - Saskatchewan River.
meandering rivers

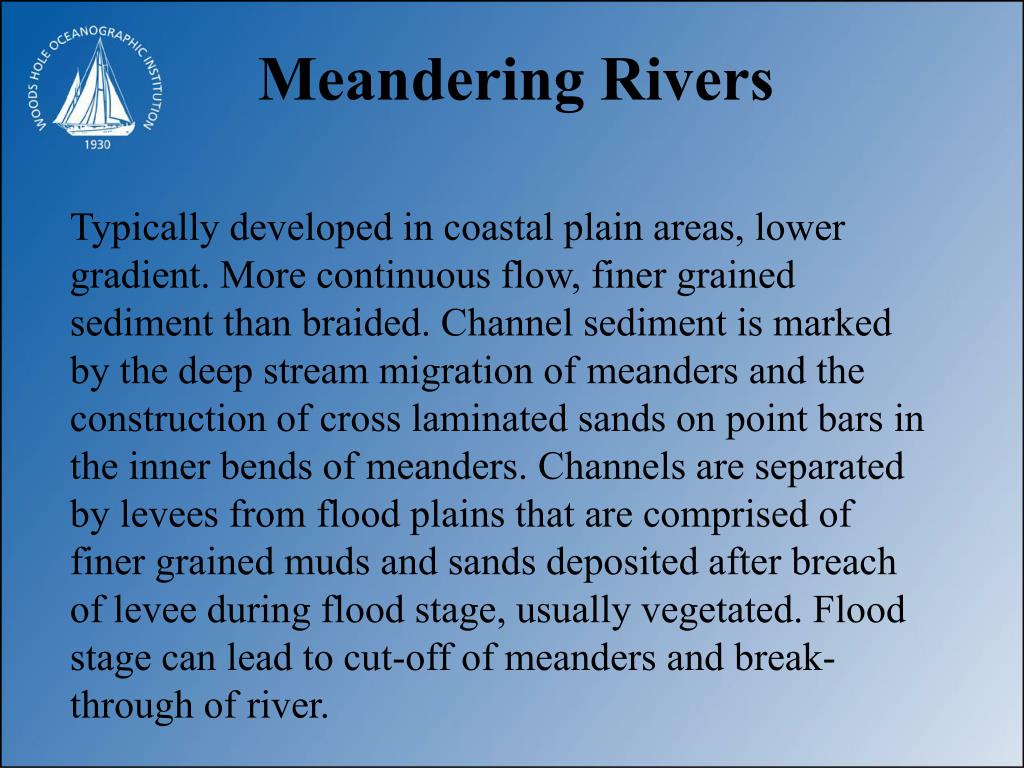

Meandering Rivers

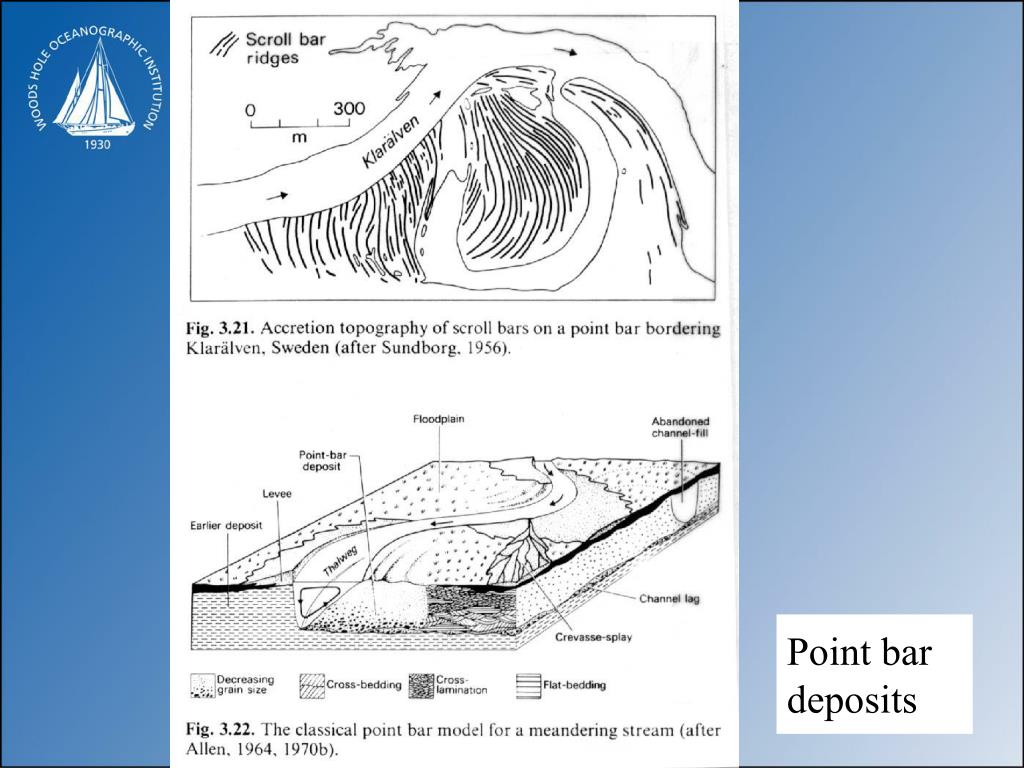

Typically developed in coastal plain areas, lower gradient. More continuous flow, finer grained sediment than braided. Channel sediment is marked by the deep stream migration of meanders and the construction of cross laminated sands on point bars in the inner bends of meanders. Channels are separated by levees from flood plains that are comprised of finer grained muds and sands deposited after breach of levee during flood stage, usually vegetated. Flood stage can lead to cut-off of meanders and break-through of river.

meandering rivers contd

Meandering Rivers, contd.

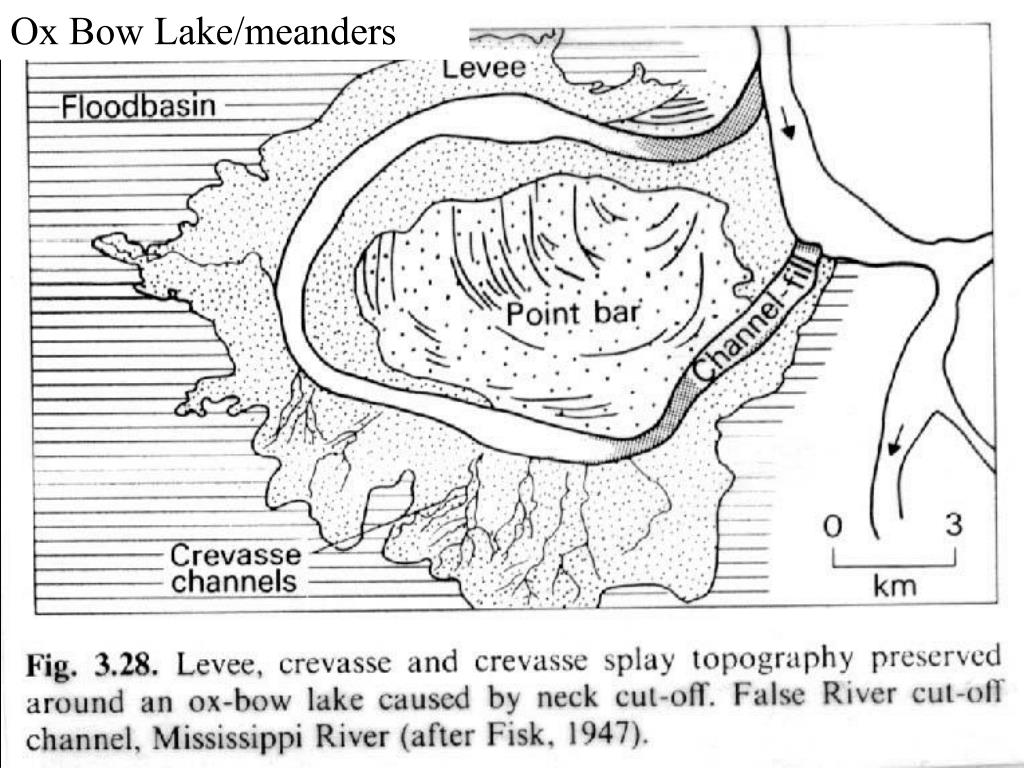

Abandoned meanders become Ox-bow lakes, filled by clays. Meandering river deposits typified by fining-upward stratigraphy. Sediments are typically sandy, silty and clayey. Well sorted. Sandstones form isolated channels in finer background. Ancient example- Jurassic, Brent Group of North Sea. Modern example - Brazos and Mississippi Rivers.
