High-Performance-Liquid-Chromatography-BZHP-501

Labzee BZHP-501 HPLC features a high-pressure pump with a 0.001u20139.999u202fml/min flow rate, UV-Vis detection from 190 to 700u202fnm, and precise light control via lamps and monochromators. Enhanced digital control reduces noise and drift, ensuring high-accuracy analysis.

Janice46
Download Presentation

High-Performance-Liquid-Chromatography-BZHP-501

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

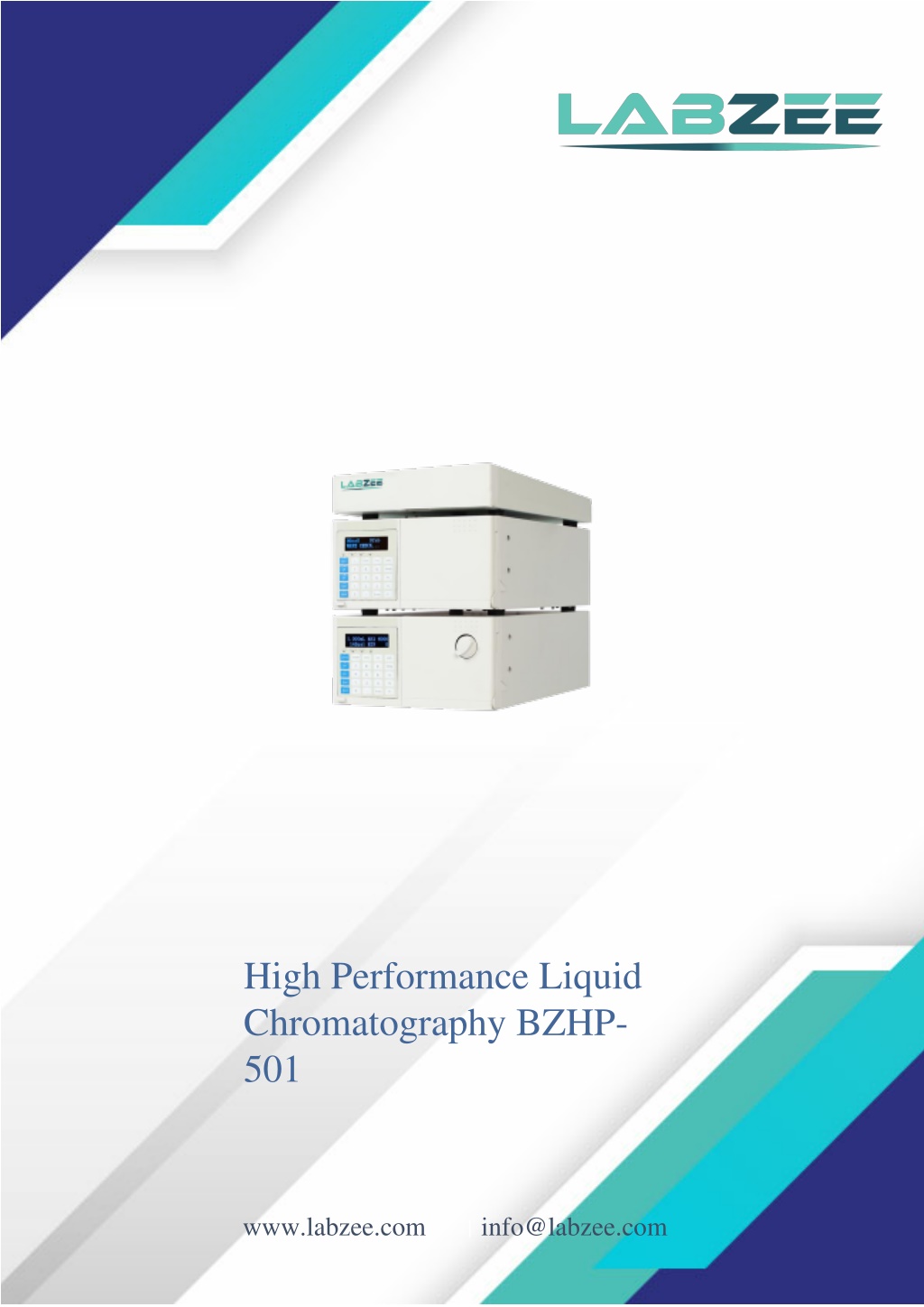

  1. High Performance Liquid Chromatography BZHP- 501 www.labzee.com info@labzee.com |

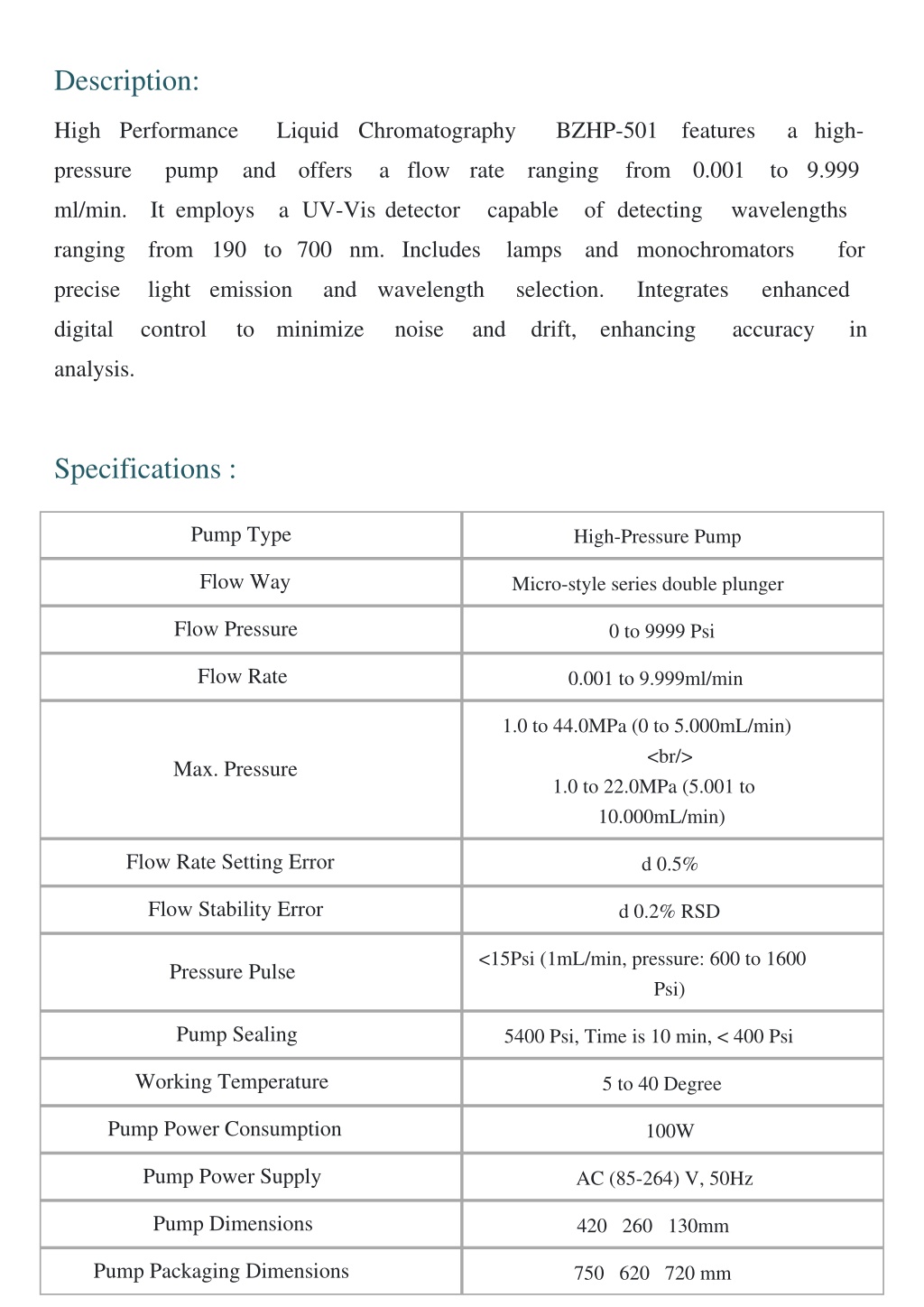

  2. Description: High Performance Liquid Chromatography BZHP-501 features a high- pressure pump and offers a flow rate ranging from 0.001 to 9.999 ml/min. It employs a UV-Vis detector capable of detecting wavelengths ranging from 190 to 700 nm. Includes lamps and monochromators for precise light emission and wavelength selection. Integrates enhanced digital control to minimize noise and drift, enhancing accuracy in analysis. Specifications : Pump Type High-Pressure Pump Flow Way Micro-style series double plunger Flow Pressure 0 to 9999 Psi Flow Rate 0.001 to 9.999ml/min 1.0 to 44.0MPa (0 to 5.000mL/min) <br/> Max. Pressure 1.0 to 22.0MPa (5.001 to 10.000mL/min) Flow Rate Setting Error d 0.5% Flow Stability Error d 0.2% RSD <15Psi (1mL/min, pressure: 600 to 1600 Pressure Pulse Psi) Pump Sealing 5400 Psi, Time is 10 min, < 400 Psi Working Temperature 5 to 40 Degree Pump Power Consumption 100W Pump Power Supply AC (85-264) V, 50Hz Pump Dimensions 420 ? 260 ? 130mm Pump Packaging Dimensions 750 ? 620 ? 720 mm

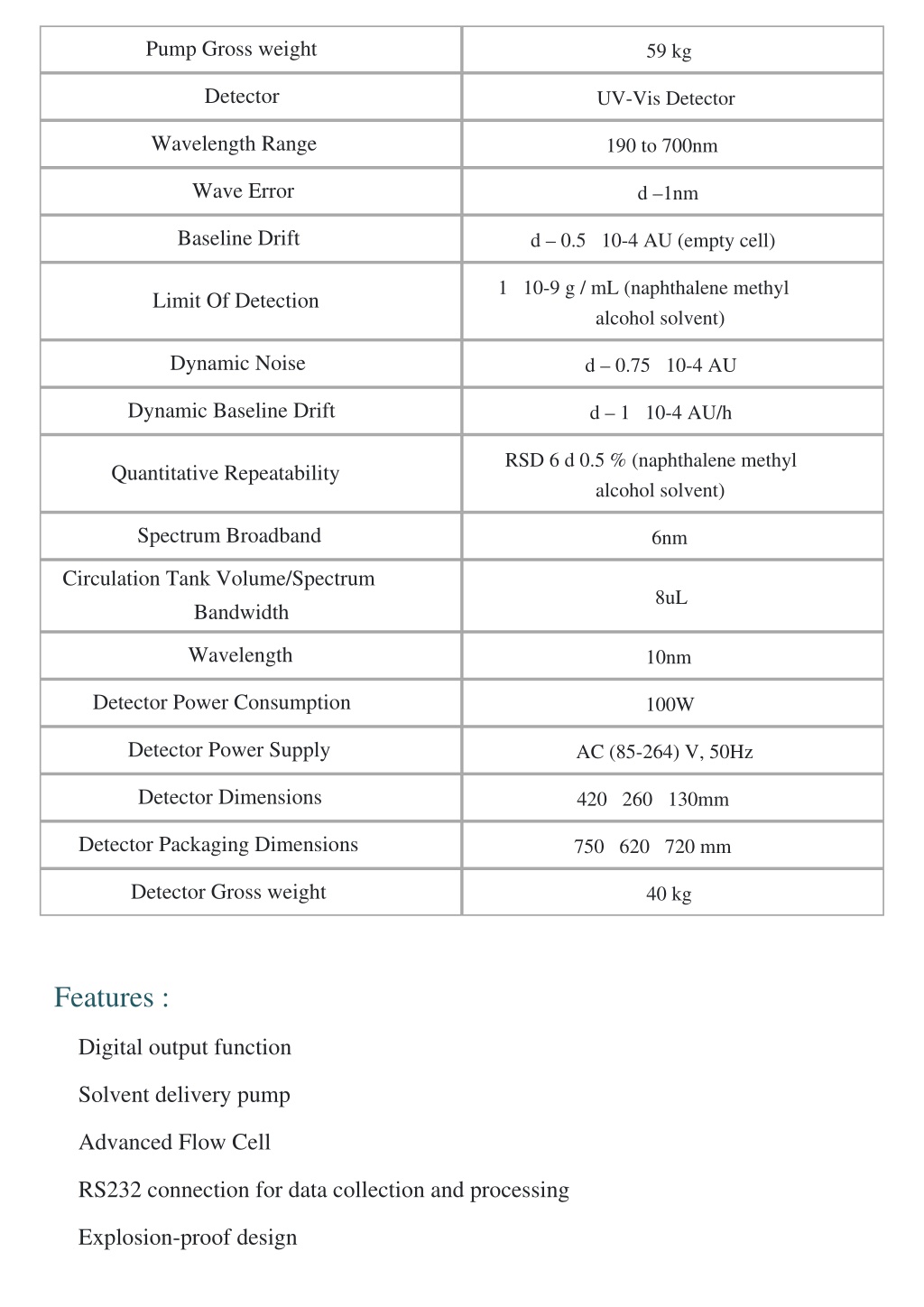

  3. Pump Gross weight 59 kg Detector UV-Vis Detector Wavelength Range 190 to 700nm Wave Error d –1nm Baseline Drift d – 0.5 ? 10-4 AU (empty cell) 1 ? 10-9 g / mL (naphthalene methyl alcohol solvent) Limit Of Detection Dynamic Noise d – 0.75 ? 10-4 AU Dynamic Baseline Drift d – 1 ? 10-4 AU/h RSD 6 d 0.5 % (naphthalene methyl alcohol solvent) Quantitative Repeatability Spectrum Broadband 6nm Circulation Tank Volume/Spectrum Bandwidth 8uL Wavelength 10nm Detector Power Consumption 100W Detector Power Supply AC (85-264) V, 50Hz Detector Dimensions 420 ? 260 ? 130mm Detector Packaging Dimensions 750 ? 620 ? 720 mm Detector Gross weight 40 kg Features : Digital output function ? Solvent delivery pump ? Advanced Flow Cell ? RS232 connection for data collection and processing ? Explosion-proof design ?

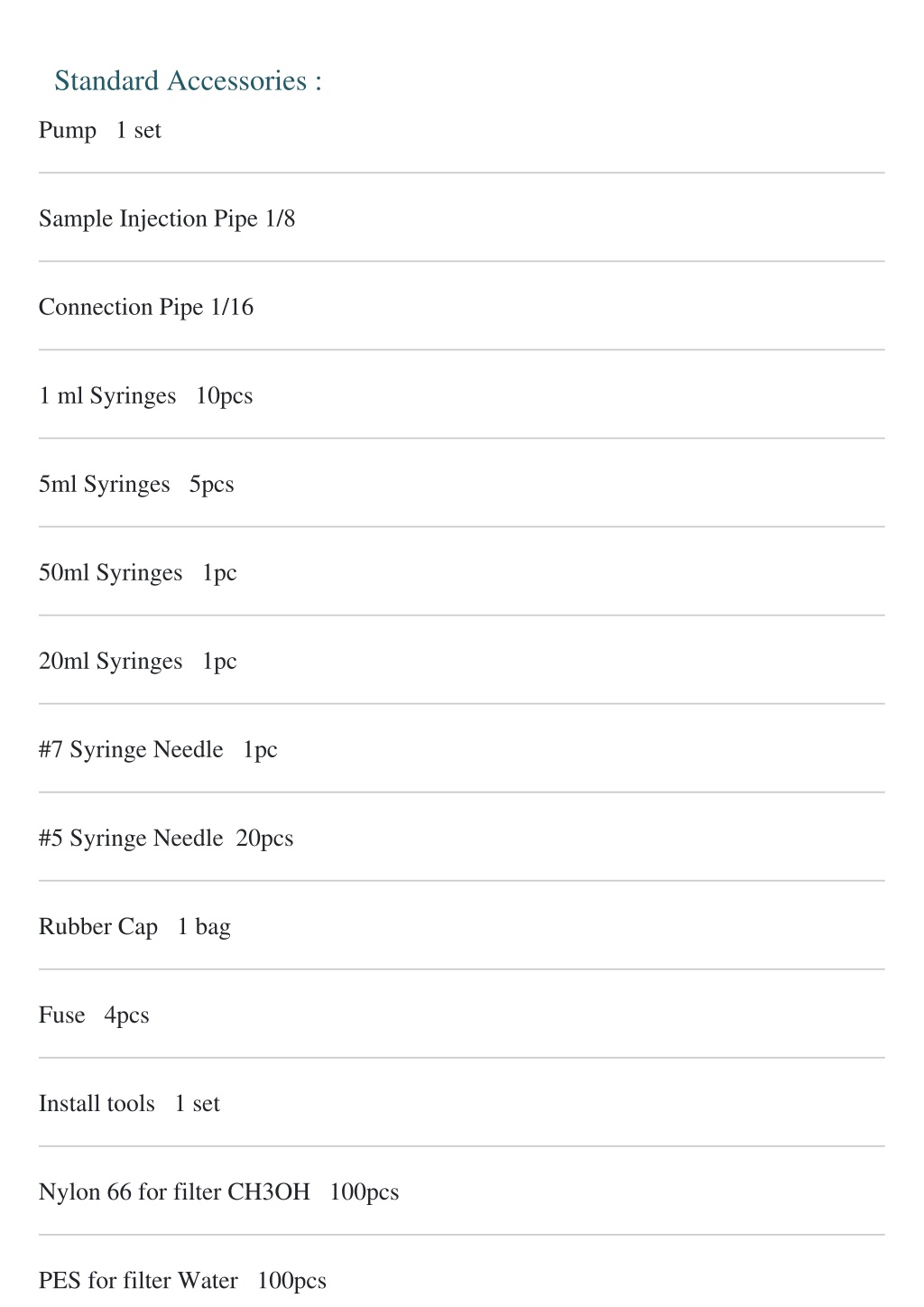

  4. Standard Accessories : Pump ? 1 set Sample Injection Pipe 1/8 Connection Pipe 1/16 1 ml Syringes ? 10pcs 5ml Syringes ? 5pcs 50ml Syringes ? 1pc 20ml Syringes ? 1pc #7 Syringe Needle ? 1pc #5 Syringe Needle ?20pcs Rubber Cap ? 1 bag Fuse ? 4pcs Install tools ? 1 set Nylon 66 for filter CH3OH ? 100pcs PES for filter Water ? 100pcs

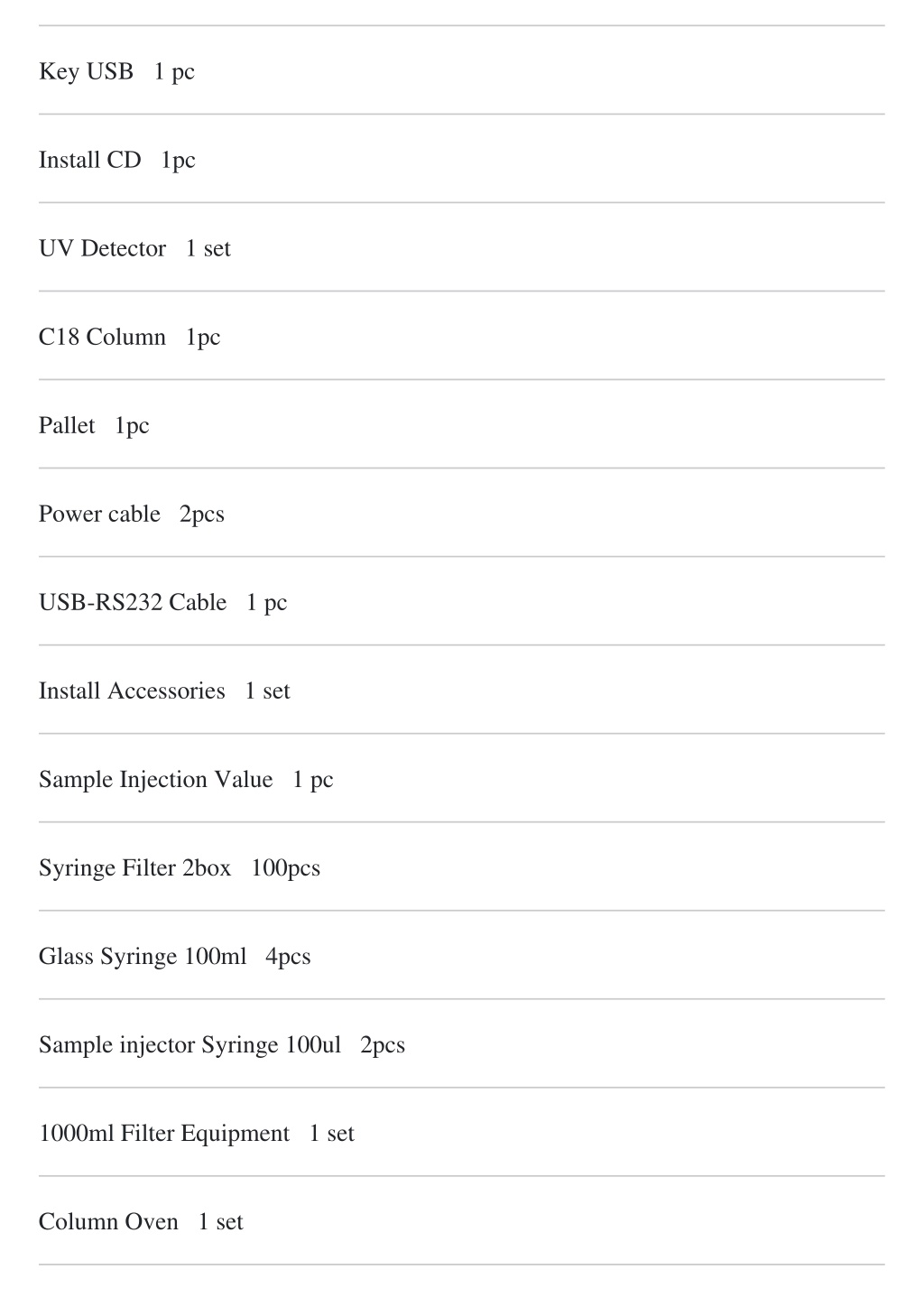

  5. Key USB ? 1 pc Install CD ? 1pc UV Detector ? 1 set C18 Column ? 1pc Pallet ? 1pc Power cable ? 2pcs USB-RS232 Cable ? 1 pc Install Accessories ? 1 set Sample Injection Value ? 1 pc Syringe Filter 2box ? 100pcs Glass Syringe 100ml ? 4pcs Sample injector Syringe 100ul ? 2pcs 1000ml Filter Equipment ? 1 set Column Oven ? 1 set

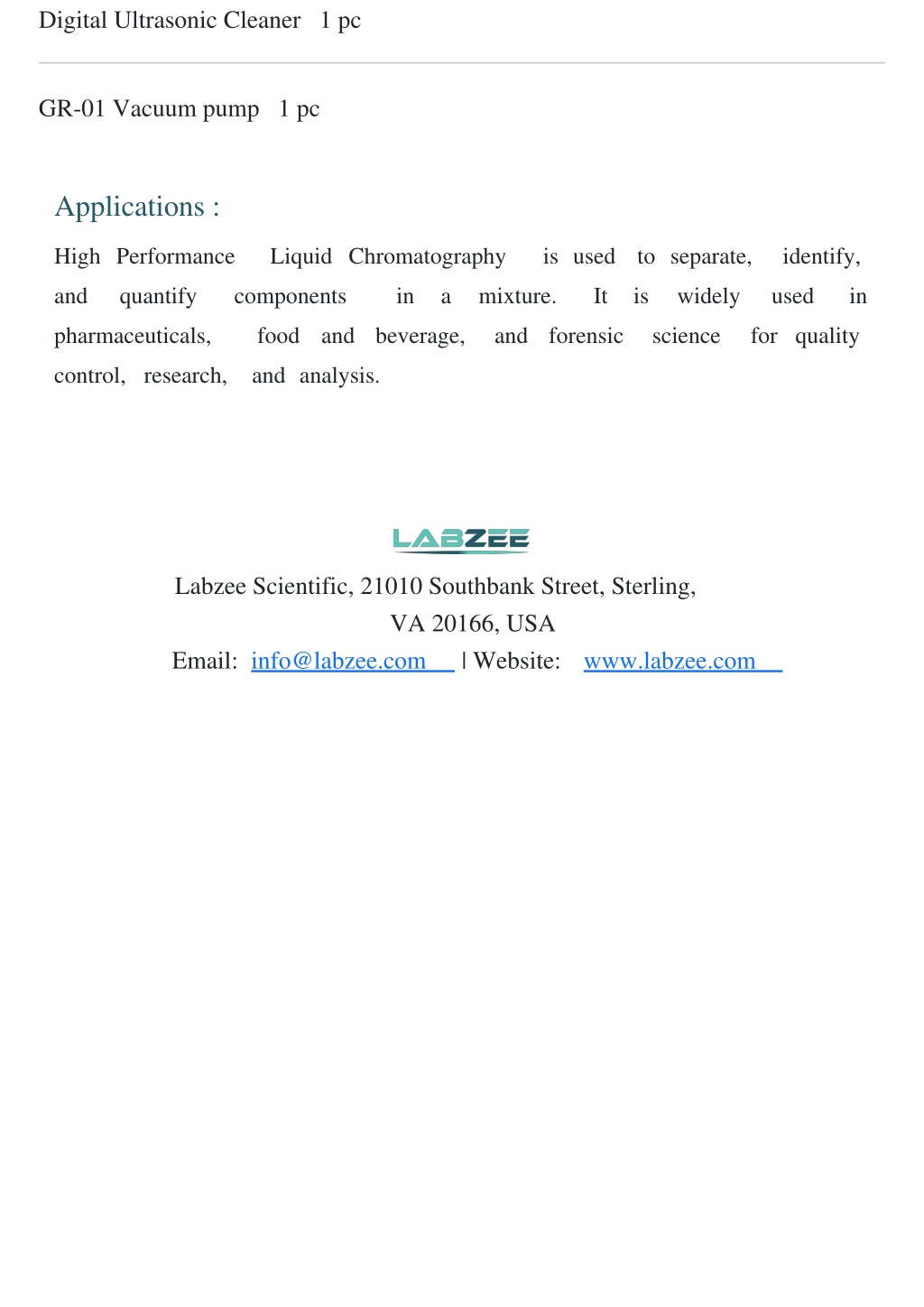

  6. Digital Ultrasonic Cleaner ? 1 pc GR-01 Vacuum pump ? 1 pc Applications : High Performance Liquid Chromatography is used to separate, identify, and quantify components in a mixture. It is widely used in pharmaceuticals, food and beverage, and forensic science for quality control, research, and analysis. Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166, USA Email: info@labzee.com | Website: www.labzee.com
