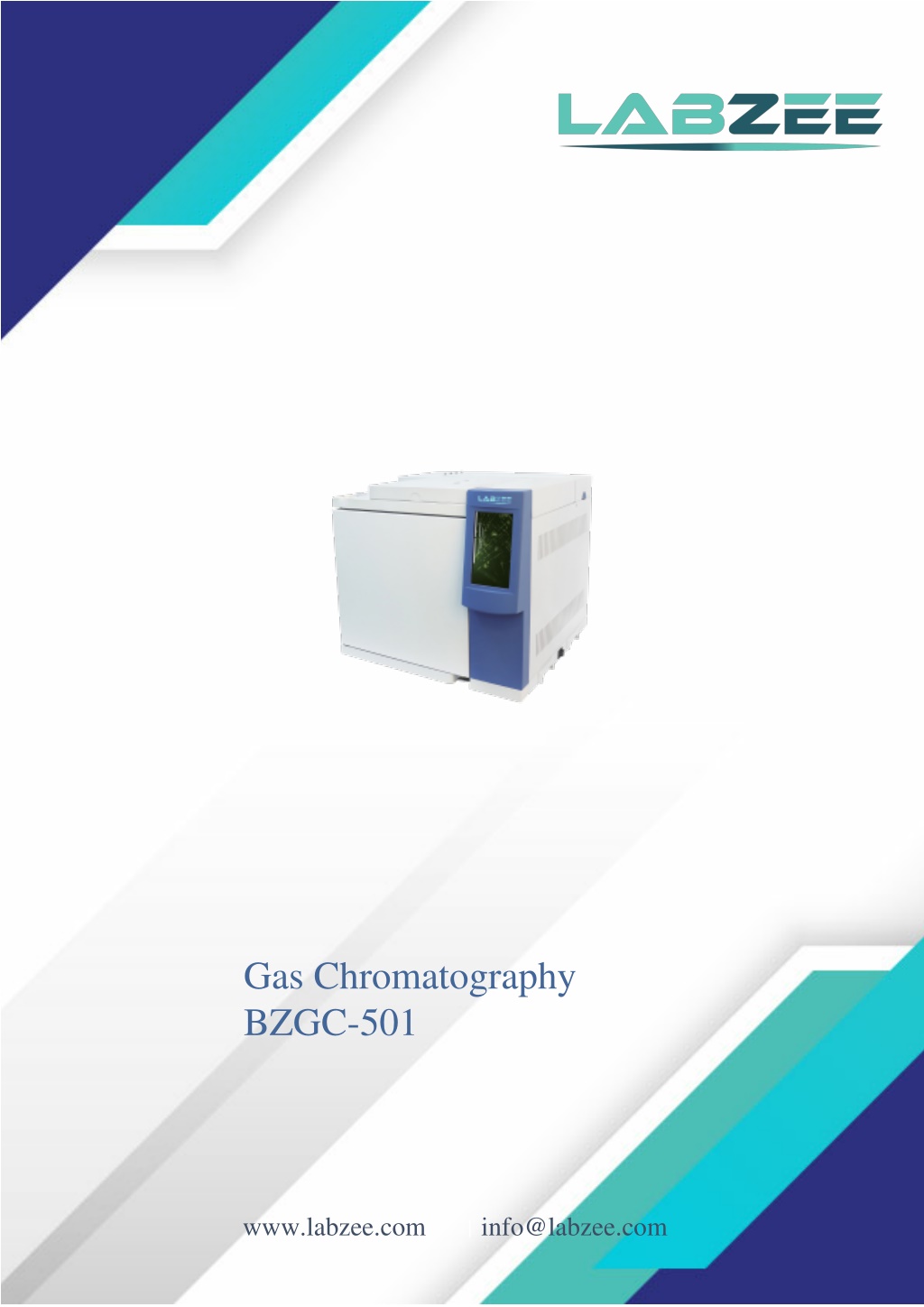

  1. Gas Chromatography BZGC-501 www.labzee.com info@labzee.com |

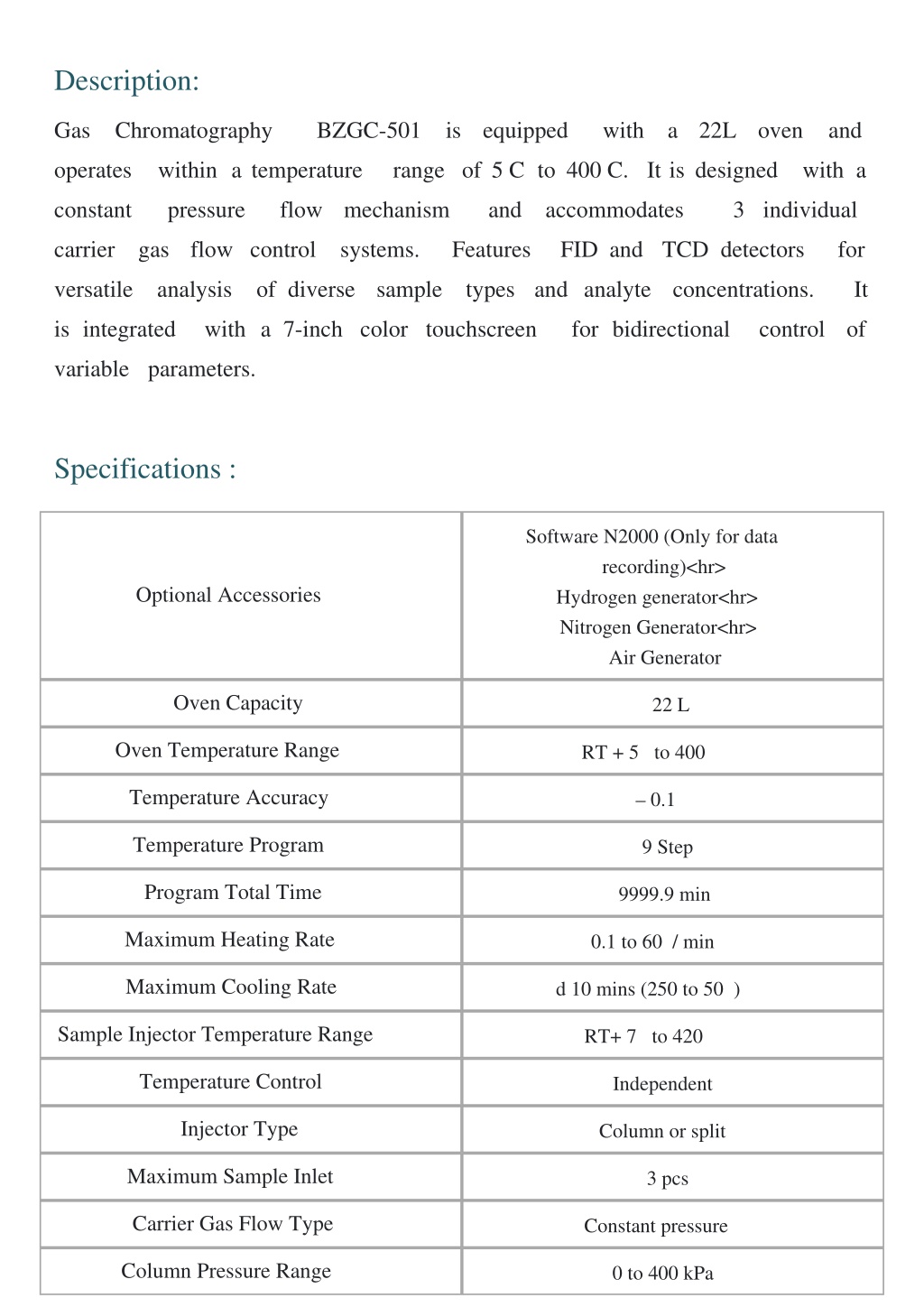

  2. Description: Gas Chromatography BZGC-501 is equipped with a 22L oven and operates within a temperature range of 5?C to 400?C. It is designed with a constant pressure flow mechanism and accommodates 3 individual carrier gas flow control systems. Features FID and TCD detectors for versatile analysis of diverse sample types and analyte concentrations. It is integrated with a 7-inch color touchscreen for bidirectional control of variable parameters. Specifications : Software N2000 (Only for data recording)<hr> Hydrogen generator<hr> Nitrogen Generator<hr> Air Generator Optional Accessories Oven Capacity 22 L Oven Temperature Range RT + 5 ? to 400 ? Temperature Accuracy – 0.1 ? Temperature Program 9 Step Program Total Time 9999.9 min Maximum Heating Rate 0.1 to 60 ?/ min Maximum Cooling Rate d 10 mins (250 to 50 ?) Sample Injector Temperature Range RT+ 7 ? to 420 ? Temperature Control Independent Injector Type Column or split Maximum Sample Inlet 3 pcs Carrier Gas Flow Type Constant pressure Column Pressure Range 0 to 400 kPa

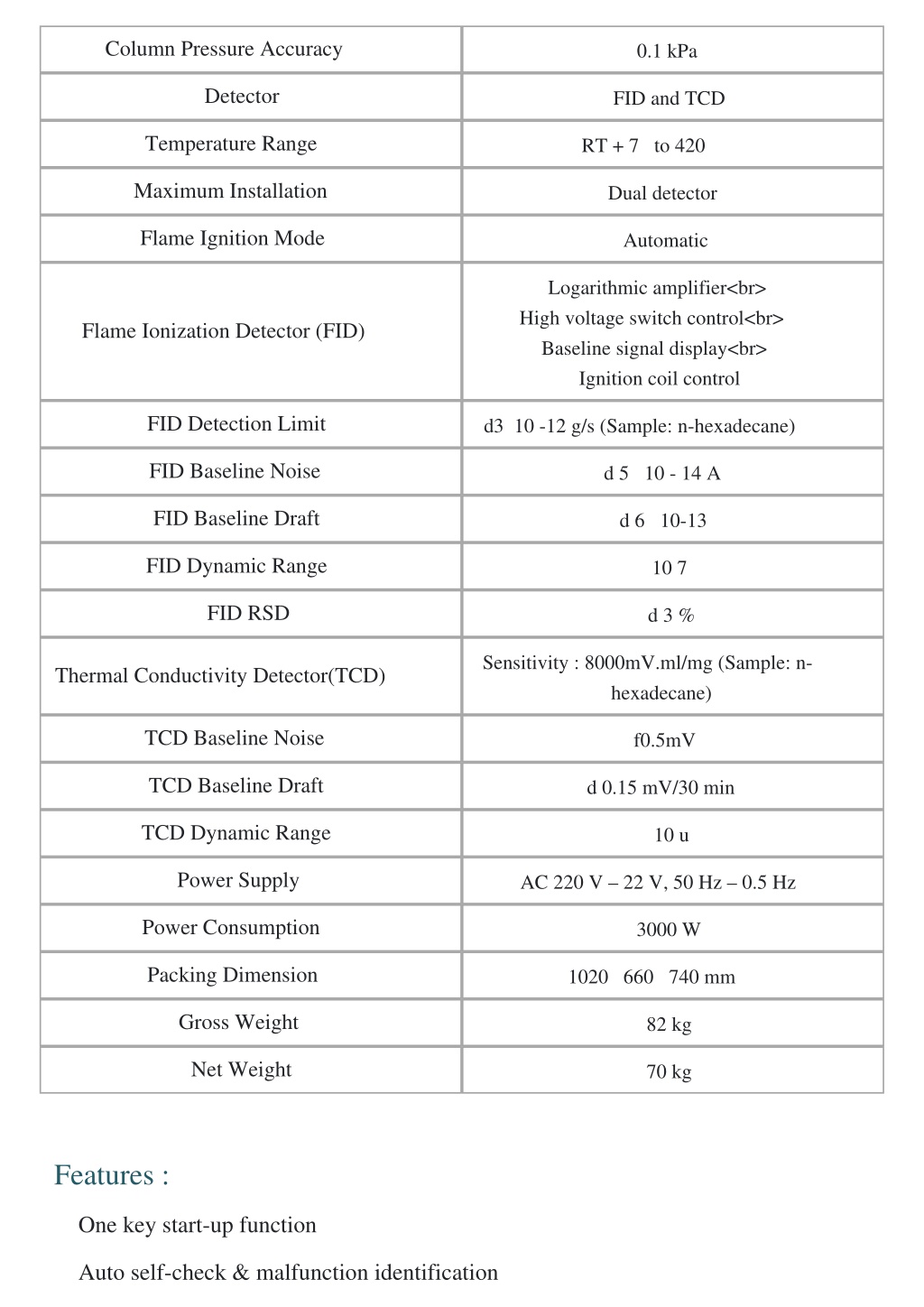

  3. Column Pressure Accuracy 0.1 kPa Detector FID and TCD Temperature Range RT + 7 ? to 420 ? Maximum Installation Dual detector Flame Ignition Mode Automatic Logarithmic amplifier<br> High voltage switch control<br> Baseline signal display<br> Ignition coil control Flame Ionization Detector (FID) FID Detection Limit d3 ?10 -12 g/s (Sample: n-hexadecane) FID Baseline Noise d 5 ? 10 - 14 A FID Baseline Draft d 6 ? 10-13 FID Dynamic Range 10 7 FID RSD d 3 % Sensitivity : 8000mV.ml/mg (Sample: n- hexadecane) Thermal Conductivity Detector(TCD) TCD Baseline Noise f0.5mV TCD Baseline Draft d 0.15 mV/30 min TCD Dynamic Range 10 u Power Supply AC 220 V – 22 V, 50 Hz – 0.5 Hz Power Consumption 3000 W Packing Dimension 1020 ? 660 ? 740 mm Gross Weight 82 kg Net Weight 70 kg Features : One key start-up function ? Auto self-check & malfunction identification ? ?

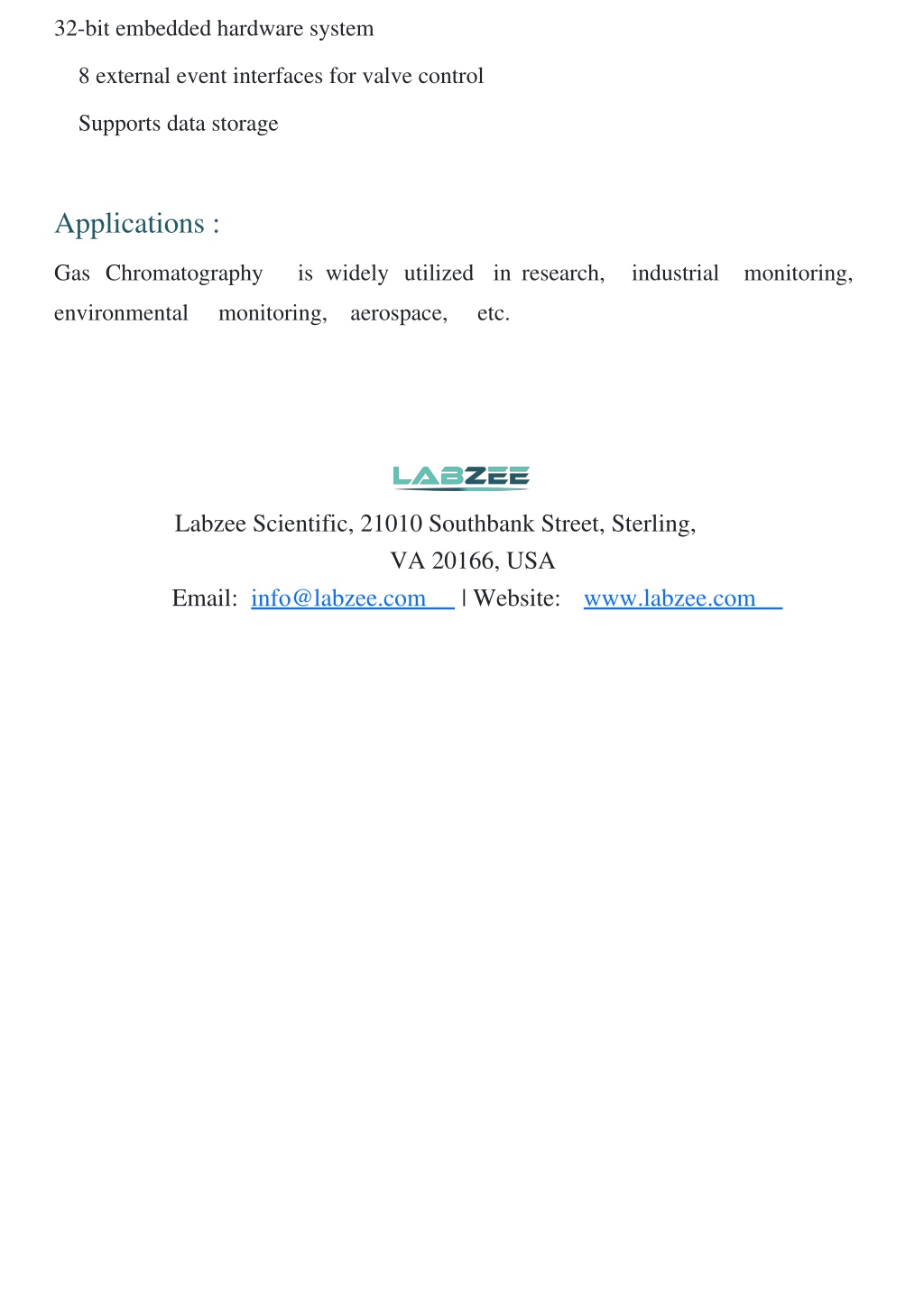

  4. 32-bit embedded hardware system 8 external event interfaces for valve control ? Supports data storage ? Applications : Gas Chromatography is widely utilized in research, industrial monitoring, environmental monitoring, aerospace, etc. Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166, USA Email: info@labzee.com | Website: www.labzee.com
