  1. Common Electrical Circuit Problems in Cars: Causes and Solutions

  2. Introduction

  3. Your car’s electrical system is the backbone of its modern functionality, powering essential components like the engine, lights, and infotainment systems.

  4. With the complexity of today’s automotive electrical systems, maintaining them is crucial for your vehicle’s reliability and safety.

  5. Common Electrical Circuit Problems

  6. Dead Battery

  7. This issue is typically caused by leaving lights on, parasitic drains, or an aging or weak battery.

  8. A dead battery prevents the car from starting and can lead to additional stress on the electrical system.

  9. Dimming Lights

  10. Dimming headlights or interior lights can signal a weak battery, a failing alternator, or loose electrical connections.

  11. Poor lighting affects visibility and indicates underlying issues in the electrical charging system.

  12. Electrical System Malfunctions

  13. Erratic performance of systems like windows, radios, or power seats is often due to wiring issues or blown fuses.

  14. These malfunctions may also stem from faulty relays or corroded connectors disrupting power flow.

  15. Engine Starting Problems

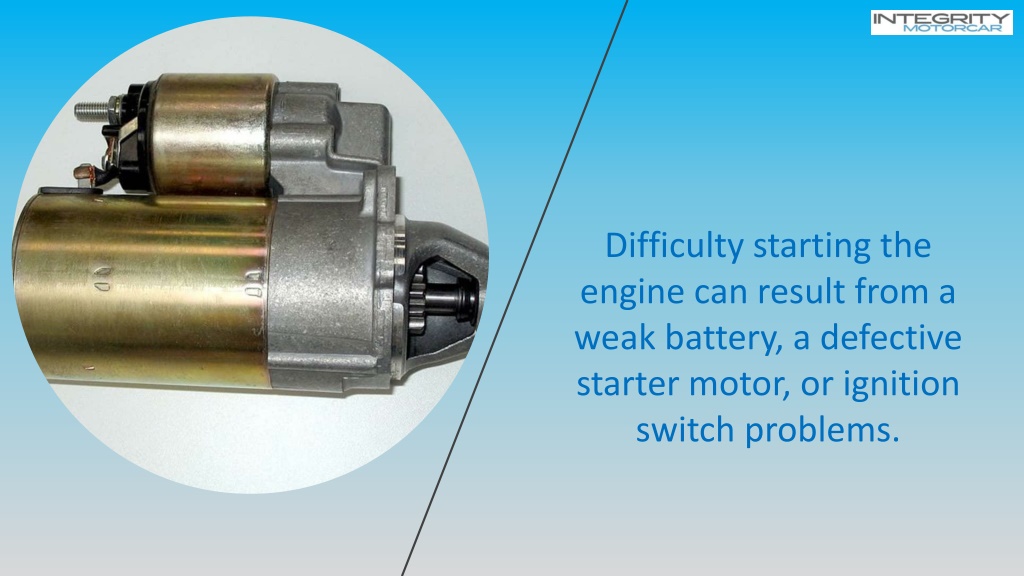

  16. Difficulty starting the engine can result from a weak battery, a defective starter motor, or ignition switch problems.

  17. Intermittent starting issues may also point to lose connections or corroded terminals in the electrical circuit.

  18. Warning Lights

  19. Illuminated dashboard lights, such as Check Engine or ABS, often indicate electrical or electronic system faults.

  20. Ignoring these warnings can lead to larger issues, as they highlight problems requiring immediate attention.

  21. Causes of Electrical Circuit Problems

  22. Faulty Wiring: • Loose Connections • Blown Fuses • Faulty Relays • Corroded Terminals

  23. Troubleshooting Electrical Circuit Problems

  24. Visual Inspection: Look for visible signs of damage to wires, connectors, or components in your car.

  25. Use a Multimeter: You can test voltage, current, and continuity to identify problems in the electrical system.

  26. Check Fuses: Inspect your car’s fuses for signs of blowing and replace any faulty ones.

  27. Clean Connections: Keep battery terminals and other connections clean using a wire brush or terminal cleaner.

  28. Consult Service Manuals: Your vehicle’s service manual provides specific troubleshooting procedures and wiring diagrams to guide you.

  29. Solutions to Electrical Circuit Problems

  30. ·Replace Faulty Components·Repair Damaged Wiring·Tighten Loose Connections·Clean Battery Terminals ·Preventive Maintenance

  31. Don’t ignore warning lights—if they appear, have your car checked by a qualified technician.

  32. Keep your battery clean and consider using a charger to maintain its health, especially if you use your car infrequently.

  33. Conclusion

  34. By understanding the common causes and solutions for electrical circuit problems, you can ensure your car operates smoothly and reliably.

  35. Regular maintenance and proactive repairs are key to preventing electrical issues and keeping your vehicle’s systems functioning at their best.
