The Manufacturing Process of Crumb Rubber Modified Bitumen_ Step-by-Step Guide

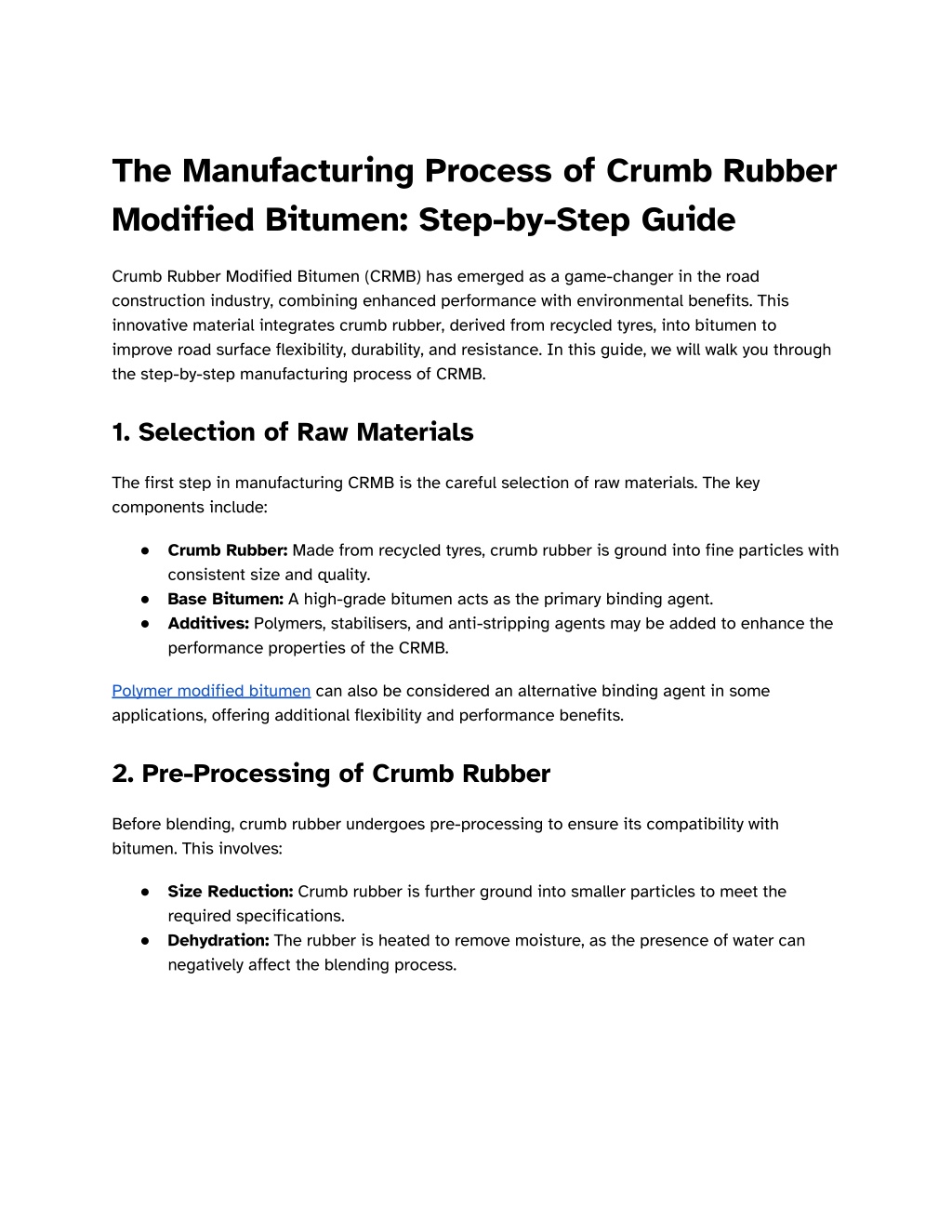

1. The Manufacturing Process of Crumb Rubber Modified Bitumen: Step-by-Step Guide Crumb Rubber Modified Bitumen (CRMB) has emerged as a game-changer in the road construction industry, combining enhanced performance with environmental benefits. This innovative material integrates crumb rubber, derived from recycled tyres, into bitumen to improve road surface flexibility, durability, and resistance. In this guide, we will walk you through the step-by-step manufacturing process of CRMB. 1. Selection of Raw Materials The first step in manufacturing CRMB is the careful selection of raw materials. The key components include: ● Crumb Rubber: Made from recycled tyres, crumb rubber is ground into fine particles with consistent size and quality. ● Base Bitumen: A high-grade bitumen acts as the primary binding agent. ● Additives: Polymers, stabilisers, and anti-stripping agents may be added to enhance the performance properties of the CRMB. Polymer modified bitumen can also be considered an alternative binding agent in some applications, offering additional flexibility and performance benefits. 2. Pre-Processing of Crumb Rubber Before blending, crumb rubber undergoes pre-processing to ensure its compatibility with bitumen. This involves: ● Size Reduction: Crumb rubber is further ground into smaller particles to meet the required specifications. ● Dehydration: The rubber is heated to remove moisture, as the presence of water can negatively affect the blending process.

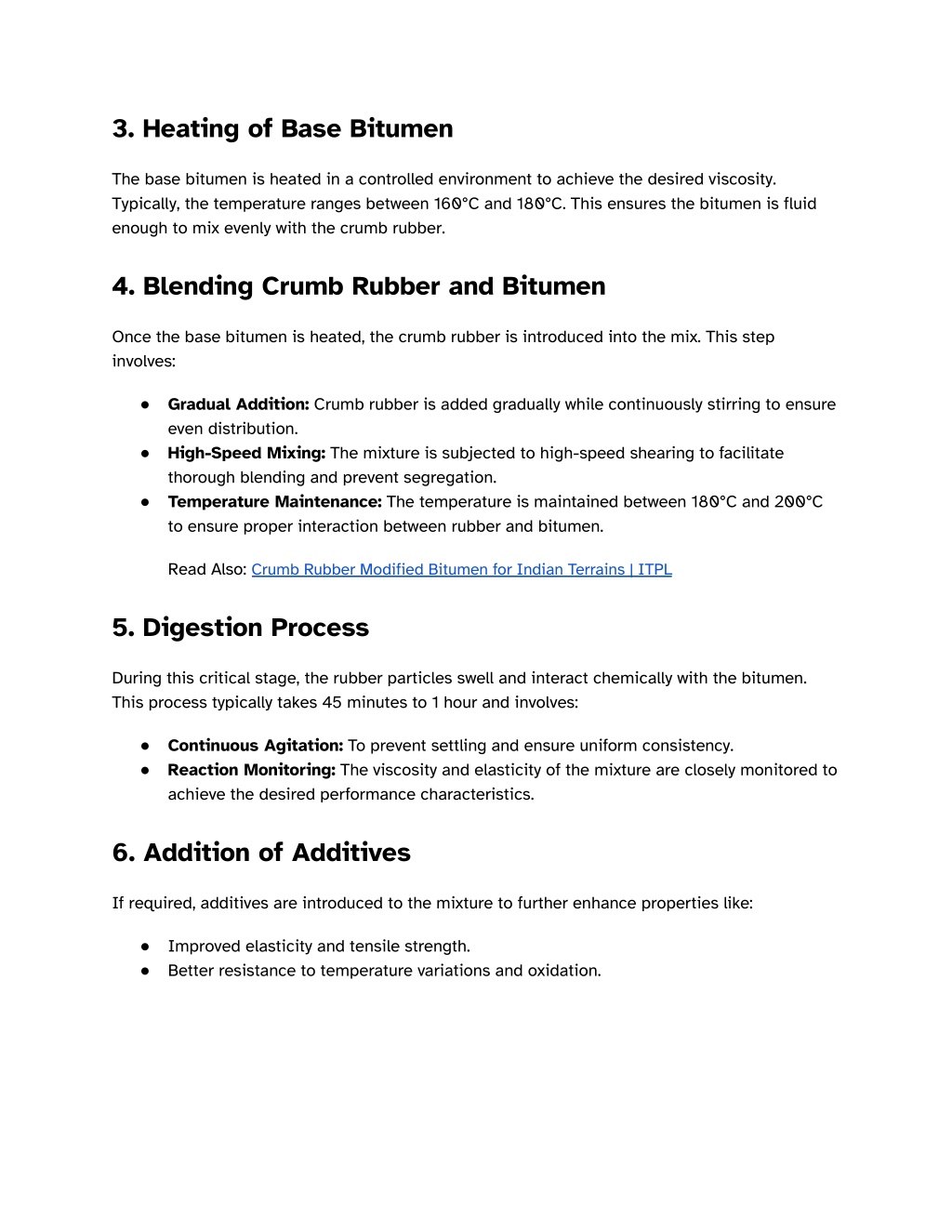

2. 3. Heating of Base Bitumen The base bitumen is heated in a controlled environment to achieve the desired viscosity. Typically, the temperature ranges between 160°C and 180°C. This ensures the bitumen is fluid enough to mix evenly with the crumb rubber. 4. Blending Crumb Rubber and Bitumen Once the base bitumen is heated, the crumb rubber is introduced into the mix. This step involves: ● Gradual Addition: Crumb rubber is added gradually while continuously stirring to ensure even distribution. ● High-Speed Mixing: The mixture is subjected to high-speed shearing to facilitate thorough blending and prevent segregation. ● Temperature Maintenance: The temperature is maintained between 180°C and 200°C to ensure proper interaction between rubber and bitumen. Read Also: Crumb Rubber Modified Bitumen for Indian Terrains | ITPL 5. Digestion Process During this critical stage, the rubber particles swell and interact chemically with the bitumen. This process typically takes 45 minutes to 1 hour and involves: ● Continuous Agitation: To prevent settling and ensure uniform consistency. ● Reaction Monitoring: The viscosity and elasticity of the mixture are closely monitored to achieve the desired performance characteristics. 6. Addition of Additives If required, additives are introduced to the mixture to further enhance properties like: ● Improved elasticity and tensile strength. ● Better resistance to temperature variations and oxidation.

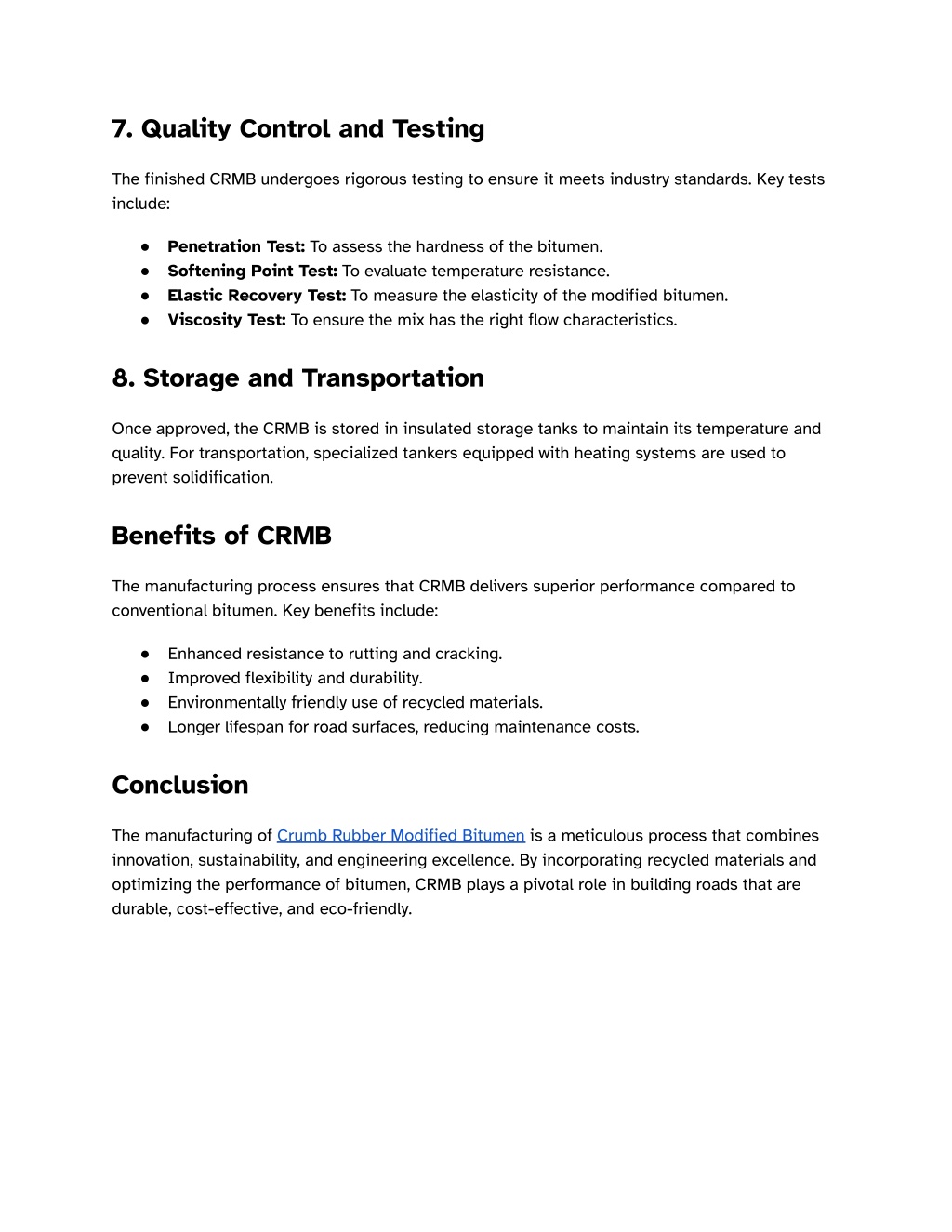

3. 7. Quality Control and Testing The finished CRMB undergoes rigorous testing to ensure it meets industry standards. Key tests include: ● Penetration Test: To assess the hardness of the bitumen. ● Softening Point Test: To evaluate temperature resistance. ● Elastic Recovery Test: To measure the elasticity of the modified bitumen. ● Viscosity Test: To ensure the mix has the right flow characteristics. 8. Storage and Transportation Once approved, the CRMB is stored in insulated storage tanks to maintain its temperature and quality. For transportation, specialized tankers equipped with heating systems are used to prevent solidification. Benefits of CRMB The manufacturing process ensures that CRMB delivers superior performance compared to conventional bitumen. Key benefits include: ● Enhanced resistance to rutting and cracking. ● Improved flexibility and durability. ● Environmentally friendly use of recycled materials. ● Longer lifespan for road surfaces, reducing maintenance costs. Conclusion The manufacturing of Crumb Rubber Modified Bitumen is a meticulous process that combines innovation, sustainability, and engineering excellence. By incorporating recycled materials and optimizing the performance of bitumen, CRMB plays a pivotal role in building roads that are durable, cost-effective, and eco-friendly.
