Automatic-Chemistry-Analyzer-LT-CA701

Automatic Chemistry Analyzer delivers 300 tests per hour, ensuring rapid and efficient operation. Equipped with a halogen lamp, it provides stable and intense light for precise analysis. It maintains optimal cleanliness. Incorporated with liquid-level detection and collision protection for enhanced sample and reagent probe safety

Helen68
Download Presentation

Automatic-Chemistry-Analyzer-LT-CA701

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

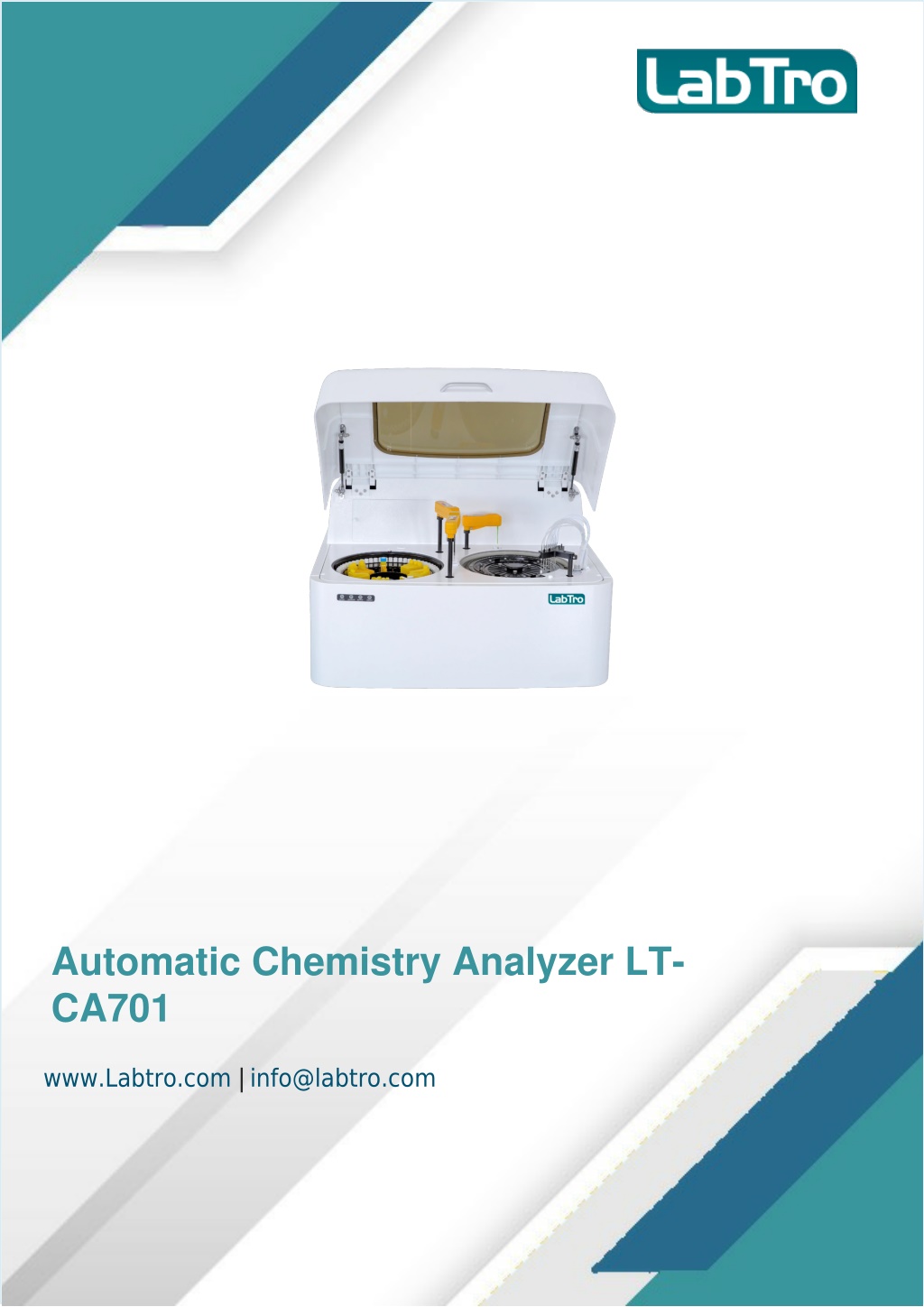

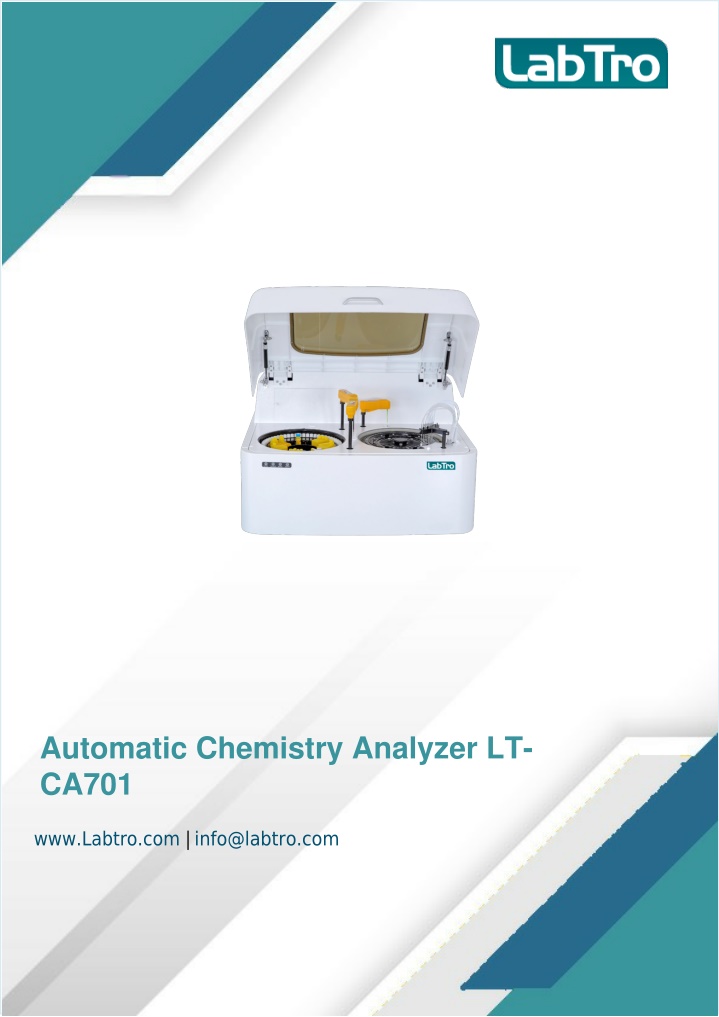

  1. Automatic Chemistry Analyzer LT- CA701 www.Labtro.com info@labtro.com |

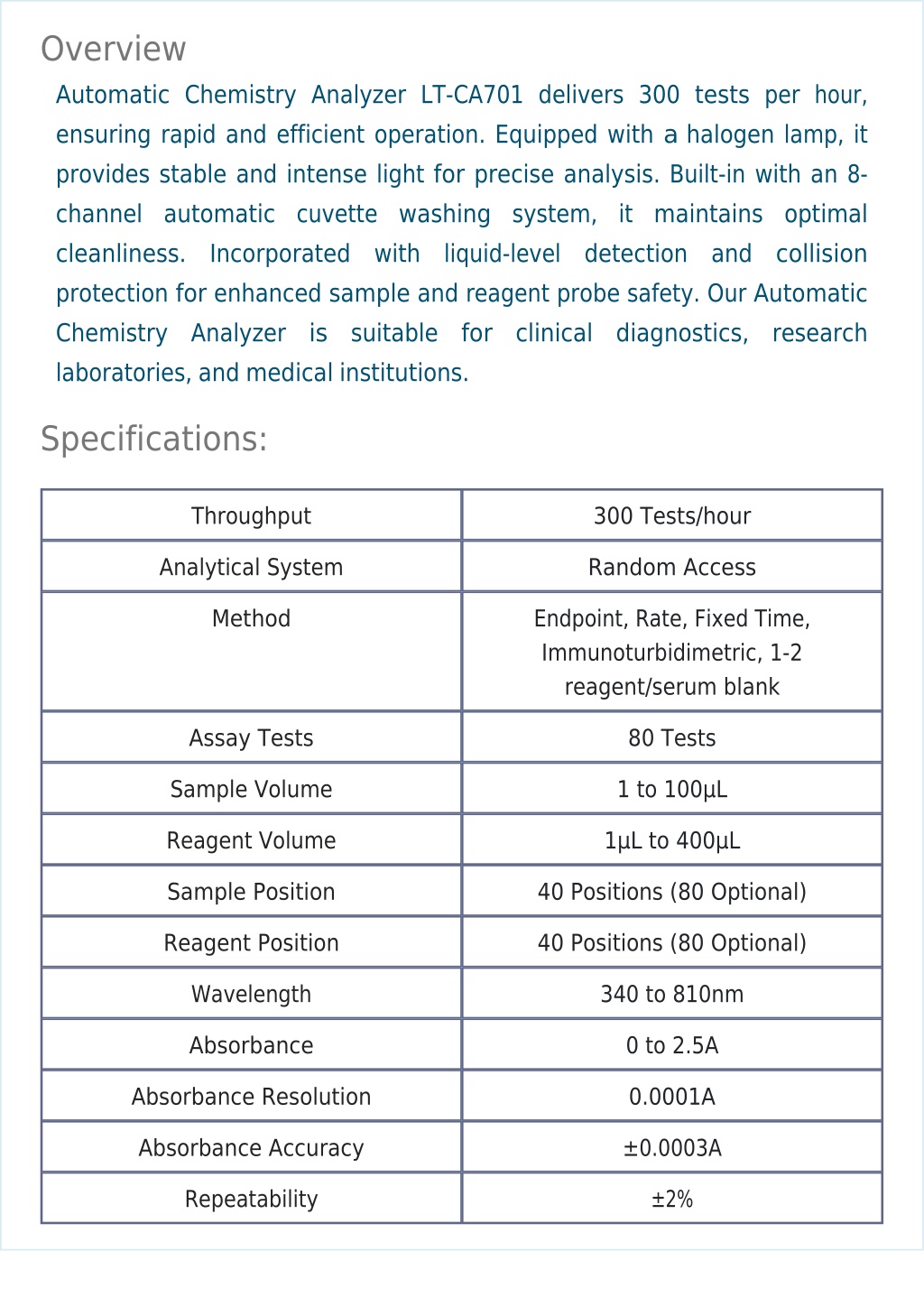

  2. Overview Automatic Chemistry Analyzer LT-CA701 delivers 300 tests per hour, ensuring rapid and efficient operation. Equipped with a halogen lamp, it provides stable and intense light for precise analysis. Built-in with an 8- channel automatic cuvette washing cleanliness. Incorporated with liquid-level protection for enhanced sample and reagent probe safety. Our Automatic Chemistry Analyzer is suitable laboratories, and medical institutions. system, it maintains optimal detection and collision for clinical diagnostics, research Specifications: Throughput 300 Tests/hour Analytical System Random Access Method Endpoint, Rate, Fixed Time, Immunoturbidimetric, 1-2 reagent/serum blank Assay Tests 80 Tests Sample Volume 1 to 100µL Reagent Volume 1µL to 400µL Sample Position 40 Positions (80 Optional) Reagent Position 40 Positions (80 Optional) Wavelength 340 to 810nm Absorbance 0 to 2.5A Absorbance Resolution 0.0001A Absorbance Accuracy ±0.0003A Repeatability ±2%

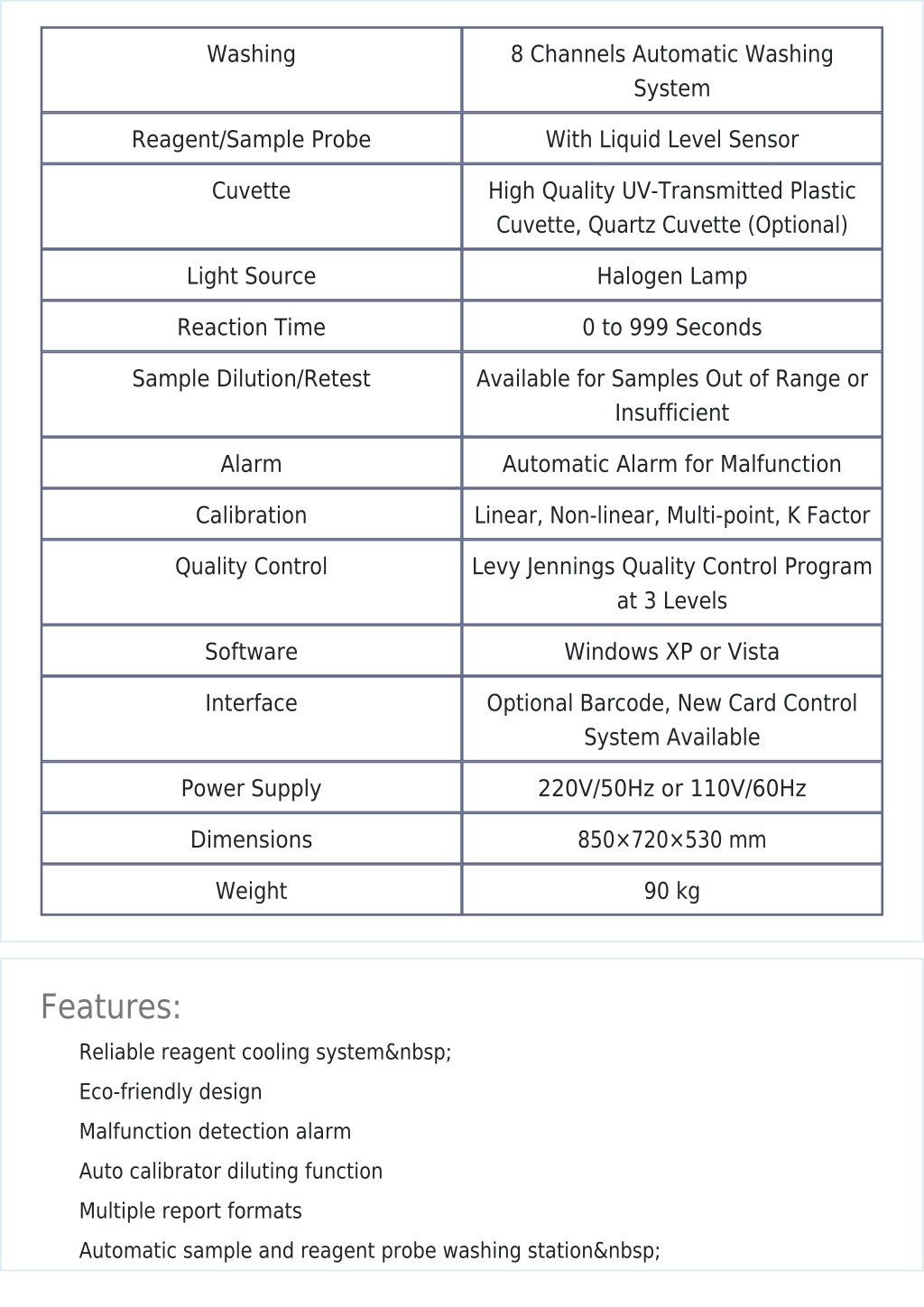

  3. Washing 8 Channels Automatic Washing System Reagent/Sample Probe With Liquid Level Sensor Cuvette High Quality UV-Transmitted Plastic Cuvette, Quartz Cuvette (Optional) Light Source Halogen Lamp Reaction Time 0 to 999 Seconds Sample Dilution/Retest Available for Samples Out of Range or Insufficient Alarm Automatic Alarm for Malfunction Calibration Linear, Non-linear, Multi-point, K Factor Quality Control Levy Jennings Quality Control Program at 3 Levels Software Windows XP or Vista Interface Optional Barcode, New Card Control System Available Power Supply 220V/50Hz or 110V/60Hz Dimensions 850×720×530 mm Weight 90 kg Features: Reliable reagent cooling system  ? Eco-friendly design ? Malfunction detection alarm ? Auto calibrator diluting function ? Multiple report formats ? Automatic sample and reagent probe washing station  ?

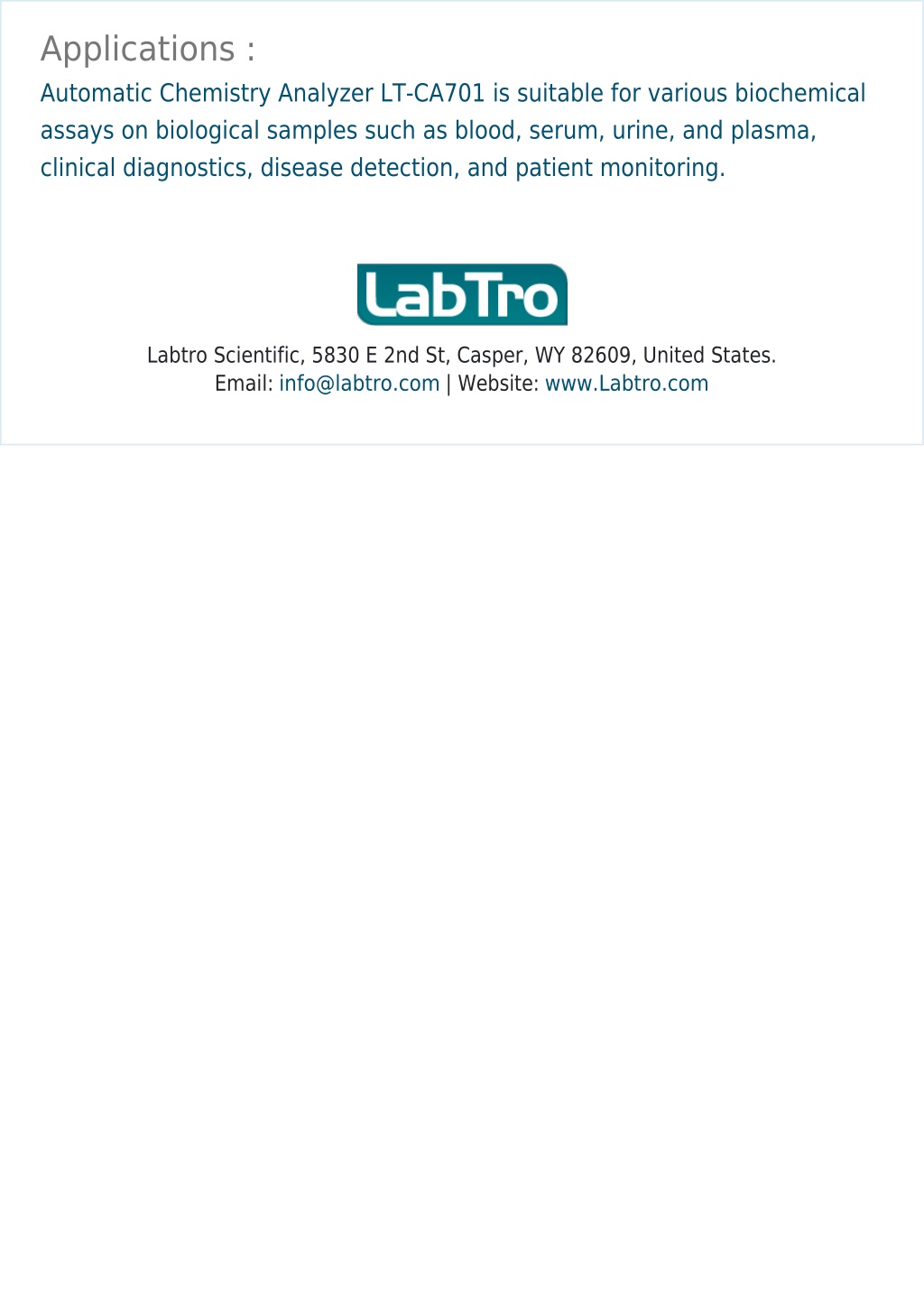

  4. Applications : Automatic Chemistry Analyzer LT-CA701 is suitable for various biochemical assays on biological samples such as blood, serum, urine, and plasma, clinical diagnostics, disease detection, and patient monitoring. Labtro Scientific, 5830 E 2nd St, Casper, WY 82609, United States. Email: | Website: info@labtro.com www.Labtro.com
