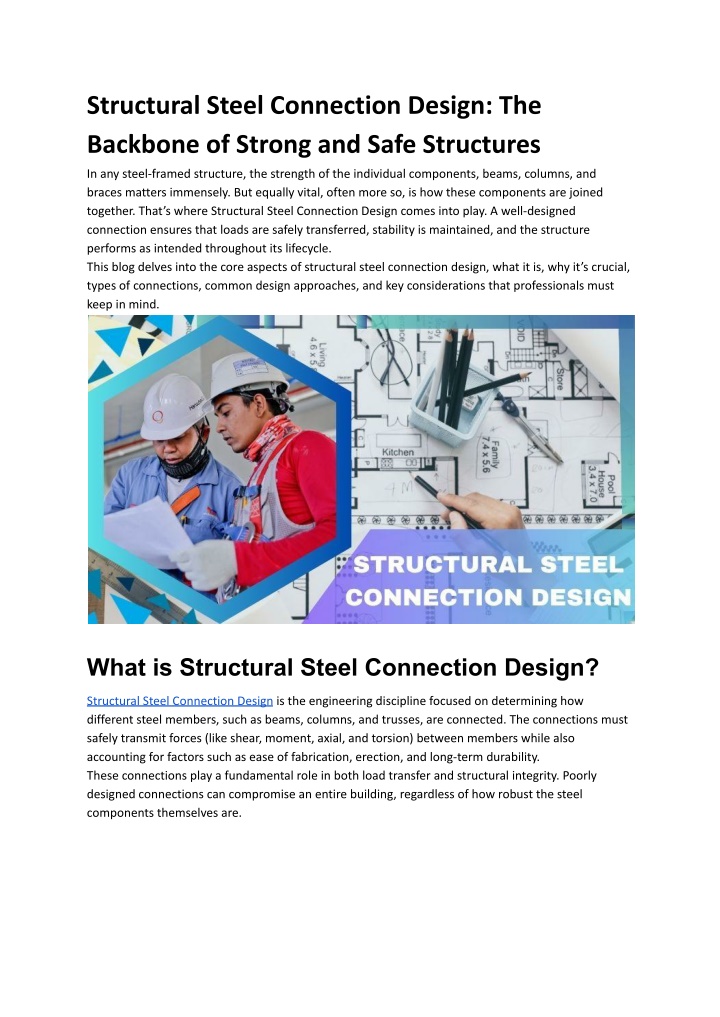

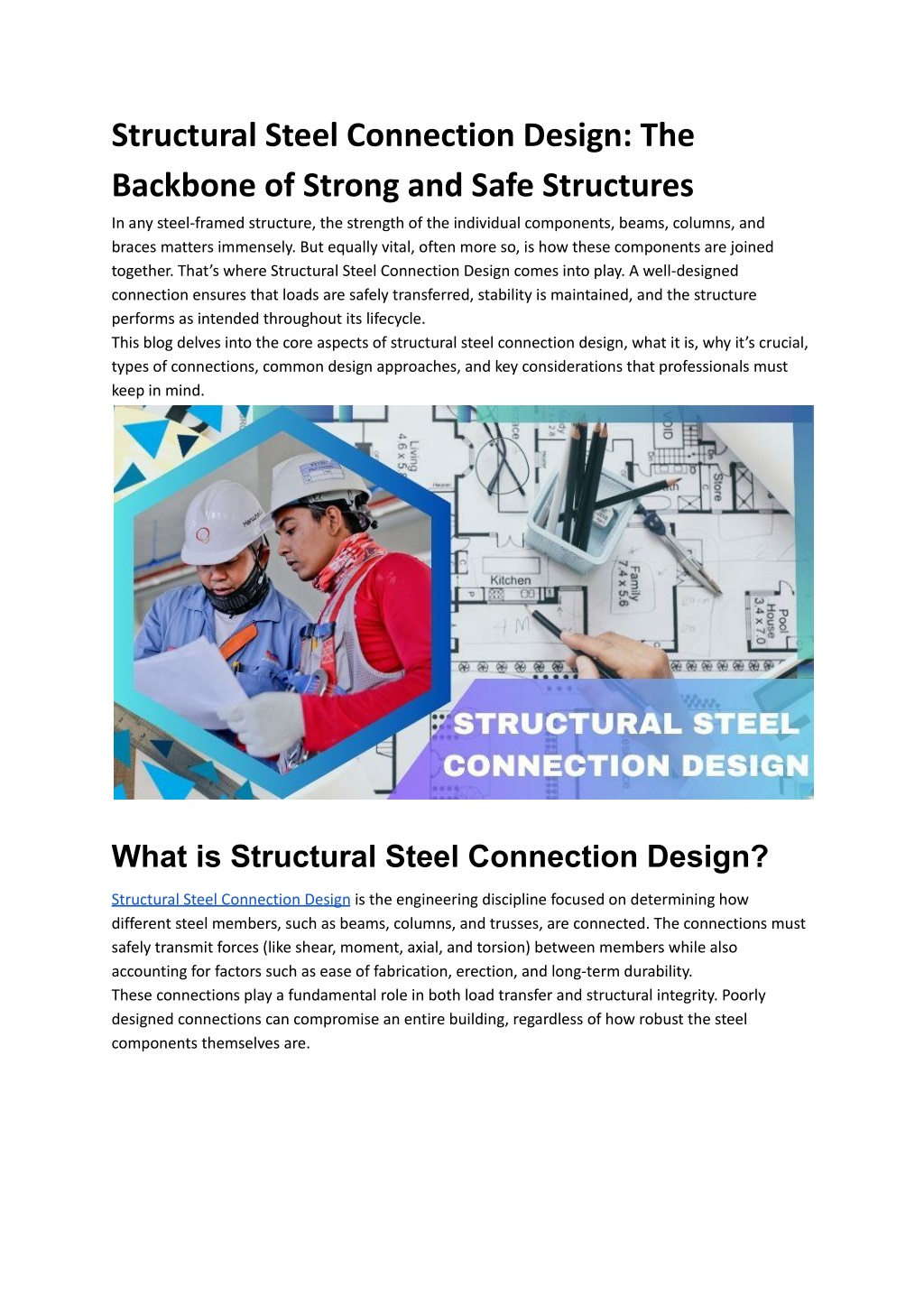

  1. Structural Steel Connection Design: The Backbone of Strong and Safe Structures In any steel-framed structure, the strength of the individual components, beams, columns, and braces matters immensely. But equally vital, often more so, is how these components are joined together. That’s where Structural Steel Connection Design comes into play. A well-designed connection ensures that loads are safely transferred, stability is maintained, and the structure performs as intended throughout its lifecycle. This blog delves into the core aspects of structural steel connection design, what it is, why it’s crucial, types of connections, common design approaches, and key considerations that professionals must keep in mind. What is Structural Steel Connection Design? Structural Steel Connection Design is the engineering discipline focused on determining how different steel members, such as beams, columns, and trusses, are connected. The connections must safely transmit forces (like shear, moment, axial, and torsion) between members while also accounting for factors such as ease of fabrication, erection, and long-term durability. These connections play a fundamental role in both load transfer and structural integrity. Poorly designed connections can compromise an entire building, regardless of how robust the steel components themselves are.

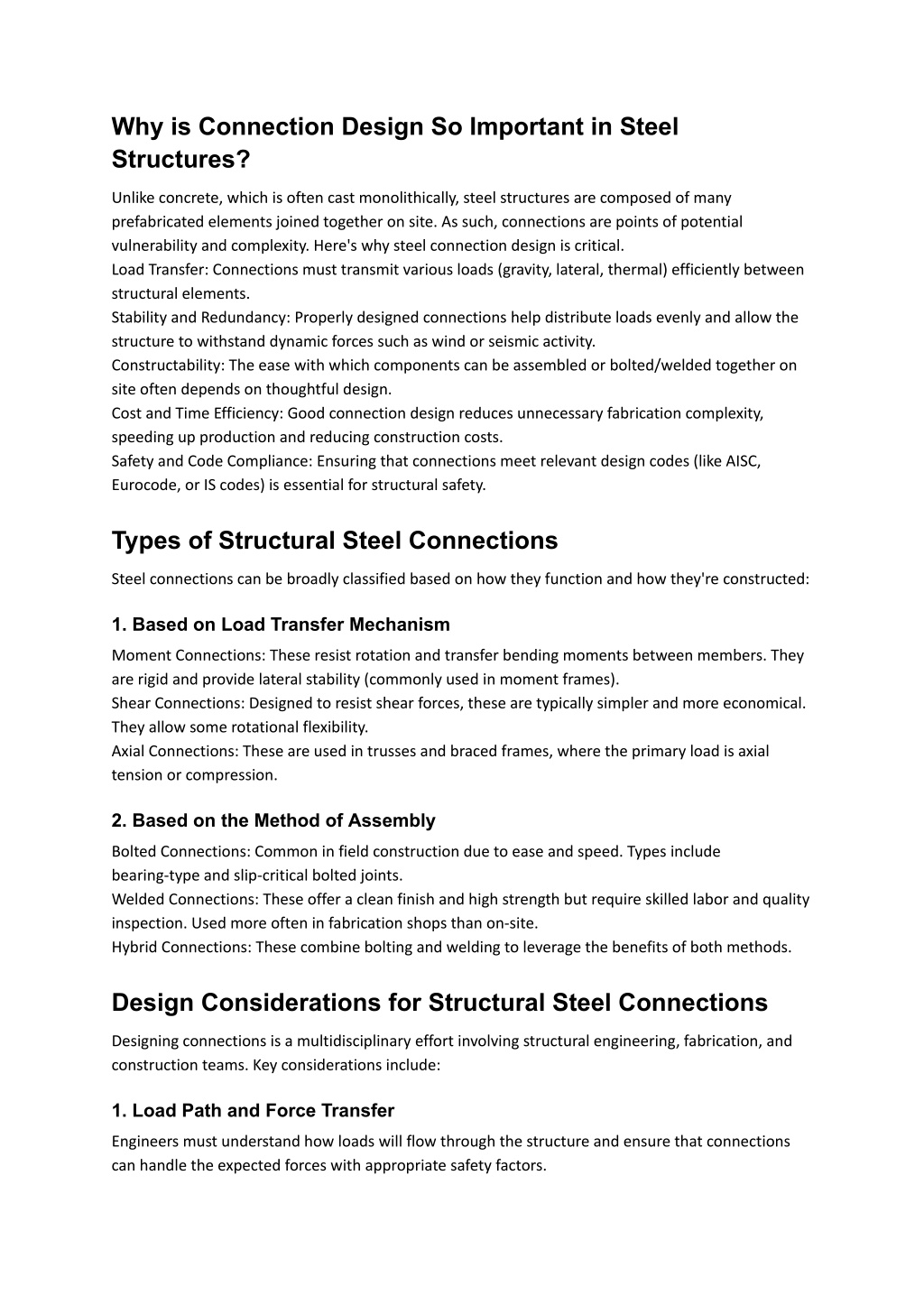

  2. Why is Connection Design So Important in Steel Structures? Unlike concrete, which is often cast monolithically, steel structures are composed of many prefabricated elements joined together on site. As such, connections are points of potential vulnerability and complexity. Here's why steel connection design is critical. Load Transfer: Connections must transmit various loads (gravity, lateral, thermal) efficiently between structural elements. Stability and Redundancy: Properly designed connections help distribute loads evenly and allow the structure to withstand dynamic forces such as wind or seismic activity. Constructability: The ease with which components can be assembled or bolted/welded together on site often depends on thoughtful design. Cost and Time Efficiency: Good connection design reduces unnecessary fabrication complexity, speeding up production and reducing construction costs. Safety and Code Compliance: Ensuring that connections meet relevant design codes (like AISC, Eurocode, or IS codes) is essential for structural safety. Types of Structural Steel Connections Steel connections can be broadly classified based on how they function and how they're constructed: 1. Based on Load Transfer Mechanism Moment Connections: These resist rotation and transfer bending moments between members. They are rigid and provide lateral stability (commonly used in moment frames). Shear Connections: Designed to resist shear forces, these are typically simpler and more economical. They allow some rotational flexibility. Axial Connections: These are used in trusses and braced frames, where the primary load is axial tension or compression. 2. Based on the Method of Assembly Bolted Connections: Common in field construction due to ease and speed. Types include bearing-type and slip-critical bolted joints. Welded Connections: These offer a clean finish and high strength but require skilled labor and quality inspection. Used more often in fabrication shops than on-site. Hybrid Connections: These combine bolting and welding to leverage the benefits of both methods. Design Considerations for Structural Steel Connections Designing connections is a multidisciplinary effort involving structural engineering, fabrication, and construction teams. Key considerations include: 1. Load Path and Force Transfer Engineers must understand how loads will flow through the structure and ensure that connections can handle the expected forces with appropriate safety factors.

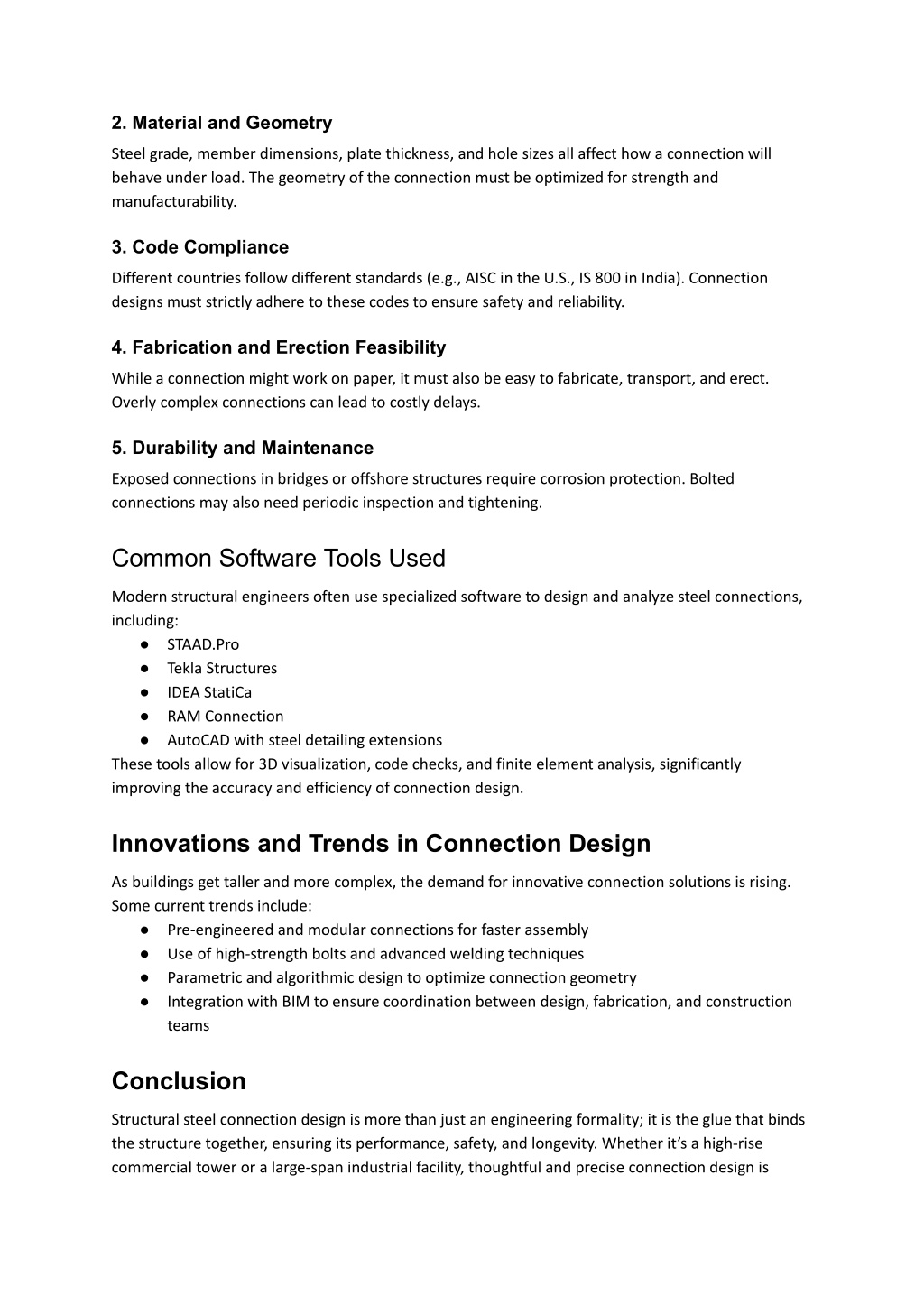

  3. 2. Material and Geometry Steel grade, member dimensions, plate thickness, and hole sizes all affect how a connection will behave under load. The geometry of the connection must be optimized for strength and manufacturability. 3. Code Compliance Different countries follow different standards (e.g., AISC in the U.S., IS 800 in India). Connection designs must strictly adhere to these codes to ensure safety and reliability. 4. Fabrication and Erection Feasibility While a connection might work on paper, it must also be easy to fabricate, transport, and erect. Overly complex connections can lead to costly delays. 5. Durability and Maintenance Exposed connections in bridges or offshore structures require corrosion protection. Bolted connections may also need periodic inspection and tightening. Common Software Tools Used Modern structural engineers often use specialized software to design and analyze steel connections, including: ● STAAD.Pro ● Tekla Structures ● IDEA StatiCa ● RAM Connection ● AutoCAD with steel detailing extensions These tools allow for 3D visualization, code checks, and finite element analysis, significantly improving the accuracy and efficiency of connection design. Innovations and Trends in Connection Design As buildings get taller and more complex, the demand for innovative connection solutions is rising. Some current trends include: ● Pre-engineered and modular connections for faster assembly ● Use of high-strength bolts and advanced welding techniques ● Parametric and algorithmic design to optimize connection geometry ● Integration with BIM to ensure coordination between design, fabrication, and construction teams Conclusion Structural steel connection design is more than just an engineering formality; it is the glue that binds the structure together, ensuring its performance, safety, and longevity. Whether it’s a high-rise commercial tower or a large-span industrial facility, thoughtful and precise connection design is

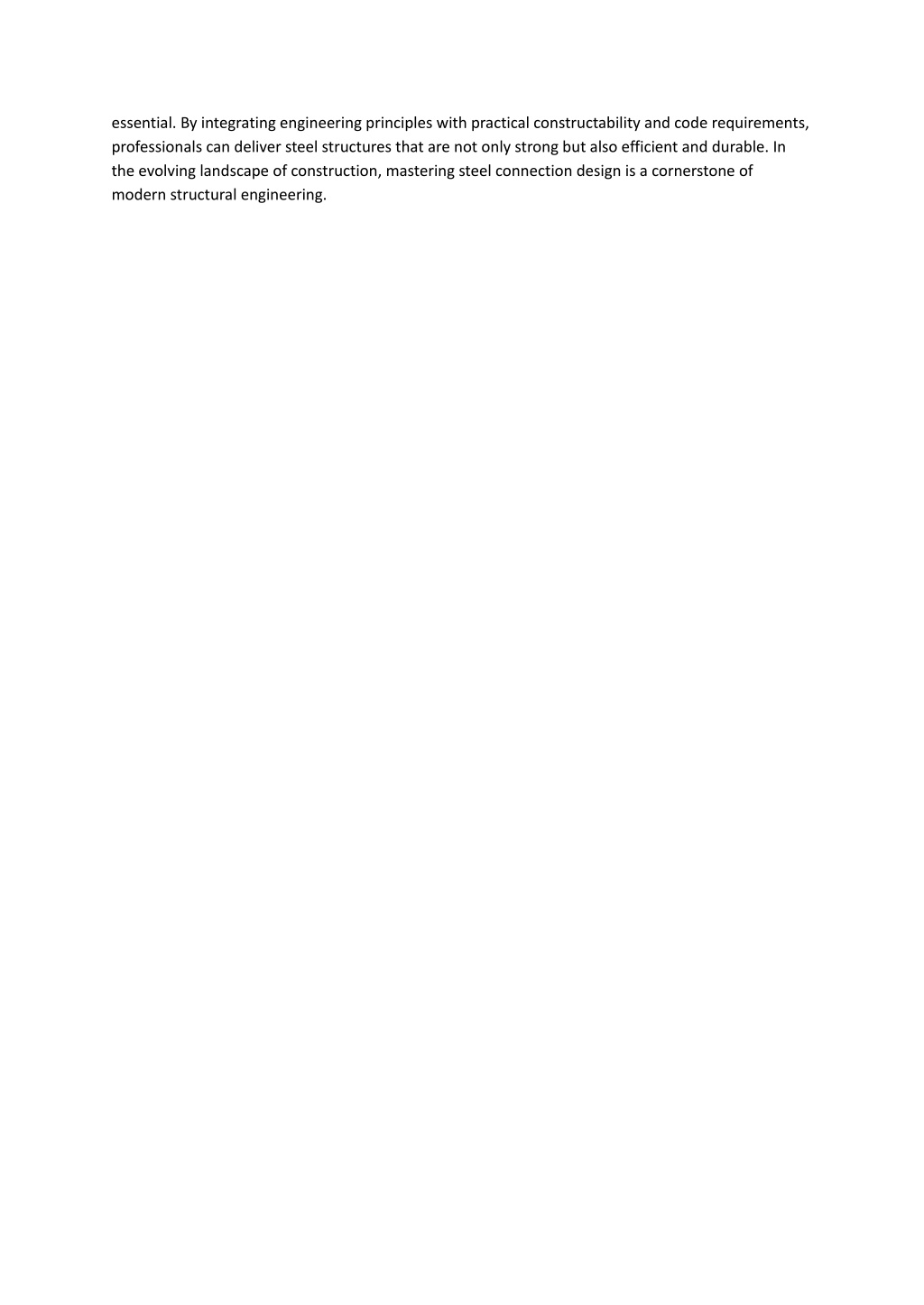

  4. essential. By integrating engineering principles with practical constructability and code requirements, professionals can deliver steel structures that are not only strong but also efficient and durable. In the evolving landscape of construction, mastering steel connection design is a cornerstone of modern structural engineering.
