ENCE 455 Design of Steel Structures. VIII. Simple Shear Connection C. C. Fu, Ph.D., P.E. Civil and Environmental Engineering Department University of Maryland. Review Bolts and Welds. Design bolt bearing strength ( L e ≥ 1.5 d , s ≥ 3 d )

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'ENCE 455 Design of Steel Structures' - teagan


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
ence 455 design of steel structures

ENCE 455 Design of Steel Structures

VIII. Simple Shear Connection

C. C. Fu, Ph.D., P.E.

Civil and Environmental Engineering Department

University of Maryland

review bolts and welds
Review Bolts and Welds

Design bolt bearing strength (Le ≥ 1.5d, s ≥ 3d)

Design bolt shear strength – no threads in shear planes

Design bolt shear strength – threads in shear planes

Design bolt tensile strength

Design strength of the weld

  • Rn = 0.707wL(Fw)= 0.707wL(0.75[0.6FEXX])=0.32wLFEXX
double angle connection
Double-Angle Connection

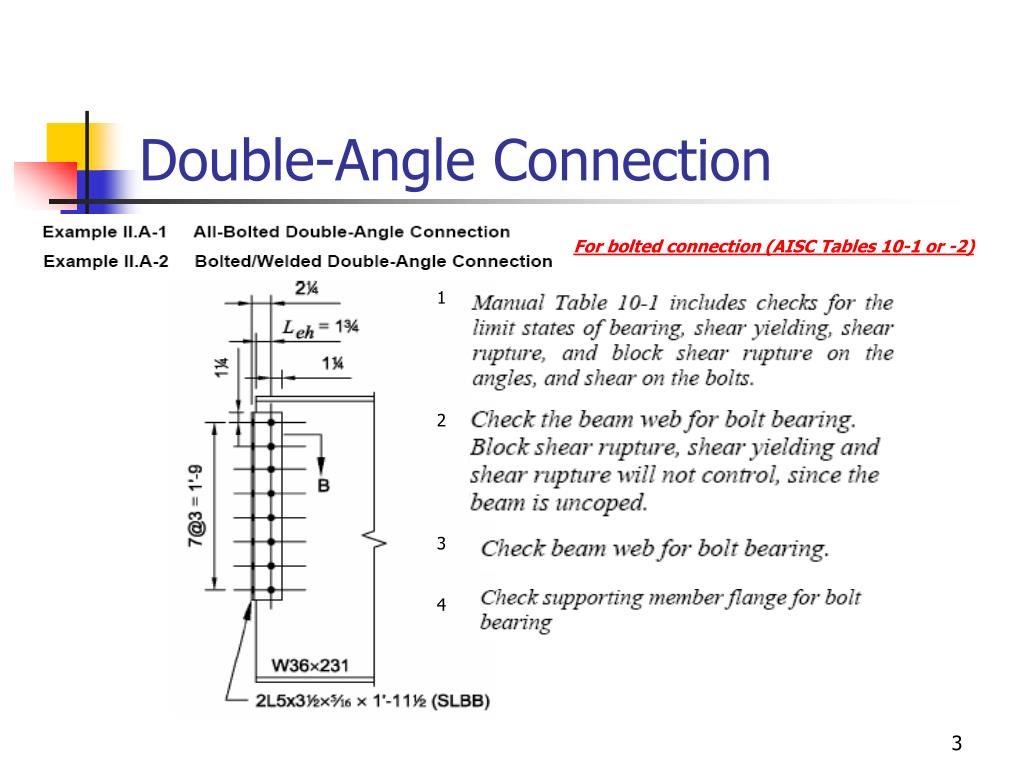

For bolted connection (AISC Tables 10-1 or -2)

1

2

3

4

double angle connection1
Double-Angle Connection

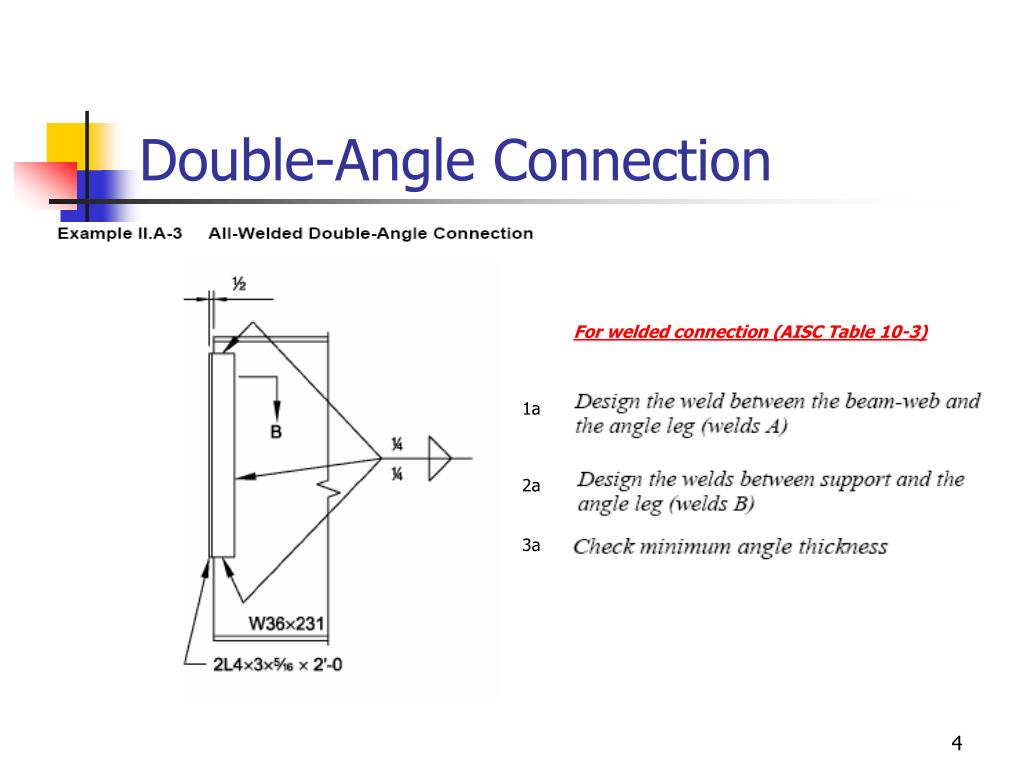

For welded connection (AISC Table 10-3)

1a

2a

3a

double angle connection coped
Double-Angle Connection (coped)

For all bolted connection (AISC Tables 10-1 or -2 w/ Tables 9-2, -3, & -4)

1

2

3

4

5

double angle connection coped1
Double-Angle Connection (coped)

For bolted/welded connection (AISC Tables 10-2 or -3)

1a

2a

unstiffened seated connection
Unstiffened Seated Connection

For all bolted connection (AISC Table 10-5)

1

2

3

4

For bolted/welded connection (AISC Tables 10-5 & -6)

1a

stiffened seated connection
Stiffened Seated Connection

For all welded connection (AISC Tables 10-7 or 8)

1

2

3

4

5

6

single plate connection
Single-Plate Connection

For single-plate connection (AISC Table 10-9)

1

2

single plate connection1
Single-Plate Connection

For extended single-plate connection

1

2

3

4

5

6

single plate shear splice
Single-Plate Shear Splice

For all bolted shear splce

1

2

3

4

5

6

single plate shear splice1
Single-Plate Shear Splice

For welded shear splice

1a

2a

3a

4a

5a

6a

7a

8a

bracket plate design
Bracket Plate Design

For bolt bracket plate

1

2

3

4

5

6

7

bracket plate design1
Bracket Plate Design

For welded bracket plate

1a

2a

3a

4a

5a

6a

eccentrically loaded group

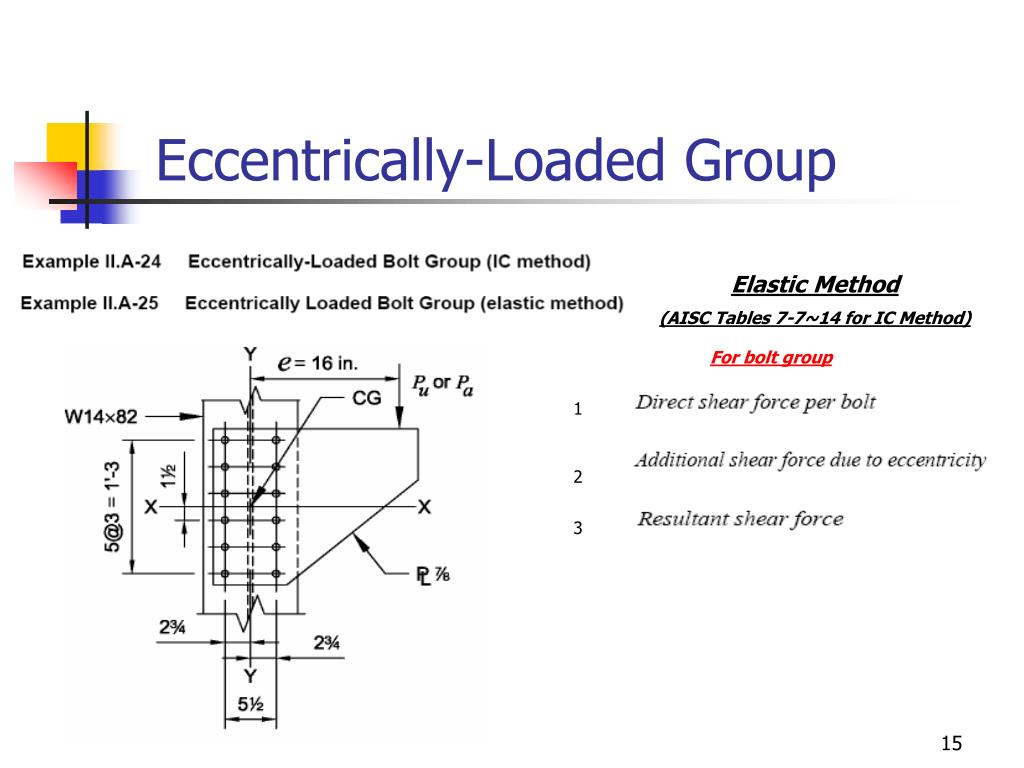

Eccentrically-Loaded Group

Elastic Method

(AISC Tables 7-7~14 for IC Method)

For bolt group

1

2

3

eccentrically loaded group1
Eccentrically-Loaded Group

Elastic Method

(AISC Tables 8-4~11 for IC Method)

For welded group

1a

2a

3a

single angle connection
Single-Angle Connection

For all bolted single-angle connection (AISC Table 10-10)

1

2

3

4

5

6

single angle connection1
Single-Angle Connection

For bolted/welded single-angle connection

(AISC Tables 10-10 or -11)

1a

2a

3a

tee connection
Tee Connection

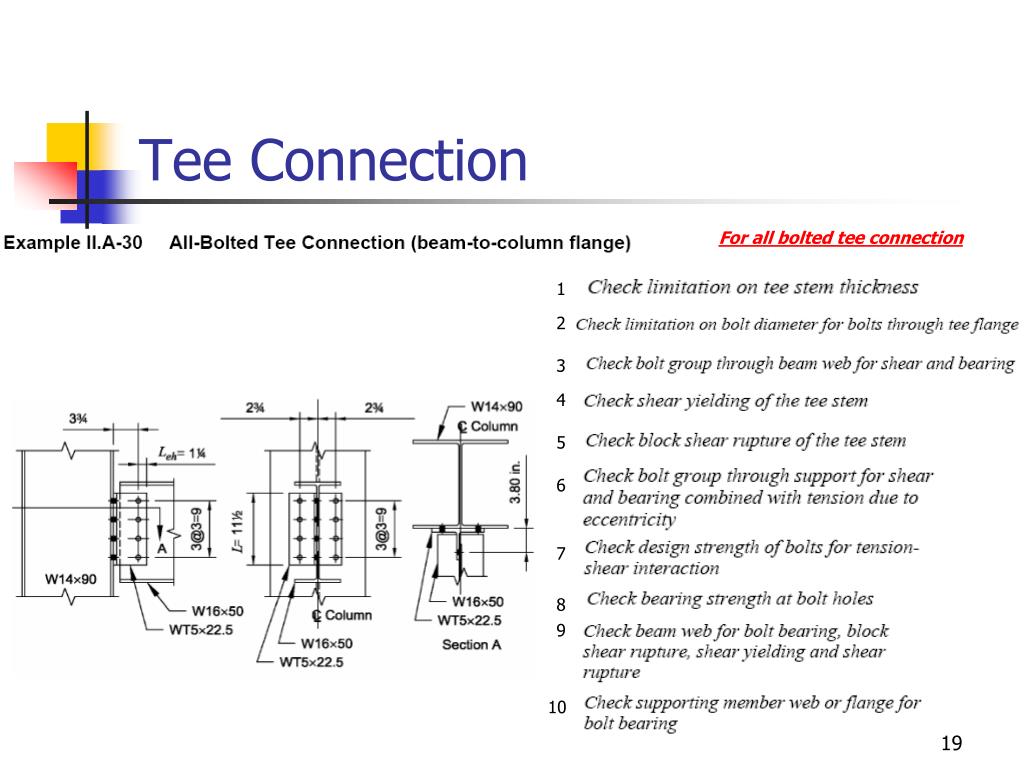

For all bolted tee connection

1

2

3

4

5

6

7

8

9

10

tee connection1
Tee Connection

For bolted/welded tee connection

1a

2a

3a

4a

5a

6a

7a

8a

9a

10a

11a
