the cardiovascular system

The Cardiovascular System

Cristina Fernandez

FY1

topics

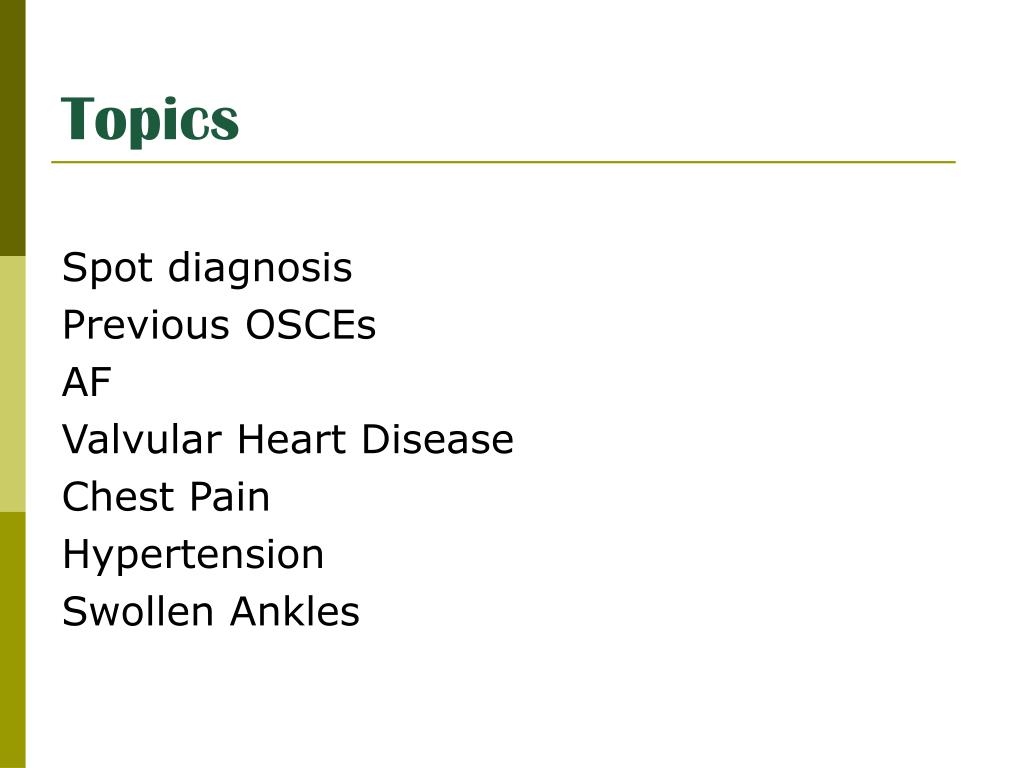

Topics

Spot diagnosis

Previous OSCEs

AF

Valvular Heart Disease

Chest Pain

Hypertension

Swollen Ankles

spot diagnoses
Spot Diagnoses
  • Open heart surgery
  • Always examine the legs!
slide4

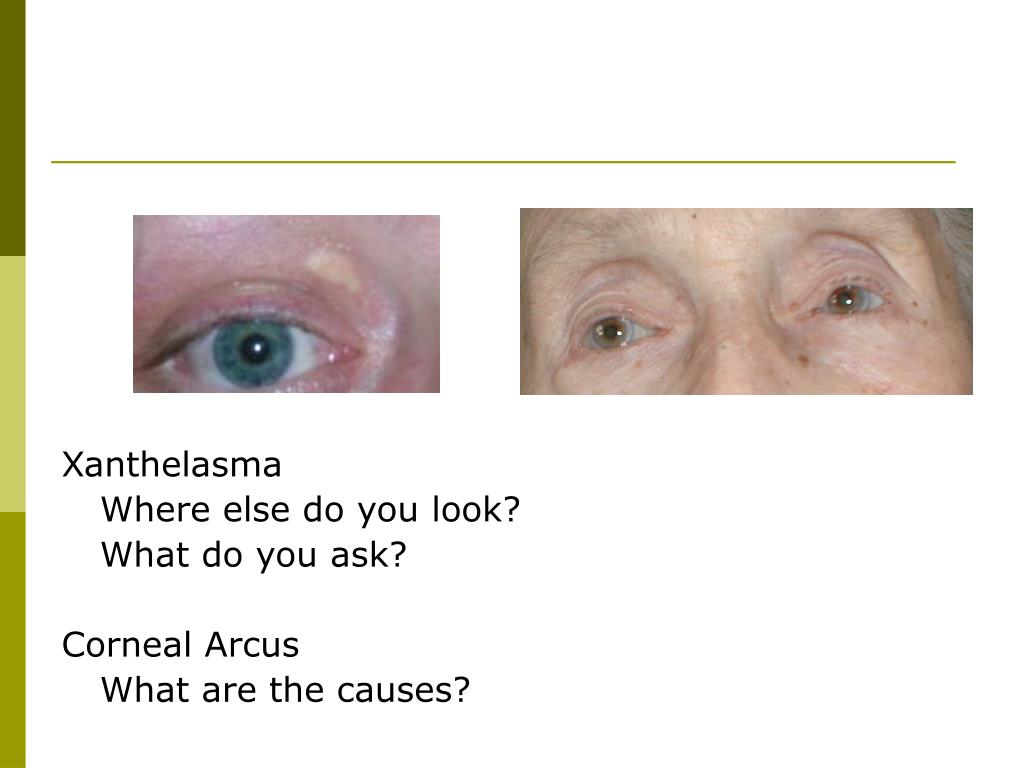

Xanthelasma

Where else do you look?

What do you ask?

Corneal Arcus

What are the causes?

previous osces
10 Minute Stations

Explain stroke/MI to relative

CVS exam

Intermittent claudication

ECG: Perform & interpret

Basic Life Support ± Defib

Counsel: Smoking and Pregnancy

Interpret results: ↑ trigs, chol

Chest pain: Hx, Mx, ECG, Angina

5 Minute Stations

Ankle swelling

MI: ECG and Mx

AF: ECG and Mx

AS / MR murmur

Prosthetic heart valve

Xanthelasma

AF

Sternotomy scar

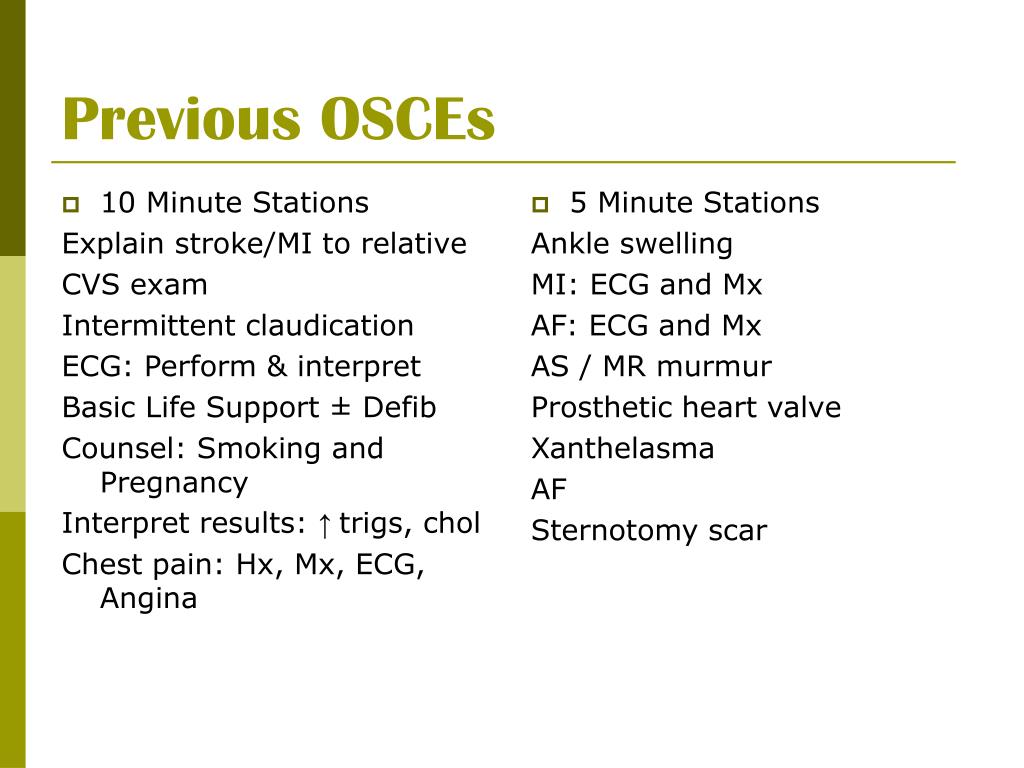

Previous OSCEs
atrial fibrillation
Atrial Fibrillation

Presentation in OSCEs

Causes – be systematic!

Symptoms (if any)

Clinical Assessment

Exclude treatable causes

Need for treatment

valvular heart disease mr as

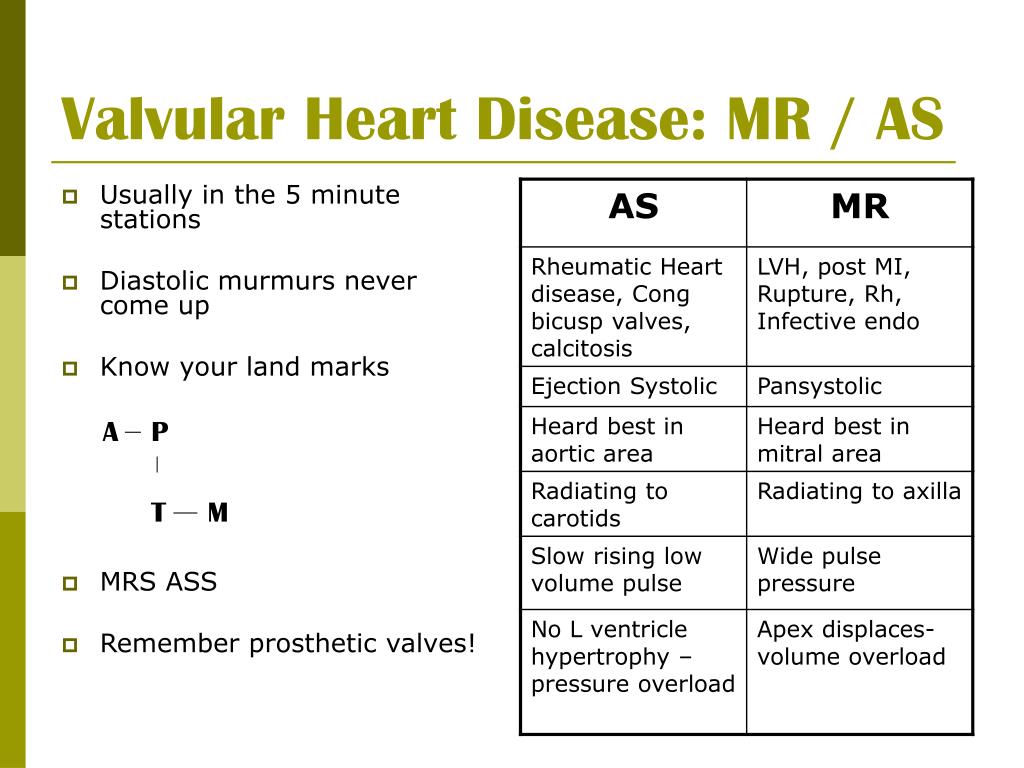

Valvular Heart Disease: MR / AS
  • Usually in the 5 minute stations
  • Diastolic murmurs never come up
  • Know your land marks
  • MRS ASS
  • Remember prosthetic valves!

A

P

T

M

chest pain
Chest Pain
  • History – aimed to rule out differentials
  • Risk Factors
  • Examination
  • ECG
  • Differentials
  • Management
always ask

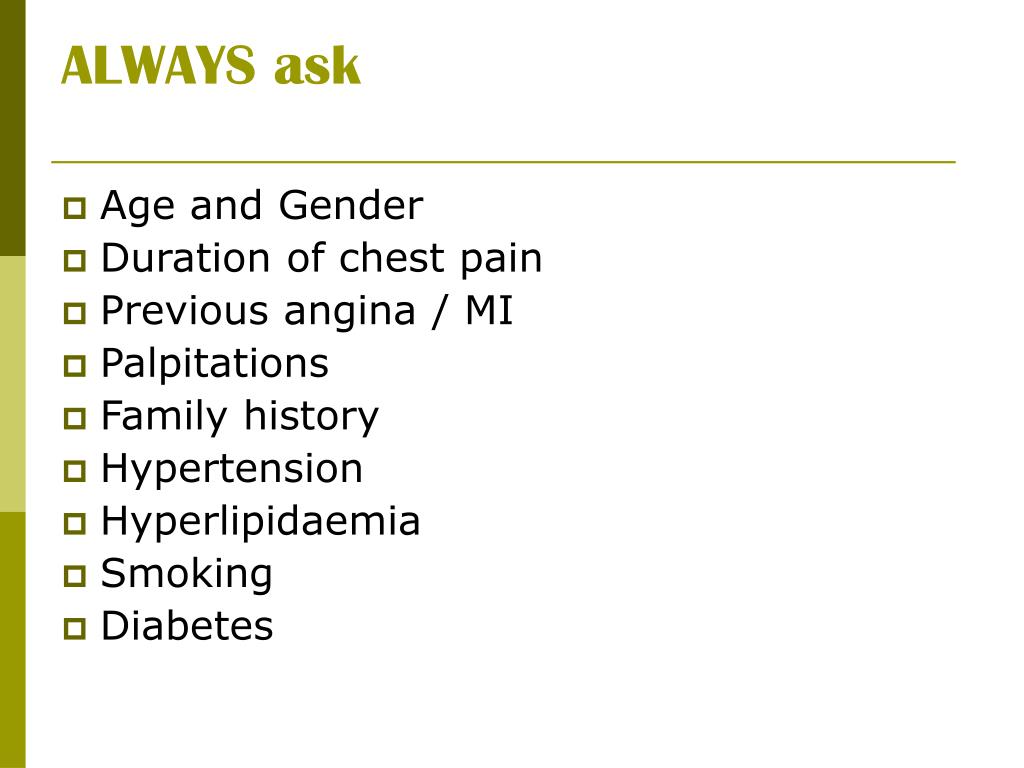

ALWAYS ask
  • Age and Gender
  • Duration of chest pain
  • Previous angina / MI
  • Palpitations
  • Family history
  • Hypertension
  • Hyperlipidaemia
  • Smoking
  • Diabetes
mi acute mx

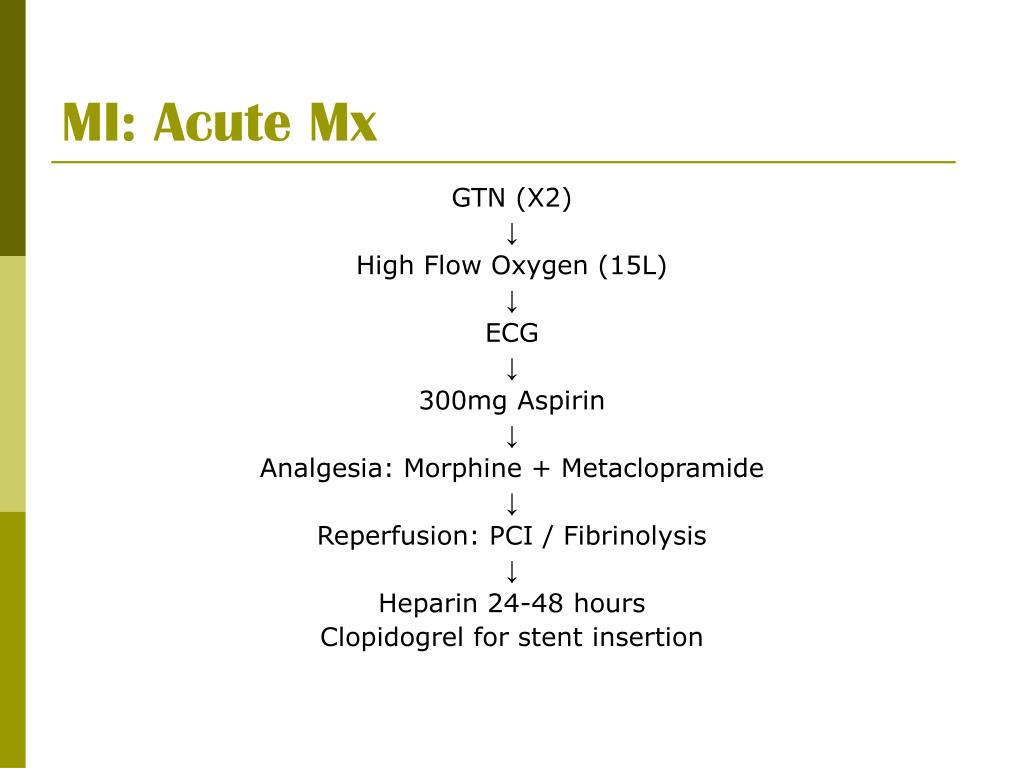

MI: Acute Mx

GTN (X2)

High Flow Oxygen (15L)

ECG

300mg Aspirin

Analgesia: Morphine + Metaclopramide

Reperfusion: PCI / Fibrinolysis

Heparin 24-48 hours

Clopidogrel for stent insertion

secondary prevention

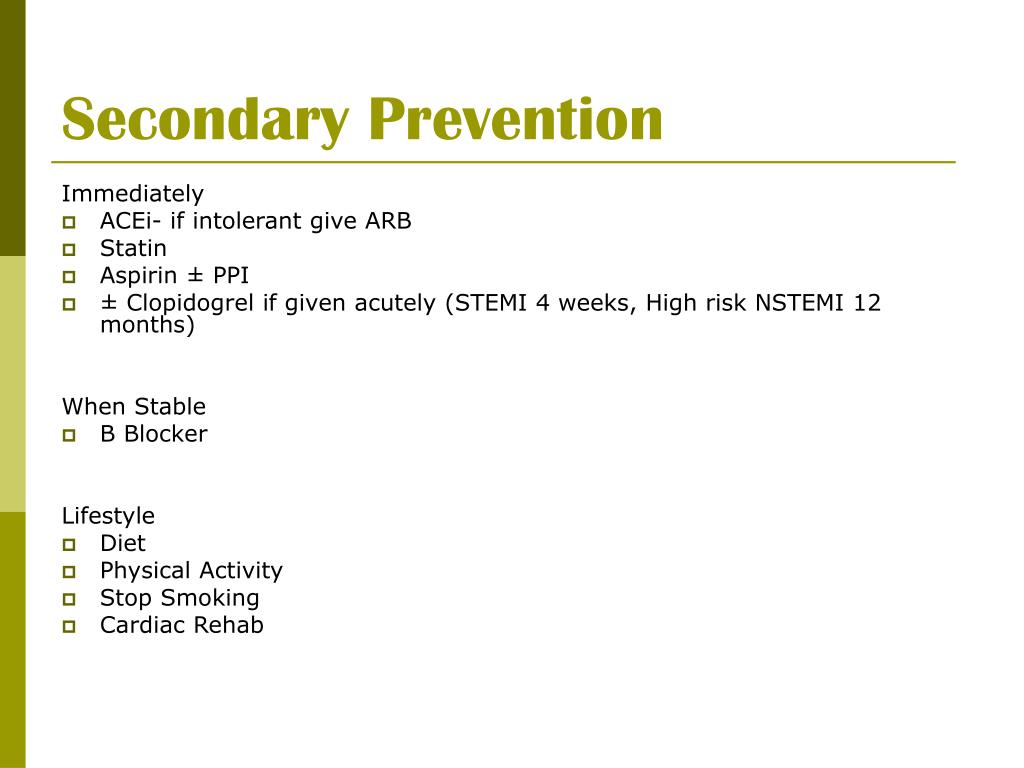

Secondary Prevention

Immediately

  • ACEi- if intolerant give ARB
  • Statin
  • Aspirin ± PPI
  • ± Clopidogrel if given acutely (STEMI 4 weeks, High risk NSTEMI 12 months)

When Stable

  • B Blocker

Lifestyle

  • Diet
  • Physical Activity
  • Stop Smoking
  • Cardiac Rehab
hypertension in osces

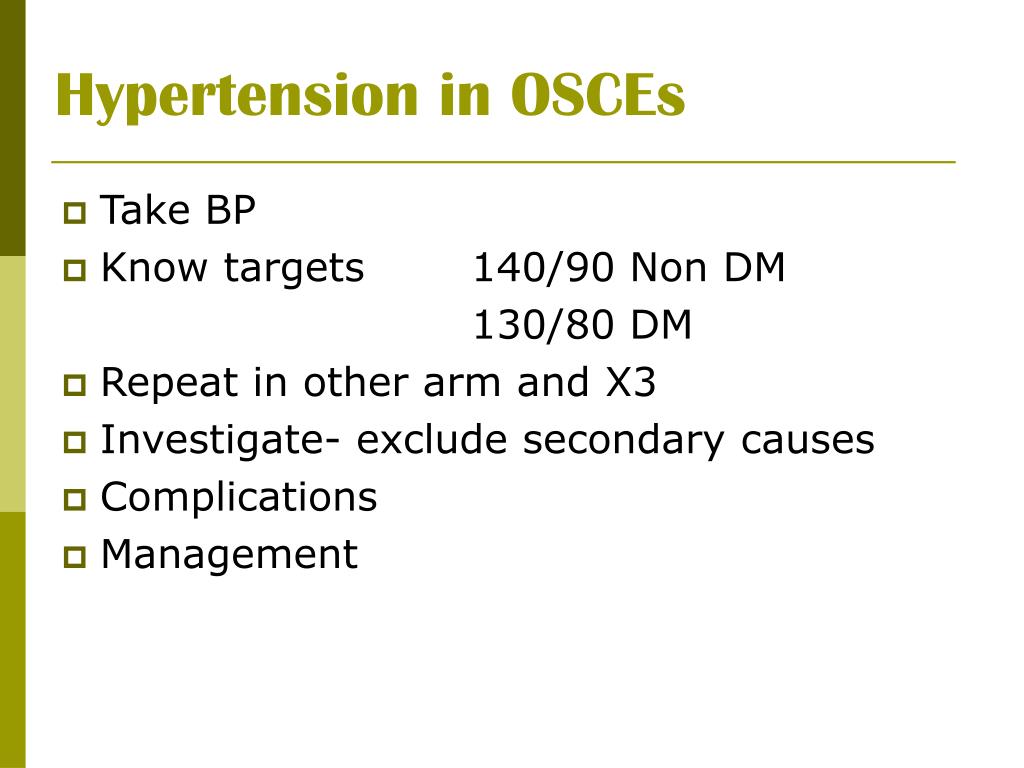

Hypertension in OSCEs
  • Take BP
  • Know targets 140/90 Non DM

130/80 DM

  • Repeat in other arm and X3
  • Investigate- exclude secondary causes
  • Complications
  • Management
complications end organ damage

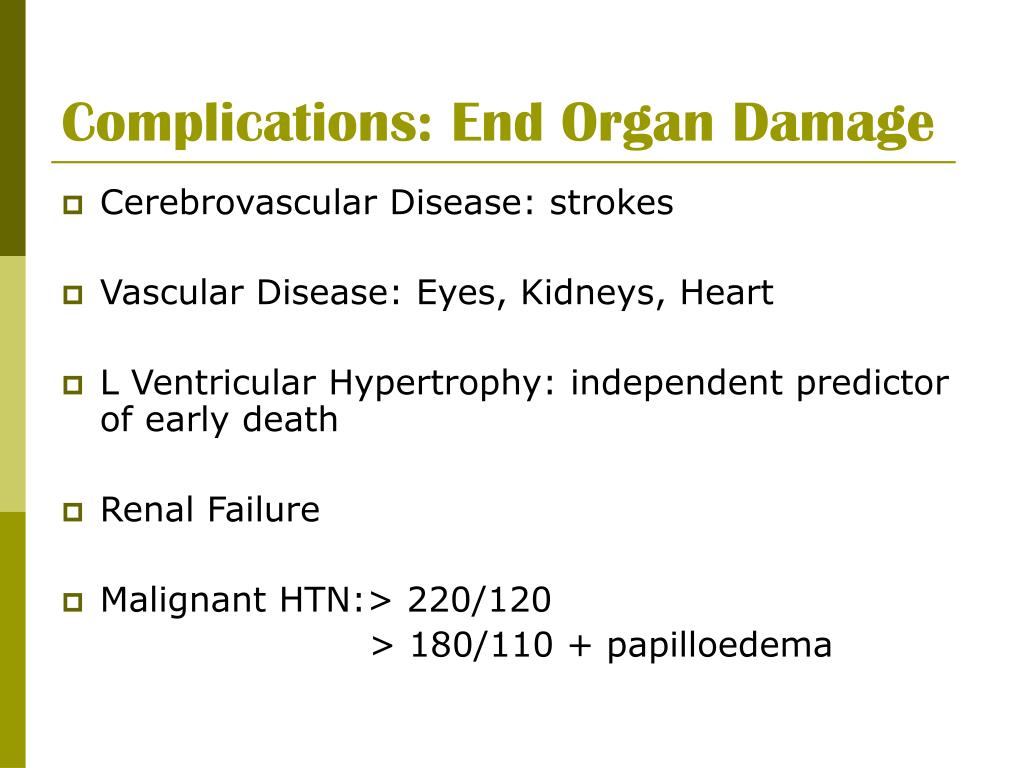

Complications: End Organ Damage
  • Cerebrovascular Disease: strokes
  • Vascular Disease: Eyes, Kidneys, Heart
  • L Ventricular Hypertrophy: independent predictor of early death
  • Renal Failure
  • Malignant HTN:> 220/120

> 180/110 + papilloedema

htn mx

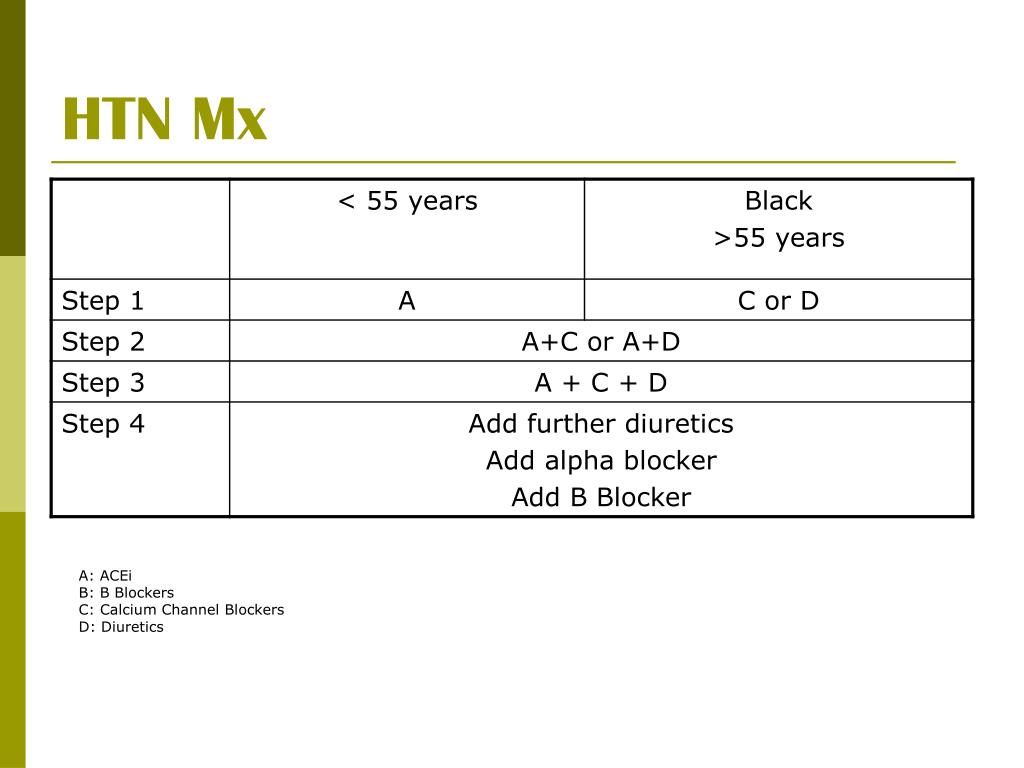

HTN Mx

A: ACEi

B: B Blockers

C: Calcium Channel Blockers

D: Diuretics

swollen ankles
Swollen Ankles
  • Examine
  • Differentials Heart (!)

Liver

Pelvic mass

Previous injury

Nephrotic Syndrome

  • History & Examination
  • Investigations
  • Plan
