Presentation Transcript
slide1

Tephritid Barcoding Initiative

and barcoding of agricultural pest

presented by

M. Virgilio

Royal Museum for Central Africa, Tervuren, Belgium

Royal Belgian Institute of Natural Sciences, Brussels, Belgium

m.virgilio@skynet.be

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

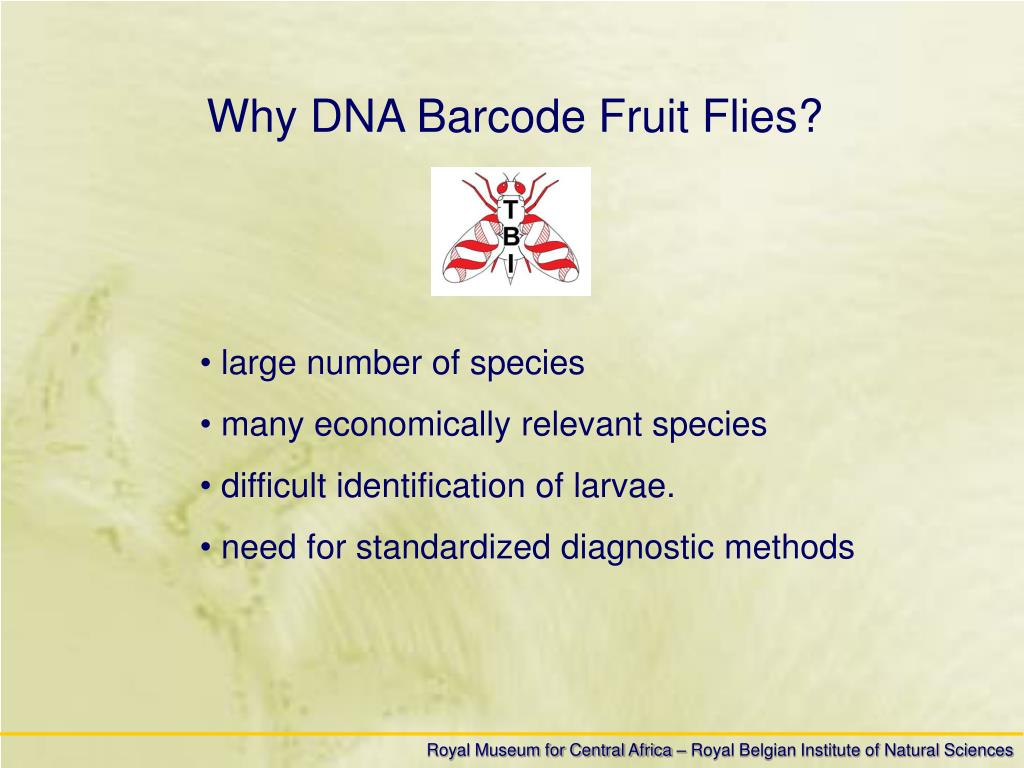

slide2

Why DNA Barcode Fruit Flies?

  • large number of species
  • many economically relevant species
  • difficult identification of larvae.
  • need for standardized diagnostic methods

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide3

The Tephritid Barcode Initiative (TBI)

  • CBOL obtained funding from the Sloan Foundation
  • to support a “Demonstrator System”
    • Steering Committee formed in April, 2006, in Belgium

Steering Committee Members:

Karen Armstrong, New Zealand

Norman Barr, USA

Amnon Freidberg, Israel

Ho-Yeon Han, South Korea

George Roderick, USA

Ian White, UK

TBI Chair:

Bruce McPheron, Penn State

TBI Coordinators:

Allen Norrbom, USDA, USA

Marc De Meyer, RMCA, Belgium

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide4

TBI proposal: Goals

Generate barcode database for 2,000 species

  • 5 individuals/species (10,000 specimens)
  • 100% of economically important (EI) species
  • >75% of EI congeners
  • 1 species per genus in subtribes containing EI species
  • 1 species per genus in other higher taxa
  • representative tephritoid families

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide5

TBI proposal: Beneficial Outcomes

1) Establish a globally-available DNA database of barcodes

2) Establish a globally-available DNA repository

3) Generate a collection of identified vouchers for future systematic work

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide6

Who is generating fruit fly barcodes?

  • Penn State University, USA: Bruce McPheron, Md. Sajedul Islam
  • Lincoln University, New Zealand: Karen Armstrong
  • Royal Museum Central Africa, BE: Marc De Meyer, Massi Virgilio
  • Yonsei University, Korea: Ho-Yeon Han
  • California Department of Agriculture, USA: Peter Kerr
  • Smithsonian National Museum of Natural History, USA: Allen Norrbom
  • APHIS-PPQ Mission lab, USA: Norman Barr
  • University of Guelph
  • Biodiversity Institute of Ontario

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide7

Financial support

Penn State University, USA: technical support

APHIS: collecting & sequencing

Belgian Federal Government: sequencing, pilot study mini-barcodes

California Citrus Board: general expenditure

Korean Government: sequencing

(Dutch Government: collecting)

Various contributions through staff time and general core funding of institutions or other projects

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide8

What needs to be provided in BOLD for TBI

  • identification of specimen by an expert taxonomist
  • voucher specimen
  • collection information (collection date and location)
  • other infos (GPS, elevation, photodocumentation) not mandatorybut strongly encouraged
  • barcode: at least 500bp with less than 1% missing data.
  • trace files stored in BOLD.

Euleia fratria (Trypetinae)TEPH101 (from BOLD)

Other COI records (e.g., Genbank submissions) are integrated into the BOLD database but kept separate.

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide9

http://www.barcodinglife.org

Tephritidae {family}

Barcodes :

Species :

Search performed on October 20, 2008

Lineage: Arthropoda: Insecta: Diptera

Specimen Record: 1047

Specimens with barcodes: 828

Public Sequences: 240

Subfamilies (5)

Dacinae [572]

Phytalmiinae [7]

Tachiniscinae [1]

Tephritinae [219]

Trypetinae [243]

Deposited in :

slide10

all species

EI species

% of species barcoded

100

80

60

40

20

0

Dacus

Ceratitis

Rhagoletis

Bactrocera

Anastrepha

Five Genera of Highest Economic Importance

number of species

600

533

400

240

213

200

119

95

73

44

37

34

19

0

Dacus

Ceratitis

Rhagoletis

Bactrocera

Anastrepha

slide11

insights into

DNA barcoding

of tephritid fruitflies

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide12

intra- and inter-specific genetic differentiation

in 3 genera of tephritid fruitflies

ratio inter/intra specific p-dist

12.6 6.3 6.6

20%

16%

p-distances

12%

between species

8%

within species

4%

0%

Bactrocera

Ceratitis

Dacus

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide13

DNA barcoding of tephritid fruitflies:

where it works nicely....

44 barcodes of Bactrocera cucurbitae

from 11 countries:

  • Bangladesh
  • Cambodia
  • China
  • Hawaii
  • India
  • Kenya
  • La Reunion
  • Malaysia
  • Philippines
  • Sudan
  • Tanzania

average genetic distance

within species

K2p = 0.02%

(S.E.= 0.01%)

slide14

... and where not:

the FAR complex

Ceratitis fasciventris

C. anonae

C. rosa

average genetic distances

0.02

K2P

0.01

between

species

within

species

0.00

ratio = 1.2

slide15

other potentially “problematic”

tephritid species groups and complexes:

B. dorsalis complex

C. cosyra complex

C. capitata / C. caetrata

T. occipitale / T. quadrimaculatum

...

Armstrong and Ball (2005) Phil. Trans. R. Soc. B 360: 1813-1823. (B. dorsalis complex)

Virgilio et al. (2008) Molecular Phylogenetic and Evolution 48: 270-280 (FAR complex, Ceratitis)

slide16

Dacus:

from identification issues

to classification issues

as expected low genetic differentiation

in taxonomicallycloserspecies...

D. chiwira - D. famona, p-dist.= 0.3%(subgenus Dacus)

D. apostata - D. triater, p-dist.= 0.0% (subgenus Psilodacus)

slide17

DACUS

DIDACUS

LEPTOXYDA

LOPHODACUS

NEODACUS

PSILODACUS

COI

NJT-K2P

...but also discrepancies between

morphological and molecular taxonomy

subgeneric classification

slide18

Apocynaceae

Cucurbitaceae

Passifloraceae

unknown

DNA barcoding may provide clues

for an improved morphological classification

host plant choice

COI+16S+per

Bayesian

slide19

DNA barcoding may reveal cryptic speciation:

Virgilio M., De Meyer M, WhiteI.M., Backeljau T. (submitted) Phylogenetic relationships among African Dacus species (Diptera: Tephritidae) as inferred from mitochondrial and nuclear DNA.

slide20

methodological problems

in the barcoding of tephritid fruitflies

from museum collections

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide21

methodological problems

in the barcoding of museum specimens

DNA Extraction Procedures:

Several pilot studies performed to assess the success of an invasive, nondestructive DNA extraction method for museum specimens.

Study 1: L. Weigt and A. Driskell (Laboratory of Analytical Biology, National Museum of Natural History, Smithsonian Institution) -16S and COI

Study 2: N. Barr (USDA) and R. Ruiz (Penn State) -16S

Study 3. M. Virgilio (Royal Museum Central Africa, BE) – 16S, COI

Study 4. Md. Sajedul Islam (Penn State) - COI (ongoing study)

Qiagen DNeasy kit:

ok for DNA from recent dry and alcohol specimens not crushed during the extraction process.

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide22

100

% specimens amplified

80

% specimens sequenced

60

40

20

0

90s

80s

2007

2006

2005

2004

2003

2002

2001

2000

< 1980

methodological problems

in the barcoding of museum specimens

age of specimens vs barcoding success

(n=394)

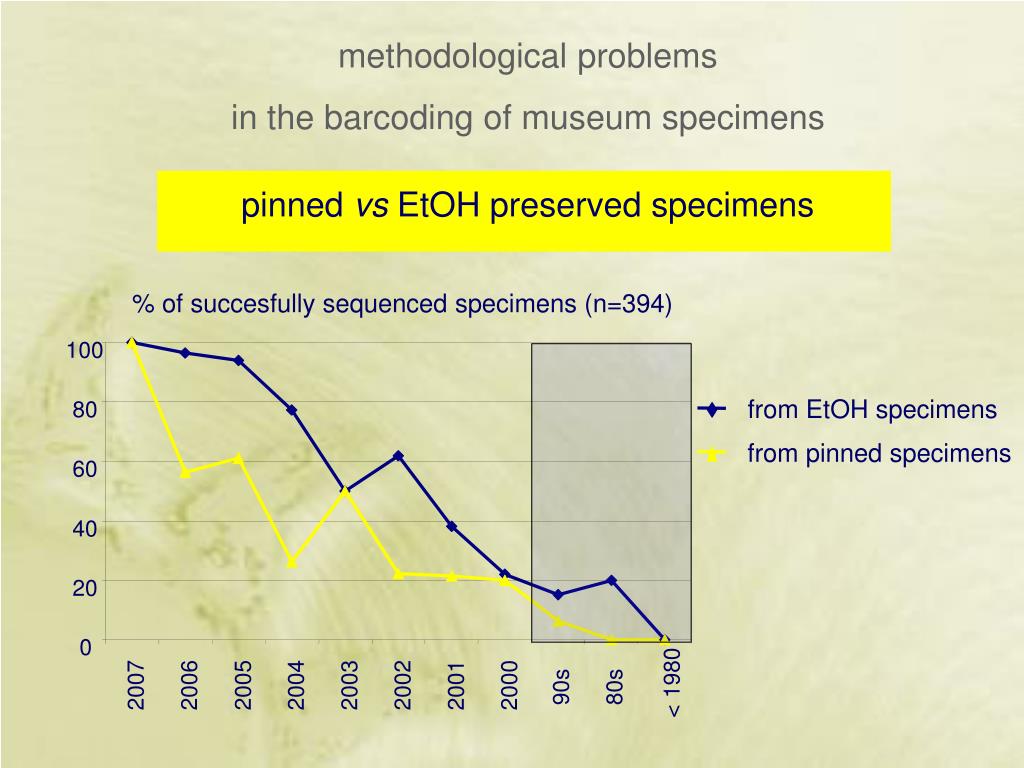

slide23

100

from EtOH specimens

80

from pinned specimens

60

40

20

0

< 1980

2007

2006

2005

2004

2003

2002

2001

2000

90s

80s

methodological problems

in the barcoding of museum specimens

pinned vs EtOH preserved specimens

% of succesfully sequenced specimens (n=394)

slide24

<1940

>2000

32%

41%

40s

4%

50s

90s

80s

13%

70s

4%

3%

1%

60s

2%

methodological problems

in the barcoding of museum specimens

Ceratitis, Bactrocera and Dacus

in the collections of the RMCA:

(n=1804)

slide25

methodological problems

in the barcoding of museum specimens

DNA extraction protocols tested:

  • Qiagen DNeasy
  • Qiagen Biosprint
  • Bio101 Ancient DNA kit
  • Autogen
  • Machery-Nagel Filterservice kit
  • Phenol-Chloroform
  • DNAzol
  • E.Z.N.A. kits for forensics and insects
  • chargeswitch magnetic beads
  • etc.

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

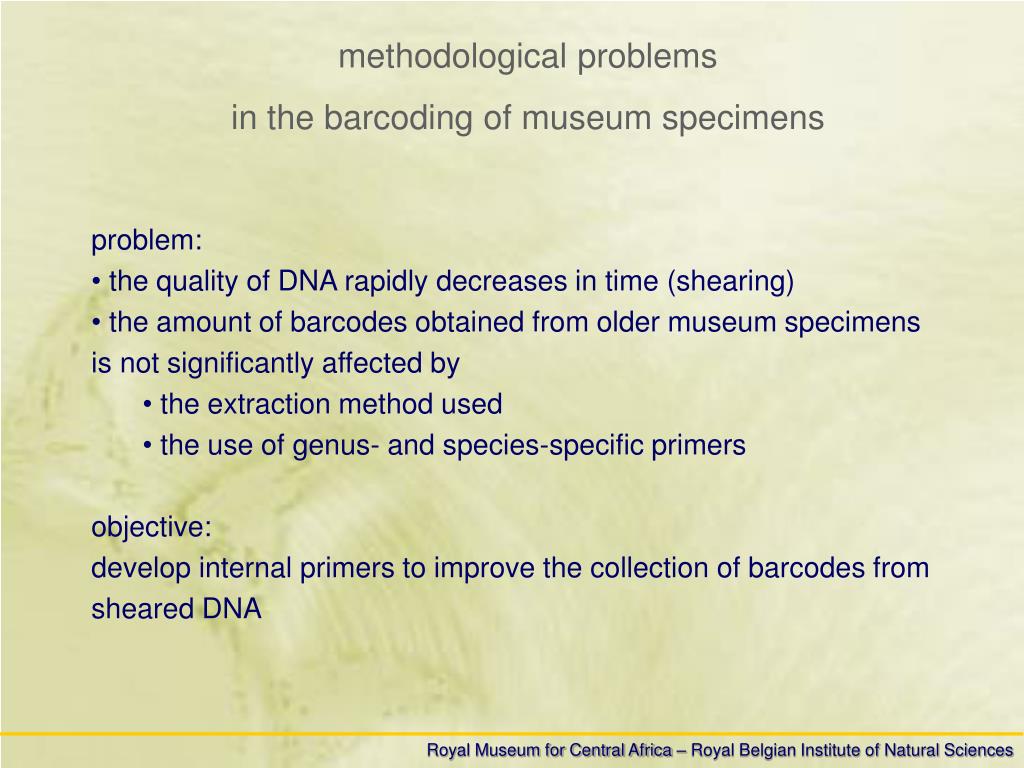

slide26

methodological problems

in the barcoding of museum specimens

  • problem:
  • the quality of DNA rapidly decreases in time (shearing)
  • the amount of barcodes obtained from older museum specimens is not significantly affected by
    • the extraction method used
    • the use of genus- and species-specific primers
  • objective:
  • develop internal primers to improve the collection of barcodes from sheared DNA

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide27

methodological problems

in the barcoding of museum specimens

  • the BARFLY project
  • short term project funded by the Belgian Science Policy (BELSPO)
  • Joint Experimental Molecular Unit
  • of RMCA and RBINS (www.jemu.be)
  • Jeroen Van Houdt,Floris Breman
  • development of internal primers for the barcoding of Tephritids
  • collection of new barcodes from museum specimens

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide28

LCO 1490

HCO 2198

full barcode - c. 670 bp

frag. 1 - 343bp

frag. 2 - 269bp

frag. 3 - 227bp

a new set of internal primers

for the barcoding of tephritids

VanHoudt J., Breman F. C., Virgillio M.,De Meyer M. (in prep.)

A protocol for DNA barcoding of African tephritid fruitflies from museum collections using mini barcodes.

slide29

100

(n=229)

80

60

40

fragment 1

20

fragment 2

0

>2000

90s

80s

70s

60s

50s

40s

<1940

fragment 3

100

.

(n=229)

80

60

40

20

0

>2000

90s

80s

70s

60s

50s

40s

<1940

% of pcr products

obtained

% of barcode sequences

obtained (>500bp)

slide30

+7%

+32%

+6%

+7%

100

80

60

standard primers

40

internal primers

20

(n=229)

0

>2000

90s

80s

<1980

a new set of internal primers

for the barcoding of tephritids

higher performances

compared to the standard primers

% of barcodes obtained (>500bp)

slide31

a new set of internal primers

for the barcoding of tephritids

RMCA:

internal primers as a standard protocol for the barcoding of museum specimens collected before 2000

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide32

work in progress:

could ‘minibarcodes’represent a temporary alternative to

‘full’ barcodes?

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide33

Dacus armatus

400 bp

400 bp

500 bp

600 bp

400 bp

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide34

Bactrocera oleae

500 bp

300 bp

400 bp

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide35

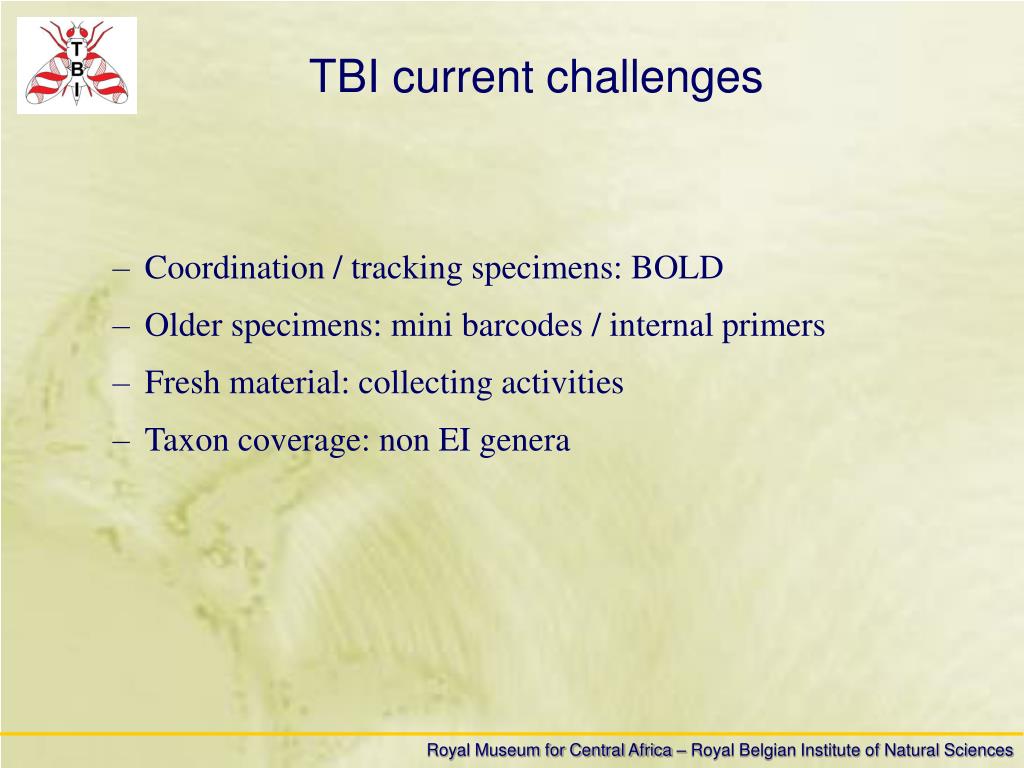

TBI current challenges

  • Coordination / tracking specimens: BOLD
  • Older specimens: mini barcodes / internal primers
  • Fresh material: collecting activities
  • Taxon coverage: non EI genera

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences

slide36

RMCA current challenges

RMCA is collecting barcodes as a “complementary activity” to the currently ongoing research lines:

  • phylogeny and population genetics of African Dacus
  • molecular taxonomy of species complexes in the genus Ceratitis
  • phylogeny of African and Australasian Bactrocera
  • population genetics and phylogeography of B. cucurbitae

Marc De Meyer: marc.de.meyer@africamuseum.be

Massimiliano Virgilio: m.virgilio@skynet.be

contact:

slide37

RMCA current challenges

RMCA is opened tocollaborations with African Institutions aiming to:

  • identify tephritid samples through morphological and molecular characters
  • prepare species inventories from African countries
  • collect / rear tephritid fruit flies
  • investigate population genetics and host races evolution of tephritid species

Marc De Meyer: marc.de.meyer@africamuseum.be

Massimiliano Virgilio: m.virgilio@skynet.be

contact:

slide38

Acknowledgments

Karen Armstrong

Abdelaziz Babikir

Thierry Backeljau

Norman Barr

Marc DeMeyer

Sajedul Islam

Bruce McPheron

researches at the RMCA are currently funded by the

Belgian Science Policy Action 1 (project MO/37/017)

and benefit from practical support by the

Joint Experimental Molecular Unit (JEMU)

Royal Museum for Central Africa – Royal Belgian Institute of Natural Sciences
