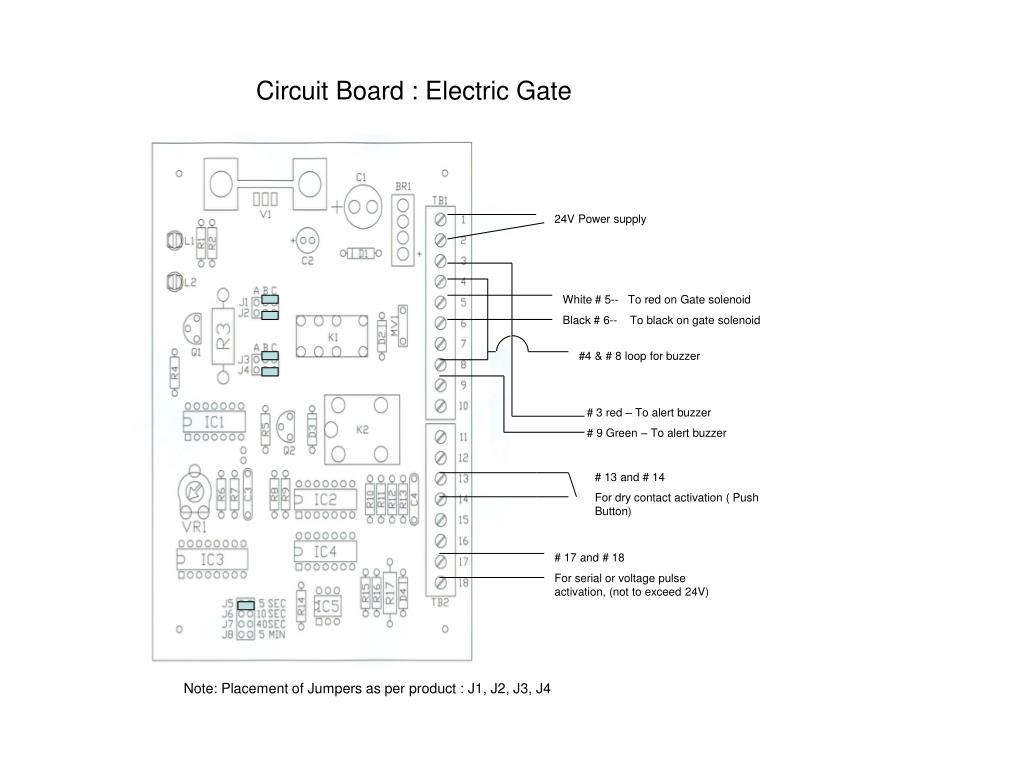

Circuit Board : Electric Gate

24V Power supply

White # 5-- To red on Gate solenoid

Black # 6-- To black on gate solenoid

#4 & # 8 loop for buzzer

# 3 red – To alert buzzer

# 9 Green – To alert buzzer

# 13 and # 14

For dry contact activation ( Push Button)

# 17 and # 18

For serial or voltage pulse activation, (not to exceed 24V)

Note: Placement of Jumpers as per product : J1, J2, J3, J4

slide2

Circuit Board : Lights

For Turnstiles and Gate applications

24 Volt power supply

# 2 and # 6 To- red light

Black and white wire

#4 and # 8 loop

# 3 and # 9To -green light.

Red and Green wire

# 13 and # 14 for Dry contact activation ( Push Button)

Note: Placement of Jumpers as per product : J1, J2, J3, J4

slide3

Circuit Board : Electric Gate with photo eye.

24 Volt power supply

# 5 Red wire to- gate solenoid.

# 6 Black wire to- gate solenoid

# 10 White wire to- Brown wire of photo eye

# 11 Black wire to- white wire of photo eye.

# 12 Red wire to- black and blue wire of Photo eye

# 13 and # 14 for dry contact activation, (If required*)

Note: Placement of Jumpers as per product : J1, J2, J3, J4

slide4

Circuit board :Waist high Turnstile / High Gate.

24 volt power supply.

# 5 White wire to- Turnstile Solenoid

# 6 Black wire to- Turnstile Solenoid

# 15 Red wire to- Micro switch

# 16 Green wire To- Micro switch

# 13 and #14 For dry contact activation

( Push Button )

# 17 and # 18 For Serial or Voltage post, ( not to exceed 24volts)

Note: Placement of Jumpers as per product : J1, J2, J3, J4

slide5

Circuit Board : Magnetic Lock Gate.

24 Volt Power supply

# 5 White wire to Red on Gate Magnet

# 6 Black wire to Black on Gate magnet

# 13 and # 14 For dry contact activation ( Push Button)

# 17 and # 18 for serial or voltage pulse activation, ( not to exceed 24 V)

Note: Placement of Jumpers as per product : J1, J2, J3, J4

slide6

600lbs Magnetic lock specifications.

    • CX-91M-06
    • Installation Instructions
      • 5502 Timberlea Blvd.
      • Mississauga, Ontario L4W 2T7
      • 905-366-3377 Toll Free: 877-226-3369
      • www.camdencontrols.com
  • ModelDescriptionFeaturesCurrent Draw
  • CX-91M-06 Single Basic 480mA @ 12V240mA @ 24V
  • CX-91M-06TDS Single adj. timer, door position switch & bond sensor
  • SHOCK HAZARD. Care must be taken to keep the power supply and wiring isolated from ground (earth). Use of an ohmmeter to test for shorts is recommended prior to service.
  • A. 12V DC Input:
  • Set jumpers for 12V DC operation. (See diagram below) Connect the ground (-) lead from a 12V DC power source to terminal 2.Connect the positive (+) lead from a 12V DC power source to terminal 1.
  • B. 24V DC Input:
  • Unit is delivered from Factory with single jumper ON for 24V operation.Connect the ground (-) lead from a 24V DC power source to terminal 2.Connect the positive (+) lead from a 24V DC power source to terminal.
  • C. Contacts:
  • Reed switch dry contacts are rated 0.5 Amp@30V DC/AC. For safe operation, do not exceed this rating.If you normally require a normally open contact, connect to the black and green wire of the PCB.If you normally require a normally closed contact, connect to the black and red wire of the PCB.
        • Printed Circuit Board Schematic
        • (shown with all options)
  • Jumper 12V DC 24V DC Magnet Power Selector IC 1 Timer Power Supply Reed Switch (Sensor) White Blue Green Black Red NC NO VR C110 V AC Switch or Solid State Switching Device 12 or 24 VDC CORRECT 110 V AC Switch or Solid State Switching Device 12 or 24 VDC INCORRECT
  • Important
  • Power switch should always be wired as shown below in order to minimize the effect of residual magnetism.
  • Contact Camden for other wiring considerations.
