chapter 5

Chapter 5

Input and Output: The User Connection

input vs output

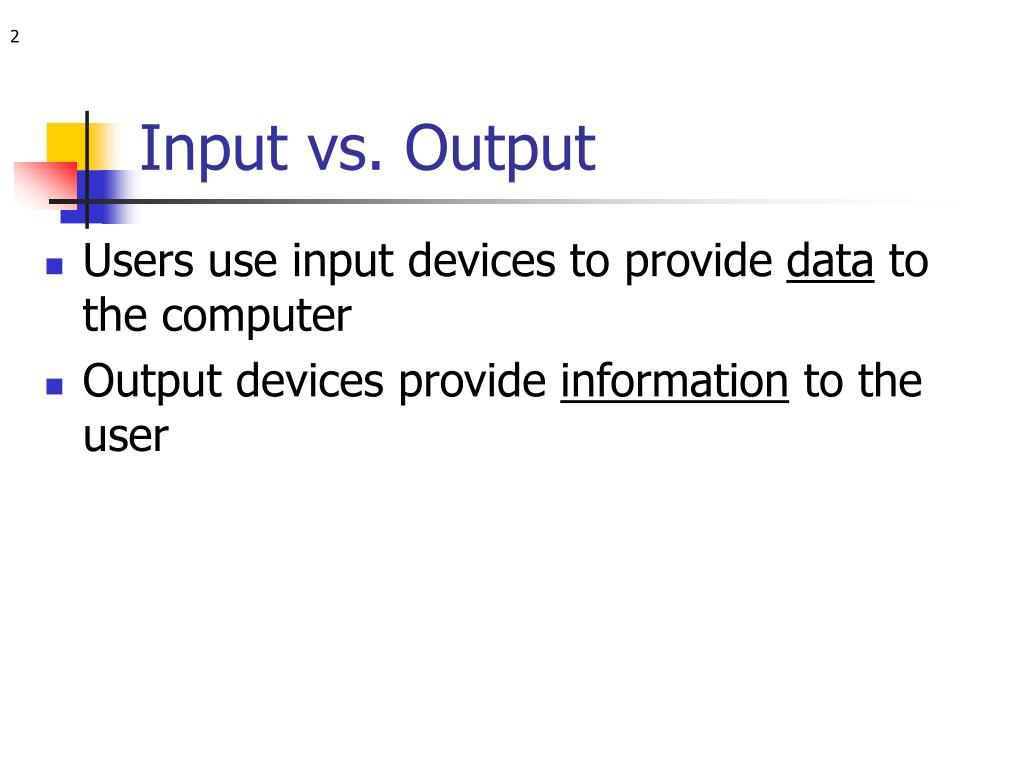

Input vs. Output
  • Users use input devices to provide data to the computer
  • Output devices provide information to the user
input devices
Input devices
  • Keyboard
    • Function keys
    • Main keyboard
      • Shift, control, Caps lock, tab
    • Numeric keys and status lights
      • Num lock
    • Num lock, Insert, and Caps lock are “toggle” keys
input devices pointing device
Input Devices–Pointing Device
  • Pointer
    • Arrow
  • Insertion point or cursor
    • Vertical bar
input devices pointing device5

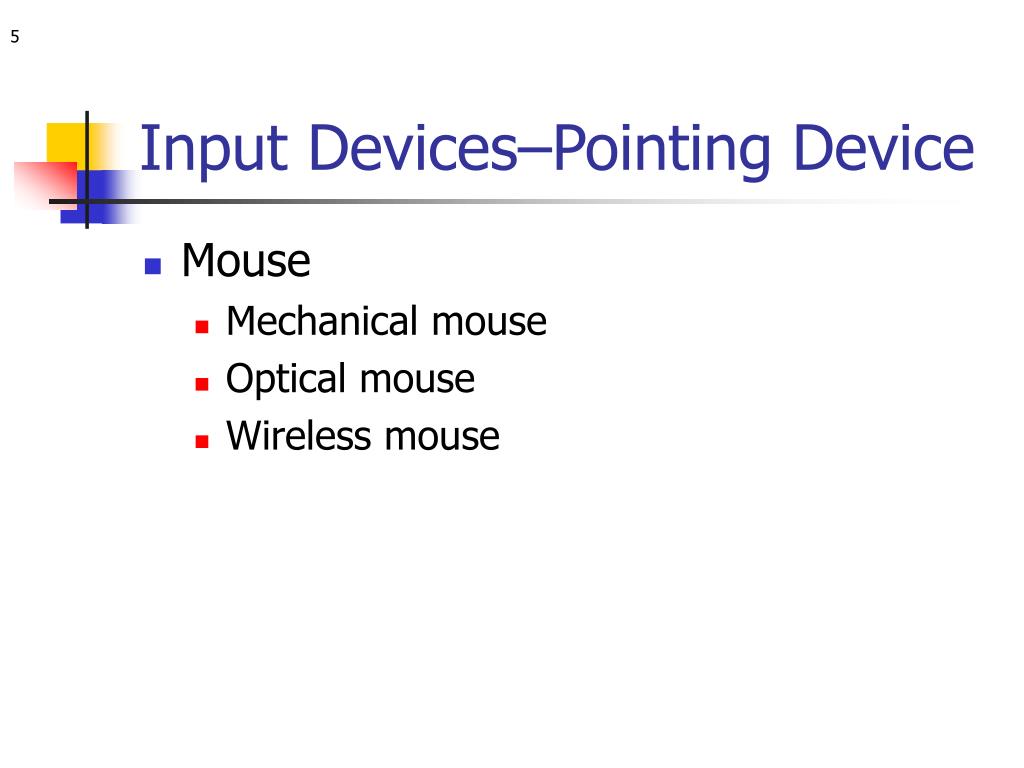

Input Devices–Pointing Device
  • Mouse
    • Mechanical mouse
    • Optical mouse
    • Wireless mouse
input devices pointing device9
Input Devices–Pointing Device
  • Joystick
    • Used often for games
    • Can be used instead of a mouse
input devices pointing device10
Input Devices–Pointing Device
  • Graphics tablet
    • Stylus
    • Puck
input devices pointing device11
Input Devices–Pointing Device
  • Touch screens
  • Used in kiosks, a self-contained station
  • Kiosks are found in libraries, museums, airports, and shopping malls
magnetic ink character recognition micr
Magnetic-Ink Character Recognition (MICR)
  • A type of source data automation
  • Used most by the banking industry
  • MICR numbers printed on checks
scanners
SCANNERS
  • Use laser light
  • 3 types
    • Flatbed scanner
    • Sheetfed scanner
    • Handheld scanner
scanners extra
SCANNERS (Extra)
  • Flatbed scanner
    • Scans one sheet at a time
    • Can be used on books
    • Can scan 3-D objects
    • Take a lot of desk space
scanners extra16
SCANNERS (Extra)
  • Sheetfed scanner
    • Scans one sheet at a time
    • Cannot scan bound material
    • Take less space than flatbed
scanners extra17
SCANNERS (Extra)
  • Handheld scanner
    • Least expensive
    • Least accurate
    • May require several passes to get a complete page scanned in
optical recognition

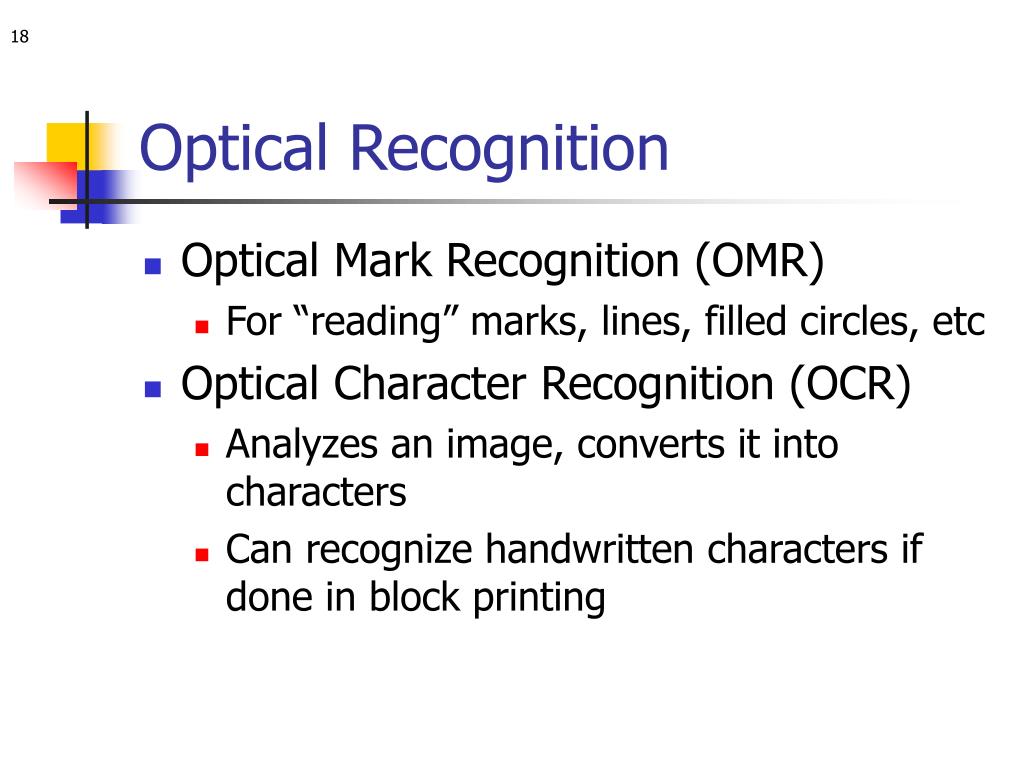

Optical Recognition
  • Optical Mark Recognition (OMR)
    • For “reading” marks, lines, filled circles, etc
  • Optical Character Recognition (OCR)
    • Analyzes an image, converts it into characters
    • Can recognize handwritten characters if done in block printing
optical recognition19
Optical Recognition
  • Bar codes
    • Universal Product Code (UPC) is one standard
    • Other codes exist
voice input
Voice Input
  • Speech recognition
  • Speaker-dependent
    • “trained” for a specific person’s voice
  • Speaker-independent
    • Recognize any voice
    • Limited vocabulary
input device
Input Device
  • Digital camera
    • No film
    • Uses memory chips, disks, or memory sticks
output devices

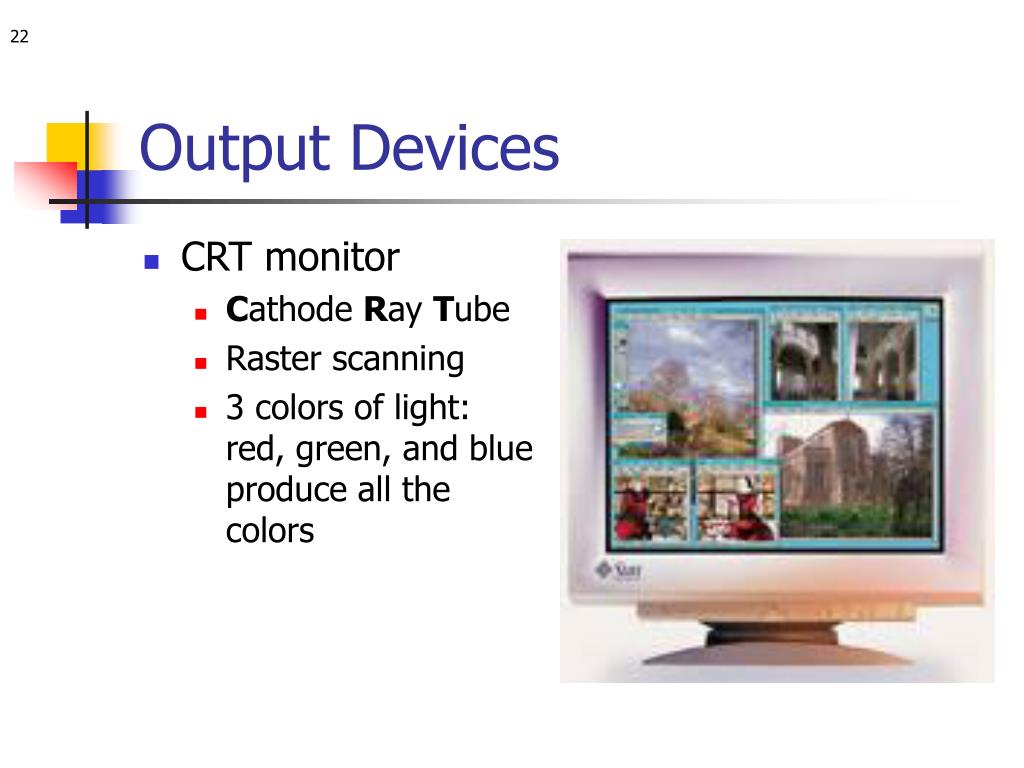

Output Devices
  • CRT monitor
    • Cathode Ray Tube
    • Raster scanning
    • 3 colors of light: red, green, and blue produce all the colors
output devices23
Output Devices
  • CRT monitor quality
    • Refresh rate (scan rate) = number of
    • Interlaced vs. non-interlaced
    • Resolution
      • More pixels means higher resolution
    • Dot pitch
    • Size of monitor
output devices24
Output Devices
  • Flat Panel screen
    • Liquid crystal display (LCD)
    • Active matrix (TFT)
    • Passive matrix
computer output
Computer Output
  • Monitor
    • Softcopy
  • Printer
    • Hardcopy
    • Portrait vs. landscape
    • Resolution in dpi (dots per inch)
computer output26

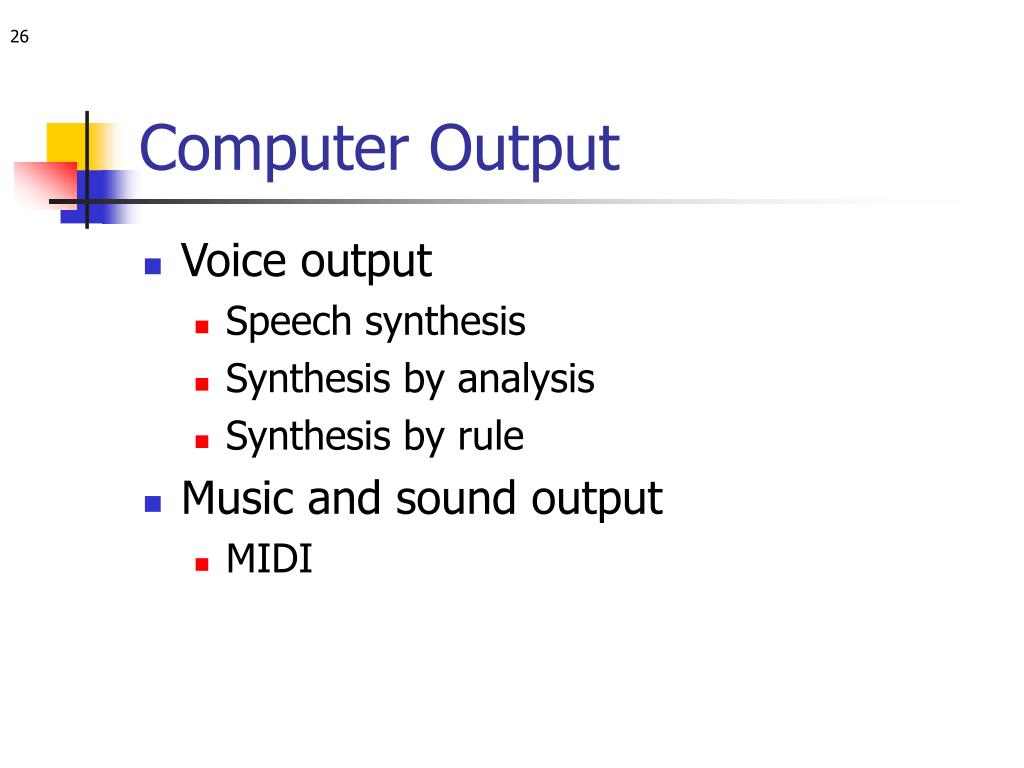

Computer Output
  • Voice output
    • Speech synthesis
    • Synthesis by analysis
    • Synthesis by rule
  • Music and sound output
    • MIDI
computer output27
Computer Output
  • Graphics cards – provide output to a monitor
  • Have memory chips on the card
  • Graphics standards
    • SVGA - Super Video Graphics Array
    • XGA – Extended Graphics Array
  • XGA supports more simultaneous colors than SVGA
output devices28
Output Devices
  • Dot-matrix printer
    • Impact
    • Pins striking a ribbon against paper
    • Used for multiple part forms
output devices29
Output devices
  • Laser printer
    • Non-impact
    • Light beam helps transfer images to paper
    • High quality
    • Uses toner and technology similar to a photocopier
output devices30

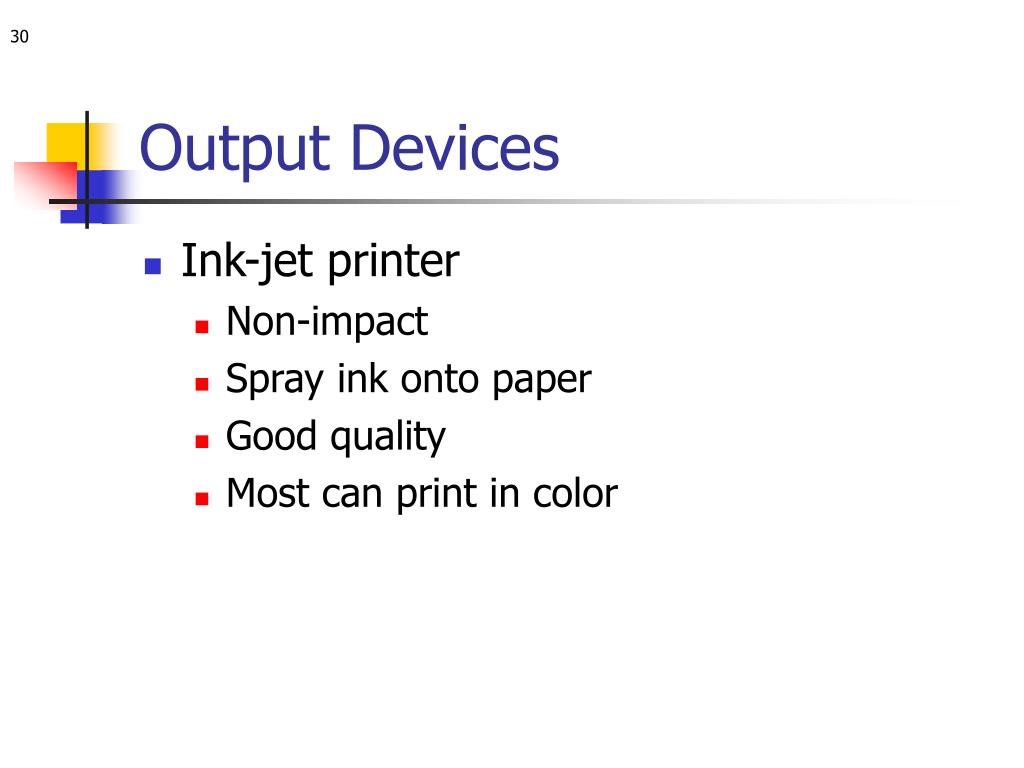

Output Devices
  • Ink-jet printer
    • Non-impact
    • Spray ink onto paper
    • Good quality
    • Most can print in color
computer terminal
Computer Terminal
  • Dumb terminal
    • Keyboard and monitor
    • No processing capability
  • Intelligent terminal
    • Keyboard, monitor, memory
    • Some processing capability
  • Both dumb and intelligent terminals must be connected to a “host” or server computer
point of sale terminal pos

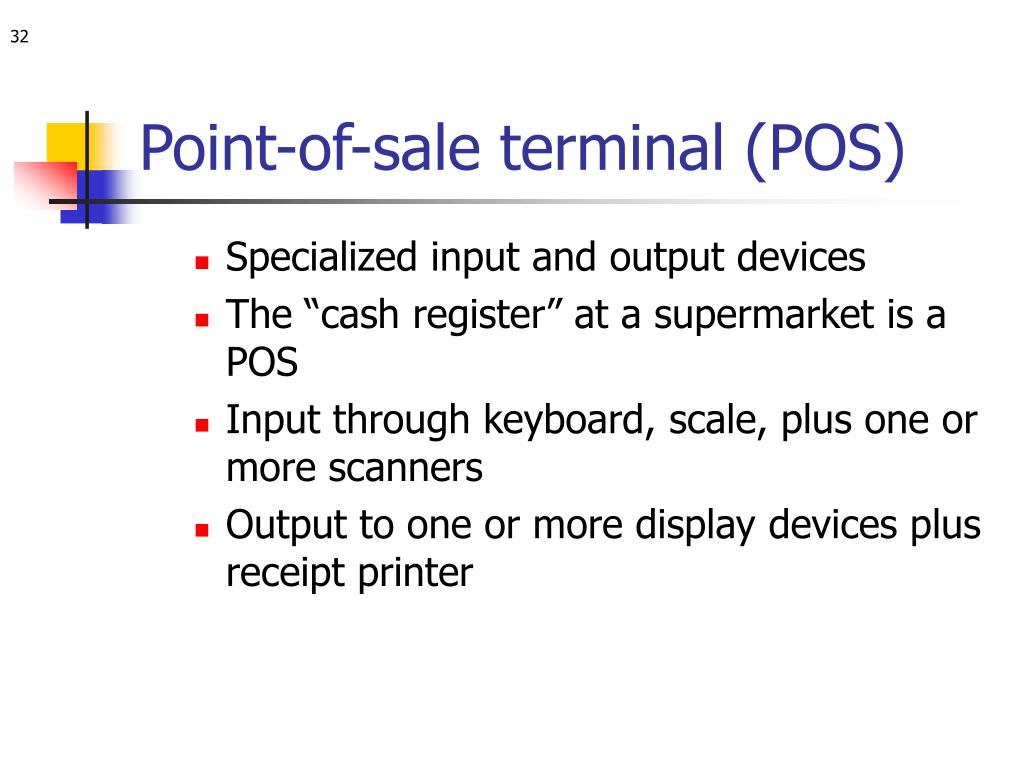

Point-of-sale terminal (POS)
  • Specialized input and output devices
  • The “cash register” at a supermarket is a POS
  • Input through keyboard, scale, plus one or more scanners
  • Output to one or more display devices plus receipt printer
