The Complete Guide to Stick Welding Procedure and Fume Extraction

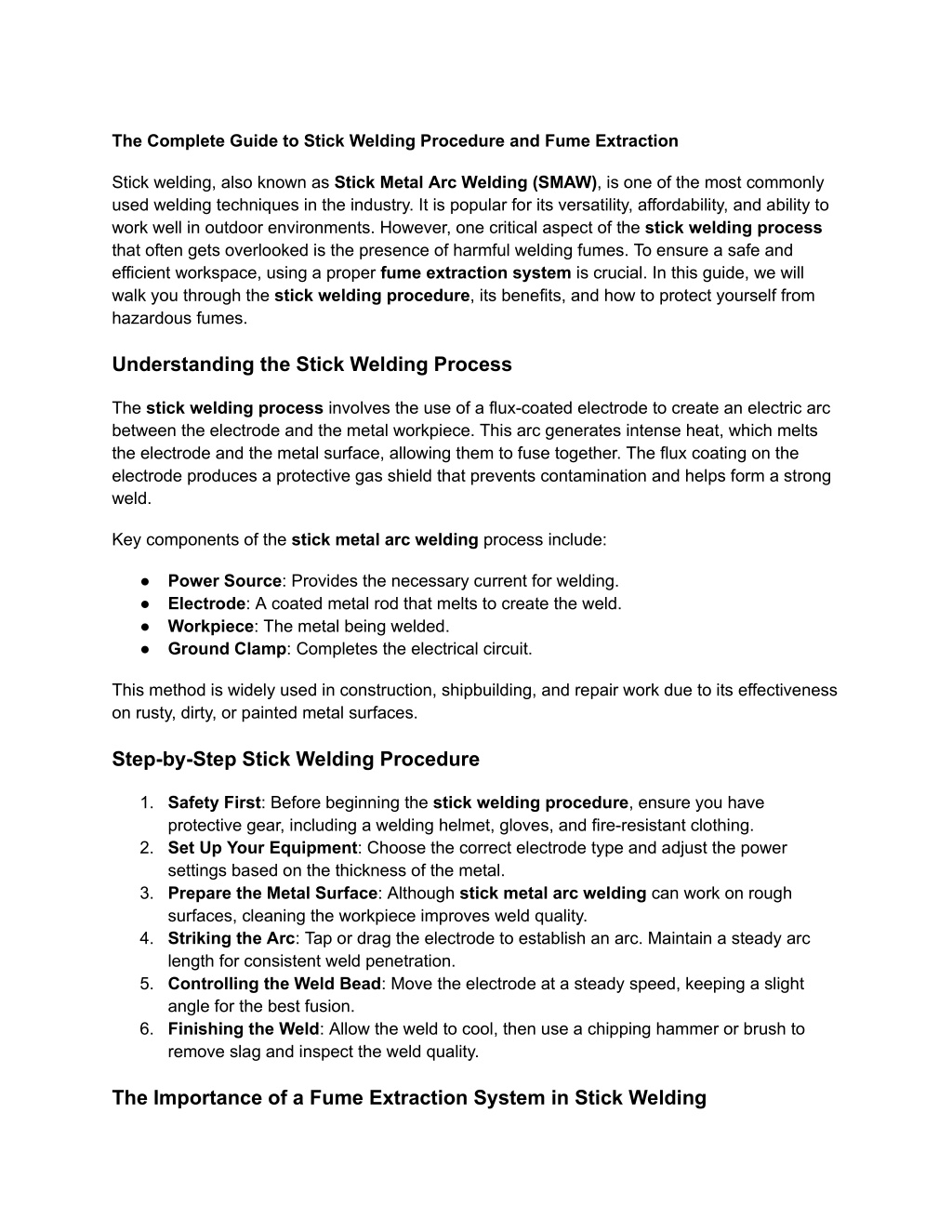

1. The Complete Guide to Stick Welding Procedure and Fume Extraction Stick welding, also known as Stick Metal Arc Welding (SMAW), is one of the most commonly used welding techniques in the industry. It is popular for its versatility, affordability, and ability to work well in outdoor environments. However, one critical aspect of the stick welding process that often gets overlooked is the presence of harmful welding fumes. To ensure a safe and efficient workspace, using a proper fume extraction system is crucial. In this guide, we will walk you through the stick welding procedure, its benefits, and how to protect yourself from hazardous fumes. Understanding the Stick Welding Process The stick welding process involves the use of a flux-coated electrode to create an electric arc between the electrode and the metal workpiece. This arc generates intense heat, which melts the electrode and the metal surface, allowing them to fuse together. The flux coating on the electrode produces a protective gas shield that prevents contamination and helps form a strong weld. Key components of the stick metal arc welding process include: ● Power Source: Provides the necessary current for welding. ● Electrode: A coated metal rod that melts to create the weld. ● Workpiece: The metal being welded. ● Ground Clamp: Completes the electrical circuit. This method is widely used in construction, shipbuilding, and repair work due to its effectiveness on rusty, dirty, or painted metal surfaces. Step-by-Step Stick Welding Procedure 1. Safety First: Before beginning the stick welding procedure, ensure you have protective gear, including a welding helmet, gloves, and fire-resistant clothing. 2. Set Up Your Equipment: Choose the correct electrode type and adjust the power settings based on the thickness of the metal. 3. Prepare the Metal Surface: Although stick metal arc welding can work on rough surfaces, cleaning the workpiece improves weld quality. 4. Striking the Arc: Tap or drag the electrode to establish an arc. Maintain a steady arc length for consistent weld penetration. 5. Controlling the Weld Bead: Move the electrode at a steady speed, keeping a slight angle for the best fusion. 6. Finishing the Weld: Allow the weld to cool, then use a chipping hammer or brush to remove slag and inspect the weld quality. The Importance of a Fume Extraction System in Stick Welding

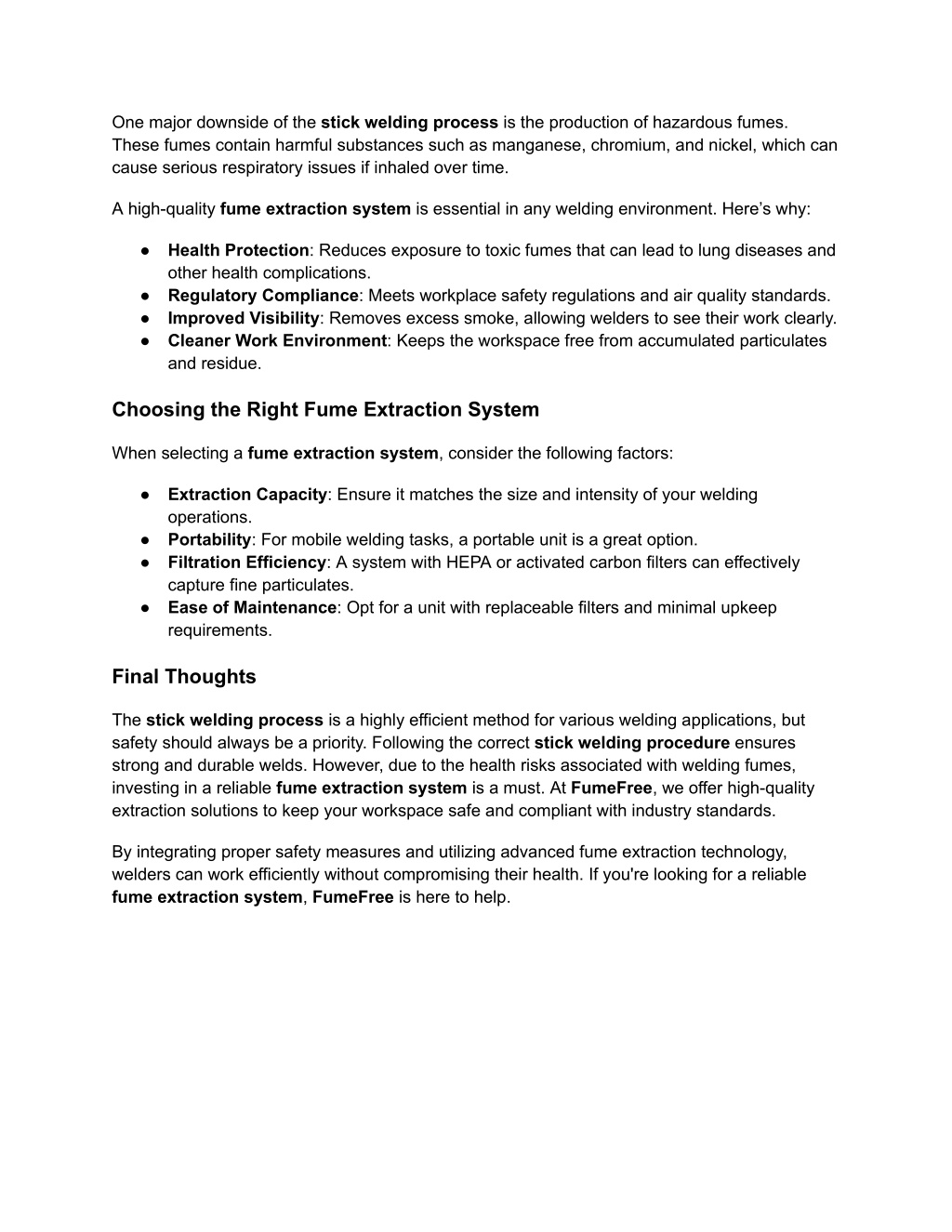

2. One major downside of the stick welding process is the production of hazardous fumes. These fumes contain harmful substances such as manganese, chromium, and nickel, which can cause serious respiratory issues if inhaled over time. A high-quality fume extraction system is essential in any welding environment. Here’s why: ● Health Protection: Reduces exposure to toxic fumes that can lead to lung diseases and other health complications. ● Regulatory Compliance: Meets workplace safety regulations and air quality standards. ● Improved Visibility: Removes excess smoke, allowing welders to see their work clearly. ● Cleaner Work Environment: Keeps the workspace free from accumulated particulates and residue. Choosing the Right Fume Extraction System When selecting a fume extraction system, consider the following factors: ● Extraction Capacity: Ensure it matches the size and intensity of your welding operations. ● Portability: For mobile welding tasks, a portable unit is a great option. ● Filtration Efficiency: A system with HEPA or activated carbon filters can effectively capture fine particulates. ● Ease of Maintenance: Opt for a unit with replaceable filters and minimal upkeep requirements. Final Thoughts The stick welding process is a highly efficient method for various welding applications, but safety should always be a priority. Following the correct stick welding procedure ensures strong and durable welds. However, due to the health risks associated with welding fumes, investing in a reliable fume extraction system is a must. At FumeFree, we offer high-quality extraction solutions to keep your workspace safe and compliant with industry standards. By integrating proper safety measures and utilizing advanced fume extraction technology, welders can work efficiently without compromising their health. If you're looking for a reliable fume extraction system, FumeFree is here to help.
