How to Choose a Fume Extraction System for Stick Welding

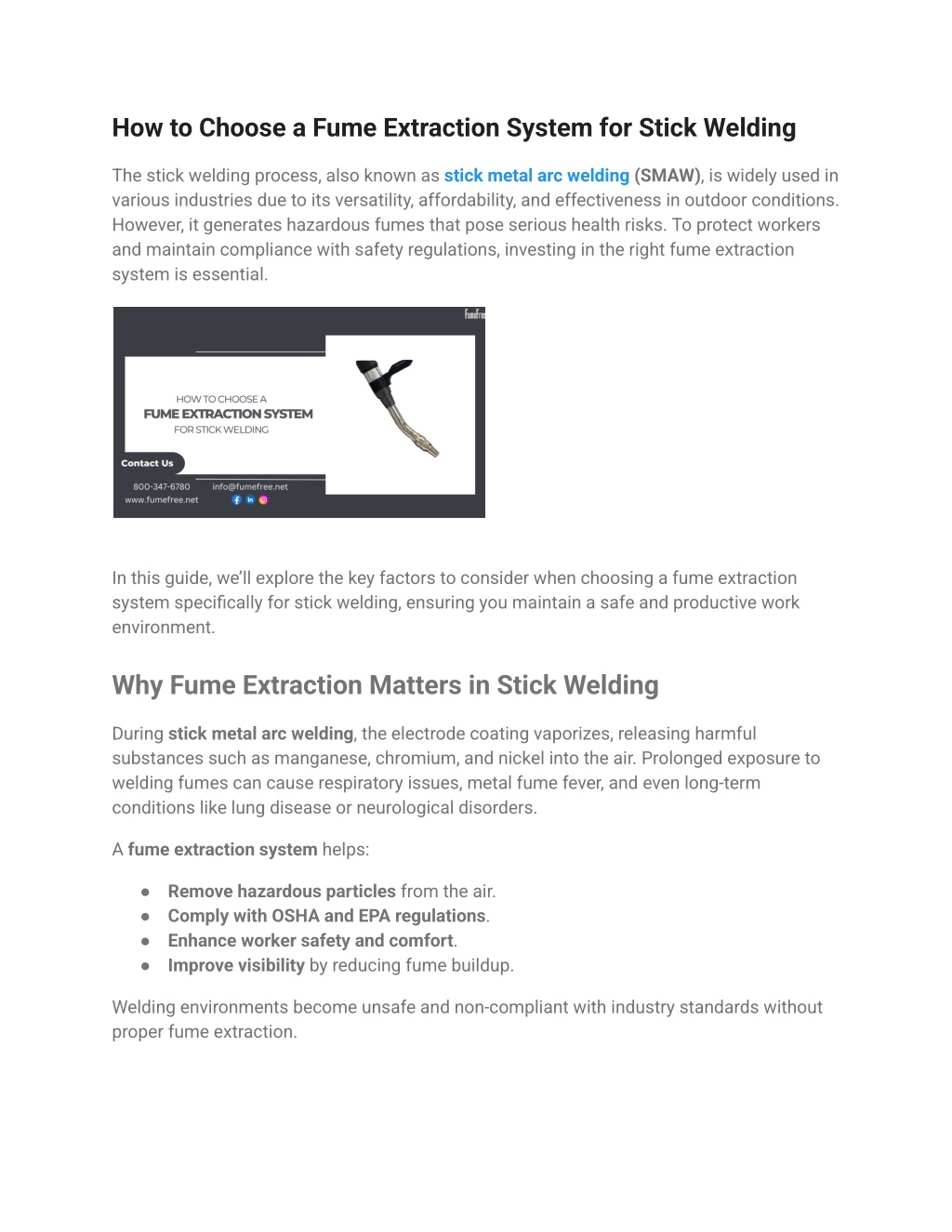

1. How to Choose a Fume Extraction System for Stick Welding The stick welding process, also known as stick metal arc welding (SMAW), is widely used in various industries due to its versatility, affordability, and effectiveness in outdoor conditions. However, it generates hazardous fumes that pose serious health risks. To protect workers and maintain compliance with safety regulations, investing in the right fume extraction system is essential. In this guide, we’ll explore the key factors to consider when choosing a fume extraction system specifically for stick welding, ensuring you maintain a safe and productive work environment. Why Fume Extraction Matters in Stick Welding During stick metal arc welding, the electrode coating vaporizes, releasing harmful substances such as manganese, chromium, and nickel into the air. Prolonged exposure to welding fumes can cause respiratory issues, metal fume fever, and even long-term conditions like lung disease or neurological disorders. A fume extraction system helps: ● Remove hazardous particles from the air. ● Comply with OSHA and EPA regulations. ● Enhance worker safety and comfort. ● Improve visibility by reducing fume buildup. Welding environments become unsafe and non-compliant with industry standards without proper fume extraction.

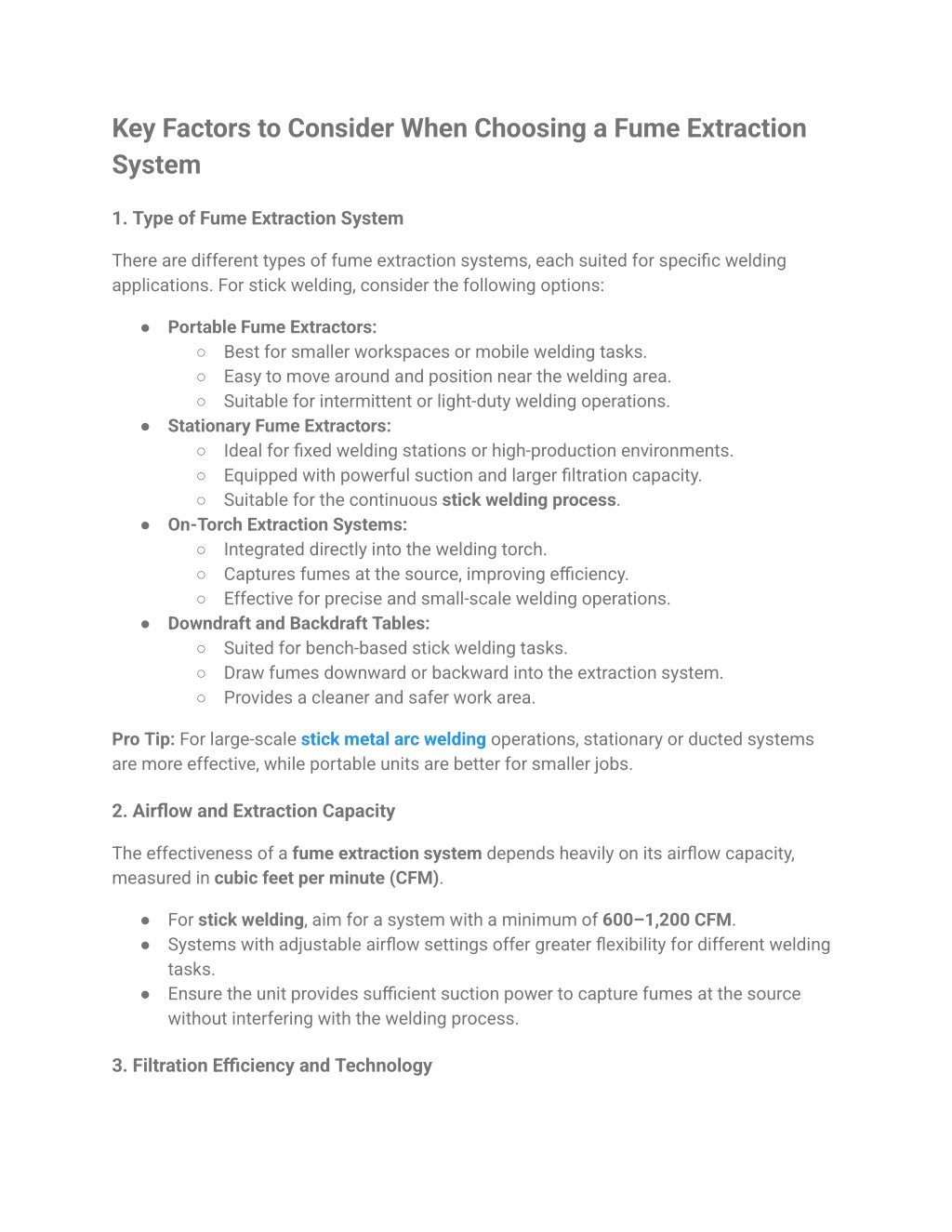

2. Key Factors to Consider When Choosing a Fume Extraction System 1. Type of Fume Extraction System There are different types of fume extraction systems, each suited for specific welding applications. For stick welding, consider the following options: ● Portable Fume Extractors: ○ Best for smaller workspaces or mobile welding tasks. ○ Easy to move around and position near the welding area. ○ Suitable for intermittent or light-duty welding operations. ● Stationary Fume Extractors: ○ Ideal for fixed welding stations or high-production environments. ○ Equipped with powerful suction and larger filtration capacity. ○ Suitable for the continuous stick welding process. ● On-Torch Extraction Systems: ○ Integrated directly into the welding torch. ○ Captures fumes at the source, improving efficiency. ○ Effective for precise and small-scale welding operations. ● Downdraft and Backdraft Tables: ○ Suited for bench-based stick welding tasks. ○ Draw fumes downward or backward into the extraction system. ○ Provides a cleaner and safer work area. Pro Tip: For large-scale stick metal arc welding operations, stationary or ducted systems are more effective, while portable units are better for smaller jobs. 2. Airflow and Extraction Capacity The effectiveness of a fume extraction system depends heavily on its airflow capacity, measured in cubic feet per minute (CFM). ● For stick welding, aim for a system with a minimum of 600–1,200 CFM. ● Systems with adjustable airflow settings offer greater flexibility for different welding tasks. ● Ensure the unit provides sufficient suction power to capture fumes at the source without interfering with the welding process. 3. Filtration Efficiency and Technology

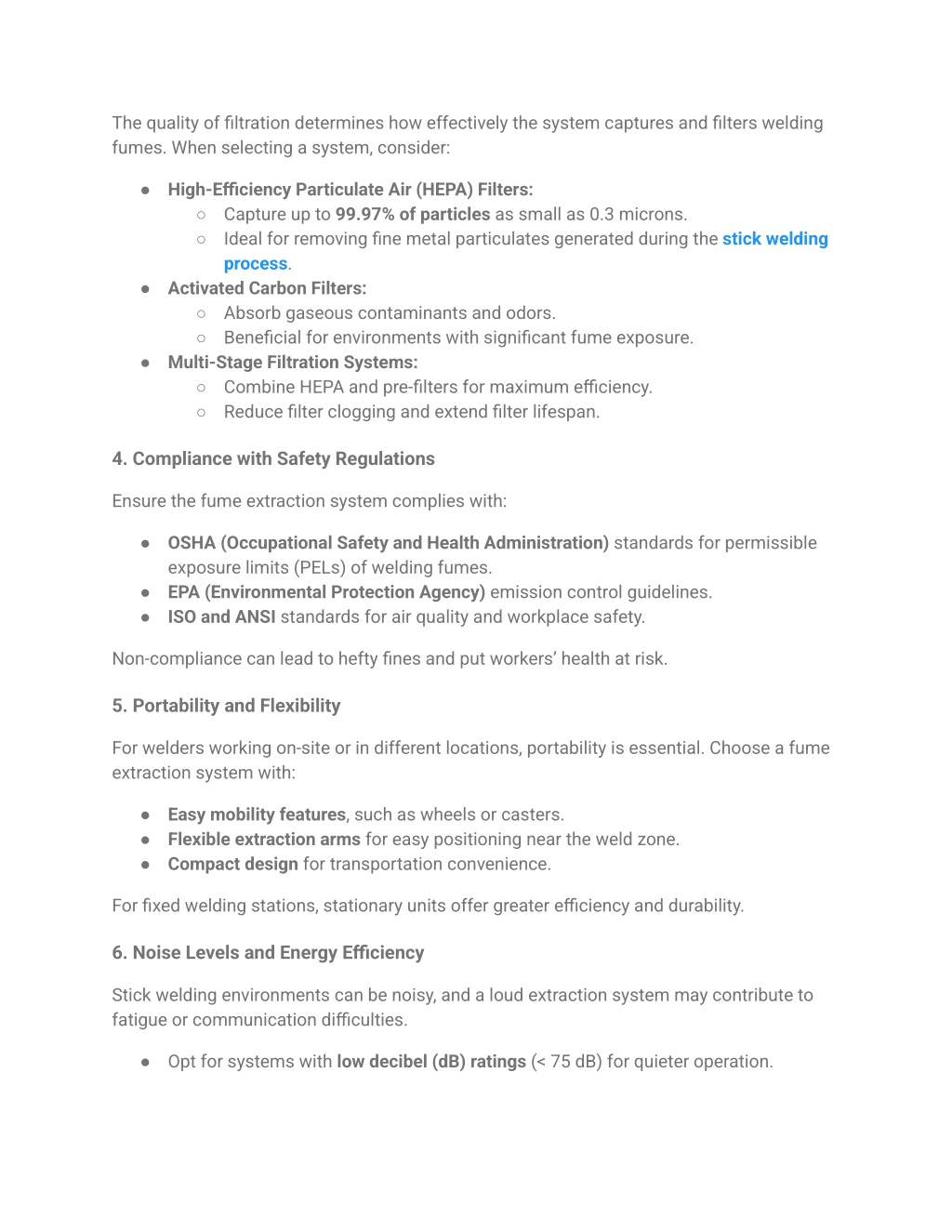

3. The quality of filtration determines how effectively the system captures and filters welding fumes. When selecting a system, consider: ● High-Efficiency Particulate Air (HEPA) Filters: ○ Capture up to 99.97% of particles as small as 0.3 microns. ○ Ideal for removing fine metal particulates generated during the stick welding process. ● Activated Carbon Filters: ○ Absorb gaseous contaminants and odors. ○ Beneficial for environments with significant fume exposure. ● Multi-Stage Filtration Systems: ○ Combine HEPA and pre-filters for maximum efficiency. ○ Reduce filter clogging and extend filter lifespan. 4. Compliance with Safety Regulations Ensure the fume extraction system complies with: ● OSHA (Occupational Safety and Health Administration) standards for permissible exposure limits (PELs) of welding fumes. ● EPA (Environmental Protection Agency) emission control guidelines. ● ISO and ANSI standards for air quality and workplace safety. Non-compliance can lead to hefty fines and put workers’ health at risk. 5. Portability and Flexibility For welders working on-site or in different locations, portability is essential. Choose a fume extraction system with: ● Easy mobility features, such as wheels or casters. ● Flexible extraction arms for easy positioning near the weld zone. ● Compact design for transportation convenience. For fixed welding stations, stationary units offer greater efficiency and durability. 6. Noise Levels and Energy Efficiency Stick welding environments can be noisy, and a loud extraction system may contribute to fatigue or communication difficulties. ● Opt for systems with low decibel (dB) ratings (< 75 dB) for quieter operation.

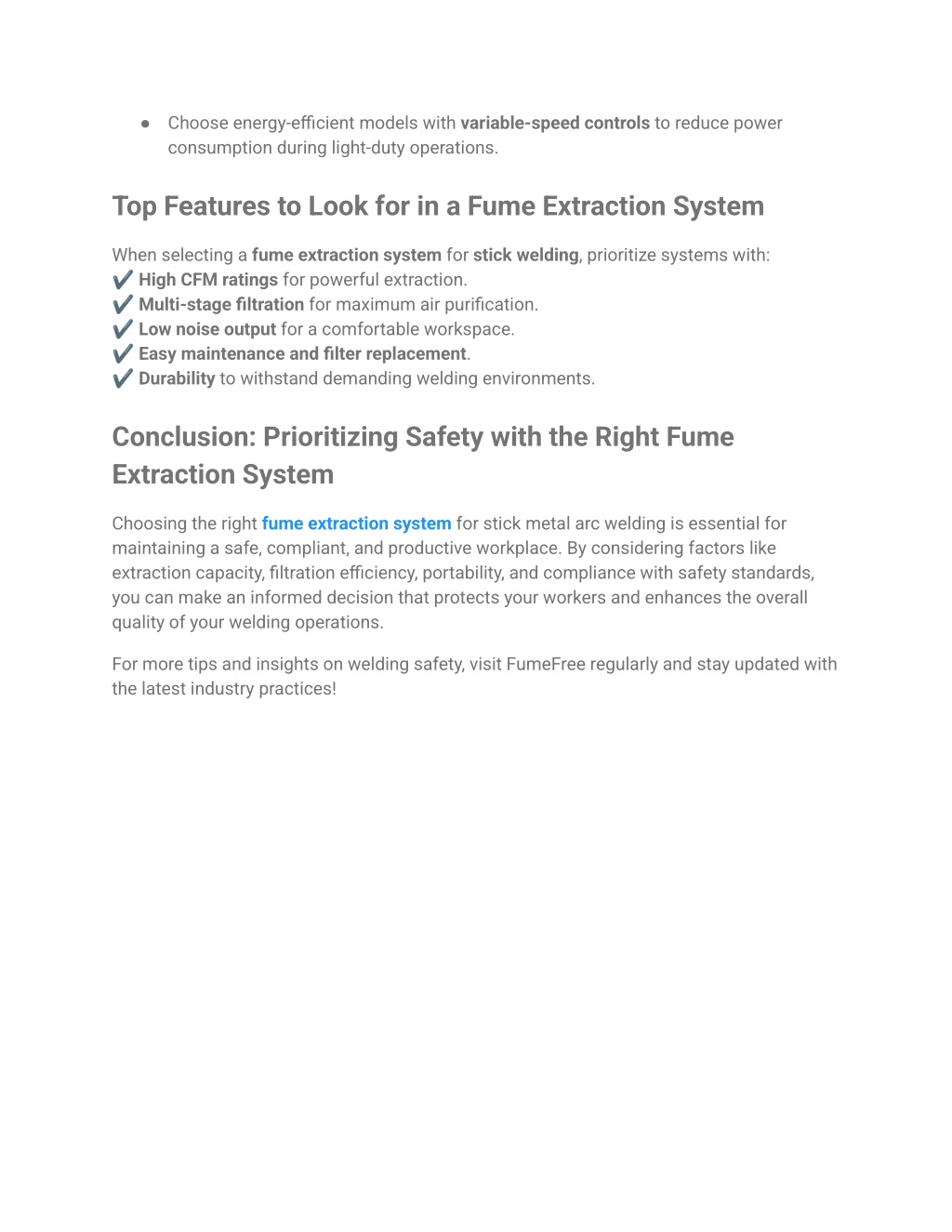

4. ● Choose energy-efficient models with variable-speed controls to reduce power consumption during light-duty operations. Top Features to Look for in a Fume Extraction System When selecting a fume extraction system for stick welding, prioritize systems with: ✔High CFM ratings for powerful extraction. ✔Multi-stage filtration for maximum air purification. ✔Low noise output for a comfortable workspace. ✔Easy maintenance and filter replacement. ✔Durability to withstand demanding welding environments. Conclusion: Prioritizing Safety with the Right Fume Extraction System Choosing the right fume extraction system for stick metal arc welding is essential for maintaining a safe, compliant, and productive workplace. By considering factors like extraction capacity, filtration efficiency, portability, and compliance with safety standards, you can make an informed decision that protects your workers and enhances the overall quality of your welding operations. For more tips and insights on welding safety, visit FumeFree regularly and stay updated with the latest industry practices!
