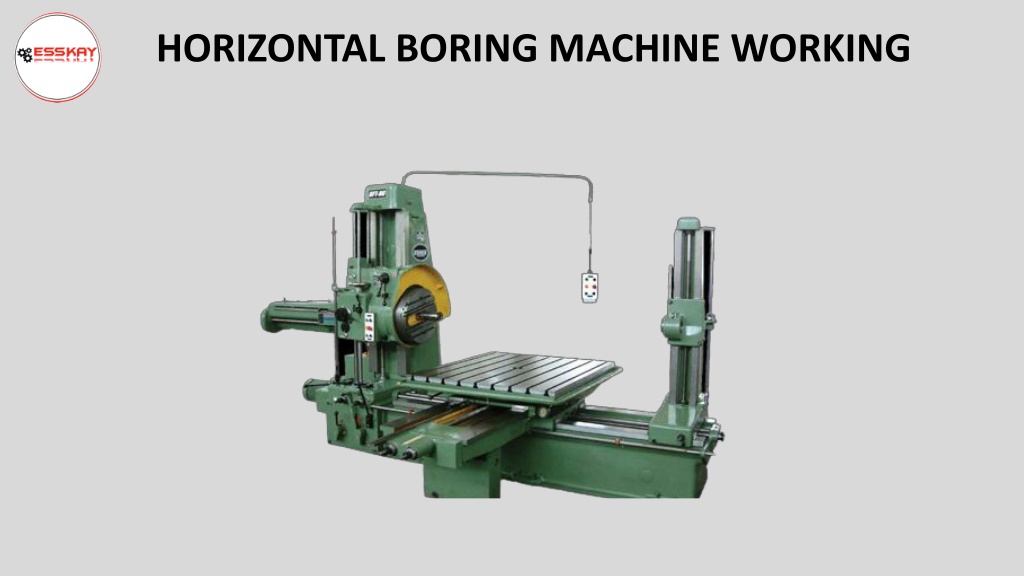

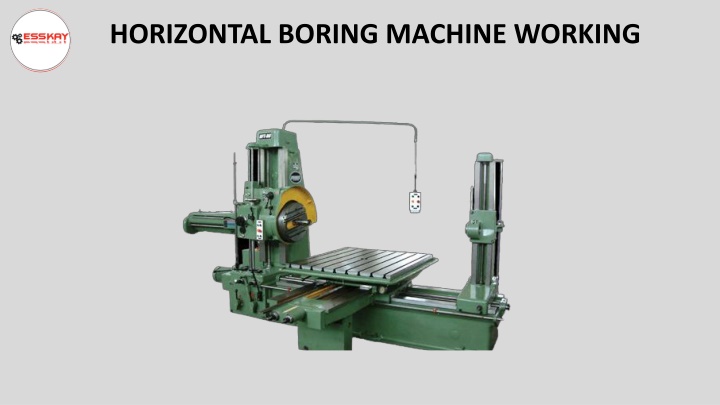

  1. HORIZONTAL BORING MACHINE WORKING

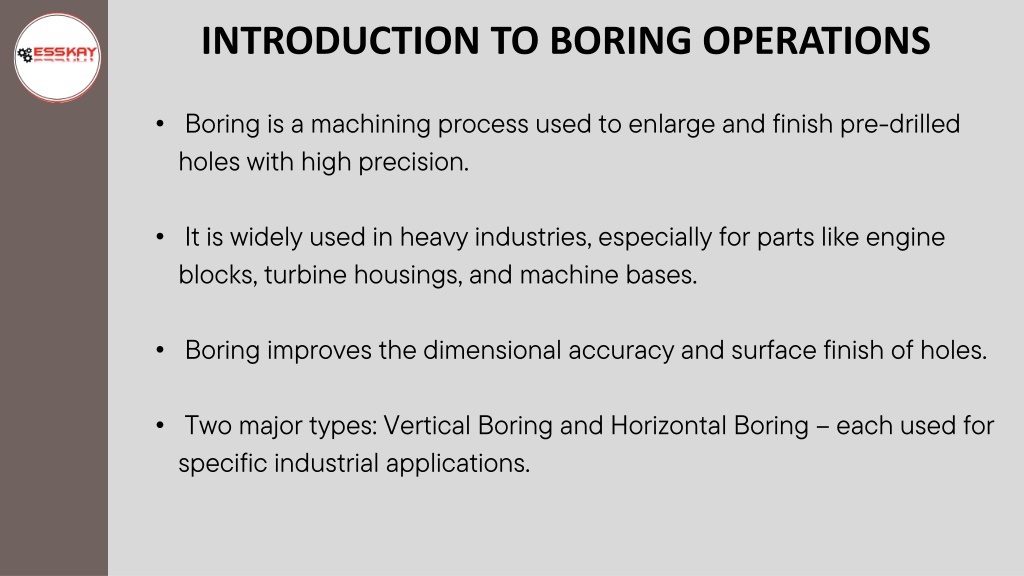

  2. INTRODUCTION TO BORING OPERATIONS • Boring is a machining process used to enlarge and finish pre-drilled holes with high precision. • It is widely used in heavy industries, especially for parts like engine blocks, turbine housings, and machine bases. • Boring improves the dimensional accuracy and surface finish of holes. • Two major types: Vertical Boring and Horizontal Boring – each used for specific industrial applications.

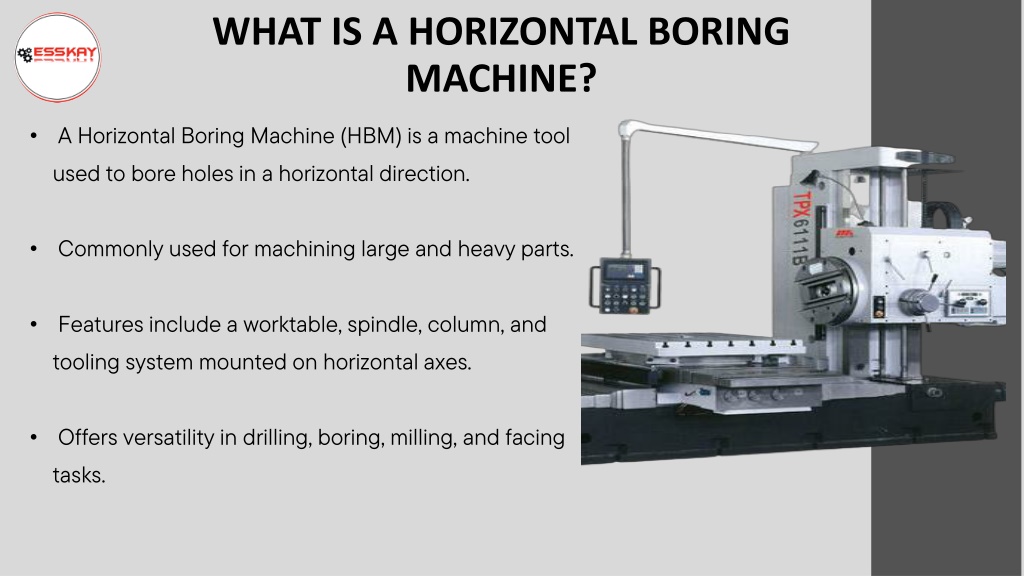

  3. WHAT IS A HORIZONTAL BORING MACHINE? • A Horizontal Boring Machine (HBM) is a machine tool used to bore holes in a horizontal direction. • Commonly used for machining large and heavy parts. • Features include a worktable, spindle, column, and tooling system mounted on horizontal axes. • Offers versatility in drilling, boring, milling, and facing tasks.

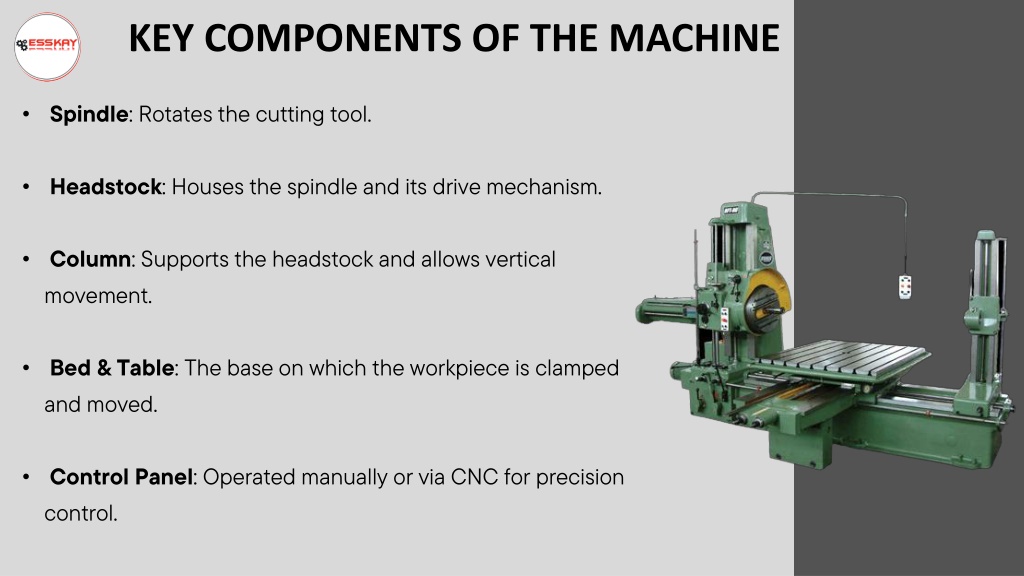

  4. KEY COMPONENTS OF THE MACHINE • Spindle: Rotates the cutting tool. • Headstock: Houses the spindle and its drive mechanism. • Column: Supports the headstock and allows vertical movement. • Bed & Table: The base on which the workpiece is clamped and moved. • Control Panel: Operated manually or via CNC for precision control.

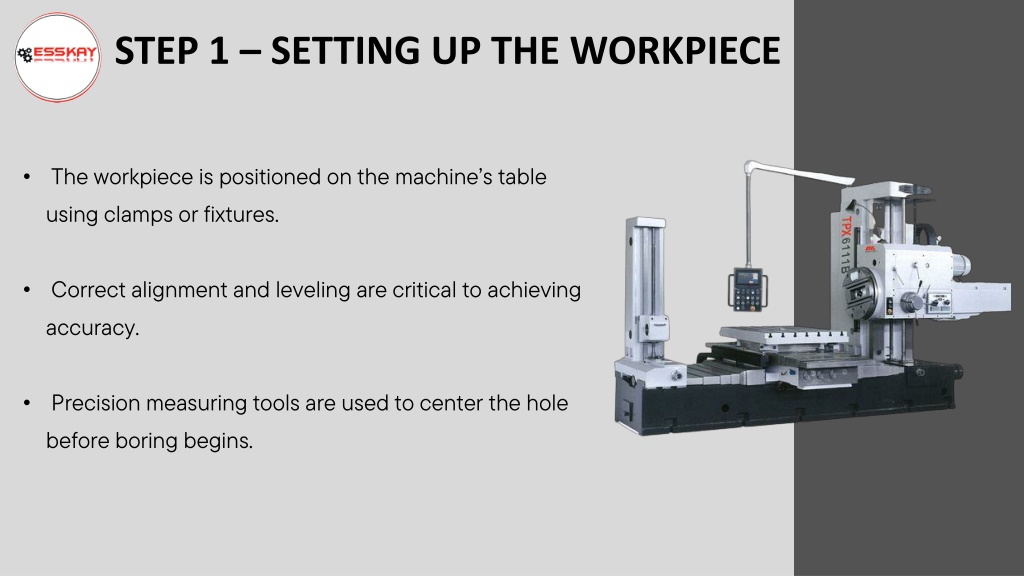

  5. STEP 1 – SETTING UP THE WORKPIECE • The workpiece is positioned on the machine’s table using clamps or fixtures. • Correct alignment and leveling are critical to achieving accuracy. • Precision measuring tools are used to center the hole before boring begins.

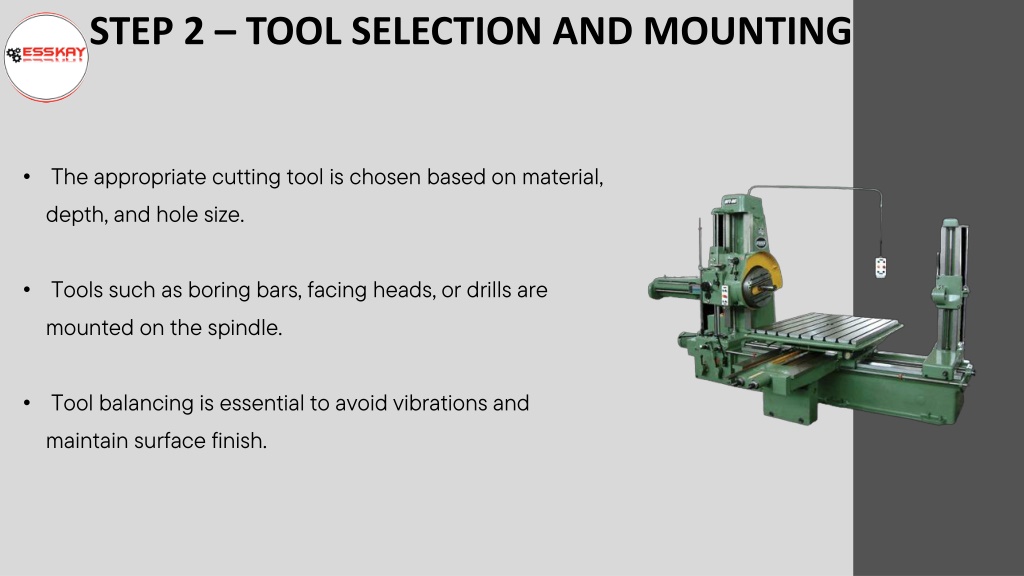

  6. STEP 2 – TOOL SELECTION AND MOUNTING • The appropriate cutting tool is chosen based on material, depth, and hole size. • Tools such as boring bars, facing heads, or drills are mounted on the spindle. • Tool balancing is essential to avoid vibrations and maintain surface finish.

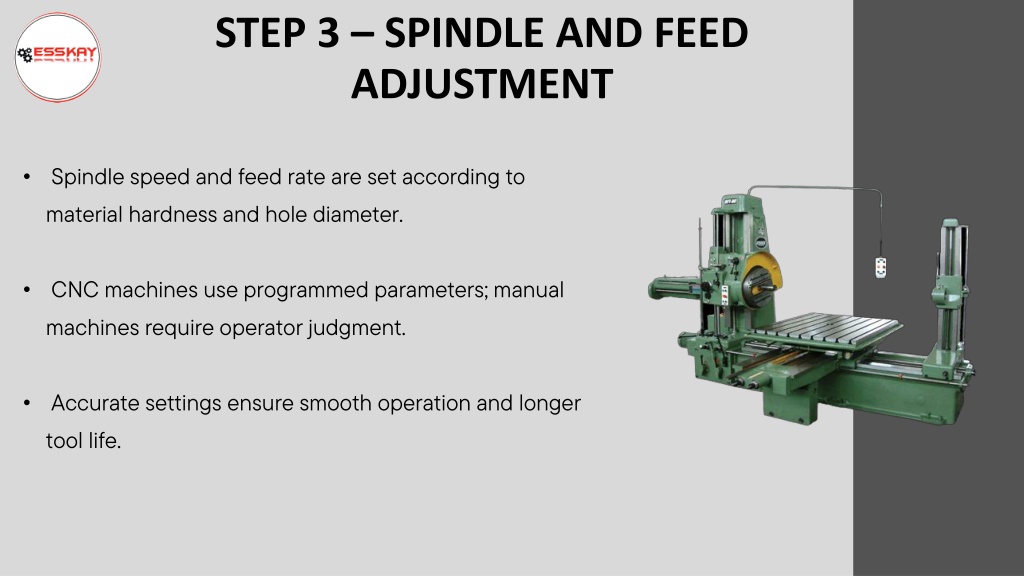

  7. STEP 3 – SPINDLE AND FEED ADJUSTMENT • Spindle speed and feed rate are set according to material hardness and hole diameter. • CNC machines use programmed parameters; manual machines require operator judgment. • Accurate settings ensure smooth operation and longer tool life.

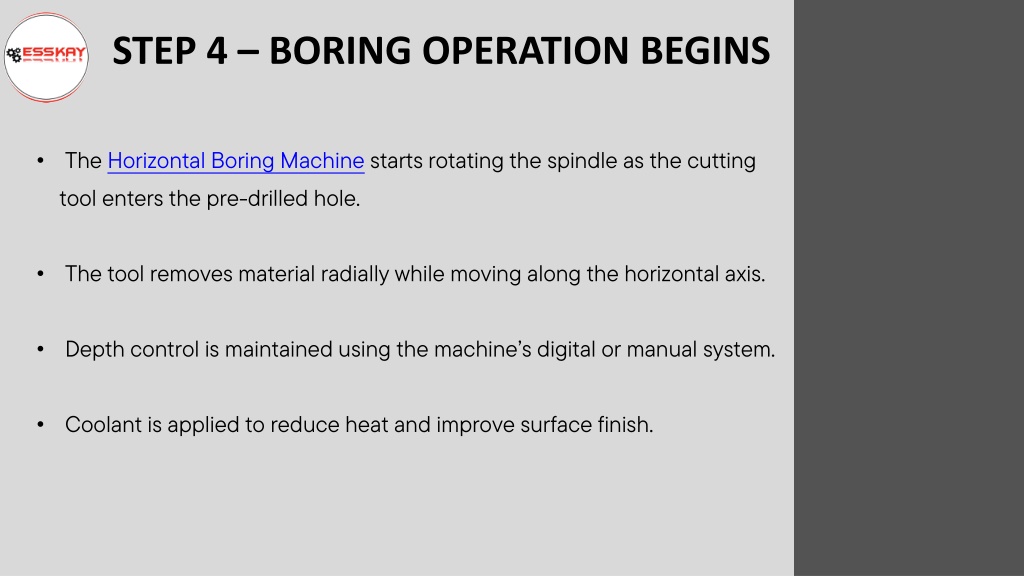

  8. STEP 4 – BORING OPERATION BEGINS • The Horizontal Boring Machine starts rotating the spindle as the cutting tool enters the pre-drilled hole. • The tool removes material radially while moving along the horizontal axis. • Depth control is maintained using the machine’s digital or manual system. • Coolant is applied to reduce heat and improve surface finish.

  9. STEP 5 – FINAL SIZING AND FINISHING • Once rough boring is done, fine boring or finishing passes are made to meet tight tolerances. • Precision tools with carbide tips or diamond inserts are used. • Measurements are taken with inside micrometers or bore gauges to verify accuracy.

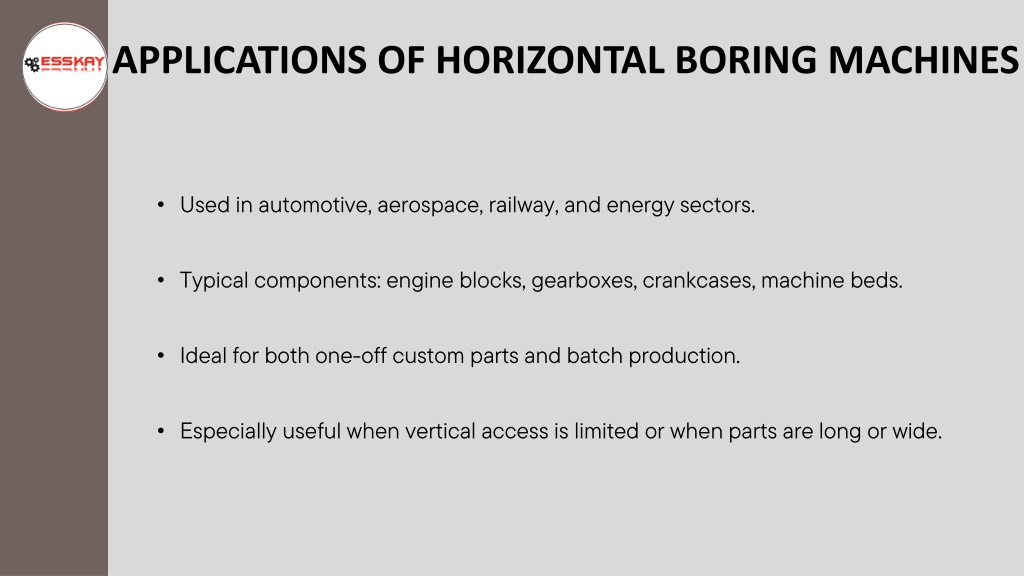

  10. APPLICATIONS OF HORIZONTAL BORING MACHINES • Used in automotive, aerospace, railway, and energy sectors. • Typical components: engine blocks, gearboxes, crankcases, machine beds. • Ideal for both one-off custom parts and batch production. • Especially useful when vertical access is limited or when parts are long or wide.

  11. ADVANTAGES AND SAFETY CONSIDERATIONS • Advantages: • High precision and repeatability • Suitable for large and complex parts • Multi-functional (boring, milling, drilling, facing) • Safety Tips: • Wear safety goggles and gloves • Never adjust work pieces while the machine is running • Regular maintenance of spindle and bearings is vital

  12. Contact Us: Esskay Machines 29/23, ByepassDhir Road, Batala, Punjab +91 98721-72154 esskaylathegroup@gmail.com https://esskaymachines.com/
