Trinocular Epi-fluorescence LED Microscope

Labtron biological microscope features a user-friendly design with a finite optical system and a sliding, 45u00b0 inclined binocular head. It includes an iris diaphragm and filter, WF10X eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

Trinocular Epi-fluorescence LED Microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Trinocular EPI- Fluorescence LED Microscope

  2. www.labtron.uk | info@labtron.uk

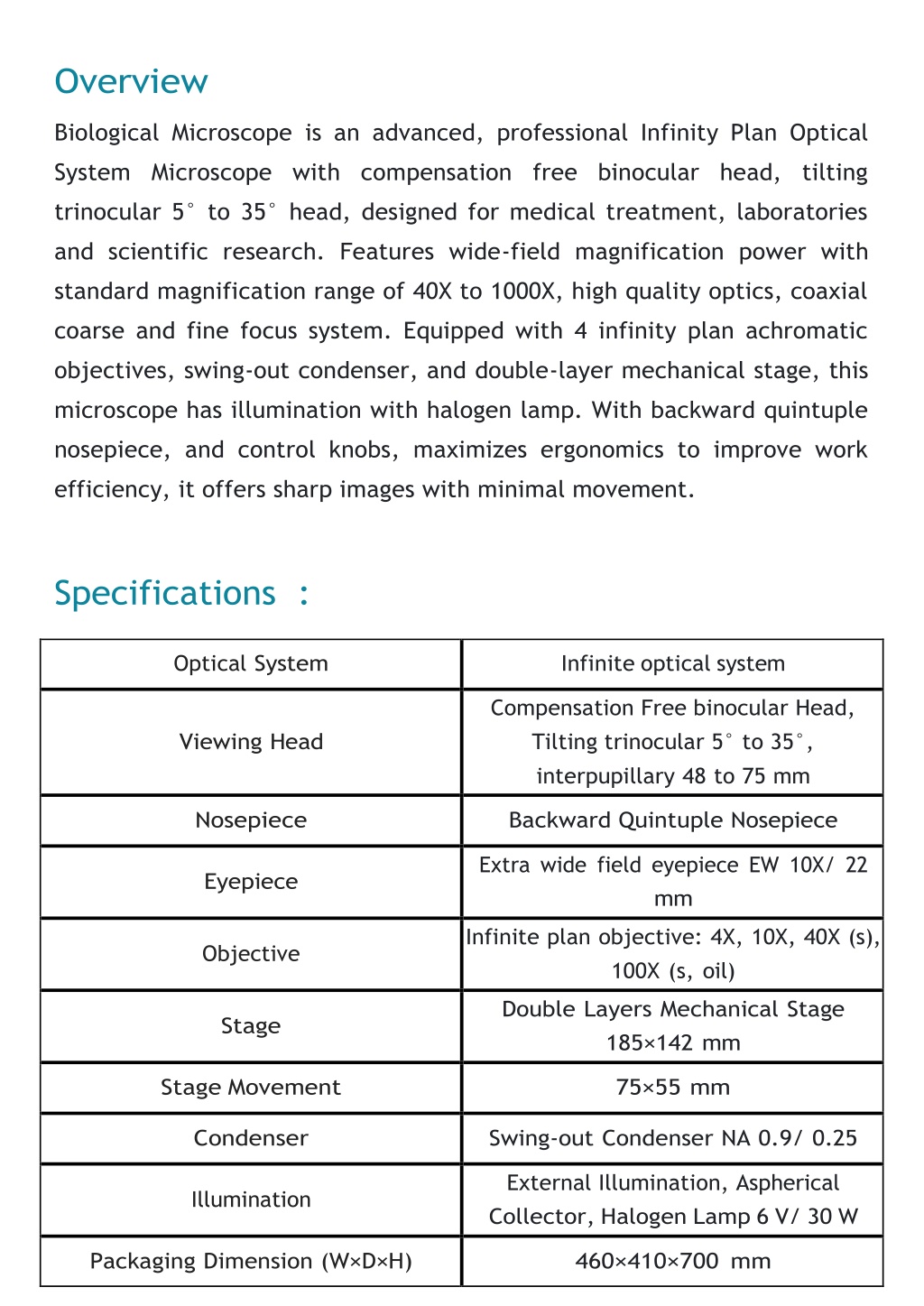

  3. Overview Biological Microscope is an advanced, professional Infinity Plan Optical System Microscope with compensation free binocular head, tilting trinocular 5° to 35° head, designed for medical treatment, laboratories and scientific research. Features wide-field magnification power with standard magnification range of 40X to 1000X, high quality optics, coaxial coarse and fine focus system. Equipped with 4 infinity plan achromatic objectives, swing-out condenser, and double-layer mechanical stage, this microscope has illumination with halogen lamp. With backward quintuple nosepiece, and control knobs, maximizes ergonomics to improve work efficiency, it offers sharp images with minimal movement. Specifications: Optical System Infinite optical system Compensation Free binocular Head, Tilting trinocular 5° to 35°, interpupillary 48 to 75 mm Viewing Head Nosepiece Backward Quintuple Nosepiece Extra wide field eyepiece EW 10X/ 22 mm Eyepiece Infinite plan objective: 4X, 10X, 40X (s), 100X (s, oil) Objective Double Layers Mechanical Stage 185×142 mm Stage Stage Movement 75×55 mm Condenser Swing-out Condenser NA 0.9/ 0.25 External Illumination, Aspherical Collector, Halogen Lamp 6 V/ 30 W Illumination Packaging Dimension (W×D×H) 460×410×700 mm

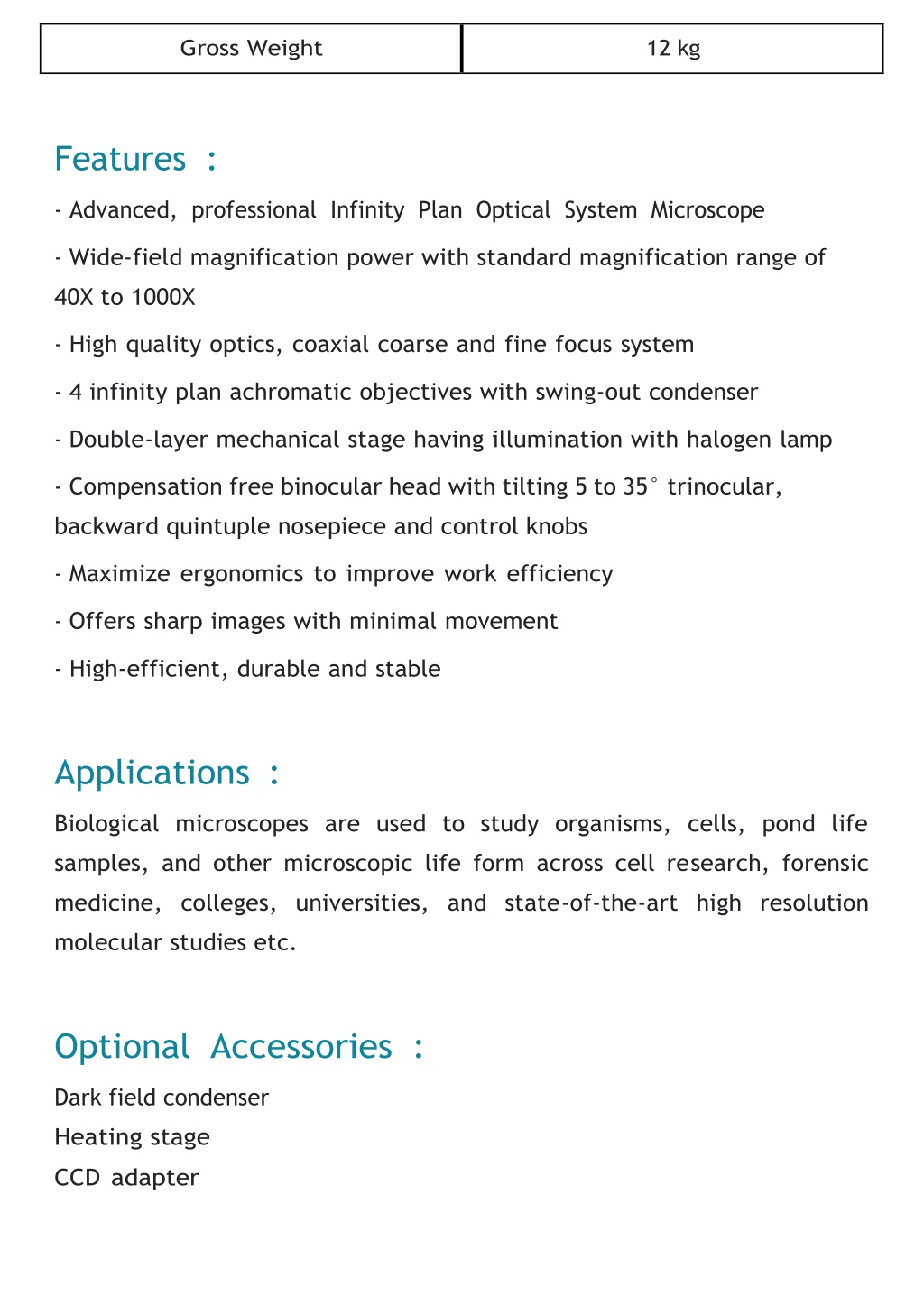

  4. Gross Weight 12 kg Features: -Advanced,professionalInfinityPlanOpticalSystemMicroscope -Wide-field magnification power with standard magnification range of 40X to 1000X -High quality optics, coaxial coarse and fine focus system -4 infinity plan achromatic objectives with swing-out condenser -Double-layer mechanical stage having illumination with halogen lamp -Compensation free binocular head with tilting 5 to 35° trinocular, backward quintuple nosepiece and control knobs -Maximize ergonomics to improve work efficiency -Offers sharp images with minimal movement -High-efficient, durable and stable Applications: Biological microscopes are used to study organisms, cells, pond life samples, and other microscopic life form across cell research, forensic medicine, colleges, universities, and state-of-the-art high resolution molecular studies etc. OptionalAccessories: Dark field condenser Heating stage CCD adapter

  5. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
