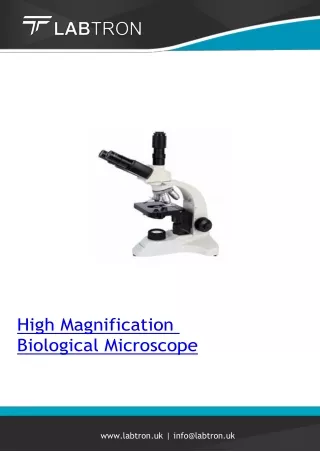

High Magnification Biological-Microscope

Labtron siedentop trinocular biological microscope features a user-friendly design with a finite optical system and a sliding, 360u00b0 inclined trinocular head. It includes an iris diaphragm and filter, focus 200mm eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

High Magnification Biological-Microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

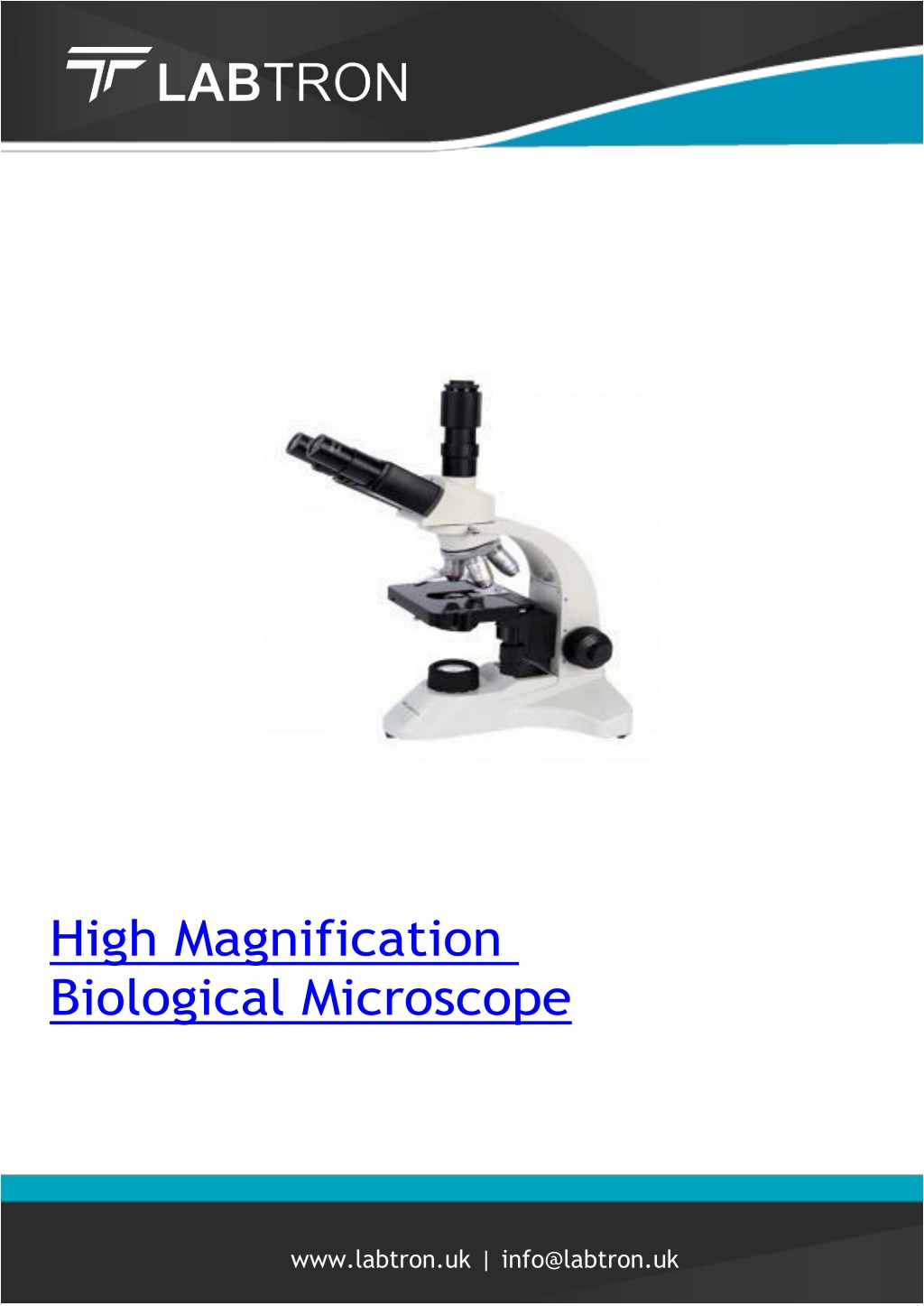

  1. High Magnification Biological Microscope www.labtron.uk | info@labtron.uk

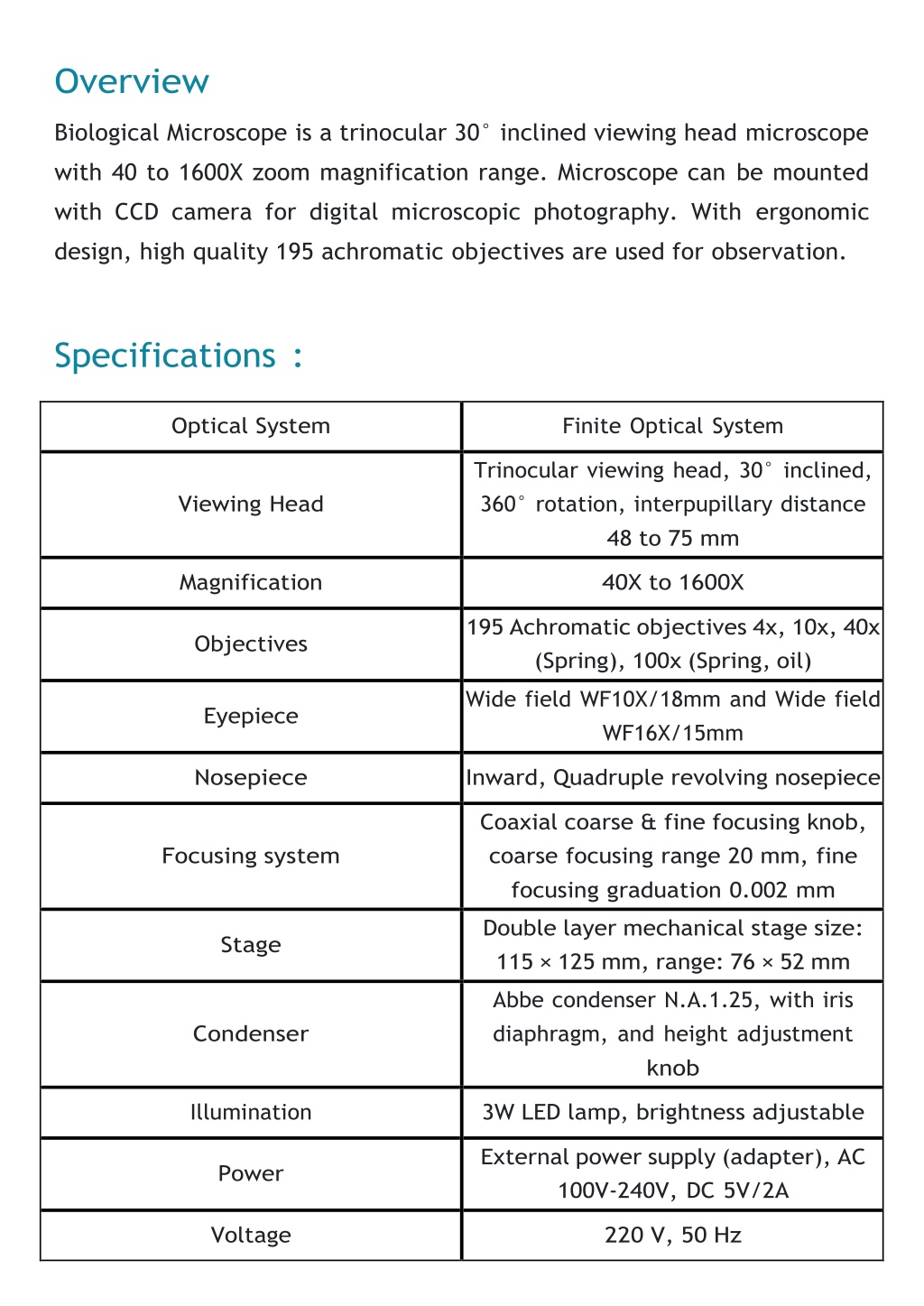

  2. Overview Biological Microscope is a trinocular 30° inclined viewing head microscope with 40 to 1600X zoom magnification range. Microscope can be mounted with CCD camera for digital microscopic photography. With ergonomic design, high quality 195 achromatic objectives are used for observation. Specifications : Optical System Finite Optical System Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm Viewing Head Magnification 40X to 1600X 195 Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil) Objectives Wide field WF10X/18mm and Wide field WF16X/15mm Eyepiece Nosepiece Inward, Quadruple revolving nosepiece Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm Focusing system Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm Stage Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob Condenser Illumination 3W LED lamp, brightness adjustable External power supply (adapter), AC 100V-240V, DC 5V/2A Power Voltage 220 V, 50 Hz

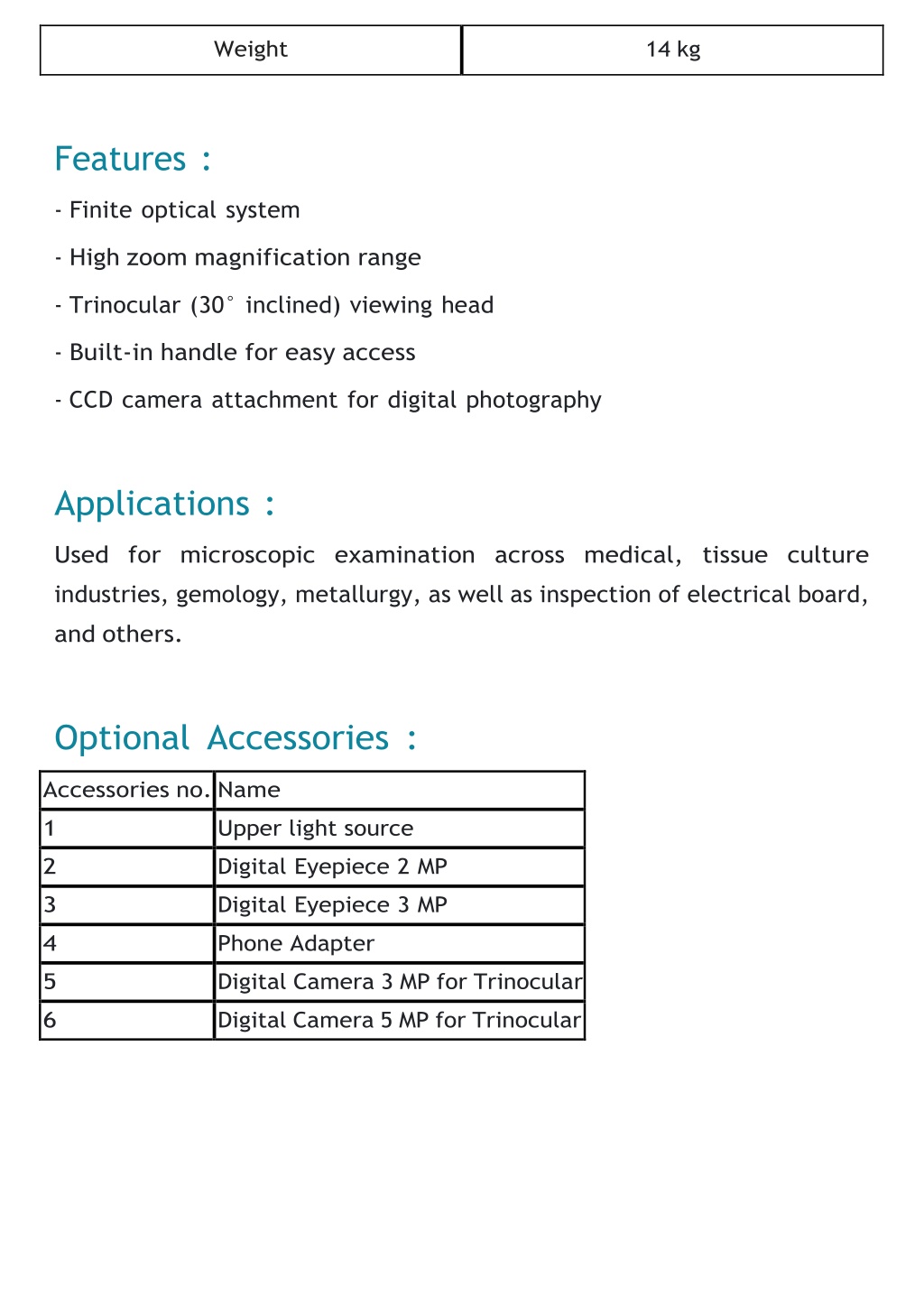

  3. Weight 14 kg Features : -Finite optical system -High zoom magnification range -Trinocular (30° inclined) viewing head -Built-in handle for easy access -CCD camera attachment for digital photography Applications : Used for microscopic examination across medical, tissue culture industries, gemology, metallurgy, as well as inspection of electrical board, and others. Optional Accessories : Accessories no.Name 1 Upper light source 2 Digital Eyepiece 2 MP 3 Digital Eyepiece 3 MP 4 Phone Adapter 5 Digital Camera 3 MP for Trinocular 6 Digital Camera 5 MP for Trinocular

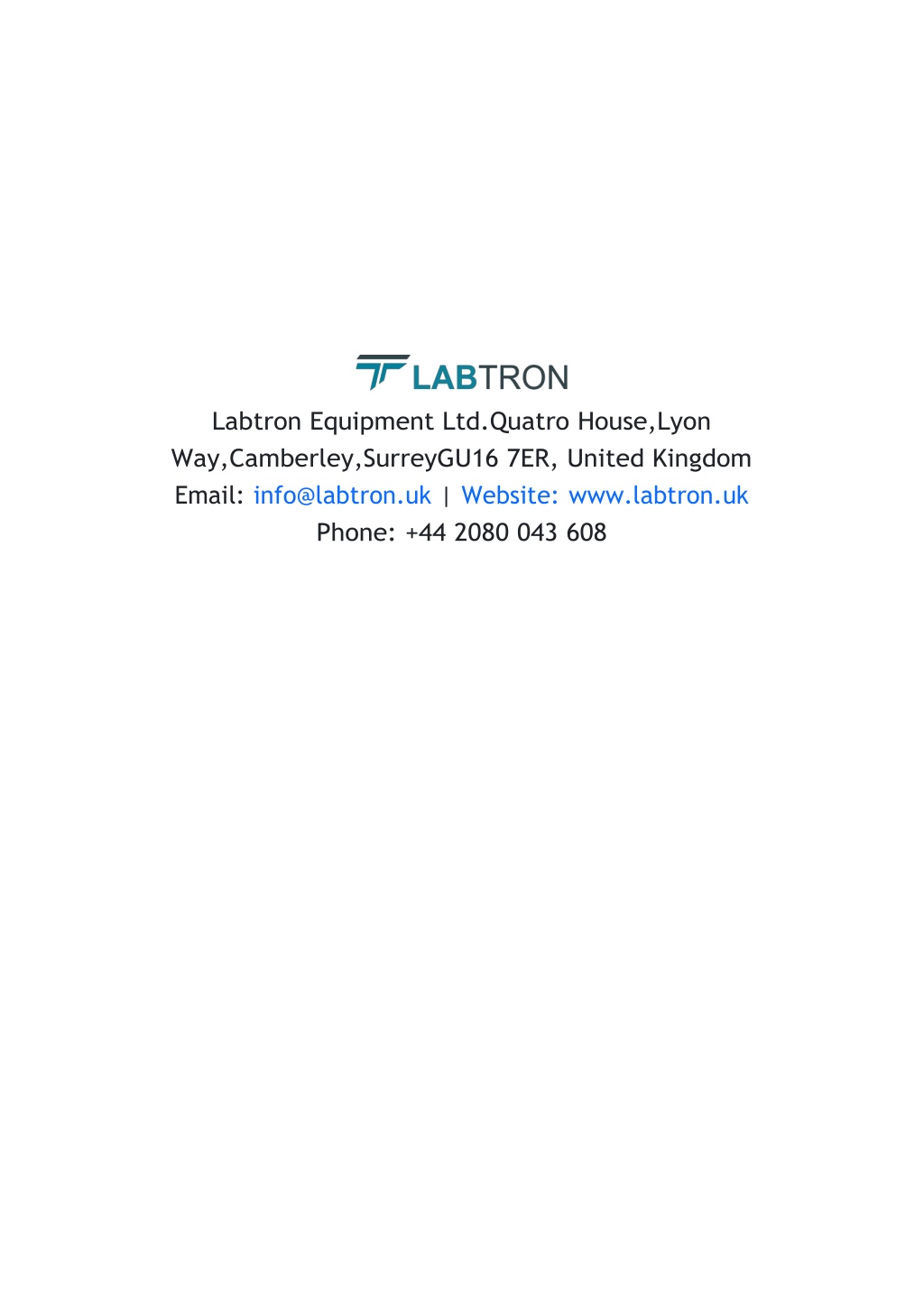

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
