Cooling-Incubator 500 L

Labtron cooling incubator is a microprocessor-based PID temperature controller to ensure consistent and precise temperature maintenance with a 500 L capacity. It includes three shelves and offers a temperature range from -10u00b0C to 65u00b0C with a display resolution of 0.1u00b0C. The incubator utilizes R134a refrigerant.

Erica57
Download Presentation

Cooling-Incubator 500 L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

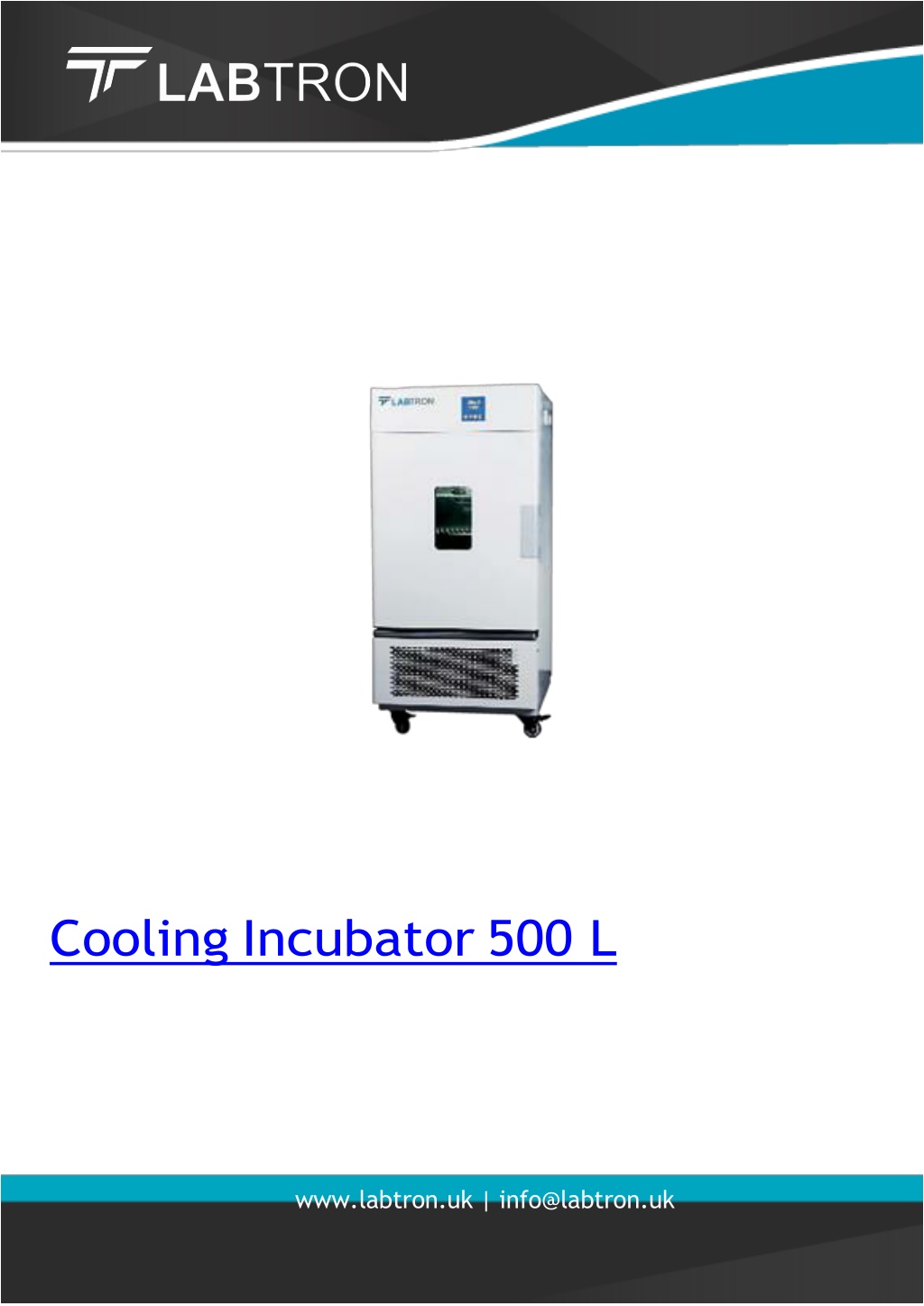

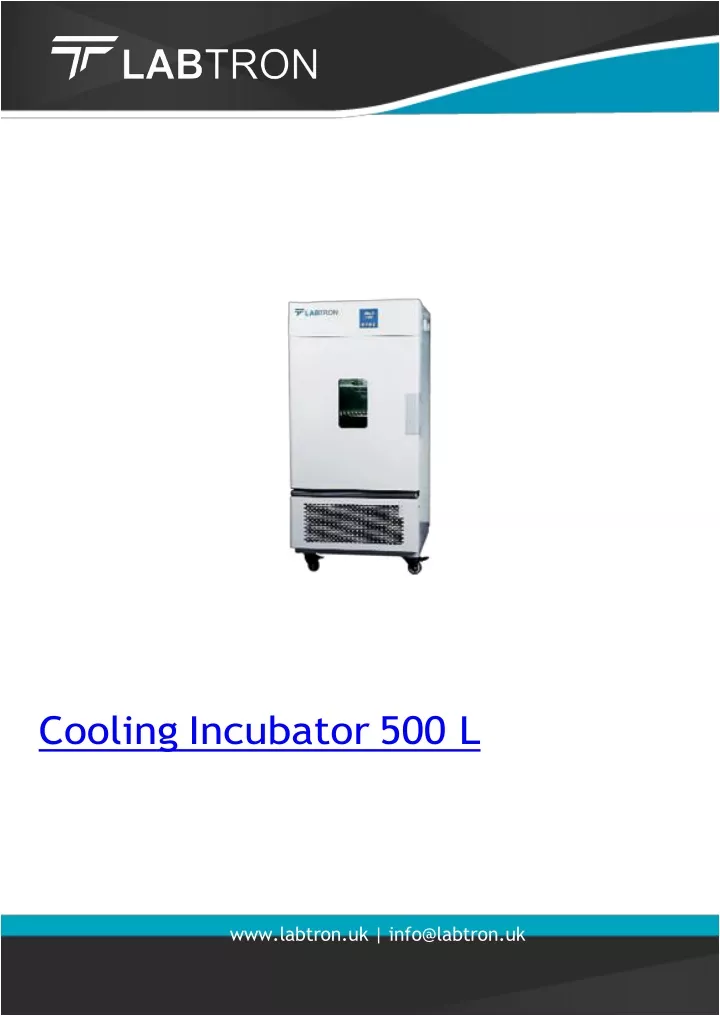

  1. Cooling Incubator 500 L www.labtron.uk | info@labtron.uk

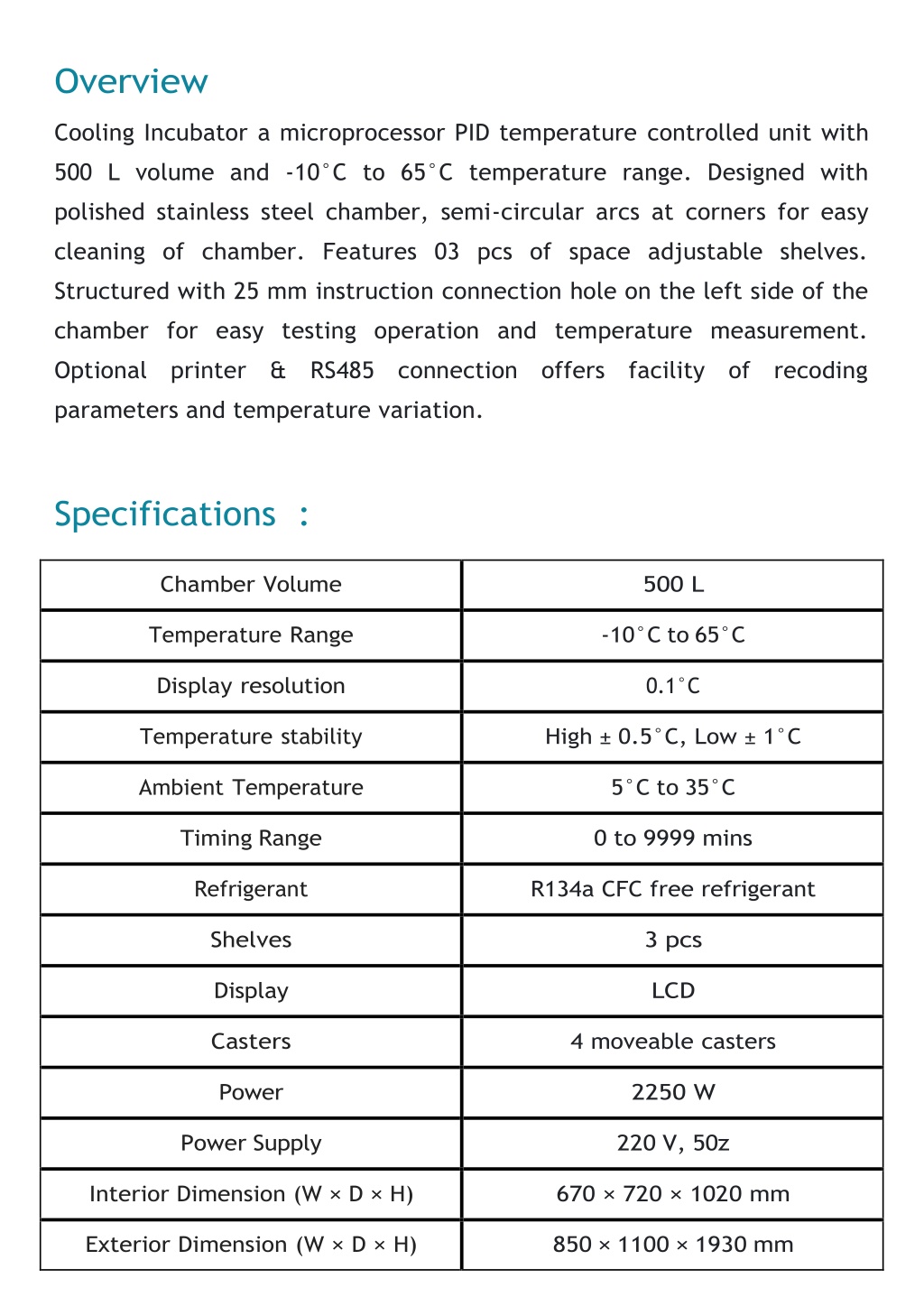

  2. Overview Cooling Incubator a microprocessor PID temperature controlled unit with 500 L volume and -10°C to 65°C temperature range. Designed with polished stainless steel chamber, semi-circular arcs at corners for easy cleaning of chamber. Features 03 pcs of space adjustable shelves. Structured with 25 mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement. Optional printer & RS485 connection offers facility of recoding parameters and temperature variation. Specifications: Chamber Volume 500 L Temperature Range -10°C to 65°C Display resolution 0.1°C Temperature stability High ± 0.5°C, Low ± 1°C Ambient Temperature 5°C to 35°C Timing Range 0 to 9999 mins Refrigerant R134a CFC free refrigerant Shelves 3 pcs Display LCD Casters 4 moveable casters Power 2250 W Power Supply 220 V, 50z Interior Dimension (W × D × H) 670 × 720 × 1020 mm Exterior Dimension (W × D × H) 850 × 1100 × 1930 mm

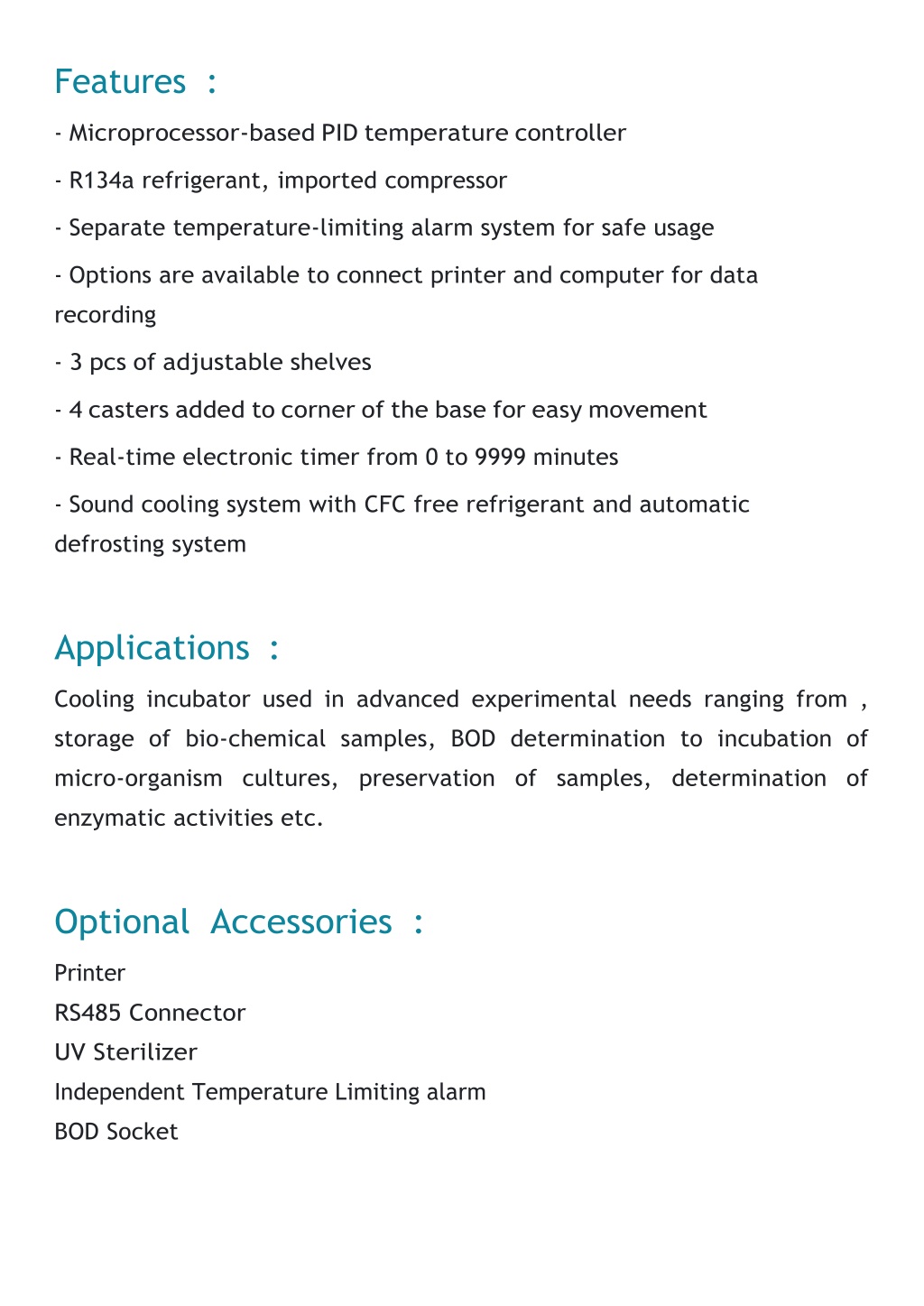

  3. Features: -Microprocessor-based PID temperature controller -R134a refrigerant, imported compressor -Separate temperature-limiting alarm system for safe usage -Options are available to connect printer and computer for data recording -3 pcs of adjustable shelves -4 casters added to corner of the base for easy movement -Real-time electronic timer from 0 to 9999 minutes -Sound cooling system with CFC free refrigerant and automatic defrosting system Applications: Cooling incubator used in advanced experimental needs ranging from , storage of bio-chemical samples, BOD determination to incubation of micro-organism cultures, preservation of samples, determination of enzymatic activities etc. OptionalAccessories: Printer RS485 Connector UV Sterilizer Independent Temperature Limiting alarm BOD Socket

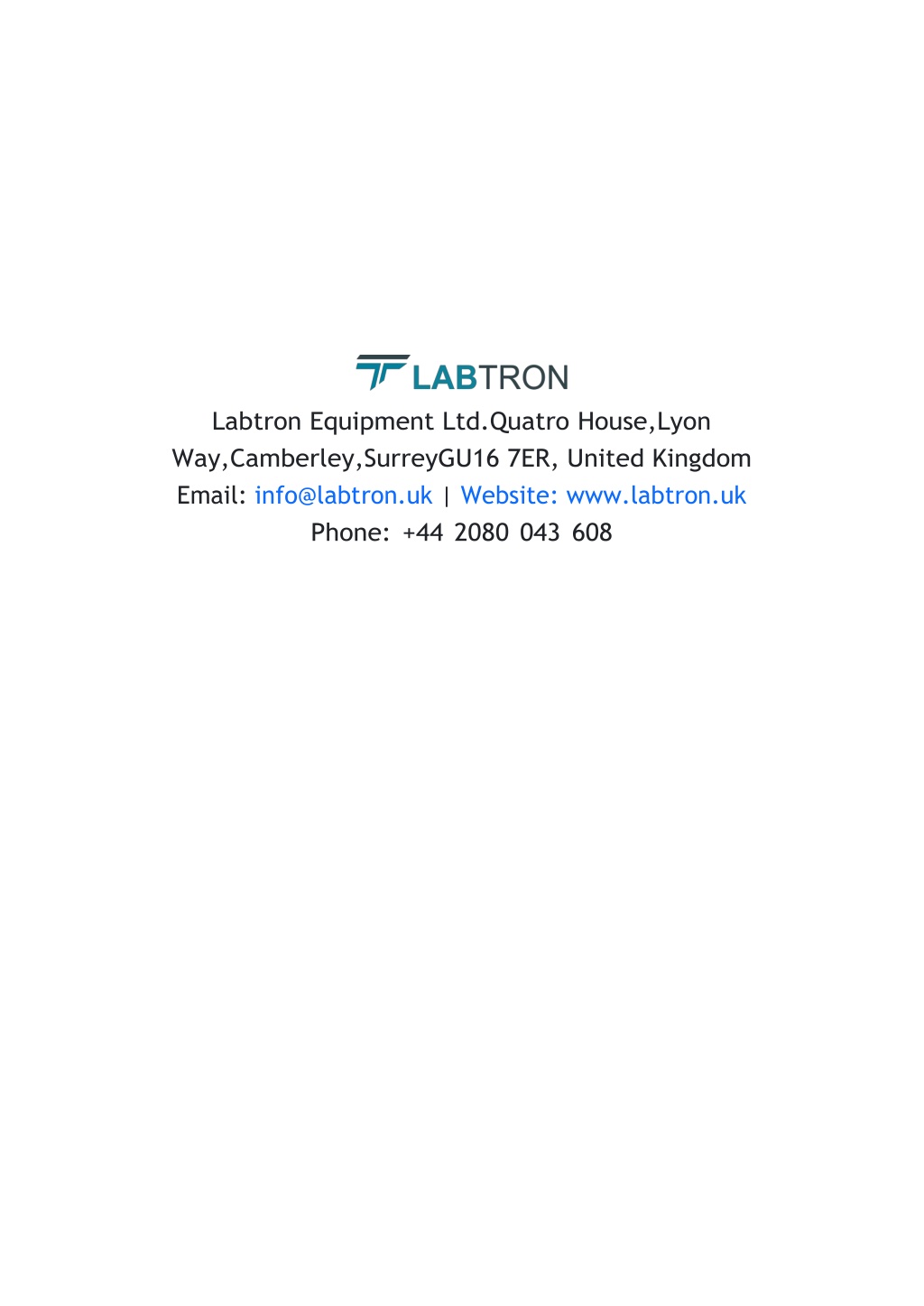

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
