Cell-Washing-Centrifuge

Labtron cell washing centrifuge is a high-performance serofuge designed for safe and reliable cell-washing procedures. It features a maximum speed of 4000 rpm and a maximum RCF of 2000 u00d7 g, with a capacity for 12u20137 ml tubes. It includes a microcomputer control system and an LED display for speed.

Erica57
Download Presentation

Cell-Washing-Centrifuge

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

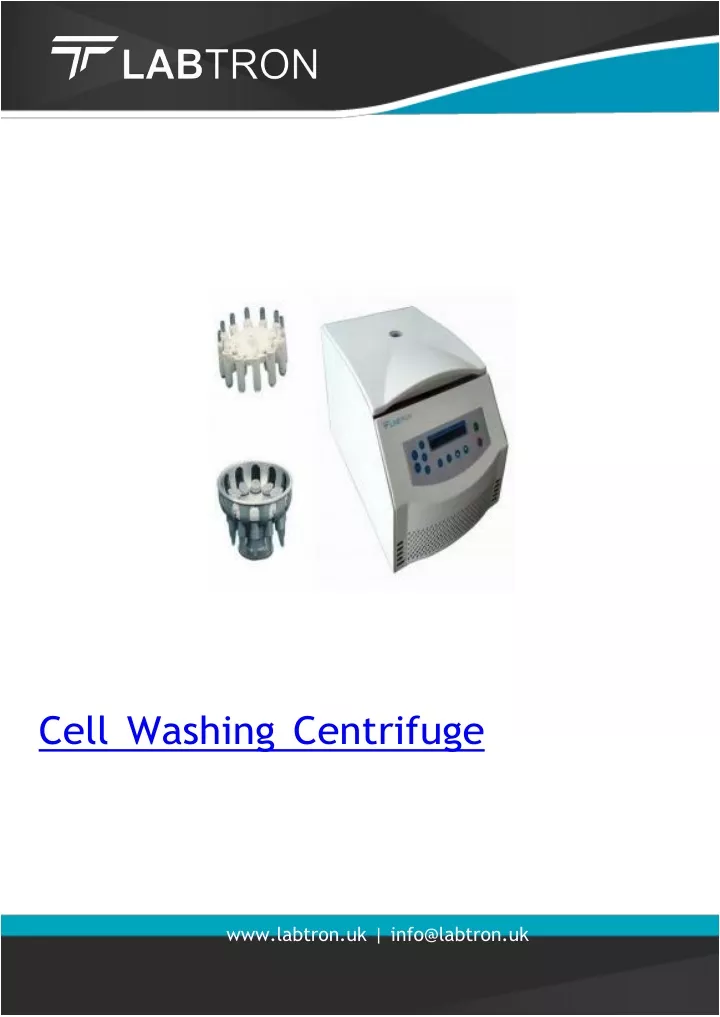

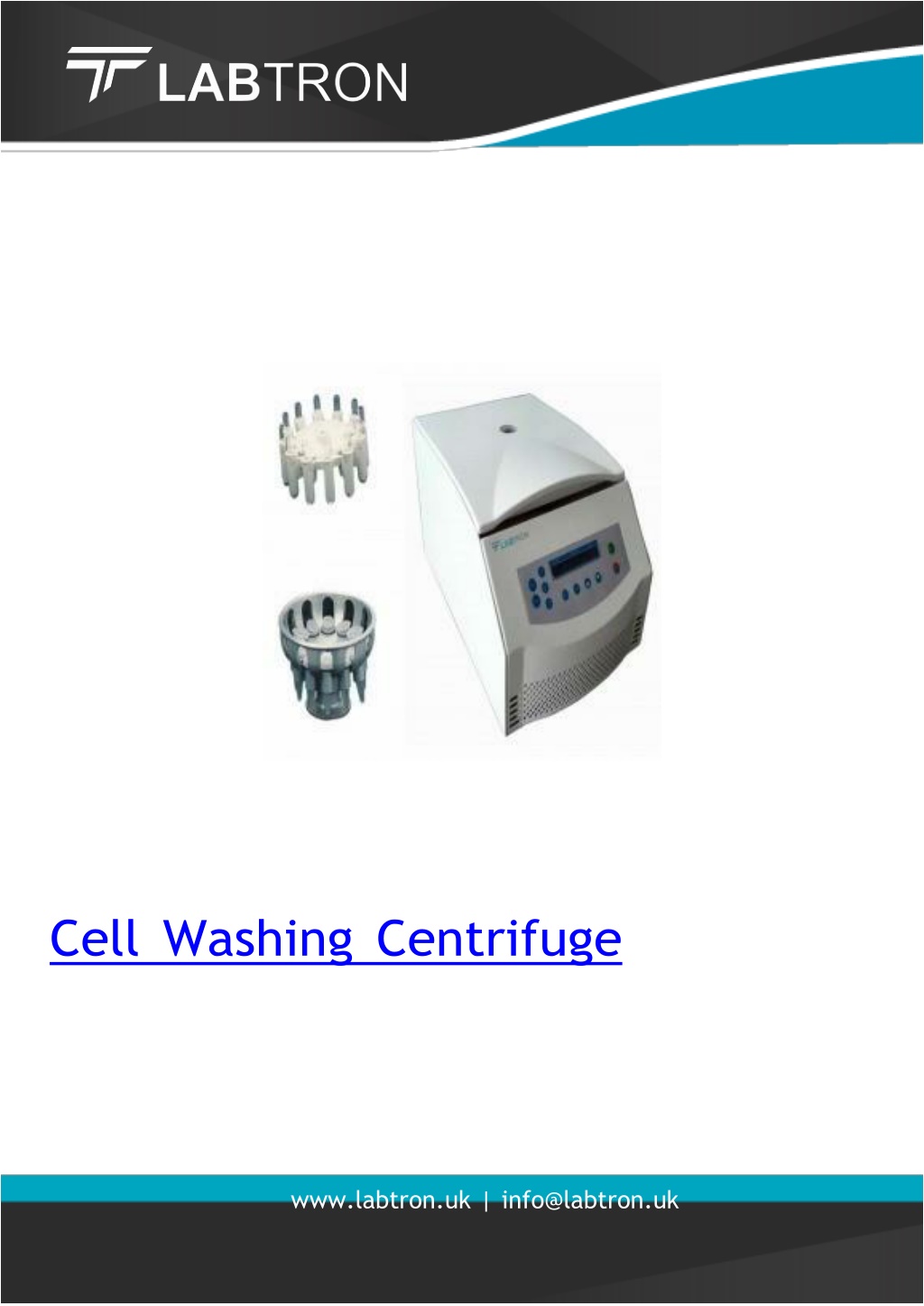

  1. Cell Washing Centrifuge www.labtron.uk | info@labtron.uk

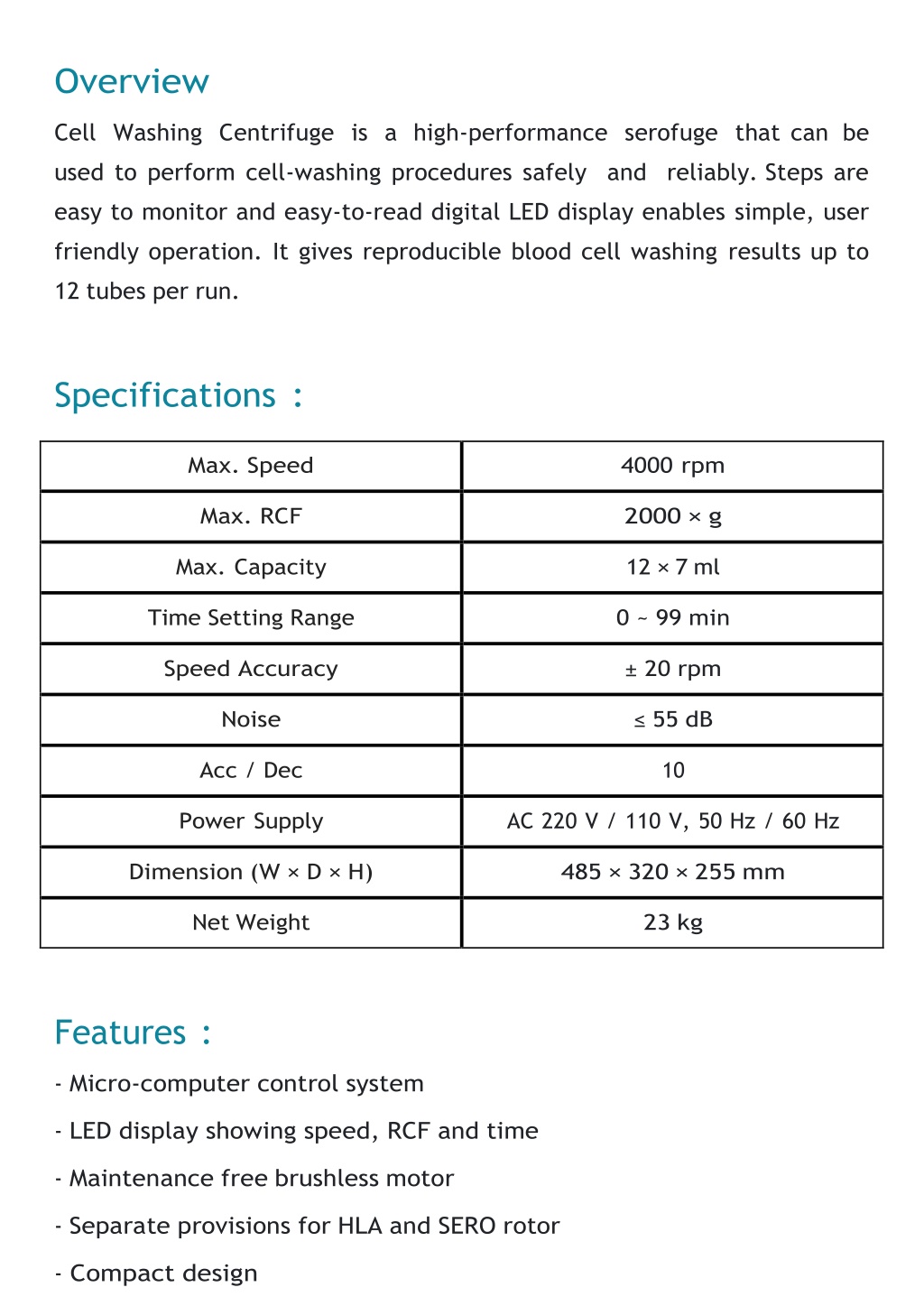

  2. Overview Cell Washing Centrifuge is a high-performance serofuge that can be used to perform cell-washing procedures safely and reliably. Steps are easy to monitor and easy-to-read digital LED display enables simple, user friendly operation. It gives reproducible blood cell washing results up to 12 tubes per run. Specifications : Max. Speed 4000 rpm Max. RCF 2000 × g Max. Capacity 12 × 7 ml Time Setting Range 0 ~ 99 min Speed Accuracy ± 20 rpm Noise ≤ 55 dB Acc / Dec 10 Power Supply AC 220 V / 110 V, 50 Hz / 60 Hz Dimension (W × D × H) 485 × 320 × 255 mm Net Weight 23 kg Features : -Micro-computer control system -LED display showing speed, RCF and time -Maintenance free brushless motor -Separate provisions for HLA and SERO rotor -Compact design

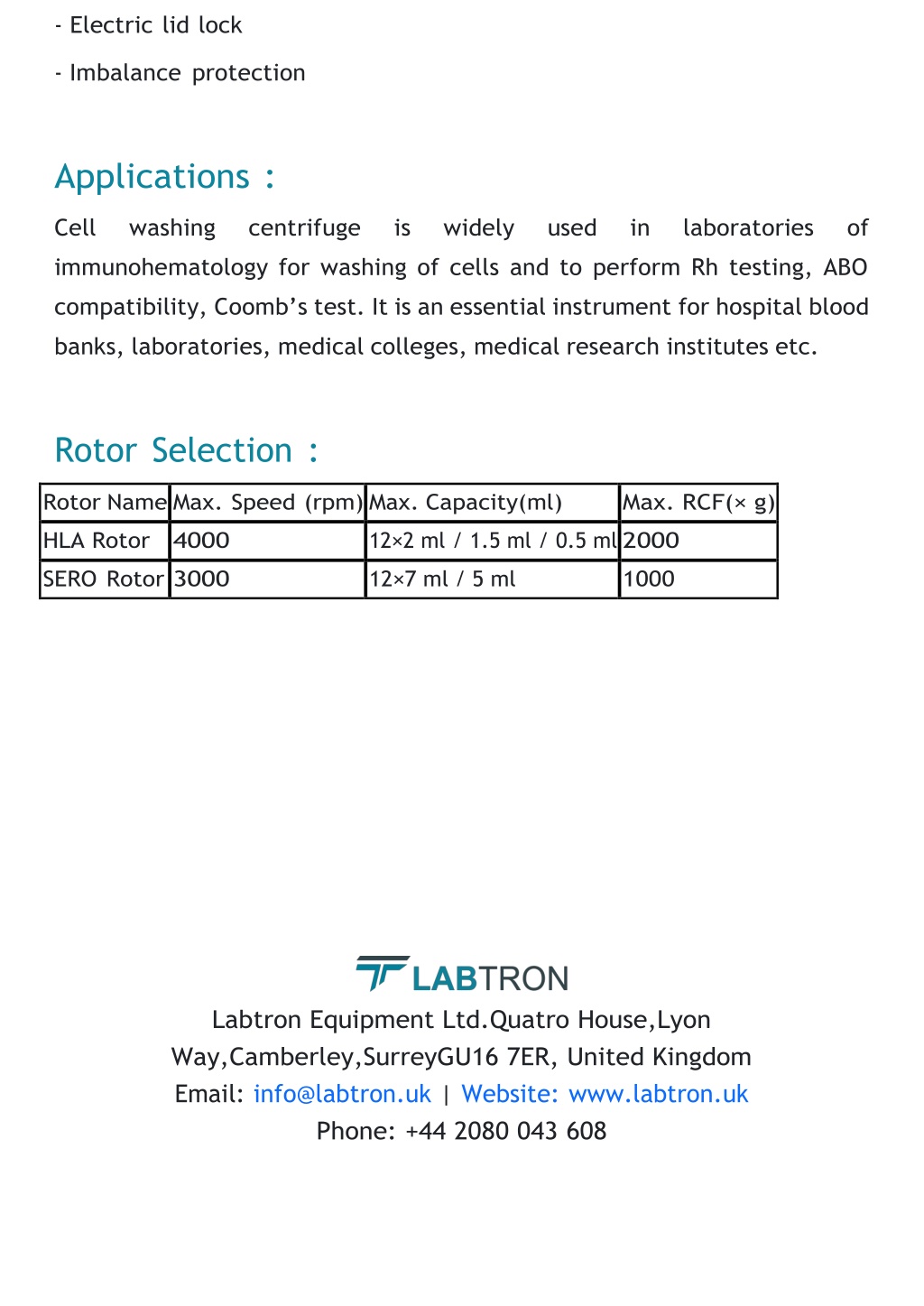

  3. -Electric lid lock -Imbalance protection Applications : Cell washing centrifuge is widely used in laboratories of immunohematology for washing of cells and to perform Rh testing, ABO compatibility, Coomb’s test. It is an essential instrument for hospital blood banks, laboratories, medical colleges, medical research institutes etc. Rotor Selection : Rotor NameMax. Speed (rpm)Max. Capacity(ml) Max. RCF(× g) HLA Rotor4000 12×2 ml / 1.5 ml / 0.5 ml 2000 SERO Rotor3000 12×7 ml / 5 ml 1000 Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
