Blood-Collection-Monitor

Labtron blood collection monitor is a precision tabletop device designed to mix blood with anticoagulants gently and uniformly, preventing clot formation. It features a measuring range of 0 to 1200 ml, with an accuracy of 0.02 ml and a swing angle of 13u00b0 to 2u00b0, and audio-visual alarms ensure optimal operation.

Erica57
Download Presentation

Blood-Collection-Monitor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

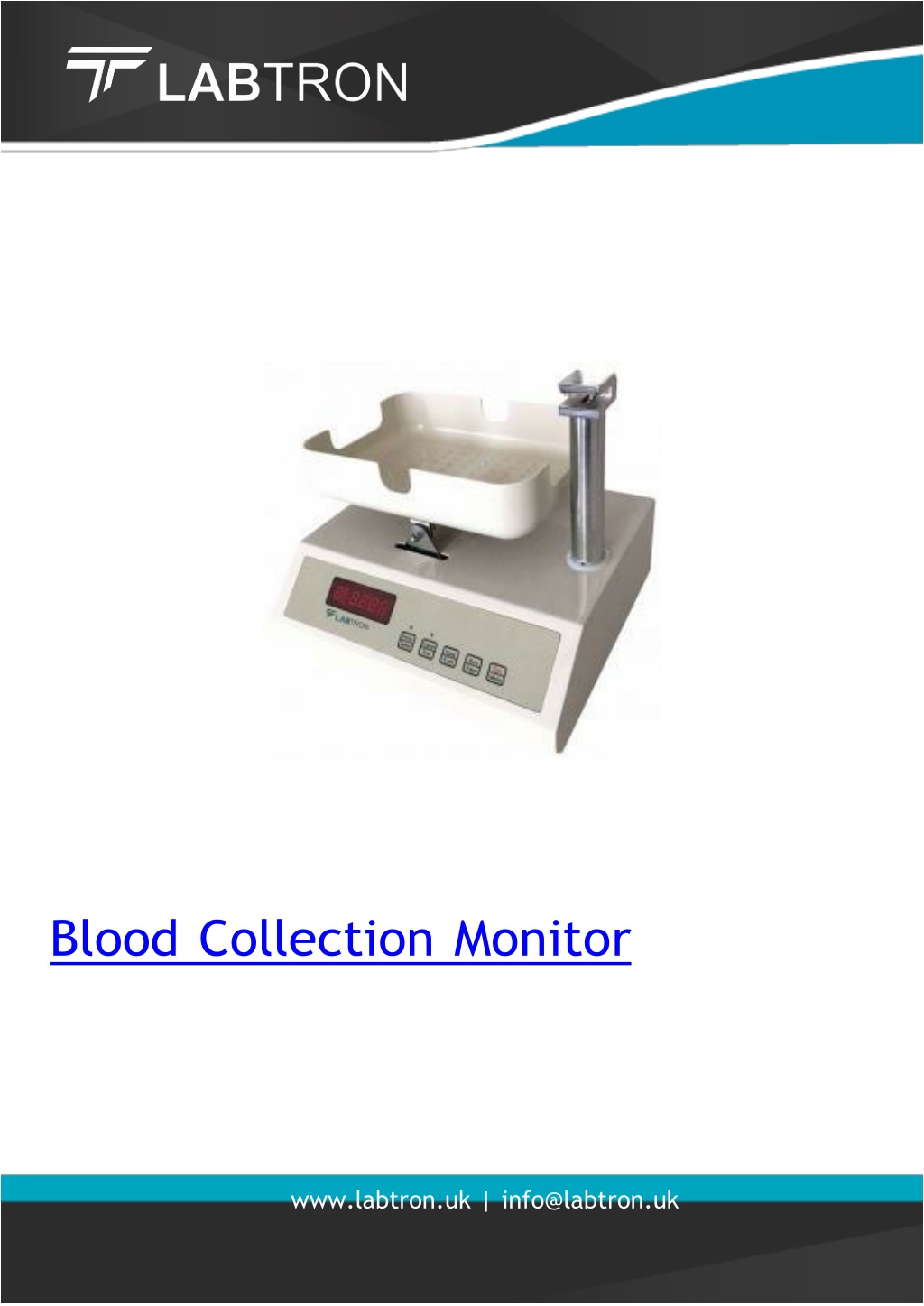

  1. Blood Collection Monitor www.labtron.uk | info@labtron.uk

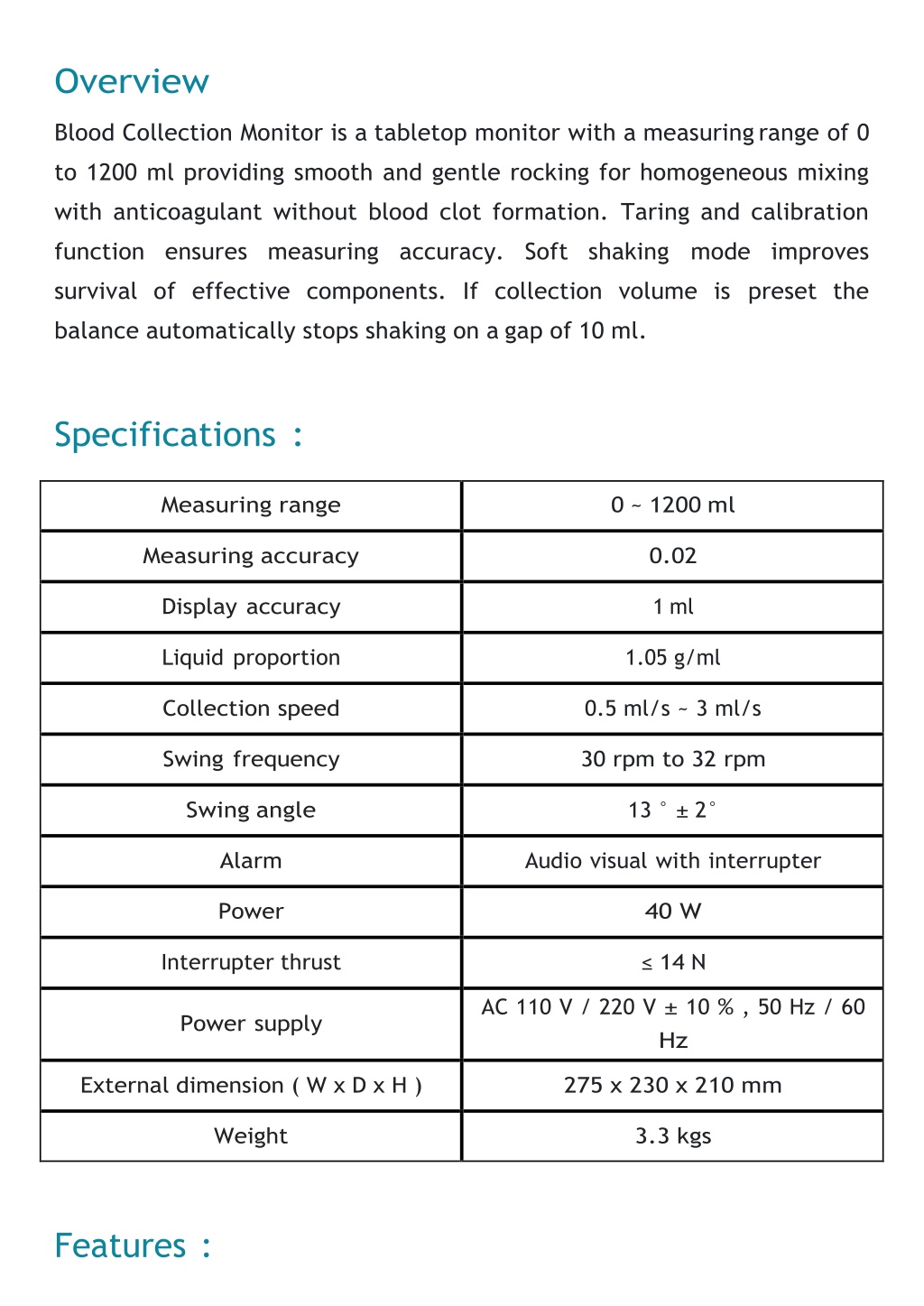

  2. Overview Blood Collection Monitor is a tabletop monitor with a measuring range of 0 to 1200 ml providing smooth and gentle rocking for homogeneous mixing with anticoagulant without blood clot formation. Taring and calibration function ensures measuring accuracy. Soft shaking mode improves survival of effective components. If collection volume is preset the balance automatically stops shaking on a gap of 10 ml. Specifications : Measuring range 0 ~ 1200 ml Measuring accuracy 0.02 Display accuracy 1 ml Liquid proportion 1.05 g/ml Collection speed 0.5 ml/s ~ 3 ml/s Swing frequency 30 rpm to 32 rpm Swing angle 13 ° ± 2° Alarm Audio visual with interrupter Power 40 W Interrupter thrust ≤ 14 N AC 110 V / 220 V ± 10 % , 50 Hz / 60 Hz Power supply External dimension ( W x D x H ) 275 x 230 x 210 mm Weight 3.3 kgs Features :

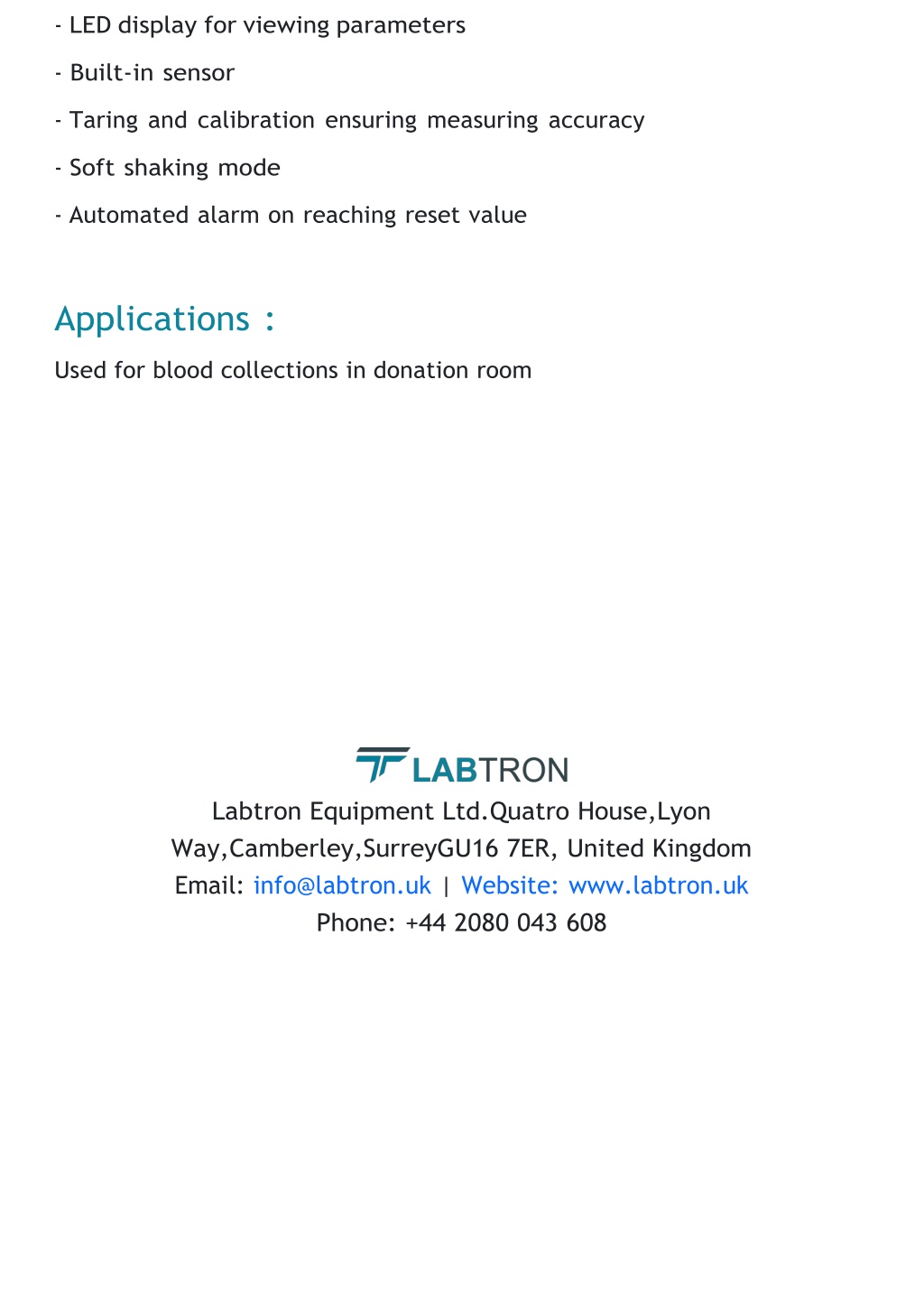

  3. -LED display for viewing parameters -Built-in sensor -Taring and calibration ensuring measuring accuracy -Soft shaking mode -Automated alarm on reaching reset value Applications : Used for blood collections in donation room Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
