Biological Oxygen Demand Meter

Labtron biological oxygen demand (BOD) within a range of 0 to 4000 mg/L. is a benchtop device designed for automatic measurement of It features a 7-inch full-colour LCD touch screen, supports 1 to 6 sample bottles simultaneously, and includes intelligent automatic temperature compensation.

Erica57
Download Presentation

Biological Oxygen Demand Meter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

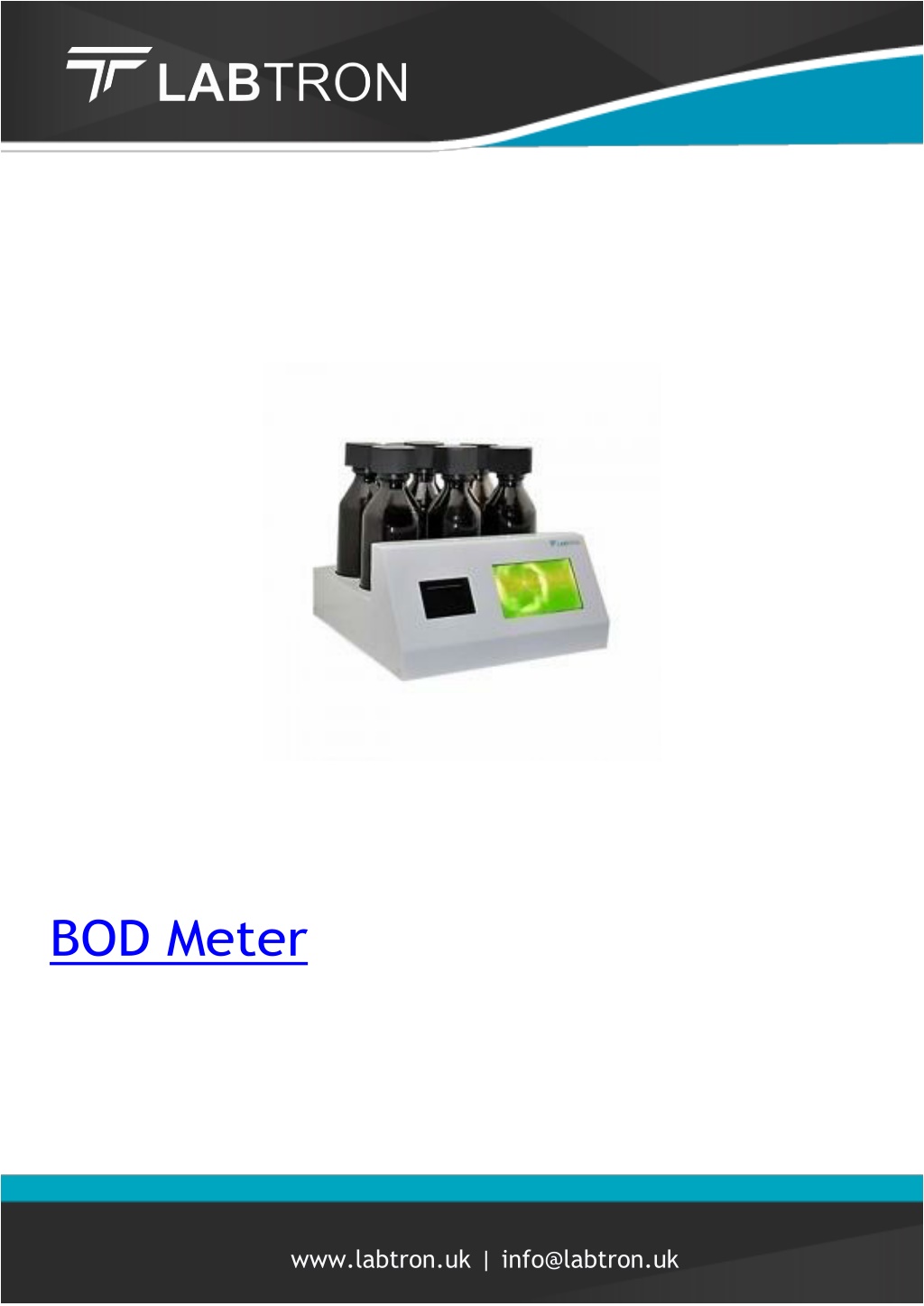

  1. BOD Meter www.labtron.uk | info@labtron.uk

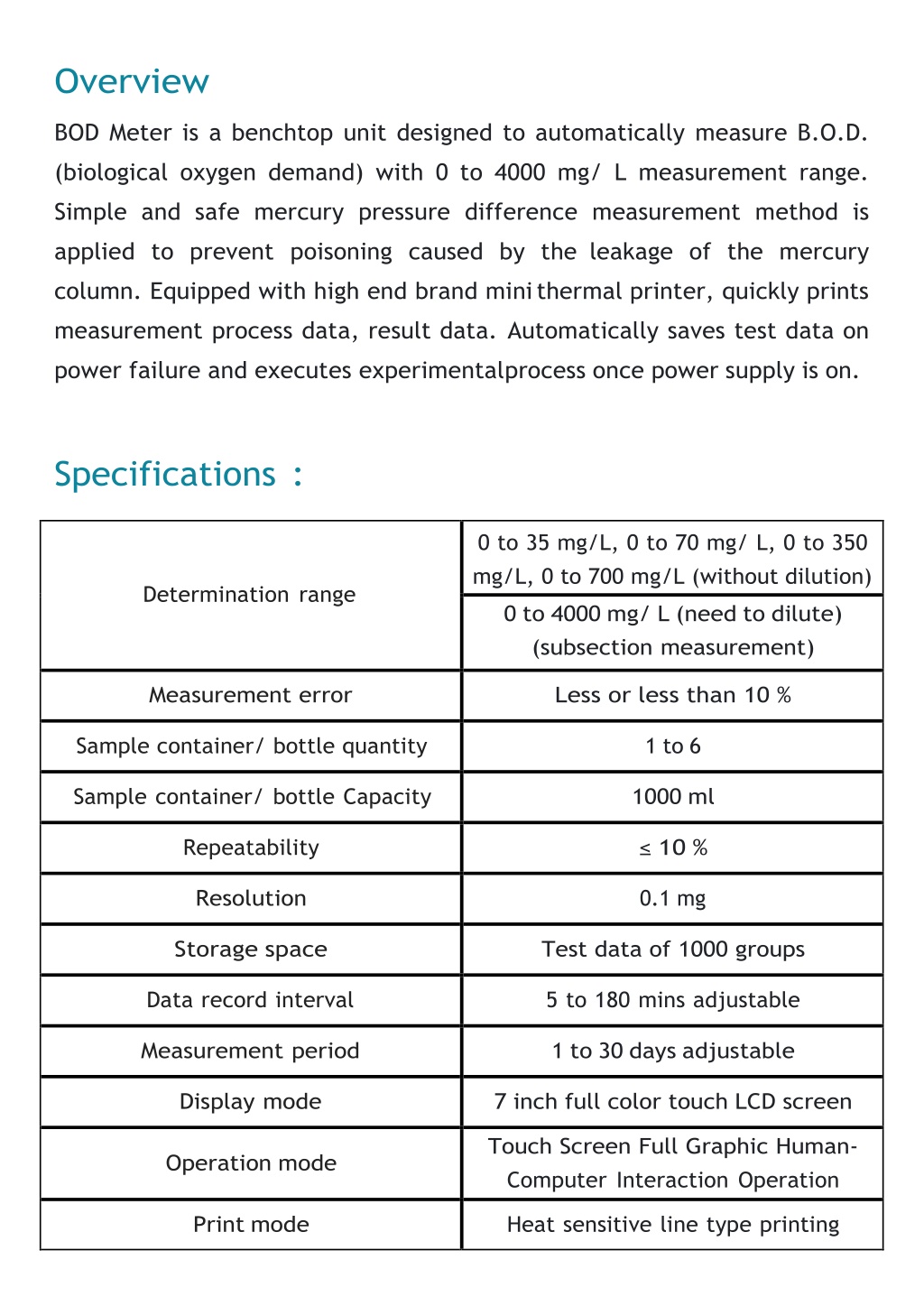

  2. Overview BOD Meter is a benchtop unit designed to automatically measure B.O.D. (biological oxygen demand) with 0 to 4000 mg/ L measurement range. Simple and safe mercury pressure difference measurement method is applied to prevent poisoning caused by the leakage of the mercury column. Equipped with high end brand mini thermal printer, quickly prints measurement process data, result data. Automatically saves test data on power failure and executes experimental process once power supply is on. Specifications : 0 to 35 mg/L, 0 to 70 mg/ L, 0 to 350 mg/L, 0 to 700 mg/L (without dilution) Determination range 0 to 4000 mg/ L (need to dilute) (subsection measurement) Measurement error Less or less than 10 % Sample container/ bottle quantity 1 to 6 Sample container/ bottle Capacity 1000 ml Repeatability ≤ 10 % Resolution 0.1 mg Storage space Test data of 1000 groups Data record interval 5 to 180 mins adjustable Measurement period 1 to 30 days adjustable Display mode 7 inch full color touch LCD screen Touch Screen Full Graphic Human- Computer Interaction Operation Operation mode Print mode Heat sensitive line type printing

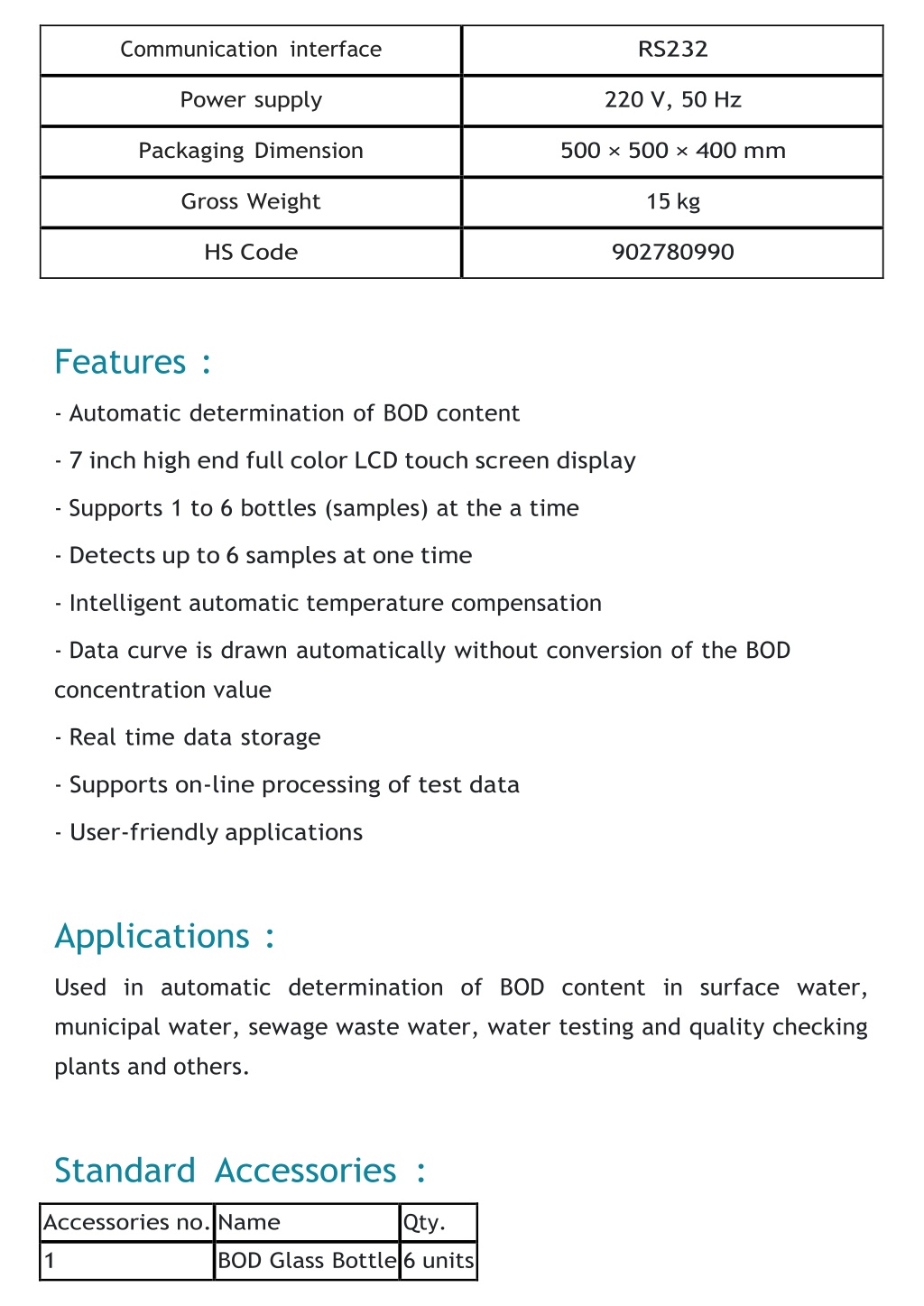

  3. Communication interface RS232 Power supply 220 V, 50 Hz Packaging Dimension 500 × 500 × 400 mm Gross Weight 15 kg HS Code 902780990 Features : -Automatic determination of BOD content -7 inch high end full color LCD touch screen display -Supports 1 to 6 bottles (samples) at the a time -Detects up to 6 samples at one time -Intelligent automatic temperature compensation -Data curve is drawn automatically without conversion of the BOD concentration value -Real time data storage -Supports on-line processing of test data -User-friendly applications Applications : Used in automatic determination of BOD content in surface water, municipal water, sewage waste water, water testing and quality checking plants and others. Standard Accessories : Accessories no.Name Qty. 1 BOD Glass Bottle6 units

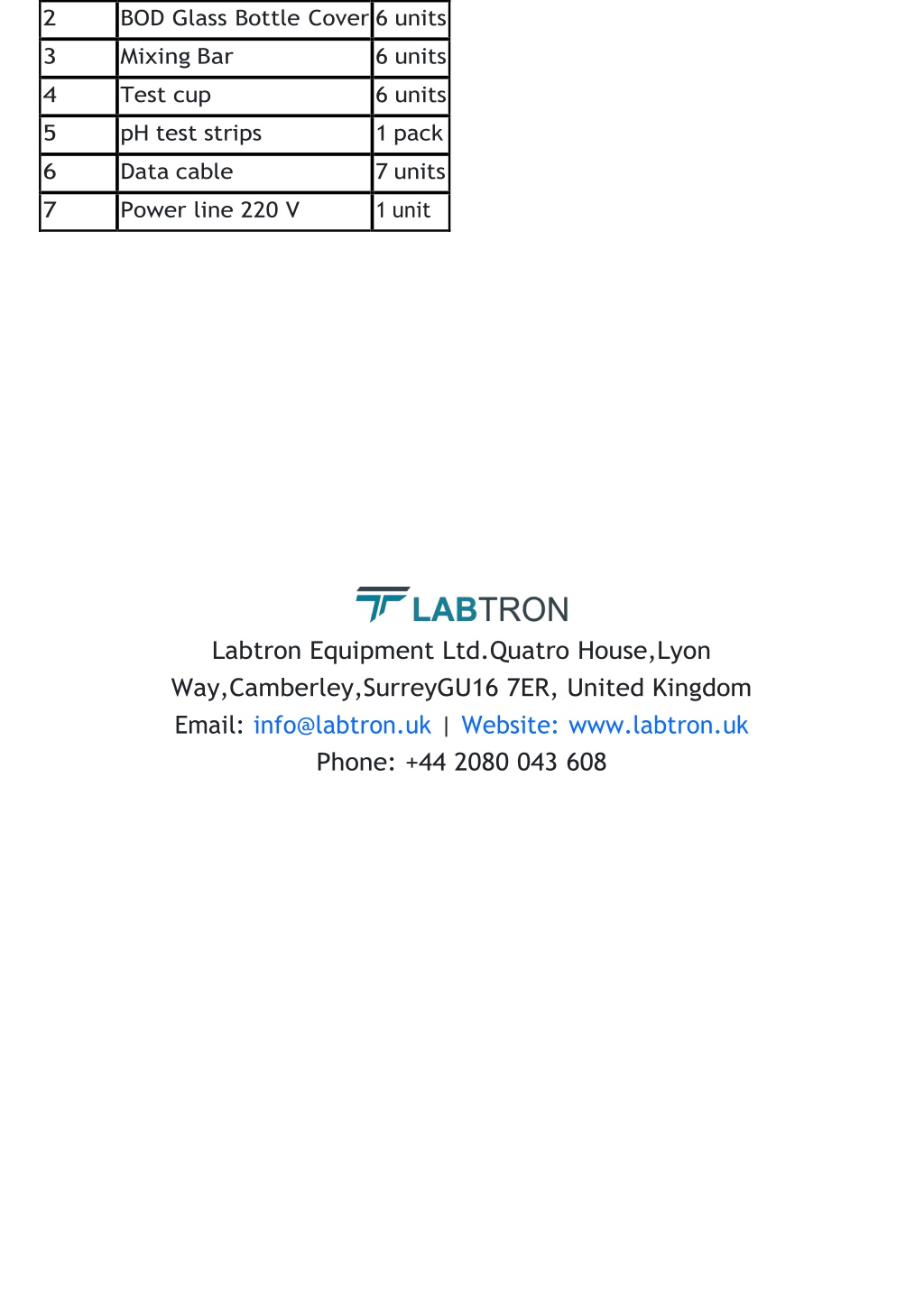

  4. 2 BOD Glass Bottle Cover6 units 3 Mixing Bar 6 units 4 Test cup 6 units 5 pH test strips 1 pack 6 Data cable 7 units 7 Power line 220 V 1 unit Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
