Biological-Microscope focus 200mm

Labtron siedentop trinocular biological microscope features a user-friendly design with a finite optical system and a sliding, 360u00b0 inclined trinocular head. It includes an iris diaphragm and filter, focus 200mm eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

Biological-Microscope focus 200mm

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

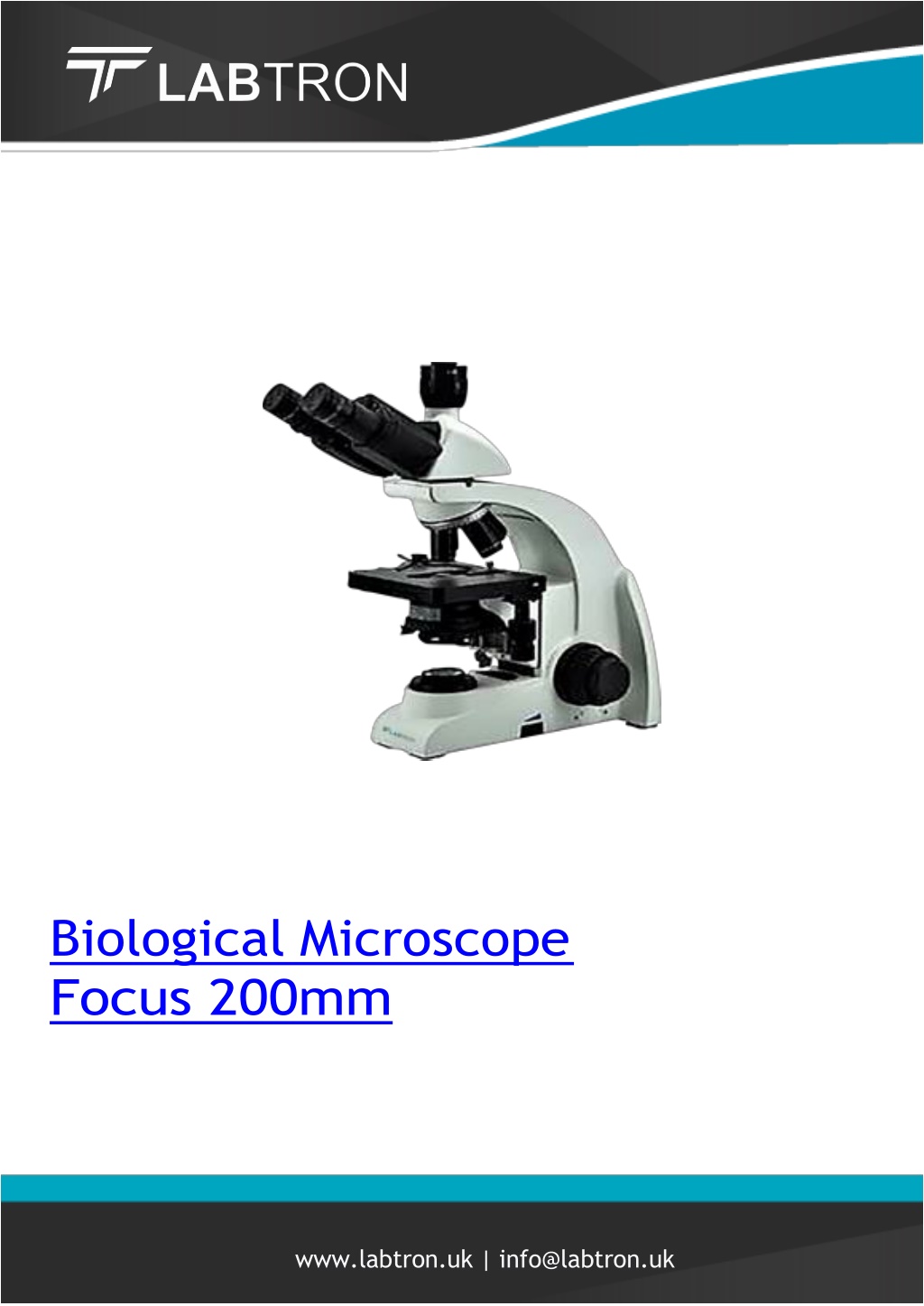

  1. Biological Microscope Focus 200mm www.labtron.uk | info@labtron.uk

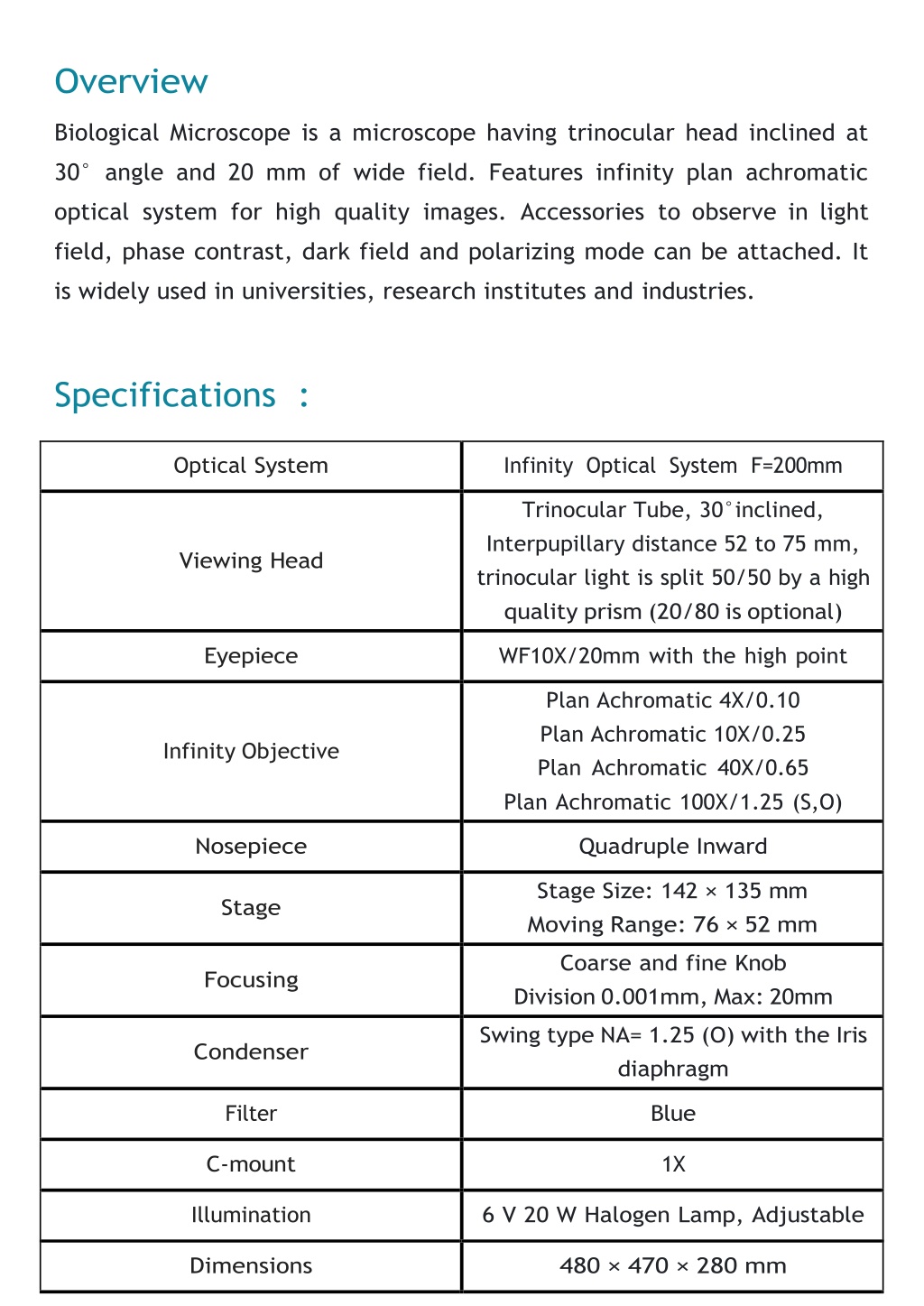

  2. Overview Biological Microscope is a microscope having trinocular head inclined at 30° angle and 20 mm of wide field. Features infinity plan achromatic optical system for high quality images. Accessories to observe in light field, phase contrast, dark field and polarizing mode can be attached. It is widely used in universities, research institutes and industries. Specifications: Optical System InfinityOpticalSystemF=200mm Trinocular Tube, 30°inclined, Interpupillary distance 52 to 75 mm, trinocular light is split 50/50 by a high quality prism (20/80 is optional) Viewing Head Eyepiece WF10X/20mm with the high point Plan Achromatic 4X/0.10 Plan Achromatic 10X/0.25 Plan Achromatic 40X/0.65 Plan Achromatic 100X/1.25 (S,O) Infinity Objective Nosepiece Quadruple Inward Stage Size: 142 × 135 mm Moving Range: 76 × 52 mm Stage Coarse and fine Knob Division 0.001mm, Max: 20mm Focusing Swing type NA= 1.25 (O) with the Iris diaphragm Condenser Filter Blue C-mount 1X Illumination 6 V 20 W Halogen Lamp, Adjustable Dimensions 480 × 470 × 280 mm

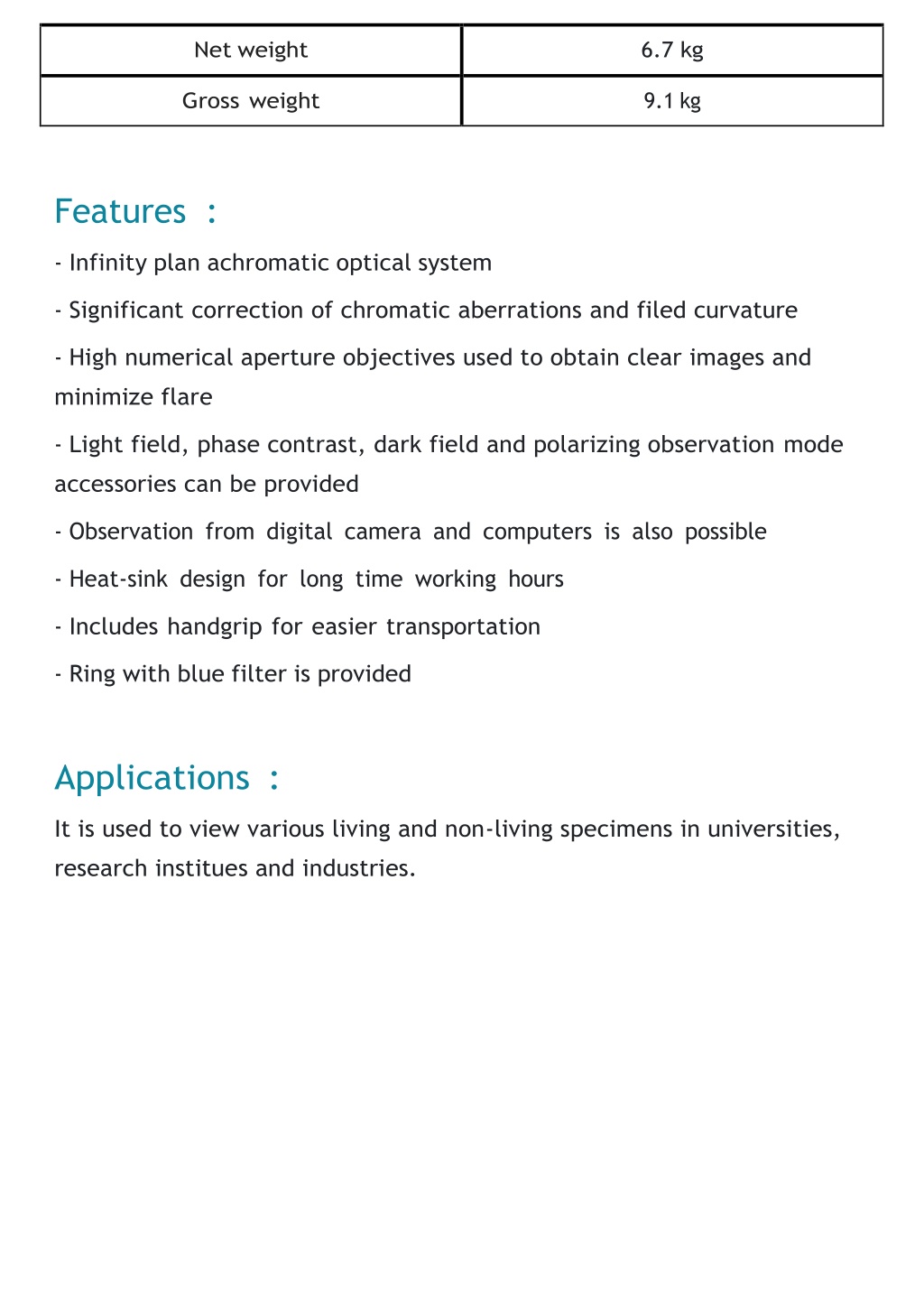

  3. Net weight 6.7 kg Gross weight 9.1 kg Features: -Infinity plan achromatic optical system -Significant correction of chromatic aberrations and filed curvature -High numerical aperture objectives used to obtain clear images and minimize flare -Light field, phase contrast, dark field and polarizing observation mode accessories can be provided -Observation from digital camera and computers is also possible -Heat-sink design for long time working hours -Includes handgrip for easier transportation -Ring with blue filter is provided Applications: It is used to view various living and non-living specimens in universities, research institues and industries.

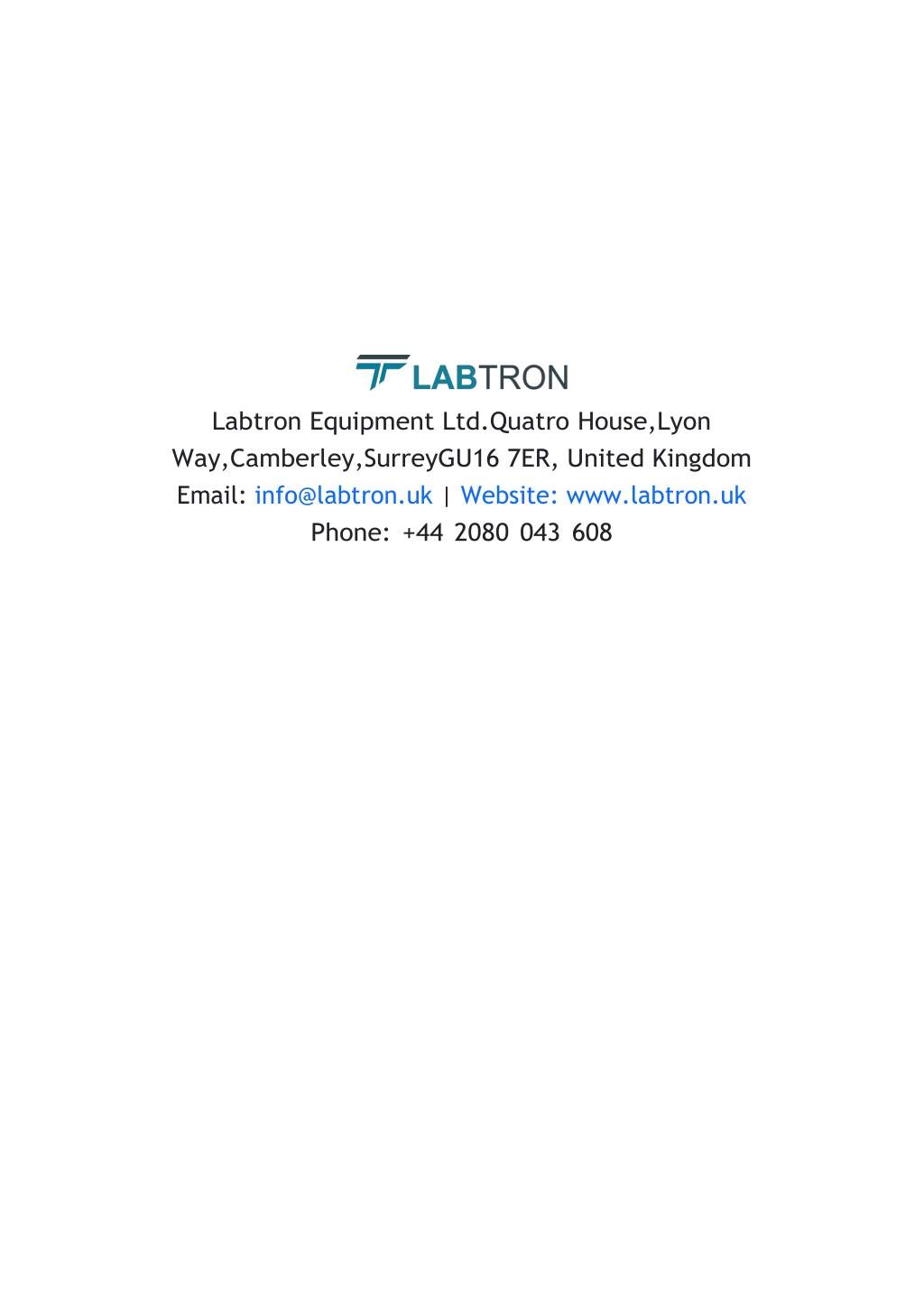

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
