Biological-microscope 9 kg

Labtron biological microscope features a user-friendly design with a finite optical system and a sliding, 45u00b0 inclined binocular head. It includes an iris diaphragm and filter, WF10X eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

Biological-microscope 9 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Biological microscope 9 kg www.labtron.uk | info@labtron.uk

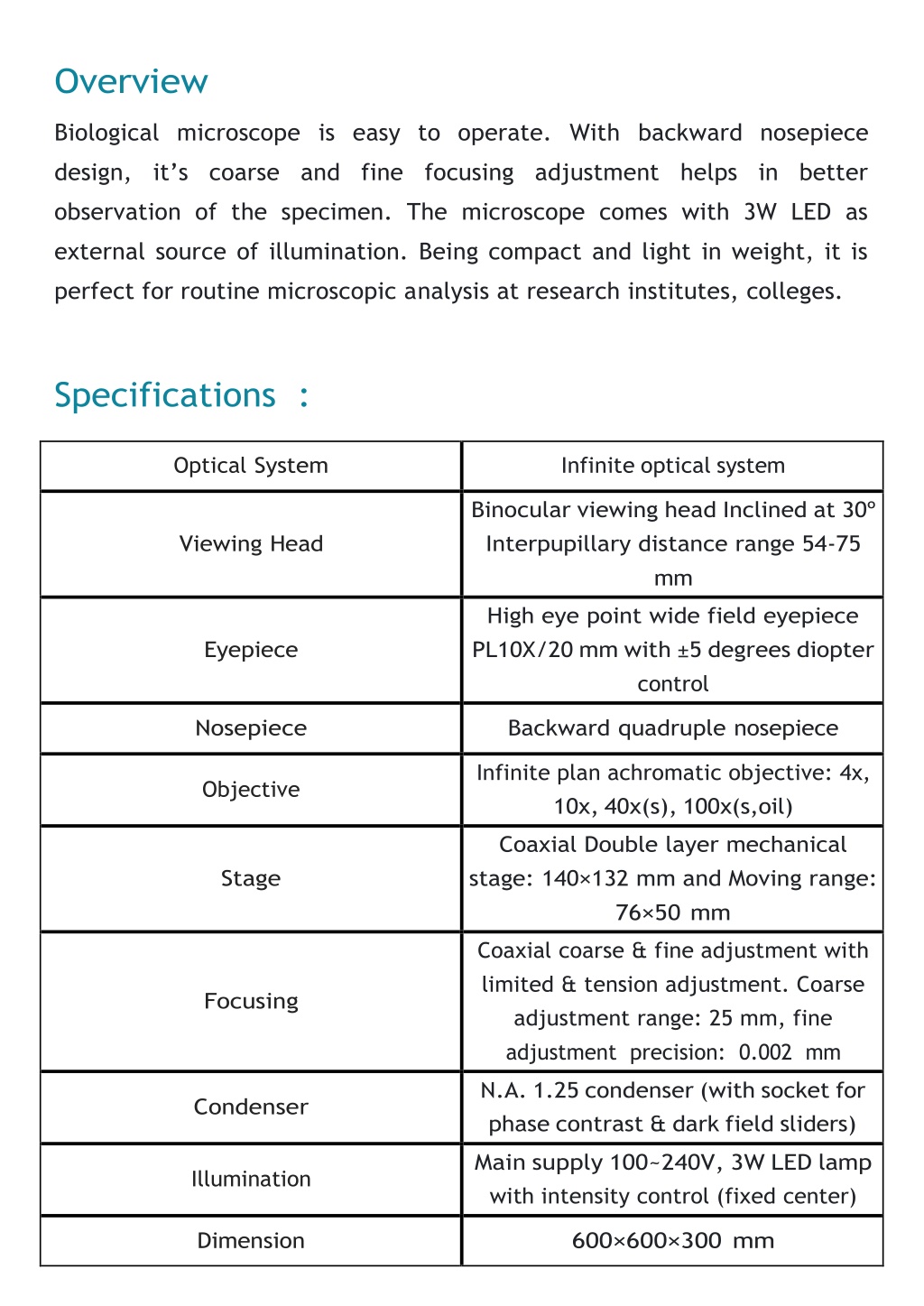

  2. Overview Biological microscope is easy to operate. With backward nosepiece design, it’s coarse and fine focusing adjustment helps in better observation of the specimen. The microscope comes with 3W LED as external source of illumination. Being compact and light in weight, it is perfect for routine microscopic analysis at research institutes, colleges. Specifications: Optical System Infinite optical system Binocular viewing head Inclined at 30º Interpupillary distance range 54-75 mm Viewing Head High eye point wide field eyepiece PL10X/20 mm with ±5 degrees diopter control Eyepiece Nosepiece Backward quadruple nosepiece Infinite plan achromatic objective: 4x, 10x, 40x(s), 100x(s,oil) Objective Coaxial Double layer mechanical stage: 140×132 mm and Moving range: 76×50 mm Stage Coaxial coarse & fine adjustment with limited & tension adjustment. Coarse adjustment range: 25 mm, fine adjustmentprecision:0.002mm Focusing N.A. 1.25 condenser (with socket for phase contrast & dark field sliders) Condenser Main supply 100~240V, 3W LED lamp with intensity control (fixed center) Illumination Dimension 600×600×300 mm

  3. Net weight 9 kg Gross weight 10 kg Features: -Backward quadruple nosepiece -Infinite optical system -3W LED as source of illumination -High eyepoint wide field eyepiece Applications: Biological Microscope can be used for routine microscopic analysis of samples in laboratories, institutes, colleges. They are used in research labs for obtaining fine and sharp image quality with superior adjustment. OptionalAccessories: Accessories No.Name 1 Phase contrast kit (10x, 20x, 40x, 100x) 2 Dark field attachment 3 Siedentopf Trinocular Head 4 Simple polarization (with analyzer & polarizer)

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
