Biological-microscope 5.0 kg

Labtron biological microscope features a user-friendly design with a finite optical system and a sliding, 45u00b0 inclined binocular head. It includes an iris diaphragm and filter, WF10X eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

Biological-microscope 5.0 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

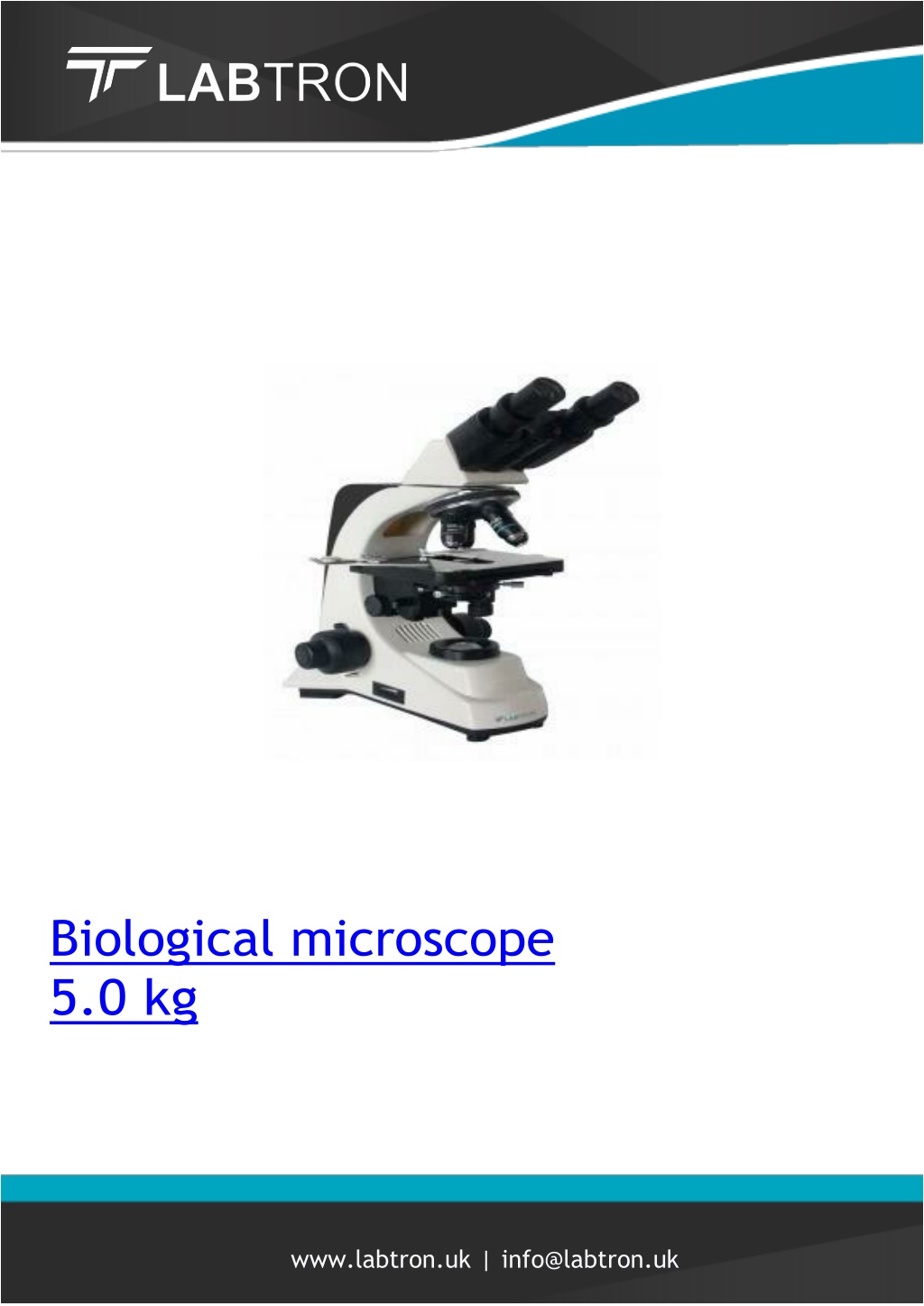

  1. Biological microscope 5.0 kg www.labtron.uk | info@labtron.uk

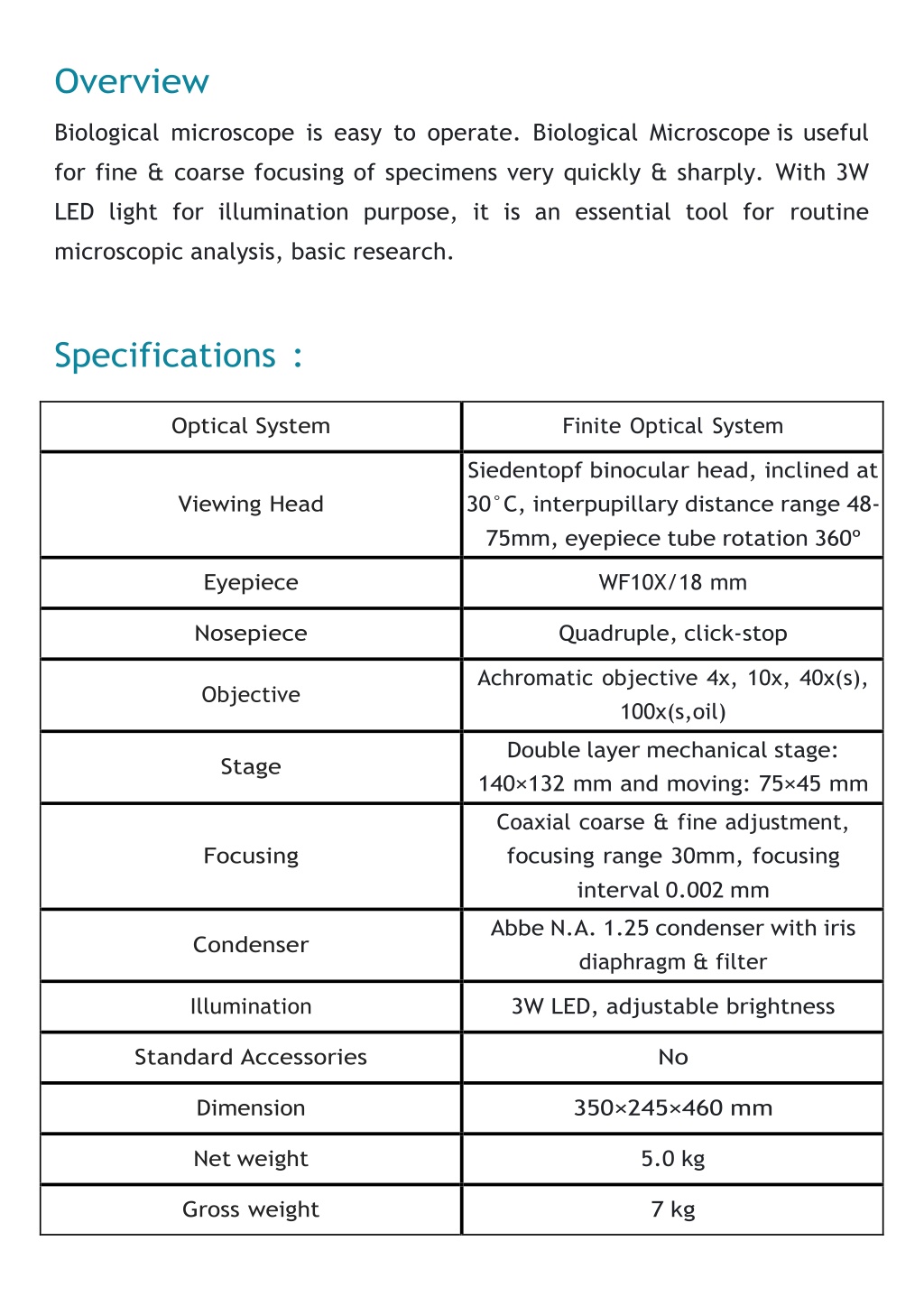

  2. Overview Biological microscope is easy to operate. Biological Microscope is useful for fine & coarse focusing of specimens very quickly & sharply. With 3W LED light for illumination purpose, it is an essential tool for routine microscopic analysis, basic research. Specifications : Optical System Finite Optical System Siedentopf binocular head, inclined at 30°C, interpupillary distance range 48- 75mm, eyepiece tube rotation 360º Viewing Head Eyepiece WF10X/18 mm Nosepiece Quadruple, click-stop Achromatic objective 4x, 10x, 40x(s), 100x(s,oil) Objective Double layer mechanical stage: 140×132 mm and moving: 75×45 mm Stage Coaxial coarse & fine adjustment, focusing range 30mm, focusing interval 0.002 mm Focusing Abbe N.A. 1.25 condenser with iris diaphragm & filter Condenser Illumination 3W LED, adjustable brightness Standard Accessories No Dimension 350×245×460 mm Net weight 5.0 kg Gross weight 7 kg

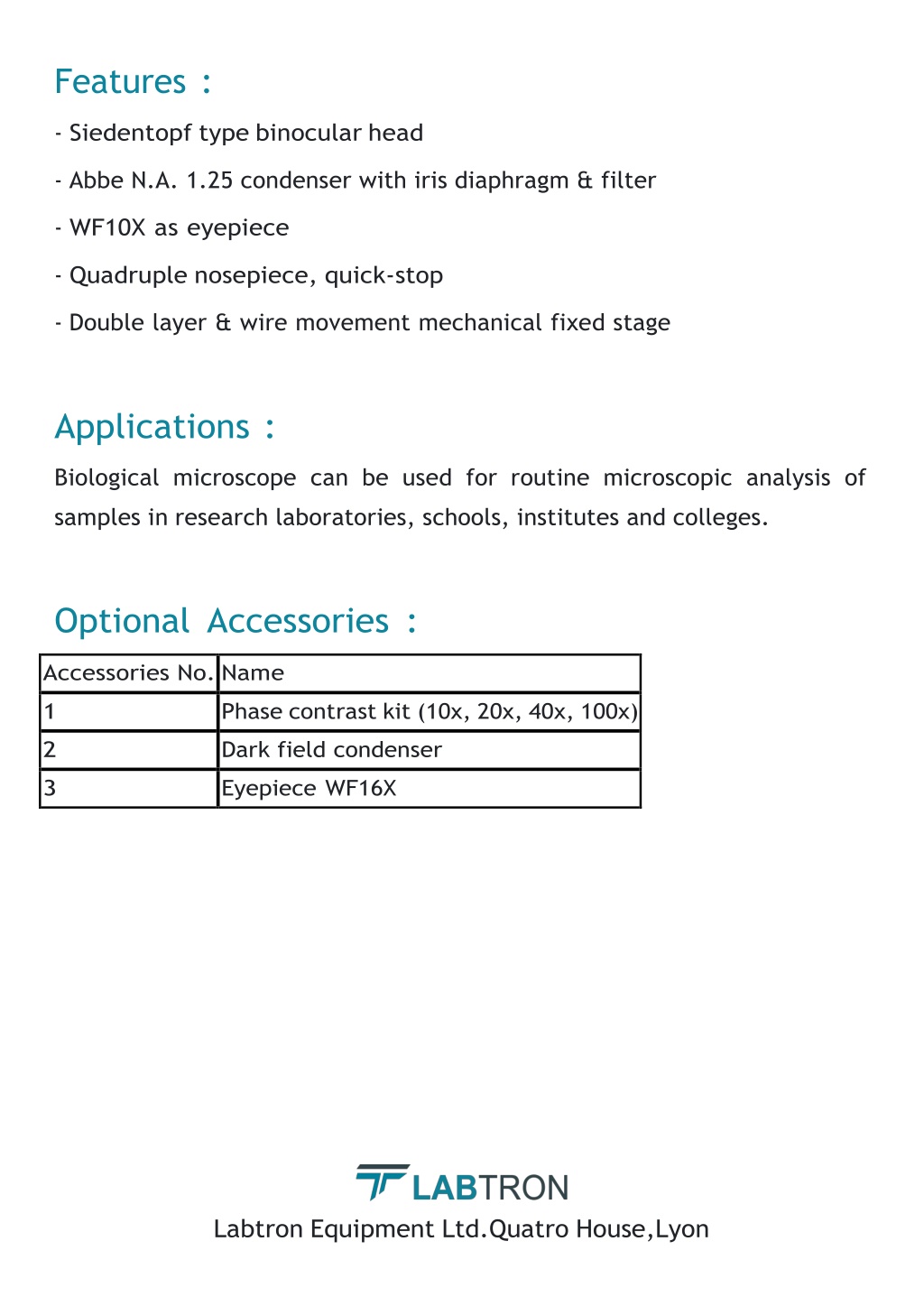

  3. Features : -Siedentopf type binocular head -Abbe N.A. 1.25 condenser with iris diaphragm & filter -WF10X as eyepiece -Quadruple nosepiece, quick-stop -Double layer & wire movement mechanical fixed stage Applications : Biological microscope can be used for routine microscopic analysis of samples in research laboratories, schools, institutes and colleges. Optional Accessories : Accessories No.Name 1 Phase contrast kit (10x, 20x, 40x, 100x) 2 Dark field condenser 3 Eyepiece WF16X Labtron Equipment Ltd.Quatro House,Lyon

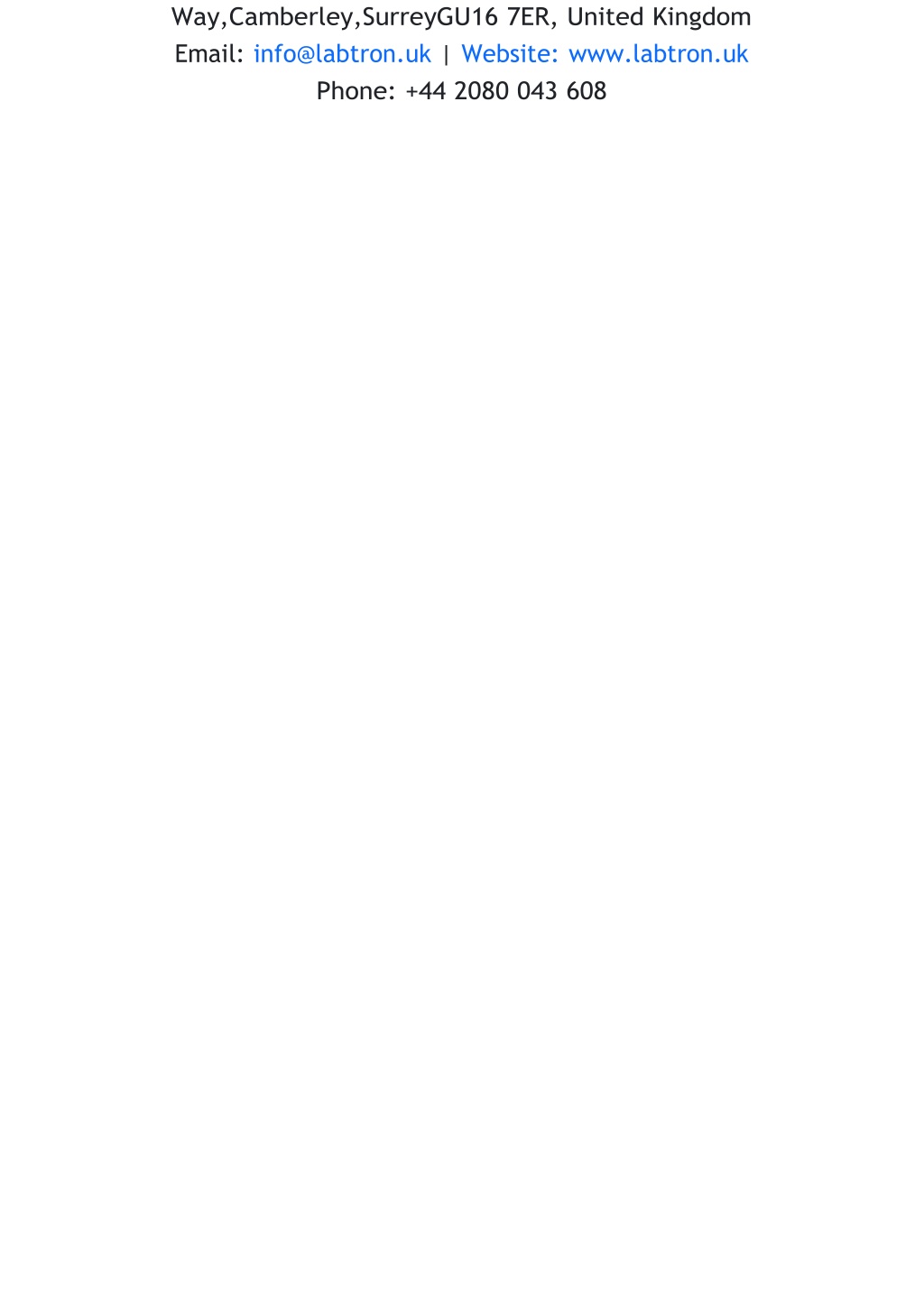

  4. Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
