Biochemistry-Analyzer

Labtron biochemistry analyser is a fully automated floor-standing unit with direct reading and random access capabilities. It handles sample volumes from 1 to 100 L with 0.1 L increments and features an easily replaceable reagent tray. It offers a user-friendly Windows-compatible interface and alarm functions.

Erica57
Download Presentation

Biochemistry-Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

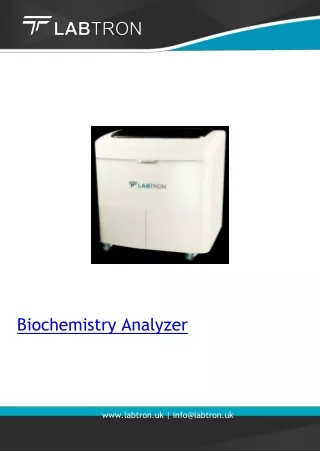

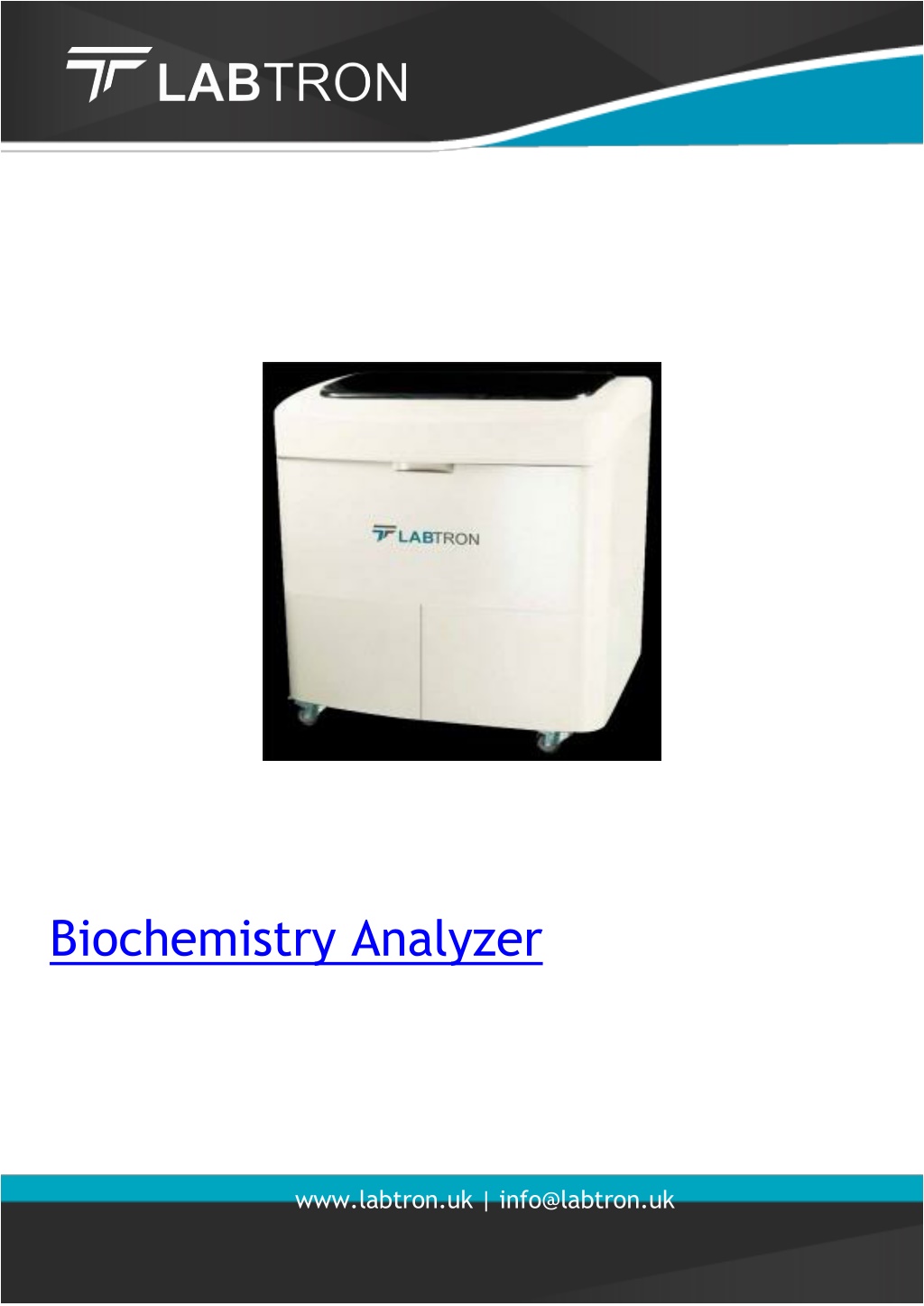

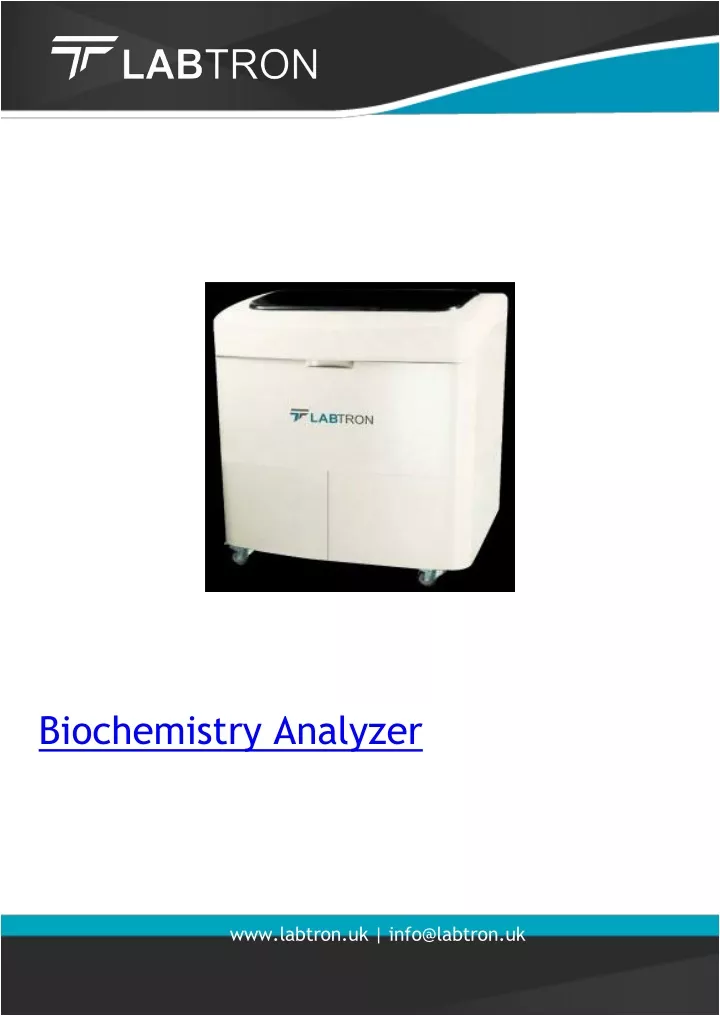

  1. Biochemistry Analyzer www.labtron.uk | info@labtron.uk

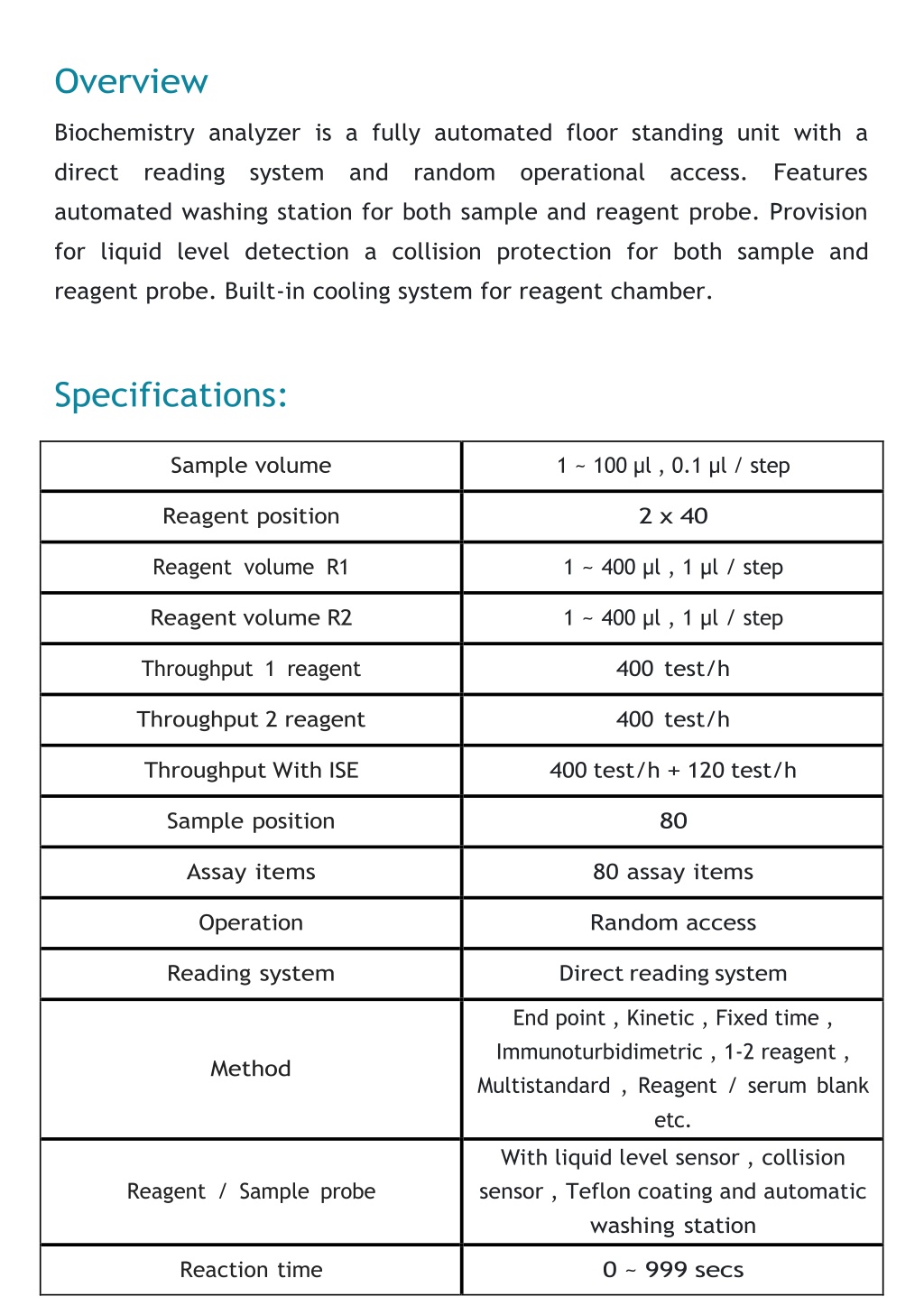

  2. Overview Biochemistry analyzer is a fully automated floor standing unit with a direct reading system and random operational access. Features automated washing station for both sample and reagent probe. Provision for liquid level detection a collision protection for both sample and reagent probe. Built-in cooling system for reagent chamber. Specifications: Sample volume 1 ~ 100 µl , 0.1 µl / step Reagent position 2 x 40 Reagent volume R1 1 ~ 400 µl , 1 µl / step Reagent volume R2 1 ~ 400 µl , 1 µl / step Throughput 1 reagent 400 test/h Throughput 2 reagent 400 test/h Throughput With ISE 400 test/h + 120 test/h Sample position 80 Assay items 80 assay items Operation Random access Reading system Direct reading system End point , Kinetic , Fixed time , Immunoturbidimetric , 1-2 reagent , Multistandard , Reagent / serum blank etc. Method With liquid level sensor , collision sensor , Teflon coating and automatic washing station Reagent / Sample probe Reaction time 0 ~ 999 secs

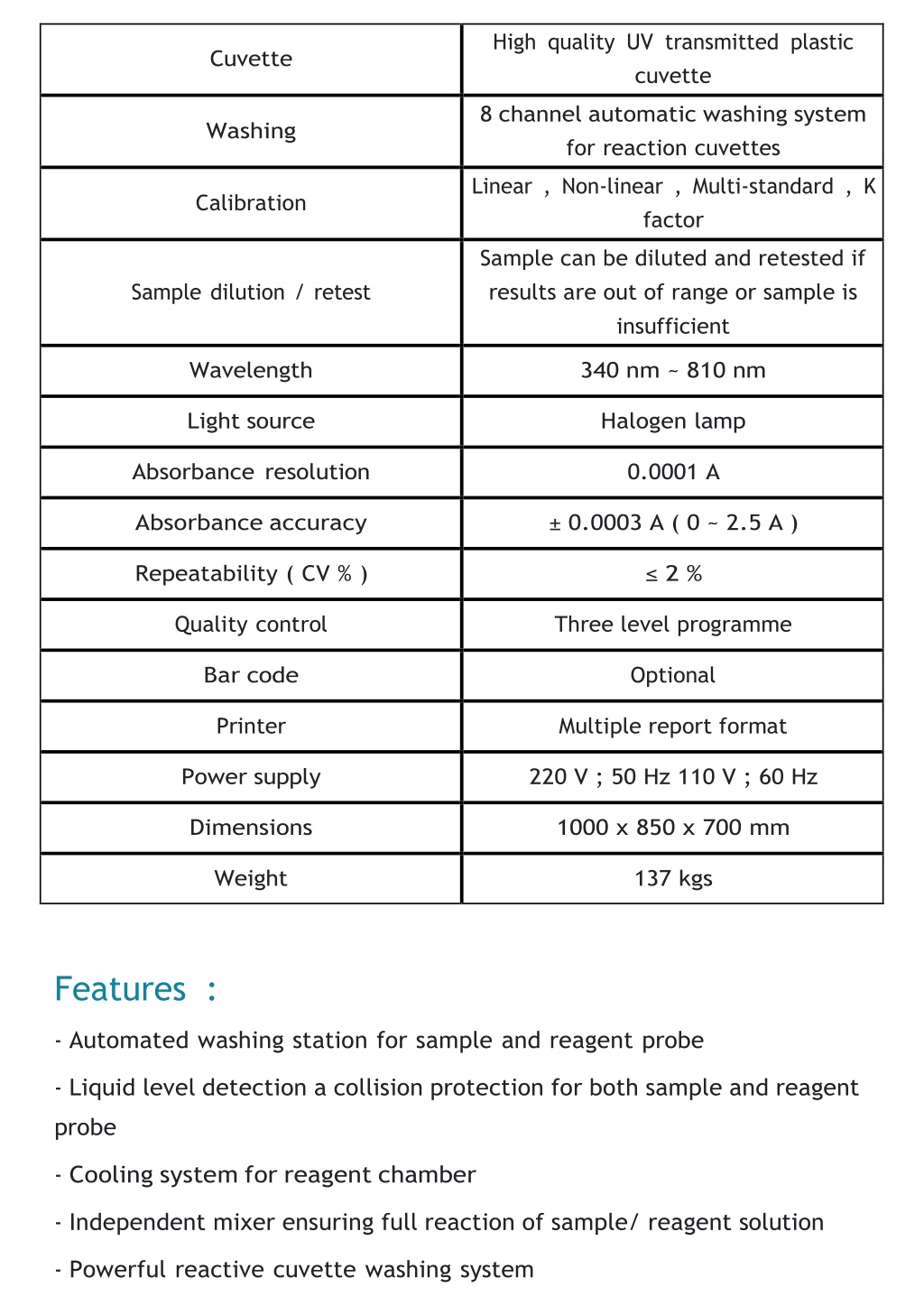

  3. High quality UV transmitted plastic cuvette Cuvette 8 channel automatic washing system for reaction cuvettes Washing Linear , Non-linear , Multi-standard , K factor Calibration Sample can be diluted and retested if results are out of range or sample is insufficient Sample dilution / retest Wavelength 340 nm ~ 810 nm Light source Halogen lamp Absorbance resolution 0.0001 A Absorbance accuracy ± 0.0003 A ( 0 ~ 2.5 A ) Repeatability ( CV % ) ≤ 2 % Quality control Three level programme Bar code Optional Printer Multiple report format Power supply 220 V ; 50 Hz 110 V ; 60 Hz Dimensions 1000 x 850 x 700 mm Weight 137 kgs Features: -Automated washing station for sample and reagent probe -Liquid level detection a collision protection for both sample and reagent probe -Cooling system for reagent chamber -Independent mixer ensuring full reaction of sample/ reagent solution -Powerful reactive cuvette washing system

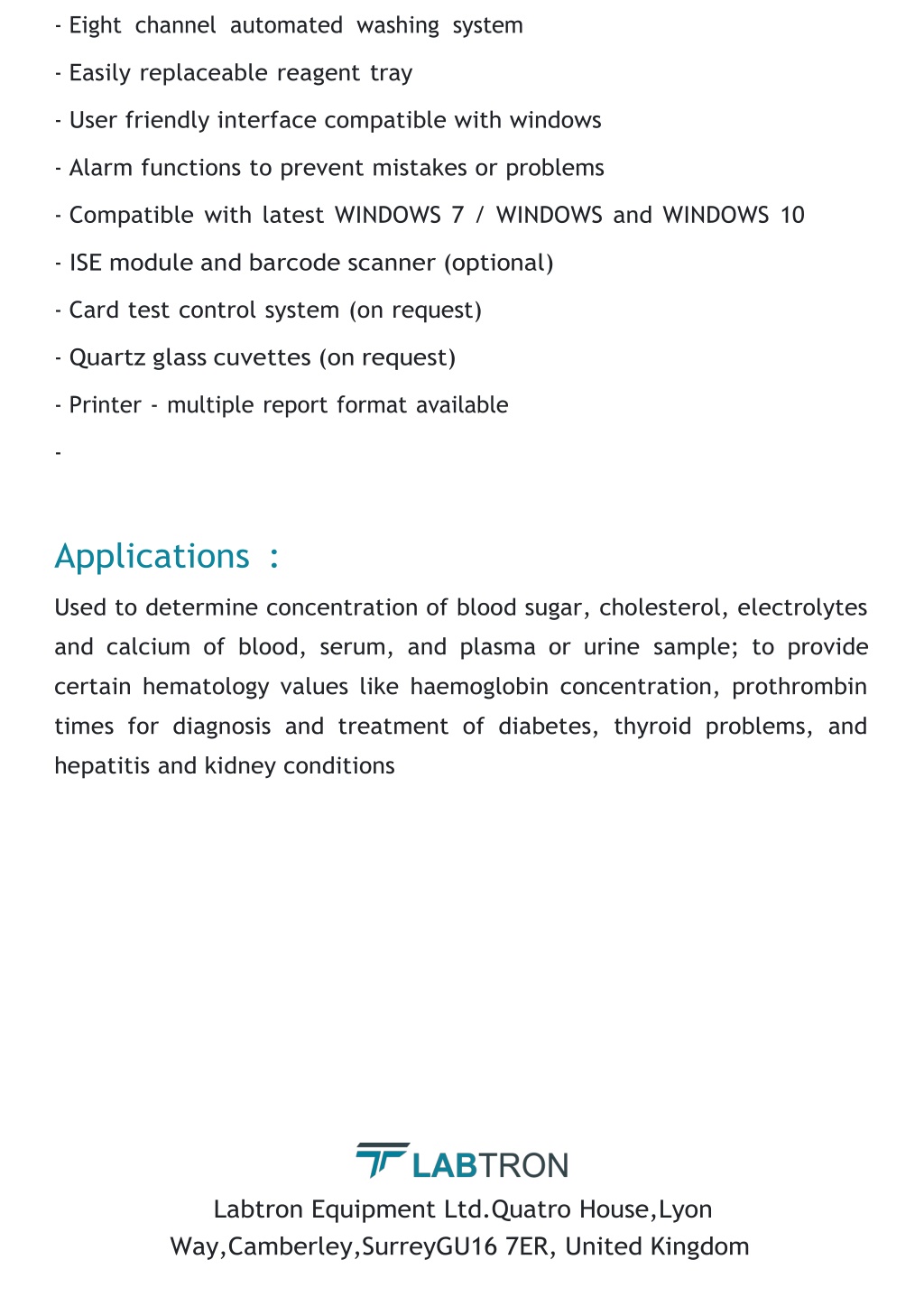

  4. -Eightchannelautomatedwashingsystem -Easily replaceable reagent tray -User friendly interface compatible with windows -Alarm functions to prevent mistakes or problems -Compatible with latest WINDOWS 7 / WINDOWS and WINDOWS 10 -ISE module and barcode scanner (optional) -Card test control system (on request) -Quartz glass cuvettes (on request) -Printer - multiple report format available - Applications: Used to determine concentration of blood sugar, cholesterol, electrolytes and calcium of blood, serum, and plasma or urine sample; to provide certain hematology values like haemoglobin concentration, prothrombin times for diagnosis and treatment of diabetes, thyroid problems, and hepatitis and kidney conditions Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom

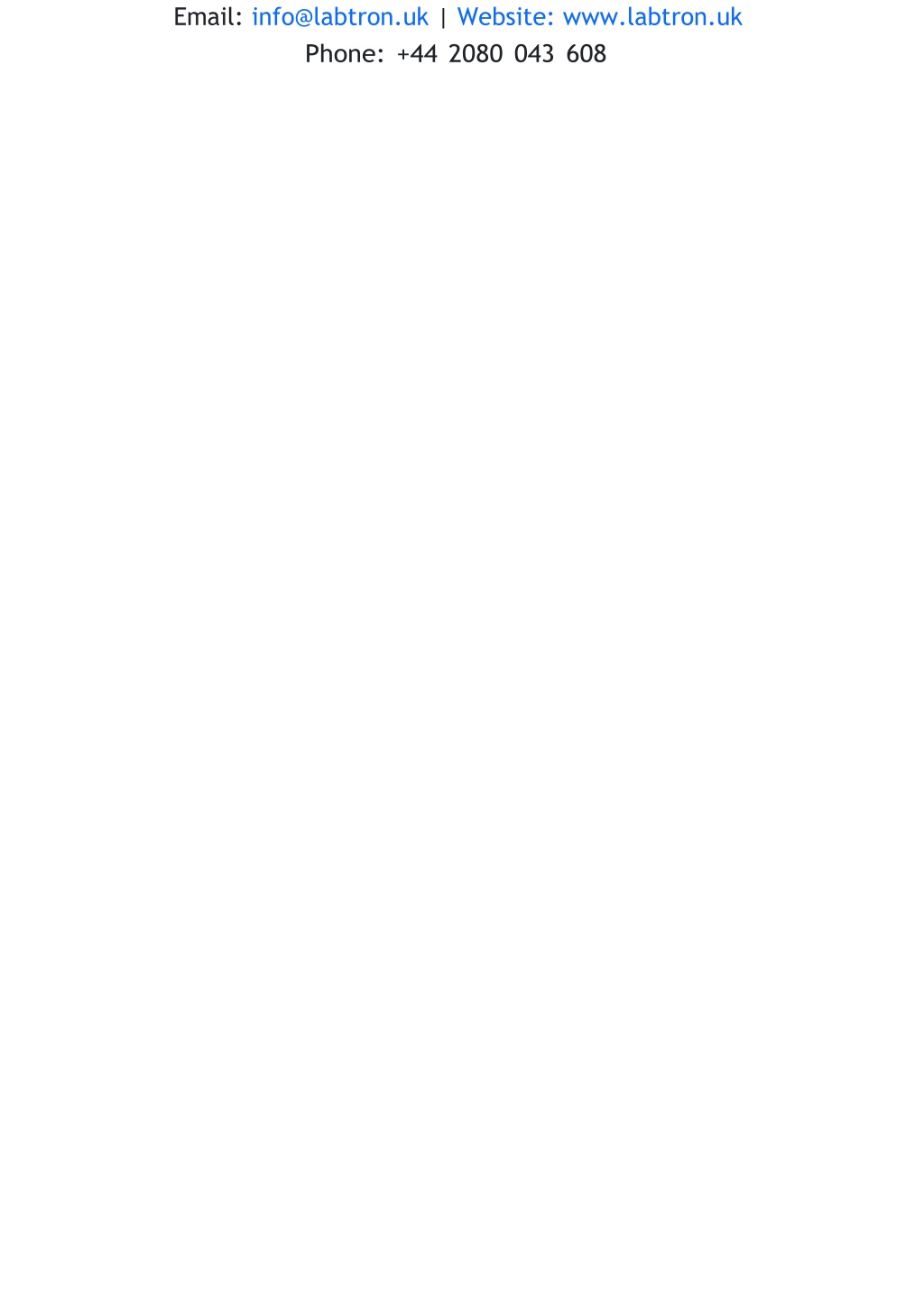

  5. Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
