Automatic PMCC Flash Point Tester ASTMD 93

Labtron automatic PMCC flash point tester features RS-323 and RS-485 ports for barometric pressure calibration. It operates between 10u00b0C and 40u00b0C with 80% humidity and 0.005 accuracy. It includes an LCD display and can store up to 100 test data sets. It also allows for modification of initial test data and parameters.

Erica57
Download Presentation

Automatic PMCC Flash Point Tester ASTMD 93

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

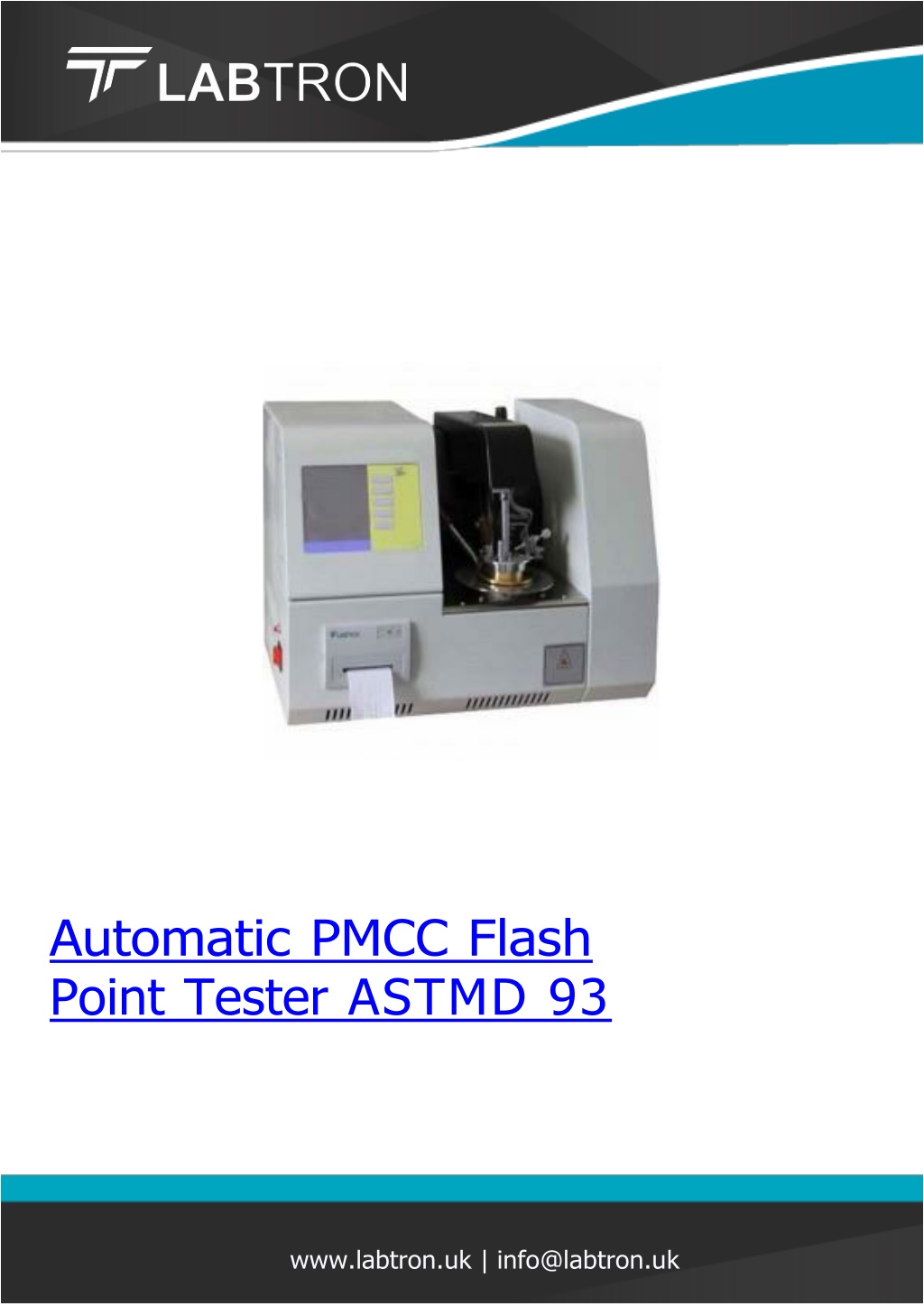

  1. Automatic PMCC Flash Point Tester ASTMD 93 www.labtron.uk | info@labtron.uk

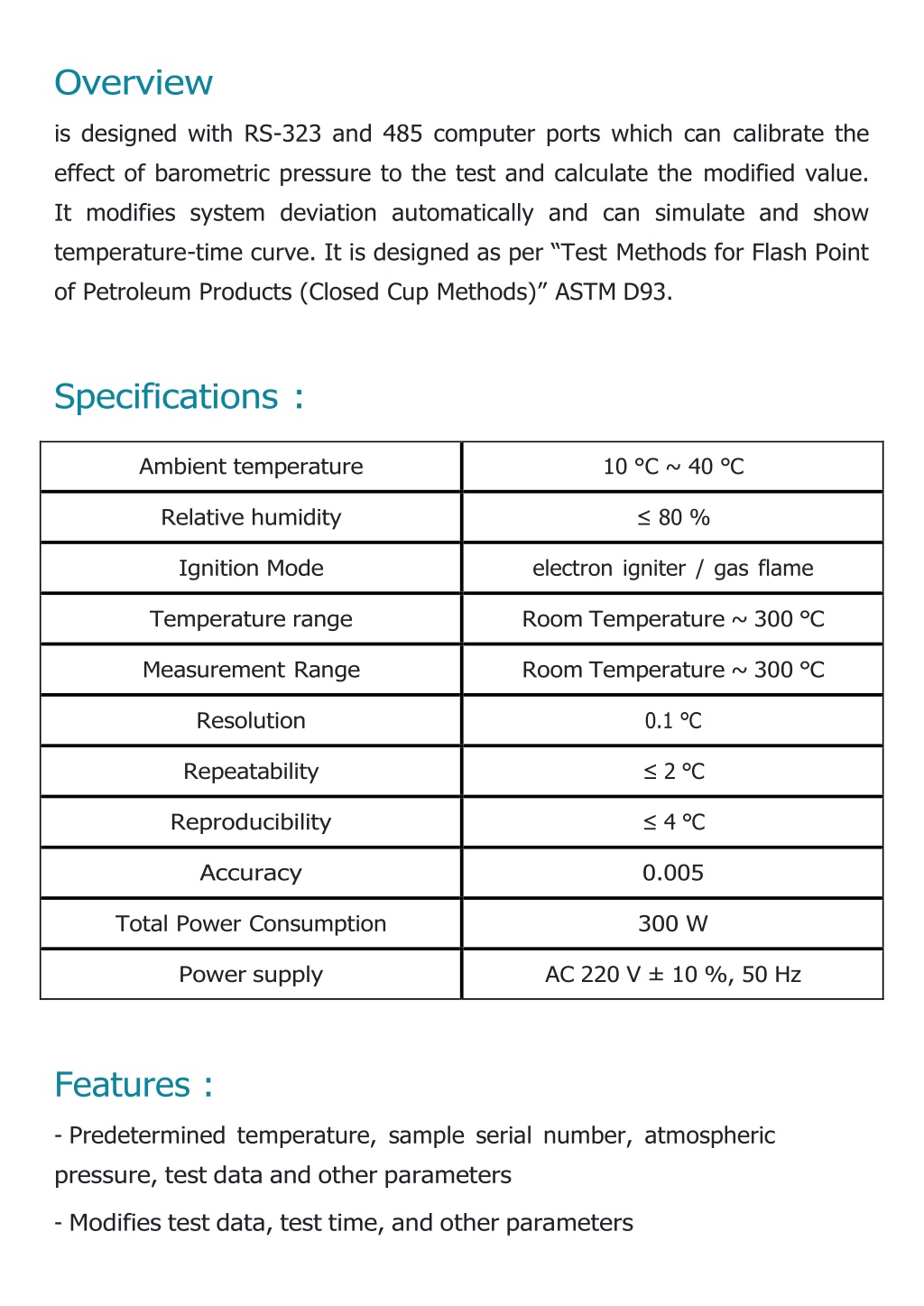

  2. Overview is designed with RS-323 and 485 computer ports which can calibrate the effect of barometric pressure to the test and calculate the modified value. It modifies system deviation automatically and can simulate and show temperature-time curve. It is designed as per “Test Methods for Flash Point of Petroleum Products (Closed Cup Methods)” ASTM D93. Specifications : Ambient temperature 10 °C ~ 40 ℃ Relative humidity ≤ 80 % Ignition Mode electron igniter / gas flame Temperature range Room Temperature ~ 300 ℃ Measurement Range Room Temperature ~ 300 ℃ Resolution 0.1 ℃ Repeatability ≤ 2 ℃ Reproducibility ≤ 4 ℃ Accuracy 0.005 Total Power Consumption 300 W Power supply AC 220 V ± 10 %, 50 Hz Features : -Predetermined temperature, sample serial number, atmospheric pressure, test data and other parameters -Modifies test data, test time, and other parameters

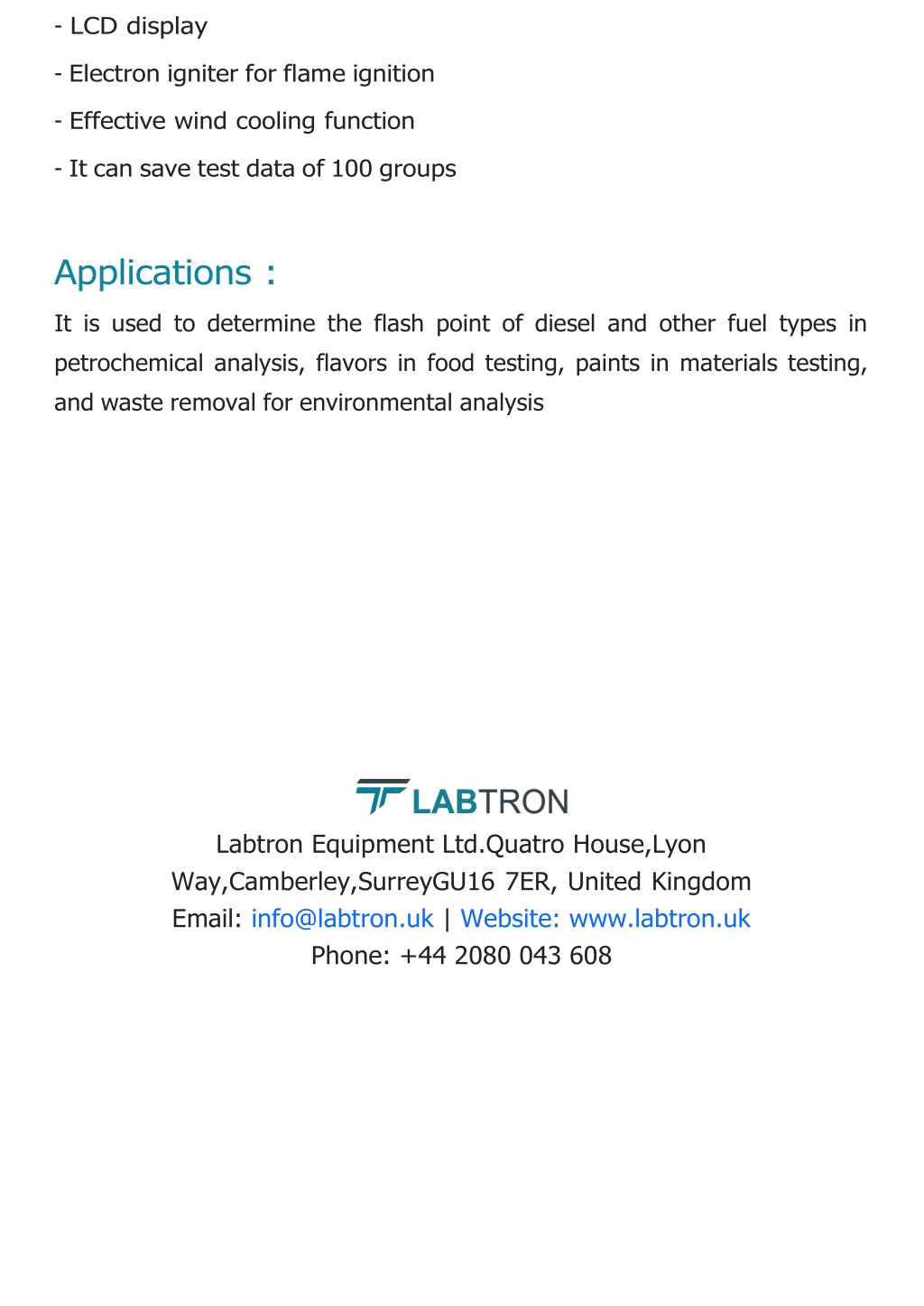

  3. -LCD display -Electron igniter for flame ignition -Effective wind cooling function -It can save test data of 100 groups Applications : It is used to determine the flash point of diesel and other fuel types in petrochemical analysis, flavors in food testing, paints in materials testing, and waste removal for environmental analysis Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
