flash point ignition point

Flash Point-Ignition Point

What?

At Work Or At Home

everyday we use chemicals whether at work or in the home

Everyday We Use Chemicals Whether At Work Or In The Home

Proper Storage & Understanding How Dangerous Chemicals Can Become If Subjected To Heat Is Using Just Using Good Safety Common Sense.

flammable liquids
Flammable Liquids

Properties of Flammable Liquids

  • The vapor of a flammable liquid ignites and causes fire or explosion – not the liquid itself.
  • The flammability of a liquid depends on its physical properties:
    • Vapor Pressure
    • Flash Point
    • Limits of Flammability
    • Vapor Density
flammable liquids4
Flammable Liquids

Vapor Pressure

  • Vapor pressure is a measure of how fast a liquid evaporates.
  • The higher the vapor pressure the more rapidly the liquid will evaporate.
  • Vapor pressure goes up and down with the temperature of the liquid.
  • Hydraulic Systems uses oil under pressure to harness the usefulness of chemicals. When System are compromised, hazardous conditions can be magnified.
what is flash point
What is Flash Point?
  • Flash point is the lowest temperature at which a liquid can form an ignitable mixture in air near the surface of the liquid.
  • The lower the flash point, the easier it is to ignite the material. For example, gasoline has a flash point of -40 degrees C (-40 F) and is more flammable than ethylene glycol (antifreeze) which has a flash point of 111 degrees C (232 F).
what is ignition point
What Is Ignition Point
  • Ignition point
    • The minimum temperature at which a substance will continue to burn without additional application of external heat. Also called kindling point.
flammable liquids7
Flammable Liquids

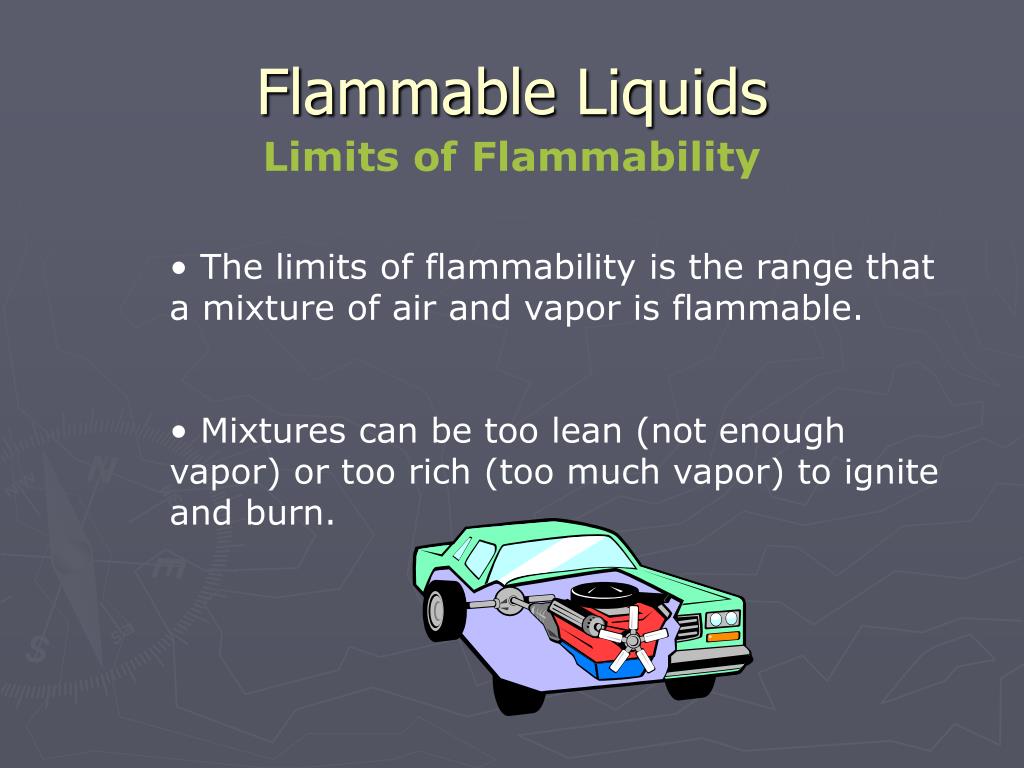

Limits of Flammability

  • The limits of flammability is the range that a mixture of air and vapor is flammable.
  • Mixtures can be too lean (not enough vapor) or too rich (too much vapor) to ignite and burn.
flammable liquids8
Flammable Liquids

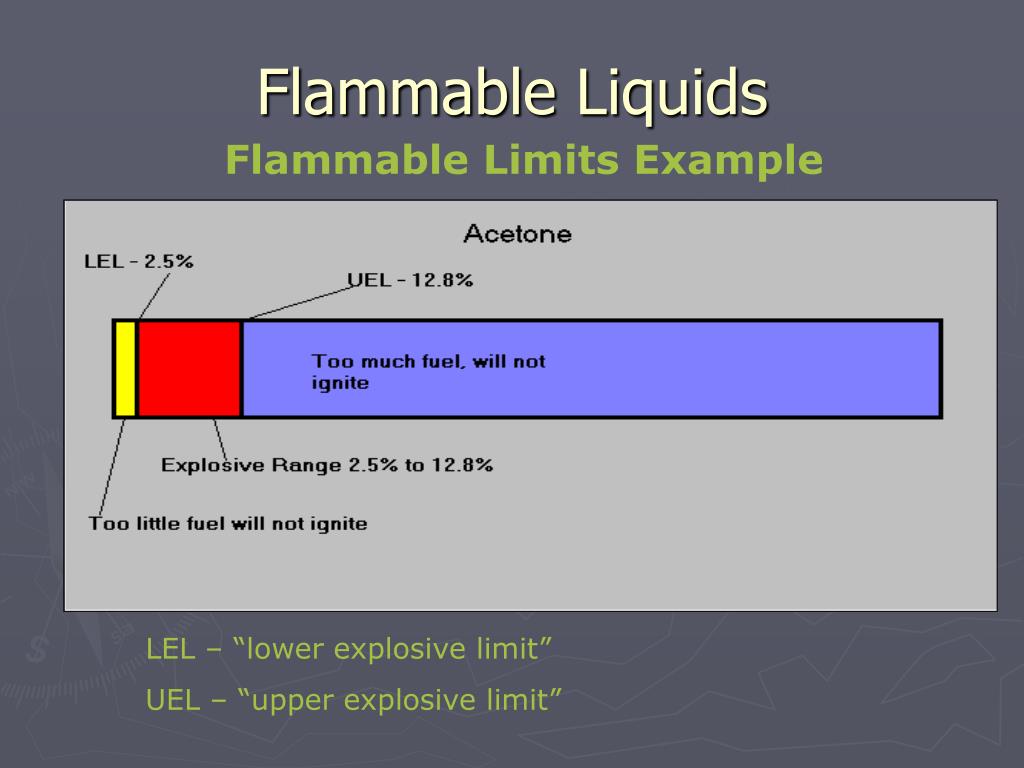

Flammable Limits Example

LEL – “lower explosive limit”

UEL – “upper explosive limit”

flammable liquids9
Flammable Liquids

Lower Explosive Limit – LEL

In most work situations, the “lower explosive limit” (LEL) is the main concern.

Vapors from flammable liquids can be found in the workplace, but are often too diluted to catch fire or explode.

However, these vapors can quickly go above the LEL in small room or confined space like a tank.

flammable liquids10
Flammable Liquids

Vapor Density

  • “Vapor density” is a measure of how heavy a vapor is compared to air.
  • Vapors with a density greater than 1.0 are heavier than air and can collect near the floor, and “flow” like a liquid.
  • This may create a fire/explosion hazard if the vapor flows to an ignition source.
boiling point definition
Boiling PointDefinition
  • Boiling point is the temperature at which a liquid changes to a gas (vapor) at normal atmospheric pressure. A more specific definition of boiling point is the temperature at which the vapor pressure of a liquid is equal to the external pressure.
example of boiling point
Example of Boiling Point
  • Water freezes at 32 °F.
  • Turns to liquid at above 32° F.
  • Boils & changes to Gas at 212° F.
  • Expands 17,000 times it normal size when heated.
boiling point
Boiling Point
  • MSDS relevance
  • Knowing the boiling point of a substance is an important consideration for storage. For example, storing a chemical with a boiling point of 50 °C (122 °F) in direct sunlight or next to a boiler could cause the material to completely vaporize and/or result in a fire or explosion.

Items with a low boiling point generally have a high vapor pressure. Containers of such material can build up significant pressure even when they are below their boiling point. Likewise, low-boiling materials easily produce large amounts of vapor which can be flammable or even explosive.

when condition are just right accidents result
When Condition Are Just RightAccidents Result
  • A spectacular example of the consequences of introducing a spark to a flammable limit atmosphere occurred in Newcastle in September of 2003. A pipe fitter left an acetylene cylinder inside his vehicle over the weekend. Either the cylinder had a small leak or the valve was not fully closed. The flammable limits for acetylene are extremely broad, 2.5% to 100% in air.
  • Flashpoint is 0° F/-18°C. Boiling point is -119°F/-84°C.
  • When the worker opened the door, an undetermined spark source (the door light switch, light bulb, cellular phone, static etc.) Ignited the mixture with catastrophic results:
  • In the close-up view notice how the roof/door pillars are bent completely sideways. It is amazing that the worker's injuries were confined to his face and ear drums.
what makes flash ignitions points dangerous
What Makes Flash & Ignitions PointsDangerous.

The Fire Triangle

  • Any combustible material such as: solid, liquid, or gas. Most solids and liquids must vaporize before they will burn.
  • Sufficient oxygen must be present in the atmosphere surrounding the fuel for fire to burn.
flash ignition points
Flash & Ignition Points

Sufficient heat energy must be

applied to raise the fuel to it’s

ignition temperature.

Open flame Hot surfaces

Sparks and arcs Friction

This reaction can occur when

all three of the above elements

are present in the proper

conditions & proportions.

extinguishment theory
Extinguishment Theory
  • Remove Heat
  • Remove Fuel
  • Reduce Oxygen
    • WILL
  • Inhibit Chemical

Chain Reaction

proactive fire safety fire risk analysis
Proactive Fire SafetyFire Risk Analysis
  • How do we identify potential fire risk?

The Fire Triangle

proactive fire safety fire risk analysis cont
Proactive Fire SafetyFire Risk Analysis Cont.
  • Identify the fuel source & eliminate it if possible.
  • Identify the heat source and eliminate it if possible.
  • Terminate behaviors that lead to hazardous conditions & replace with appropriate behaviors conducive to good fire safety.
    • Storing flammable and combustible in appropriate areas.
    • On equipment, in fire cabinets, in work areas.
identifying fire hazards in your work area
Identifying Fire Hazards In Your Work Area
  • What chemical are present in your work area? What are there flash points?
    • In stationary equipment areas
    • On mobile equipment
    • At shops
  • What heat source are present?
    • Thermal (heat)
    • Electrical
    • Radiant
do you know your flashpoints
Do You Know Your Flashpoints?
  • The following is a list of chemicals used on this site, some of these you may even use at home.
  • Do you know how they are stored?
  • At work?
  • At home?
  • See if you know which chemical is which.
try match flashpoints with the chemical
247°f/119°c

145°f/78°c

160°f

320°f/160°c

356°f/180°c

<-49°f/<-45°c

0°f/-18°c

-101°f/-75.9°c

None

-156°f/-104°c

-43.7°f/-42°c

79°f

73°f/23°c

175°f

Acetylene

Gasoline

Diesel Fuel

Hydraulic 40-wt oil

Propane

Butane

Citrol

CRC Contact Cleaner

Form Oil

Averoe Tree Paint

Ethylene Glycol (Antifreeze)

Carburetor Cleaner

Form Oil

CRC Power lube

Try & Match Flashpoints With The Chemical
did you choose right
Did You Choose Right
  • 247°f/119°c------Antifreeze/Eythlene glycol
  • 145°f/78°c--------
answer
Answer
  • 160°f------Diesel Fuel-IP 500°f
  • 320°f/160°c-----Form Oil
  • 356°f/180°c-----40-wt Hydraulic Oil
  • <-49°f/<-45°c----Unleaded Gasoline
answer27
Answer
  • 0°f/-18°c----Acetylene Gas-BP -119°f
  • -101°f/-75.9°c-°Butane, AutoIP 778°f
  • None------
answer28
Answer
  • -156°f/-104°c--Propane-Auto IP 842°f
  • -43.7°f/-42°c----
  • 79°f—Carburetor Cleaner-BP 110°F
answer29
Answer
  • 73°f/23°c-------------
  • 175°f----
in conclusion
In Conclusion

Any situation that can lead to a fire underground is not good.

Let’s all do our part to make sure our work areas are accident free & fire safe.

Created By Pat Gazewood
