Automatic-PMCC-Flash-Point-Tester

Labtron automatic flash point tester is an advanced automated closed-cup flash point tester. It operates in ambient temperatures from 10u00b0C to 40u00b0C and relative humidity up to 80%. For flash points below 104u00b0C, accuracy is 2u00b0C. It features precise control over measurement procedures, including automatic data management.

Erica57
Download Presentation

Automatic-PMCC-Flash-Point-Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

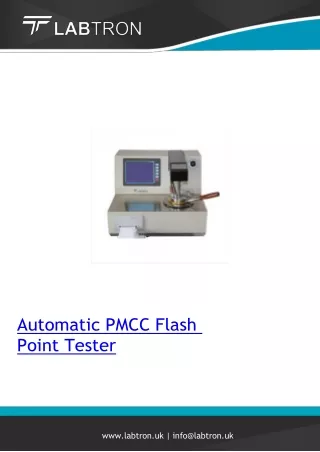

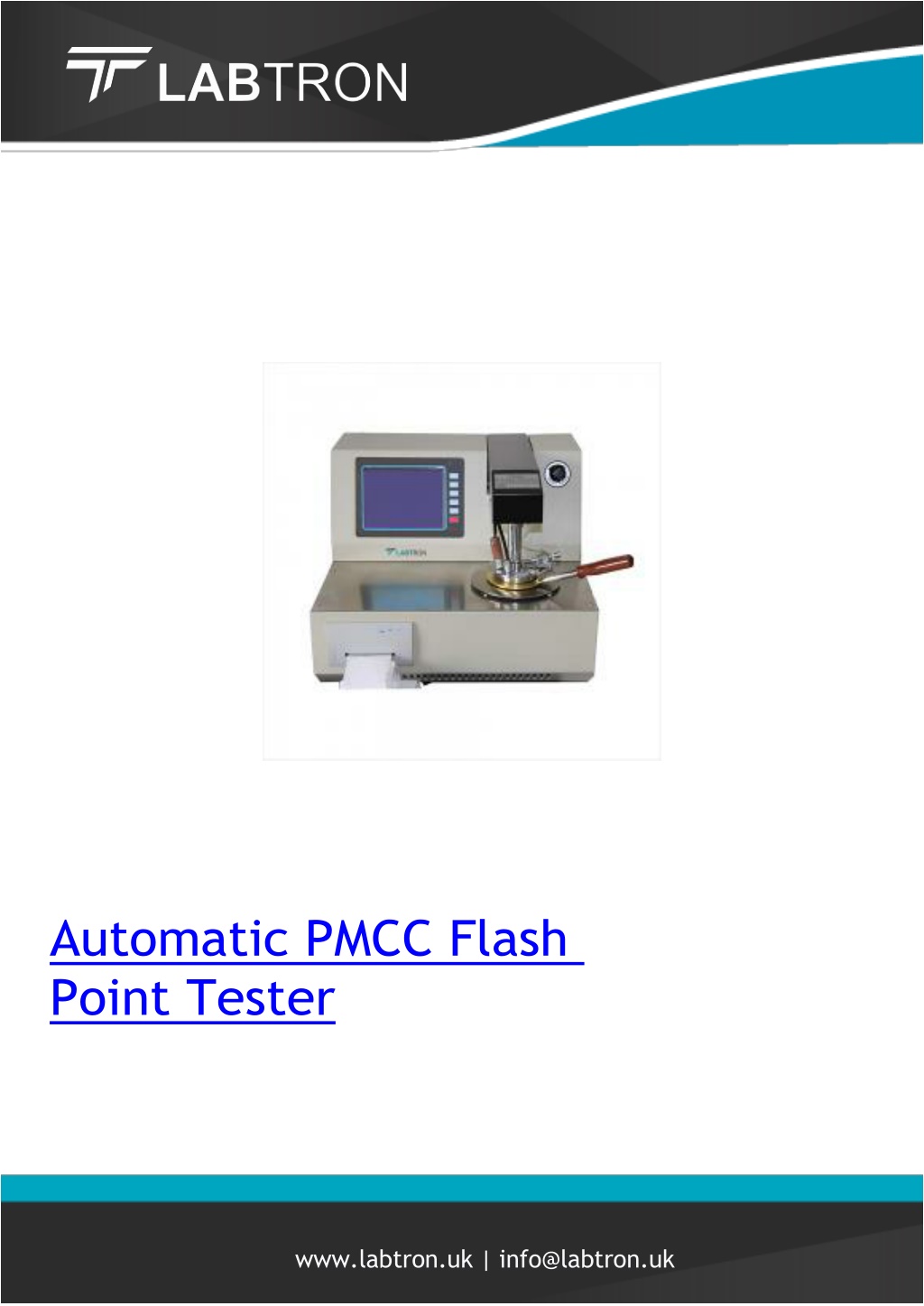

  1. Automatic PMCC Flash Point Tester www.labtron.uk | info@labtron.uk

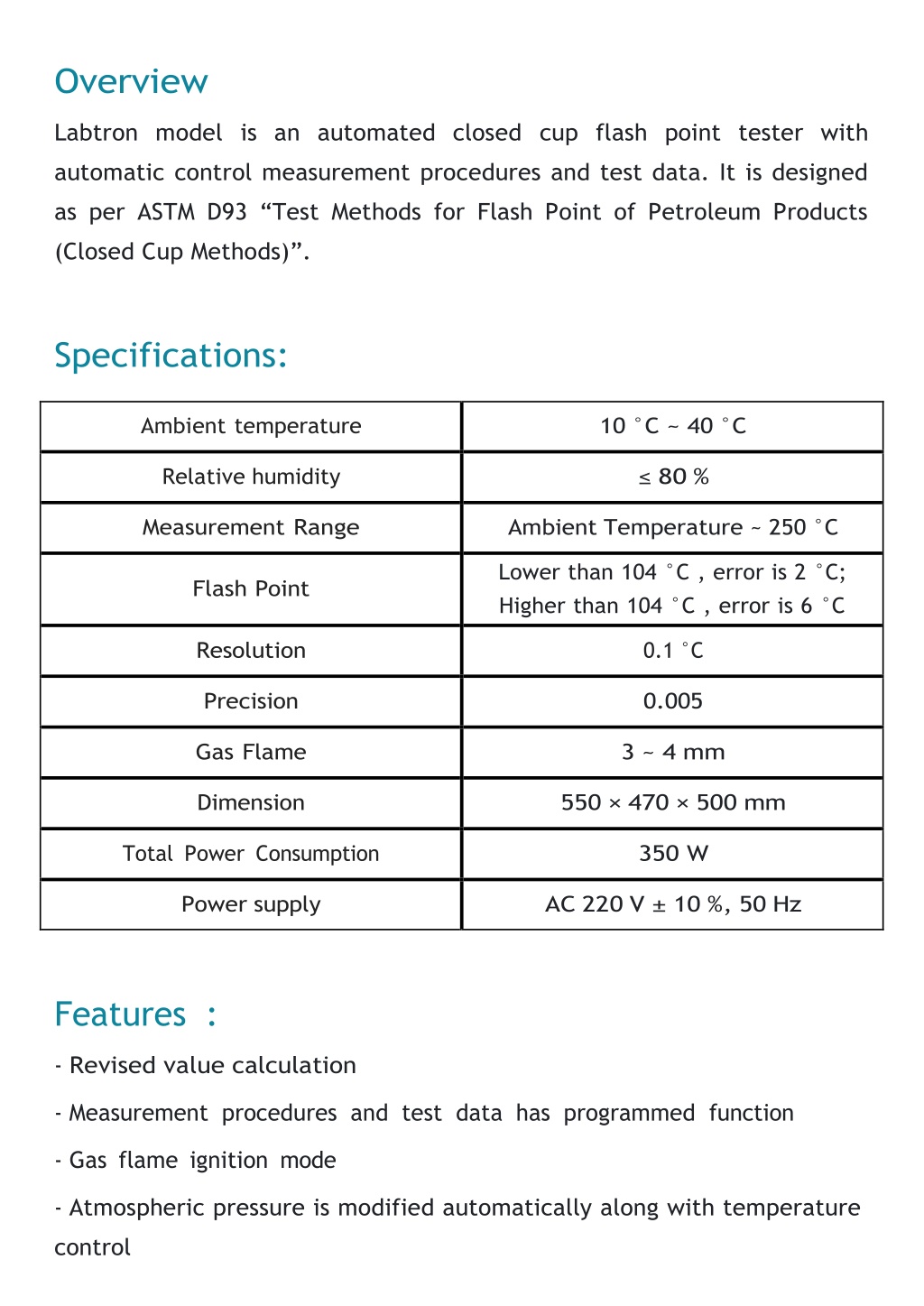

  2. Overview Labtron model is an automated closed cup flash point tester with automatic control measurement procedures and test data. It is designed as per ASTM D93 “Test Methods for Flash Point of Petroleum Products (Closed Cup Methods)”. Specifications: Ambient temperature 10 °C ~ 40 °C Relative humidity ≤ 80 % Measurement Range Ambient Temperature ~ 250 °C Lower than 104 °C , error is 2 °C; Higher than 104 °C , error is 6 °C Flash Point Resolution 0.1 °C Precision 0.005 Gas Flame 3 ~ 4 mm Dimension 550 × 470 × 500 mm Total Power Consumption 350 W Power supply AC 220 V ± 10 %, 50 Hz Features: -Revised value calculation -Measurementproceduresandtestdatahasprogrammedfunction -Gas flame ignition mode -Atmospheric pressure is modified automatically along with temperature control

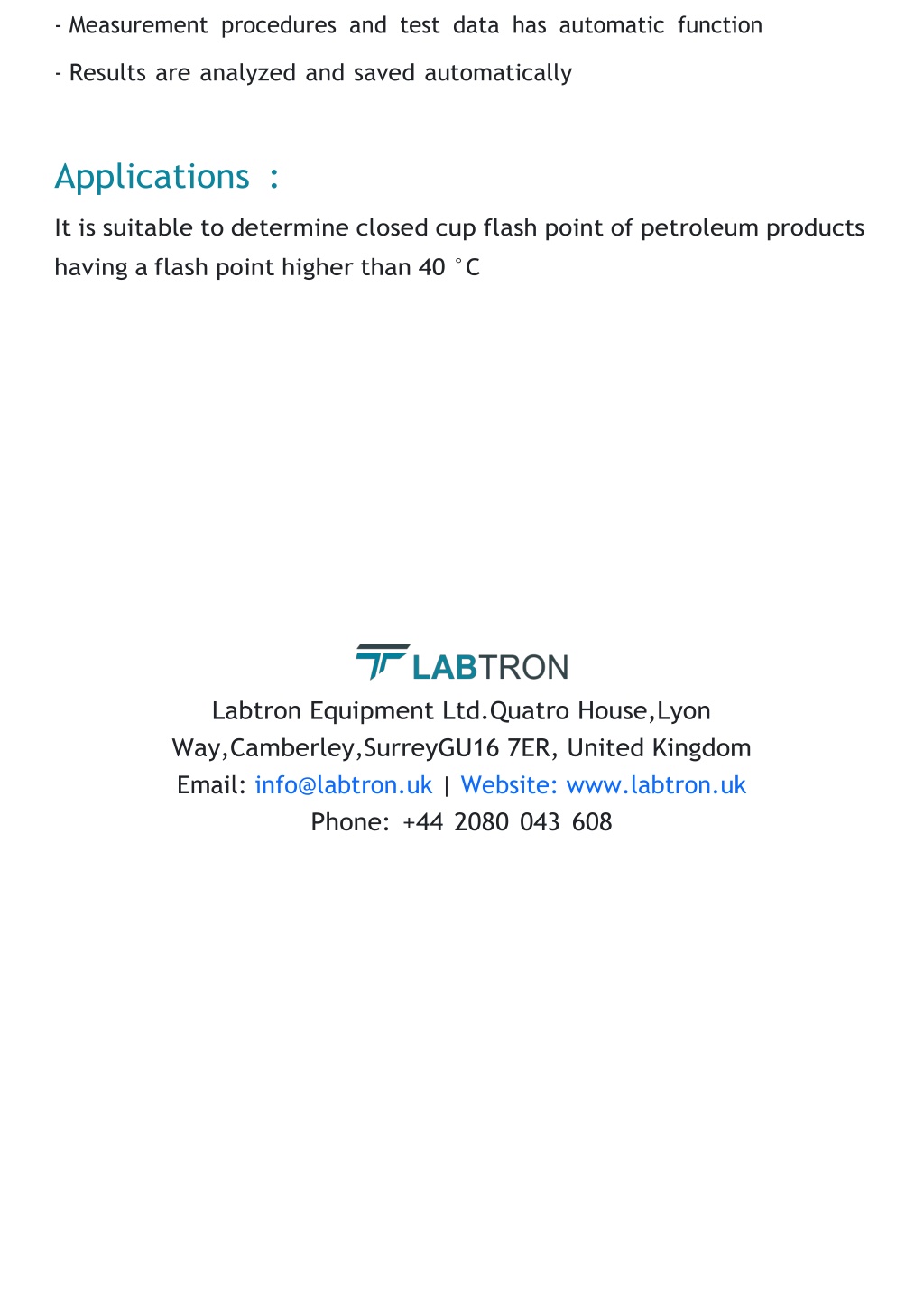

  3. -Measurement procedures and test data has automatic function -Results are analyzed and saved automatically Applications: It is suitable to determine closed cup flash point of petroleum products having a flash point higher than 40 °C Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
