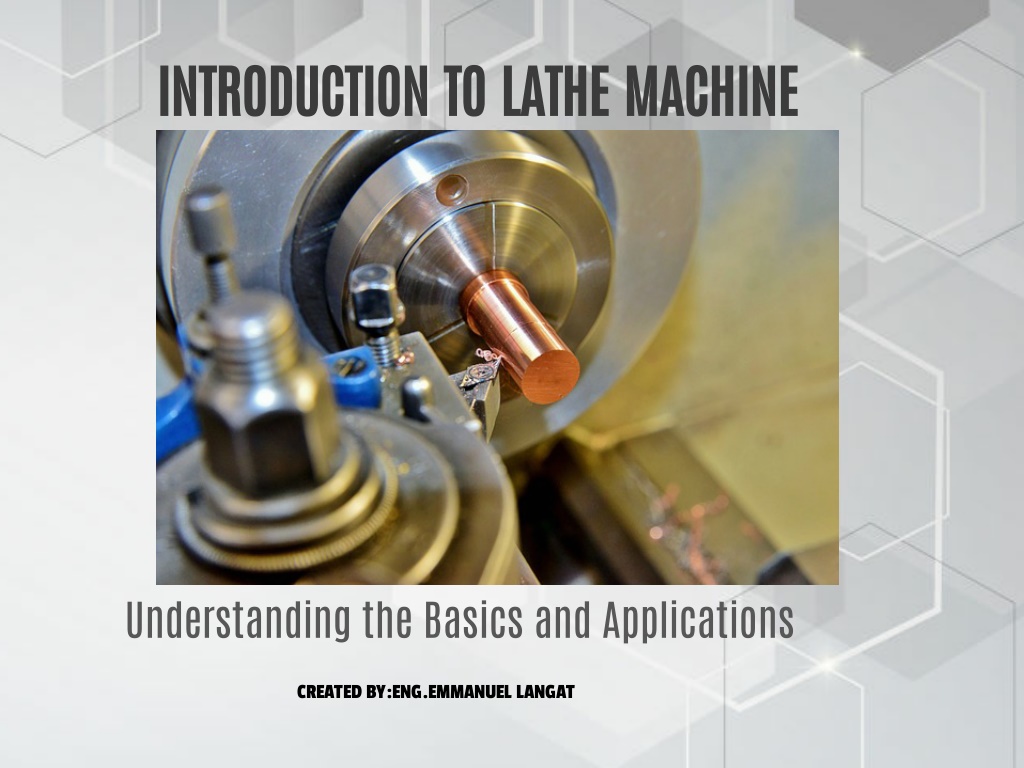

  1. INTRODUCTION TO LATHE MACHINE Understanding the Basics and Applications CREATED BY:ENG.EMMANUEL LANGAT

  2. Definition: A lathe machine is a versatile tool used in machining operations to rotate a workpiece on its axis, enabling various cutting, drilling, facing, and turning operations

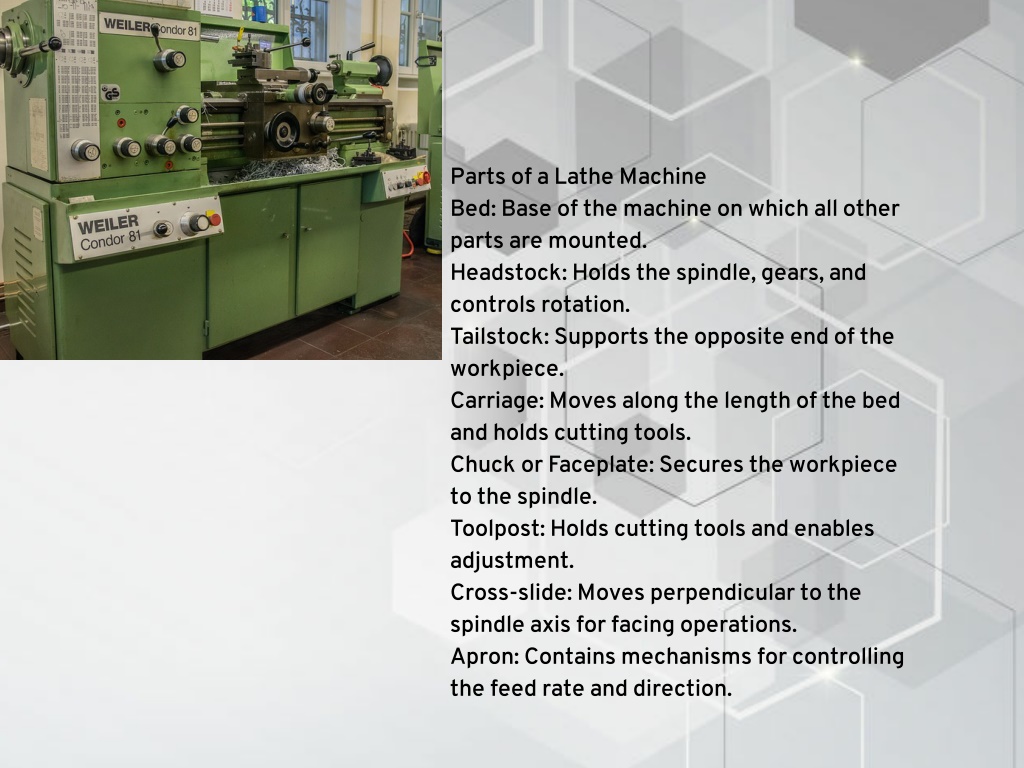

  3. Parts of a Lathe Machine Bed: Base of the machine on which all other parts are mounted. Headstock: Holds the spindle, gears, and controls rotation. Tailstock: Supports the opposite end of the workpiece. Carriage: Moves along the length of the bed and holds cutting tools. Chuck or Faceplate: Secures the workpiece to the spindle. Toolpost: Holds cutting tools and enables adjustment. Cross-slide: Moves perpendicular to the spindle axis for facing operations. Apron: Contains mechanisms for controlling the feed rate and direction.

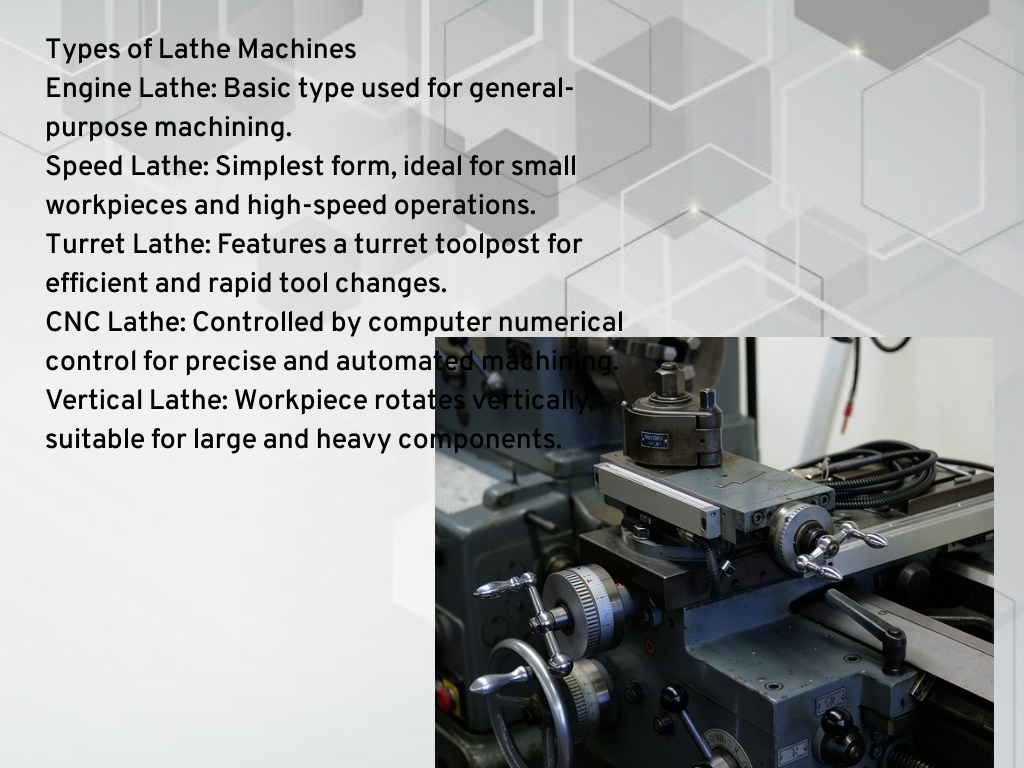

  4. Types of Lathe Machines Engine Lathe: Basic type used for general- purpose machining. Speed Lathe: Simplest form, ideal for small workpieces and high-speed operations. Turret Lathe: Features a turret toolpost for efficient and rapid tool changes. CNC Lathe: Controlled by computer numerical control for precise and automated machining. Vertical Lathe: Workpiece rotates vertically, suitable for large and heavy components.

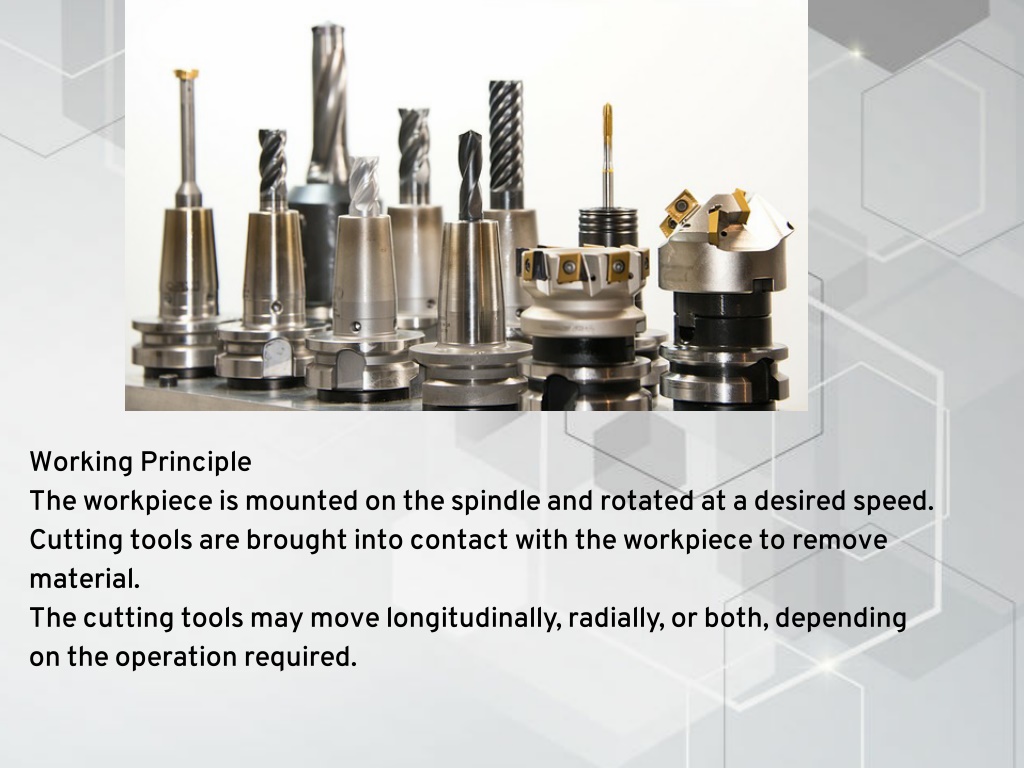

  5. Working Principle The workpiece is mounted on the spindle and rotated at a desired speed. Cutting tools are brought into contact with the workpiece to remove material. The cutting tools may move longitudinally, radially, or both, depending on the operation required.

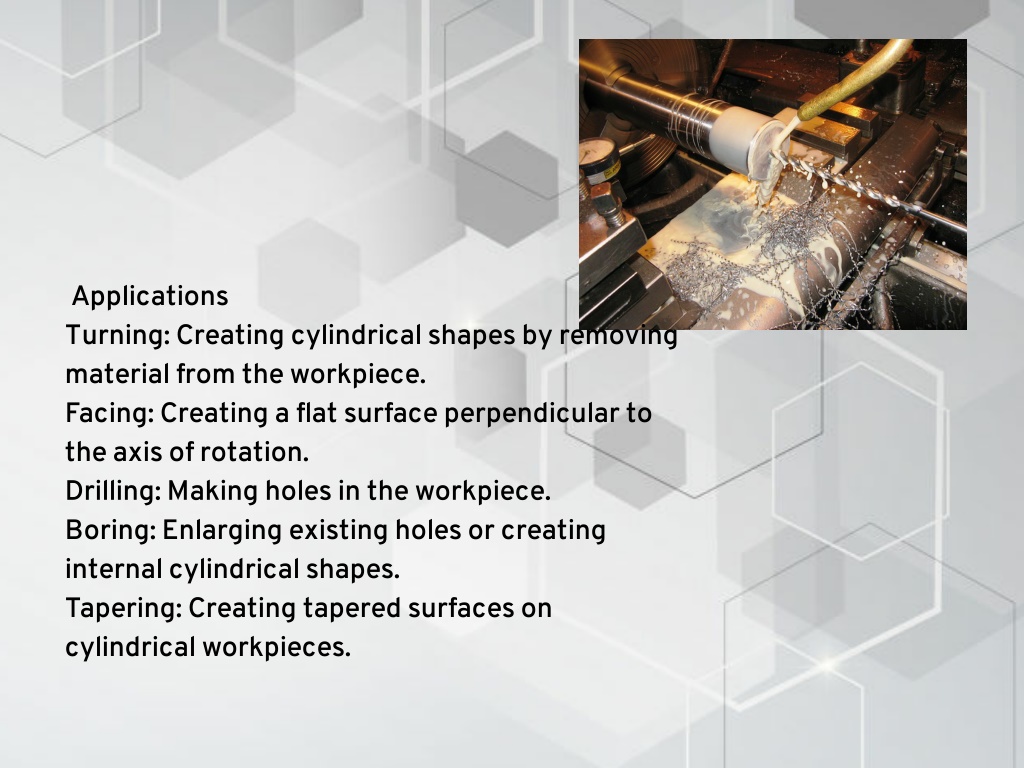

  6. Applications Turning: Creating cylindrical shapes by removing material from the workpiece. Facing: Creating a flat surface perpendicular to the axis of rotation. Drilling: Making holes in the workpiece. Boring: Enlarging existing holes or creating internal cylindrical shapes. Tapering: Creating tapered surfaces on cylindrical workpieces.

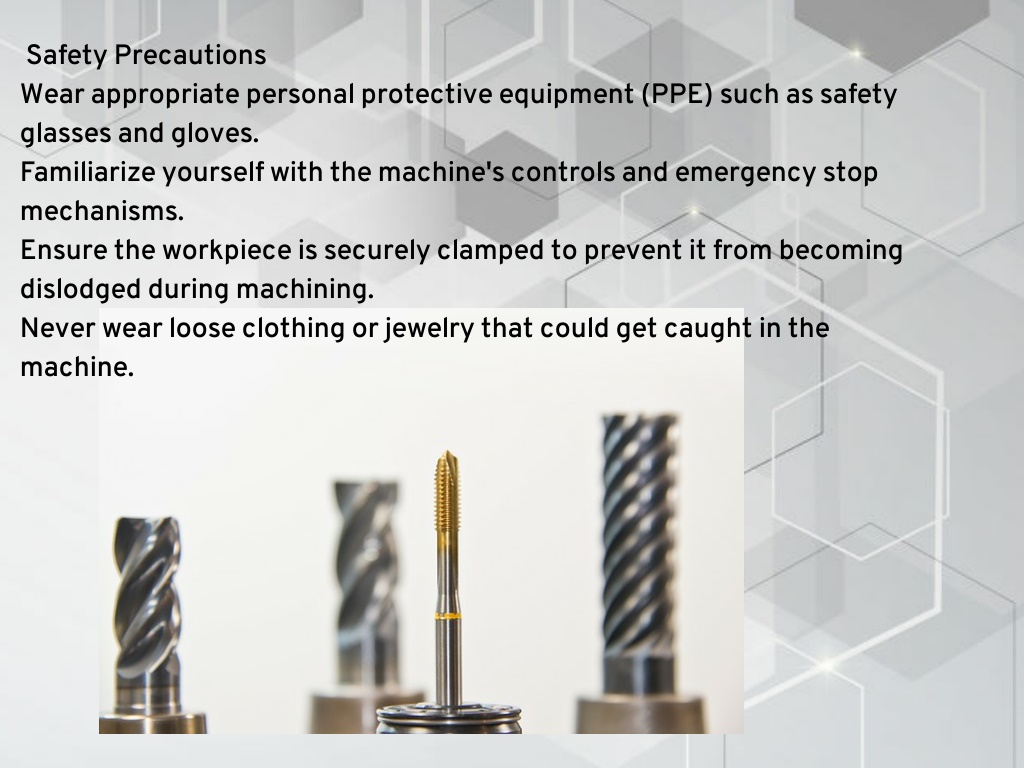

  7. Safety Precautions Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves. Familiarize yourself with the machine's controls and emergency stop mechanisms. Ensure the workpiece is securely clamped to prevent it from becoming dislodged during machining. Never wear loose clothing or jewelry that could get caught in the machine.

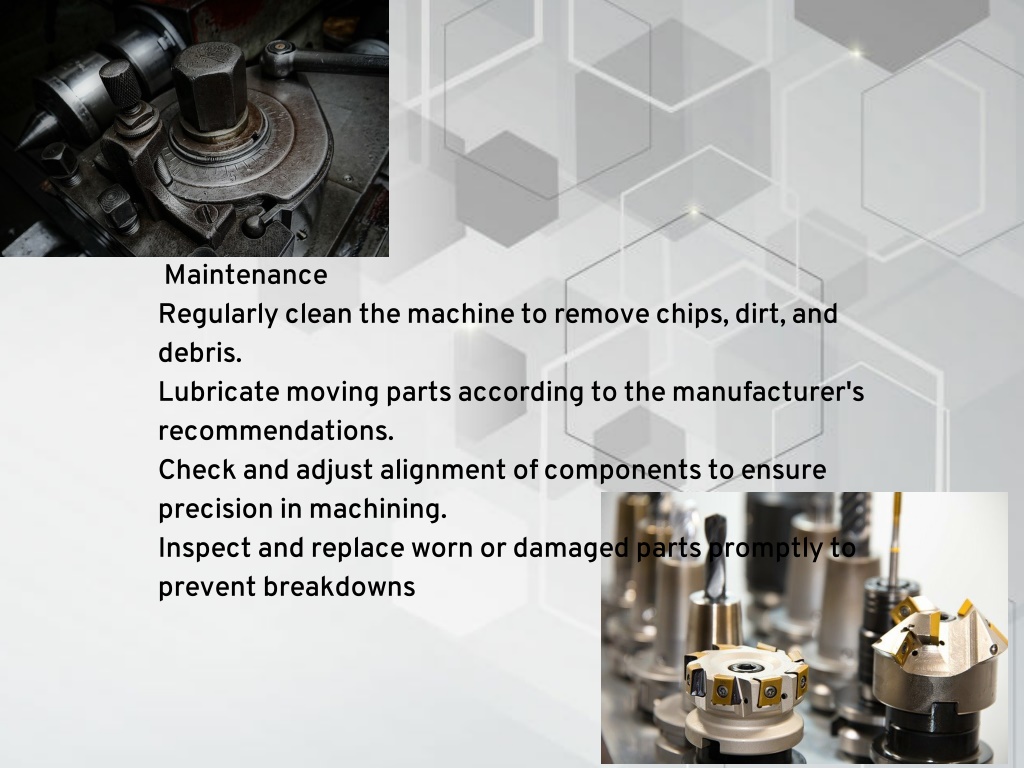

  8. Maintenance Regularly clean the machine to remove chips, dirt, and debris. Lubricate moving parts according to the manufacturer's recommendations. Check and adjust alignment of components to ensure precision in machining. Inspect and replace worn or damaged parts promptly to prevent breakdowns

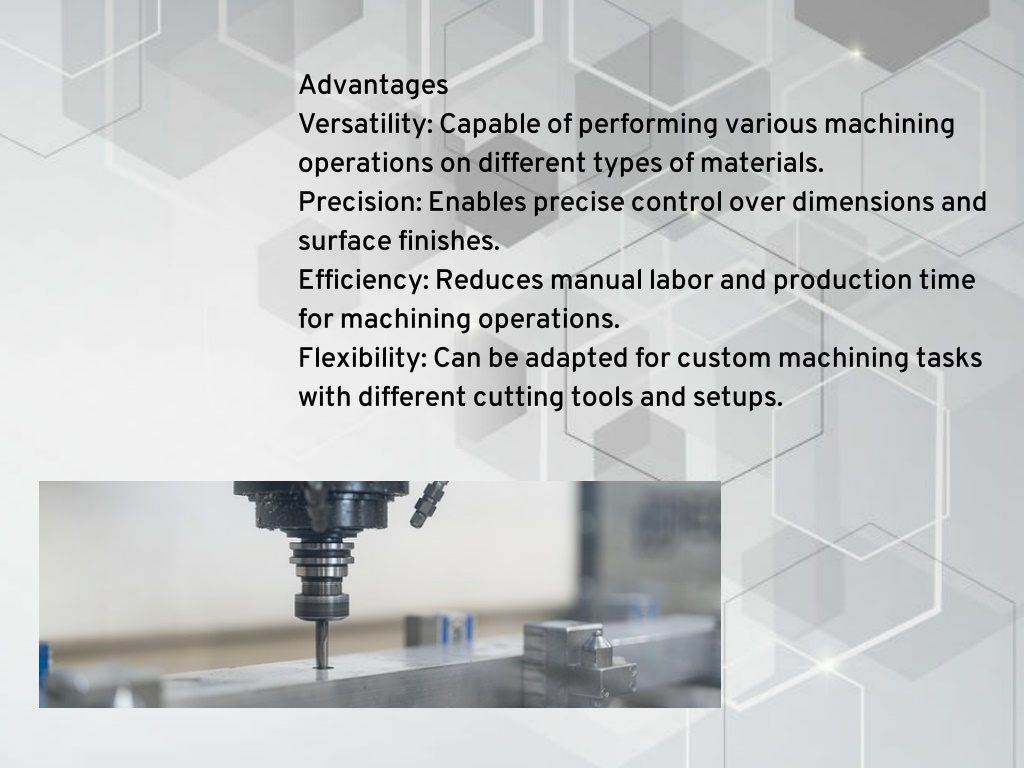

  9. Advantages Versatility: Capable of performing various machining operations on different types of materials. Precision: Enables precise control over dimensions and surface finishes. Efficiency: Reduces manual labor and production time for machining operations. Flexibility: Can be adapted for custom machining tasks with different cutting tools and setups.

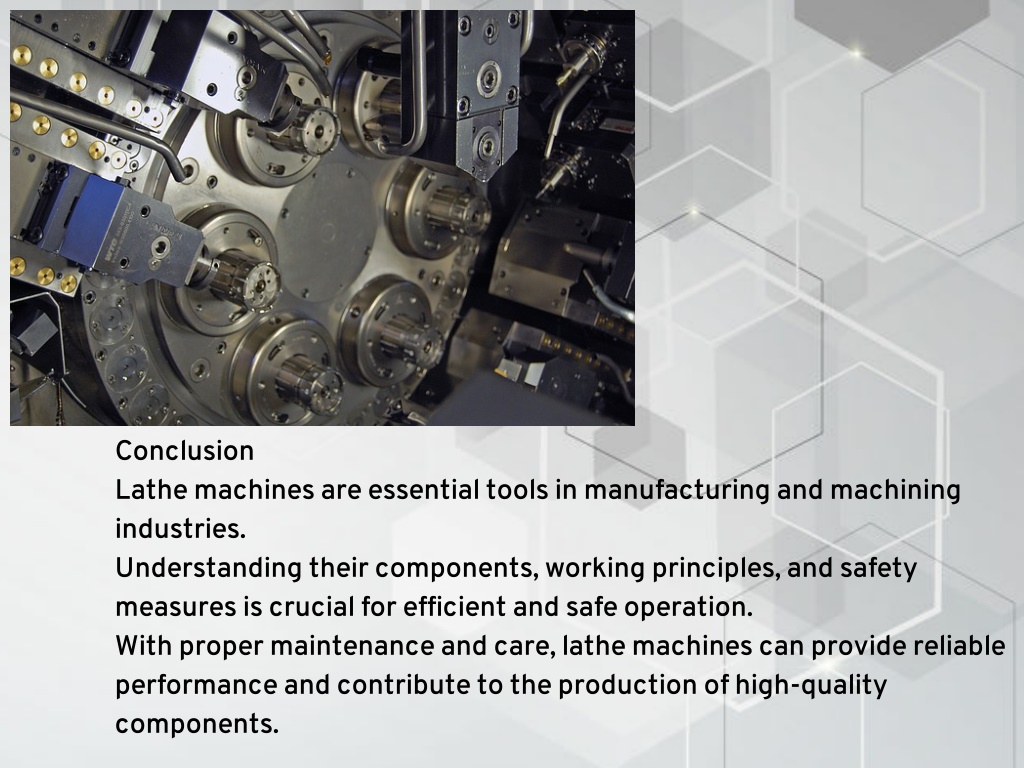

  10. Conclusion Lathe machines are essential tools in manufacturing and machining industries. Understanding their components, working principles, and safety measures is crucial for efficient and safe operation. With proper maintenance and care, lathe machines can provide reliable performance and contribute to the production of high-quality components.
