Various Types of Connection Methods in Terminal Blocks

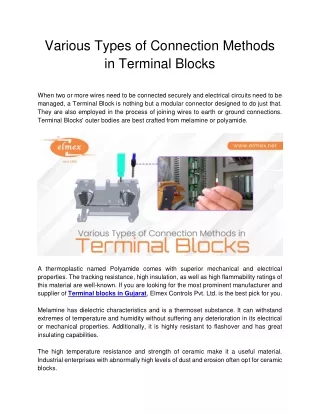

1. Various Types of Connection Methods in Terminal Blocks When two or more wires need to be connected securely and electrical circuits need to be managed, a Terminal Block is nothing but a modular connector designed to do just that. They are also employed in the process of joining wires to earth or ground connections. Terminal Blocks' outer bodies are best crafted from melamine or polyamide. A thermoplastic named Polyamide comes with superior mechanical and electrical properties. The tracking resistance, high insulation, as well as high flammability ratings of this material are well-known. If you are looking for the most prominent manufacturer and supplier of Terminal blocks in Gujarat, Elmex Controls Pvt. Ltd. is the best pick for you. Melamine has dielectric characteristics and is a thermoset substance. It can withstand extremes of temperature and humidity without suffering any deterioration in its electrical or mechanical properties. Additionally, it is highly resistant to flashover and has great insulating capabilities. The high temperature resistance and strength of ceramic make it a useful material. Industrial enterprises with abnormally high levels of dust and erosion often opt for ceramic blocks.

2. The low contact resistance of terminal blocks in India is achieved primarily through the use of a copper alloy. Clamps, such as nuts and bolts, spring clamps, screw clamps, or studs, are used to fasten wires to current bars. Depending on the field of use, current, and voltage ratings, various lugs or ferrules are available for use in attaching wires to Terminal Blocks. Multiple Connection Terminals, Sensor Terminals, Standard Feedthrough Terminals, Micro Terminal Blocks, Bus Bar Terminals, Double Level & Triple Level Terminal Blocks, Fuse Terminals, CT Connection Terminals, and the most important Grounding / Earth Terminal Blocks are just some of the types of Terminal Blocks used in the electrical industry. Terminal blocks with springs are preferred for making connections that meet the safety criteria set by ESI. Variety of Connection Methods in Terminal Blocks: - Screw Clamp connection: The most common type of wire connection is a screw clamp. Advantages over alternative methods of wire termination include I its applicability to any and all wire types and (ii) its simplicity in terms of the preparations required for making a connection. (iii) Using a regular screwdriver, you may easily connect and disconnect the wires. The conductor is compressed against the electrolytic copper current bar via a strong contact force generated by the steel clamping screw and transmitted via the steel clamping yoke. If you tighten the clamping screw, the yoke will be dragged upward, compressing the wire. Clamping surfaces that are flat guarantee that even thin wires are securely held. - Spring Clamp connections: A screw connection using a spring clamp can serve the same purposes as a connection using a screw clamp. For this sort of connection, a pre-tensioned spring clamp presses the wire directly on the electrolytic current bar made of copper. To manipulate the spring, a screwdriver is inserted into the clamp's hole, which exposes the wire. The high-quality stainless-steel clamp guarantees a solid wire connection with low contact resistance. Spring Clamp connections have many

3. advantages, including I being simple to use and quick to set up, (ii) being immune to vibrations, and (iii) being fail-safe and requiring no maintenance. - Bus bar and Cable Lug Connection: Extremely vibrational environments favour this form of wire termination. Securing the wire by screwing it onto the Terminal Block's flat current bar after it has been crimped to a fork-type lug. Larger cross-section wires can also benefit from this connection method. - Tab Connection Method: When the linked wire needs to be plugged in and out often, tab connections are the way to go. The Terminal Block is attached to the tab sleeves containing the crimped wires. Wires in a circuit can be quickly and easily connected and disconnected using these simple connections. Elmex Controls Pvt. Ltd. is an excellent supplier of Terminal blocks in Vadodara who can fulfil all your requirements. - Solder Type Connections: The area of the wires connecting with the solder should not exceed 2.5 sqmm. The wire is joined to a solder lug in this configuration by means of soldering. These bonds are not the kind that can be broken with little effort; rather, they are solid and enduring. - Push-in Type Connections: Connecting components with a push-in type connection doesn't require any additional hardware or special techniques. Stranded wires must be hauled and squeezed into the clamp, although solid conductors can be utilised directly. Once the wire is inserted into the Terminal, the clamp will open automatically. This connection method has several advantages: I it saves time and ensures reliable connections; (ii) it allows for easy wire insertion without the need for special tools; and (iii) the wires can be quickly and easily withdrawn if necessary. - Plug and Socket Connection: When building a wiring harness, male-female terminal blocks with pluggable connections are a great choice. Din Rail mounting and Free Floating connections both find use in machine building, which requires electrically connecting two distinct units.
