4 Types of Terminal Blocks

A link terminal or terminal connector is another name for a terminal block. A modular block is connected to an insulated frame on the inside.

Elmex30
Download Presentation

4 Types of Terminal Blocks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

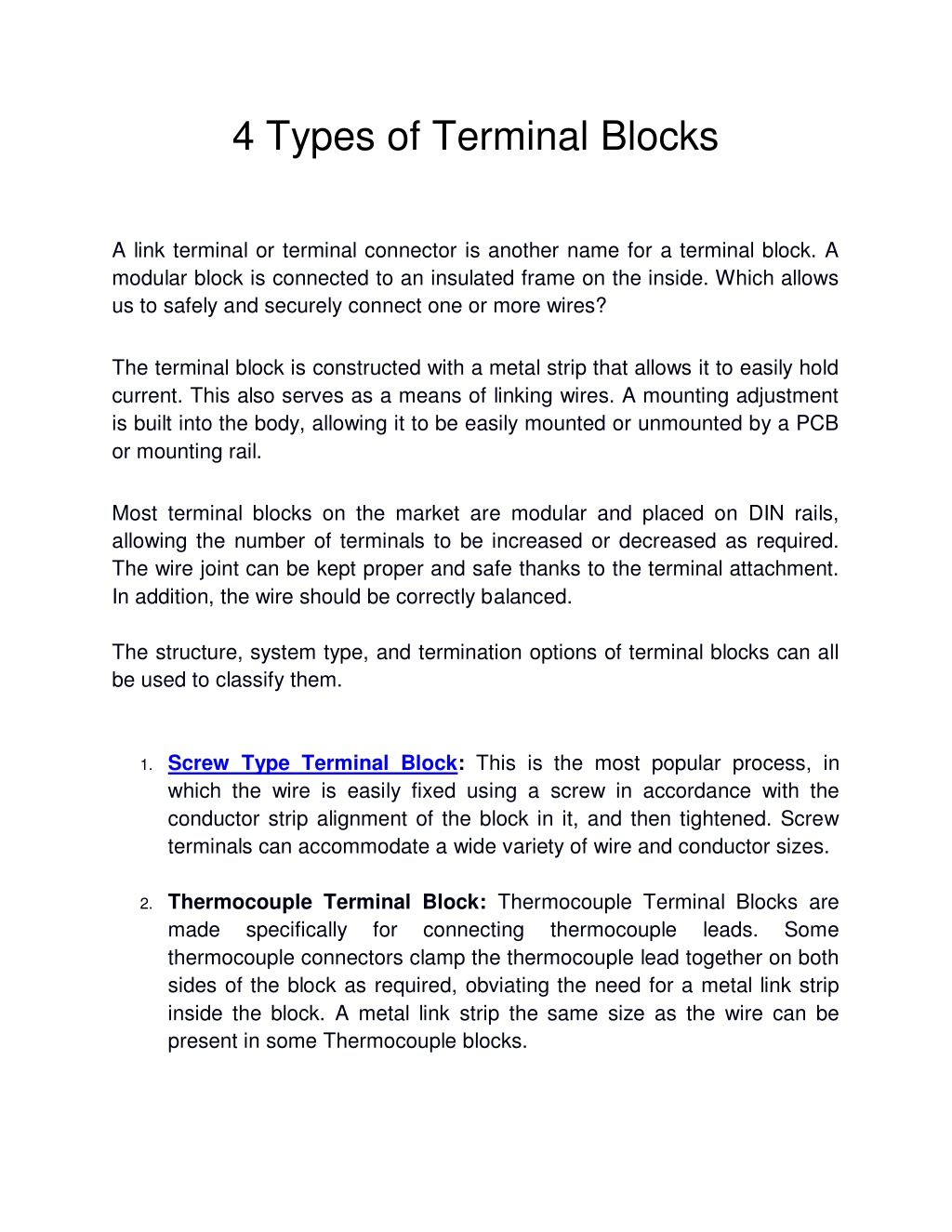

  1. 4 Types of Terminal Blocks A link terminal or terminal connector is another name for a terminal block. A modular block is connected to an insulated frame on the inside. Which allows us to safely and securely connect one or more wires? The terminal block is constructed with a metal strip that allows it to easily hold current. This also serves as a means of linking wires. A mounting adjustment is built into the body, allowing it to be easily mounted or unmounted by a PCB or mounting rail. Most terminal blocks on the market are modular and placed on DIN rails, allowing the number of terminals to be increased or decreased as required. The wire joint can be kept proper and safe thanks to the terminal attachment. In addition, the wire should be correctly balanced. The structure, system type, and termination options of terminal blocks can all be used to classify them. 1. Screw Type Terminal Block: This is the most popular process, in which the wire is easily fixed using a screw in accordance with the conductor strip alignment of the block in it, and then tightened. Screw terminals can accommodate a wide variety of wire and conductor sizes. 2. Thermocouple Terminal Block: Thermocouple Terminal Blocks are made specifically for connecting thermocouple connectors clamp the thermocouple lead together on both sides of the block as required, obviating the need for a metal link strip inside the block. A metal link strip the same size as the wire can be present in some Thermocouple blocks. thermocouple leads. Some

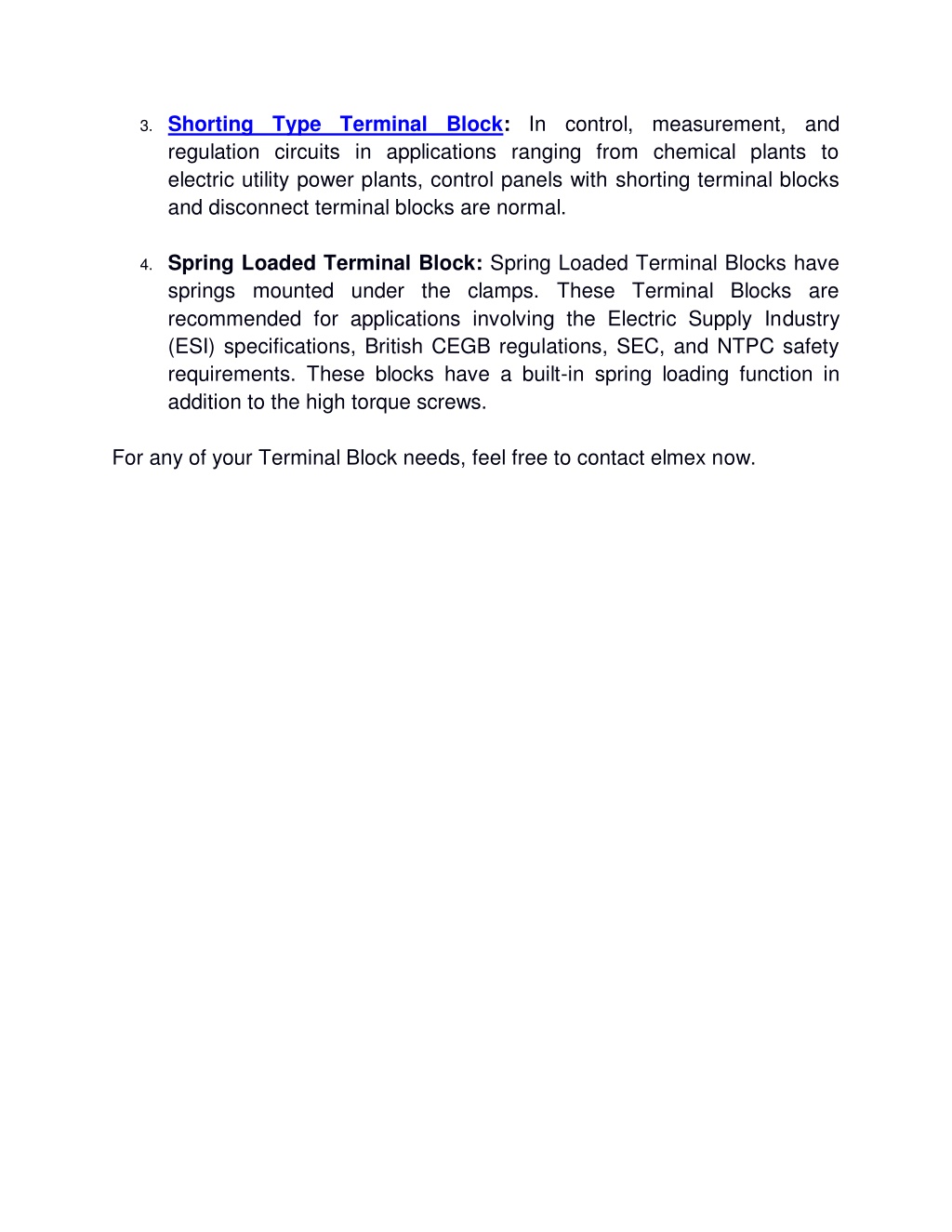

  2. 3. Shorting Type Terminal Block: In control, measurement, and regulation circuits in applications ranging from chemical plants to electric utility power plants, control panels with shorting terminal blocks and disconnect terminal blocks are normal. 4. Spring Loaded Terminal Block: Spring Loaded Terminal Blocks have springs mounted under the clamps. These Terminal Blocks are recommended for applications involving the Electric Supply Industry (ESI) specifications, British CEGB regulations, SEC, and NTPC safety requirements. These blocks have a built-in spring loading function in addition to the high torque screws. For any of your Terminal Block needs, feel free to contact elmex now.
